Renal and Urinary Tract Imaging Indian Medical PG Practice Questions and MCQs
Question 1: In acute pyelonephritis, which of the following is NOT a USG finding:
- A. Increased vascularity (Correct Answer)
- B. Renal enlargement
- C. Increased echogenicity
- D. Compression of the renal sinuses
Explanation: ***Increased vascularity*** - On **grayscale ultrasound**, vascularity assessment is limited, and acute pyelonephritis typically appears as areas of altered echogenicity without direct visualization of blood flow. - However, on **color Doppler ultrasound**, acute pyelonephritis typically shows **increased vascularity** (hyperemia) due to inflammatory response, NOT decreased vascularity. - The question likely refers to **conventional grayscale USG findings** where direct vascularity assessment is not the primary diagnostic feature, unlike CT or Doppler studies. - This option is considered "NOT a typical finding" in the context of **standard grayscale ultrasound examination** where other findings are more reliably demonstrated. *Renal enlargement* - **Renal enlargement** is a common and characteristic finding in acute pyelonephritis due to **edema and inflammation** of the renal parenchyma. - This enlargement is often diffuse but can be focal (focal pyelonephritis or lobar nephronia). *Increased echogenicity* - **Increased echogenicity** of the renal parenchyma is commonly observed in acute pyelonephritis due to **interstitial edema** and inflammatory cell infiltration. - May appear as focal or diffuse areas of altered echogenicity. *Compression of the renal sinuses* - **Compression of the renal sinuses** occurs in acute pyelonephritis as the **inflamed and swollen parenchyma** expands, compressing the echogenic fatty tissue within the central renal sinus. - This finding indicates significant **parenchymal swelling** and is a characteristic feature on ultrasound.
Question 2: A 45-year-old Caucasian male with a history of chronic myeloid leukemia for which he is receiving chemotherapy presents to the emergency room with oliguria and colicky left flank pain. His serum creatinine is 3.0 mg/dL and his urine pH is 5.0. You diagnose nephrolithiasis. His kidney stones, however, are not visible on abdominal x-ray. His stone is most likely composed of which of the following?
- A. Uric acid (Correct Answer)
- B. Cystine
- C. Calcium phosphate
- D. Magnesium ammonium phosphate
- E. Calcium oxalate
Explanation: ***Uric acid*** - The patient has **chronic myeloid leukemia (CML)** and is receiving **chemotherapy**, which can cause a rapid turnover of cells, leading to **hyperuricemia** and the formation of uric acid stones. - Uric acid stones are **radiolucent** (not visible on X-ray) and are associated with a **low urine pH** (5.0 in this case). *Cystine* - Cystine stones are caused by a **genetic defect** in amino acid transport, leading to high urinary cystine levels. - While they are also **radiolucent**, there is no clinical information to suggest a genetic predisposition for cystinuria in this patient. *Calcium phosphate* - Calcium phosphate stones are typically **radio-opaque** and usually form in alkaline urine, which contradicts the patient's low urine pH [1]. - They are often associated with conditions like **renal tubular acidosis** or hyperparathyroidism [1]. *Magnesium ammonium phosphate* - These are also known as **struvite stones** and are highly suggestive of **urinary tract infections** with urea-splitting organisms (e.g., *Proteus*) [1]. - They tend to grow large, form **staghorn calculi**, and are **radio-opaque** [1]. *Calcium oxalate* - Calcium oxalate stones are the **most common type** of kidney stone and are **radio-opaque**, making them visible on X-ray. - They are typically associated with conditions causing **hypercalciuria** or hyperoxaluria, which are not explicitly indicated here, and they would be visible on the X-ray.
Question 3: Most common type of renal carcinoma is:
- A. Clear cell type (Correct Answer)
- B. Chromophobe type
- C. Papillary type
- D. Collecting duct type
Explanation: ***Clear cell type*** - The **clear cell type** is the most common subtype of renal carcinoma, constituting about **70-80%** of cases [3]. - It is typically associated with **von Hippel-Lindau syndrome** and presents with clear or "foamy" cells due to lipid accumulation [3]. *Chromophobe type* - This type comprises about **5-10%** of renal cell carcinomas and usually has a better prognosis [1]. - Characterized by **pale cells with distinct cell borders** and lacks the common features of clear cell carcinoma [1]. *Tubular type* - The tubular variant is less common and does not represent a major subtype of renal cell carcinoma. - It is often confused with other variants but lacks the distinct characteristics of the clear cell type. *Papillary type* - The papillary type accounts for about **10-15%** of renal carcinomas and is characterized by papillary structures [2]. - This type generally has a distinct chromosomal mutation profile compared to the clear cell type [2]. **References:** [1] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Kidney, p. 959. [2] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Kidney, pp. 958-959. [3] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Kidney, pp. 959-961.
Question 4: Which of the following is a gold standard investigation for diagnosis of renal stone?
- A. Helical CT with Non-contrast (Correct Answer)
- B. USG
- C. Helical CT with contrast
- D. MRI
Explanation: ***Helical CT with Non-contrast*** - **Non-contrast helical CT** (also known as CT KUB) is considered the **gold standard** due to its high sensitivity and specificity for detecting all types of urinary tract calculi, regardless of their composition. - It rapidly identifies stones, their location, size, and associated complications like **hydronephrosis**, without the need for IV contrast. *USG* - **Ultrasound** is a good initial screening tool and can detect larger stones and hydronephrosis, but its sensitivity is lower than CT, especially for smaller stones or those in the ureters. - Its diagnostic accuracy is highly **operator-dependent**, and it may miss stones obscured by bowel gas or bone. *Helical CT with contrast* - While helical CT is excellent, the use of **IV contrast** is generally avoided for routine stone detection as it can obscure the highly dense stones from the contrast-enhanced renal collecting system. - Contrast is primarily useful for evaluating **renal masses**, infection, or vascular abnormalities, not for primary stone diagnosis. *MRI* - **MRI** has limited utility in detecting typical renal stones because most calculi are not well-visualized on standard MRI sequences due to their lack of free water and low signal intensity. - It may be considered in specific populations, such as **pregnant women** or children, to avoid radiation exposure, but it is not the gold standard for stone detection.
Question 5: Renal stones which are laminated and irregular in outline are
- A. Uric acid
- B. Calcium oxalate (Correct Answer)
- C. Struvite
- D. Cystine
Explanation: ***Calcium oxalate*** - **Calcium oxalate stones** are the most common type of kidney stones and characteristically present with a **laminated** (layered) and **irregular, spiculated outline** due to their crystalline structure - They are typically **radio-opaque** on X-rays due to their calcium content - The irregular outline distinguishes them from other stone types *Uric acid* - **Uric acid stones** are often **smooth**, hard, and **yellowish-brown** in appearance - They are **radio-lucent** on standard X-rays and are associated with conditions like gout or acidic urine - Their smooth surface contrasts with the irregular calcium oxalate stones *Struvite* - **Struvite stones** (magnesium ammonium phosphate) are strongly associated with **urinary tract infections** (UTIs) and can form **staghorn calculi**, filling the renal pelvis - They tend to be **friable** and have a **smooth or glistening** surface, often growing quite large - Associated with urease-producing bacteria *Cystine* - **Cystine stones** are caused by a genetic disorder affecting amino acid transport and generally appear **smooth, waxy, and hexagonal crystal-shaped** - They are typically **moderately radio-opaque** but less dense than calcium stones - The smooth, waxy appearance differs from the irregular calcium oxalate stones
Question 6: What is the investigation of choice in a patient with blunt abdominal trauma with hematuria?
- A. Contrast enhanced computed tomography (Correct Answer)
- B. Retrograde urogram
- C. Intravenous urogram
- D. Ultrasonography of abdomen
Explanation: ***Contrast enhanced computed tomography (CECT)*** - **CECT** is the **investigation of choice** for evaluating solid organ injuries, including renal trauma, in hemodynamically stable patients with blunt abdominal trauma and hematuria. - It provides detailed imaging of the kidneys, urinary tract, and surrounding structures, allowing for the classification of injury severity and identification of associated injuries. *Retrograde urogram* - A retrograde urogram is primarily used to evaluate the **lower urinary tract** (urethra and bladder) for strictures or injuries, specifically when there is a suspicion of urethral injury. - It is not the primary imaging modality for assessing renal parenchymal or collecting system injuries from blunt trauma. *Intravenous urogram (IVU)* - While an IVU can assess the upper urinary tract, it has largely been replaced by **CECT** in the acute trauma setting due to CECT's superior resolution and ability to evaluate renal parenchyma and other abdominal organs. - IVU exposes the patient to radiation and requires contrast administration, and it may not adequately visualize subtle renal injuries or hematomas as effectively as CECT. *Ultrasonography of abdomen* - **Ultrasound** is useful for rapidly detecting free fluid (suggesting hemorrhage) or gross hydronephrosis in trauma, but it has limited sensitivity for diagnosing specific renal parenchymal injuries or urinary extravasation. - Its role in blunt abdominal trauma with hematuria is often as an initial screening tool, but it is not sufficient for definitive diagnosis or grading of renal injuries.
Question 7: Which of the following statements about CT imaging is the MOST accurate?
- A. Water has a Hounsfield unit (HU) of zero. (Correct Answer)
- B. CT head dose remains constant regardless of the protocol used.
- C. CT cannot detect gallstones under any circumstances.
- D. CT uses unfiltered x-ray beams.
Explanation: ***Water has a Hounsfield unit (HU) of zero.*** - The **Hounsfield unit (HU)** scale is a quantitative scale used to describe radiodensity in CT scans, where **water is defined as 0 HU**. - This establishes a crucial reference point for measuring the attenuation of other tissues, which can range from approximately **-1000 HU for air** to **+1000 HU or more for dense bone**. *CT head dose remains constant regardless of the protocol used.* - The **radiation dose** in CT scans is highly variable and depends significantly on the **protocol used**, including factors like mA, kVp, pitch, and scan length. - **Dose optimization techniques** and protocol adjustments are routinely employed to minimize patient exposure while maintaining diagnostic image quality. *CT cannot detect gallstones under any circumstances.* - While **ultrasound (US)** is the primary modality for detecting gallstones, CT can visualize them, especially if they are **calcified** or of mixed composition. - **Non-calcified gallstones** may be more challenging to detect on CT, but they are not impossible to see, particularly with current generation scanners and appropriate windowing. *CT uses unfiltered x-ray beams.* - CT scanners use **filtered x-ray beams** to provide higher quality images and reduce patient dose. - **Filtration (e.g., aluminum or copper)** removes low-energy x-rays, which would otherwise be absorbed by the patient without contributing to image formation.
Question 8: A female patient presented with recurrent urinary tract infections. What is the most probable diagnosis based on the imaging findings?
- A. Congenital megaureter
- B. Ureterocele (Correct Answer)
- C. Urinary stones
- D. Ureteral duplication
Explanation: ***Ureterocele*** - The imaging shows a rounded, radiolucent filling defect within the **contrast-filled bladder**, which is characteristic of a **ureterocele**. This is often associated with recurrent UTIs due to obstruction and stasis. - A ureterocele is a **congenital dilation** of the terminal part of the ureter as it enters the bladder, causing a cystic protrusion into the bladder lumen. *Congenital megaureter* - A congenital megaureter would appear as a **diffusely dilated ureter** throughout its course, often extending from the renal pelvis, rather than a localized cystic structure within the bladder. - While it can cause recurrent UTIs, the specific bladder filling defect seen here is not typical for an isolated megaureter. *Urinary stones* - Urinary stones would typically appear as **radiopaque foci** of varying size, depending on their composition, within the collecting system or bladder. - They do not typically present as a smooth, rounded filling defect within a contrast-filled bladder. *Ureteral duplication* - Ureteral duplication involves two separate ureters draining a single kidney, which often have their own separate openings into the bladder or meet before entering. - While it can be associated with UTIs (especially with reflux or ectopia), the primary finding on imaging would be the presence of **two distinct ureters**, not an intravesical cystic structure.
Question 9: A 10-year-old child with a history of frequent micturition and fever since 2 years presents to the pediatric OPD. On examination, it was normal. What would be the MOST APPROPRIATE diagnostic modality for this child?
- A. 3D MCU (Correct Answer)
- B. MR UROGRAM
- C. 3D CT UROGRAM
- D. IVP
Explanation: ***3D MCU (Micturating Cystourethrogram)*** - **Gold standard** for diagnosing **vesicoureteral reflux (VUR)**, the most common cause of recurrent UTIs in children - In a child with **2-year history of recurrent UTIs** (fever + frequent micturition), VUR is the primary concern that needs to be ruled out - MCU provides **dynamic imaging** during bladder filling and voiding, allowing direct visualization of **reflux** and assessment of **bladder and urethral anatomy** - **Standard of care** recommended by IAP (Indian Academy of Pediatrics) and major pediatric nephrology guidelines - Though it involves ionizing radiation, the **diagnostic benefit far outweighs risks** in this clinical scenario - Cost-effective and widely available in Indian healthcare settings *MR Urogram* - Provides excellent anatomical detail of the **upper urinary tract** (kidneys, ureters) without radiation - However, it is **NOT the first-line investigation** for recurrent UTI workup in children - Does not adequately assess **dynamic VUR** like MCU does - More expensive, requires sedation in many children, and less accessible - Reserved for specific indications like suspected anatomical anomalies after initial screening *3D CT Urogram* - Excellent for detailed anatomical evaluation but involves **high radiation dose** - Not appropriate as first-line investigation in a **chronic, non-acute pediatric case** - Reserved for complex cases where MR is contraindicated or for acute complications *IVP (Intravenous Pyelogram)* - **Obsolete modality** that has been replaced by ultrasound, MCU, and modern cross-sectional imaging - Provides limited functional and anatomical information - Higher radiation exposure with inferior image quality compared to modern techniques - Not used in current pediatric practice

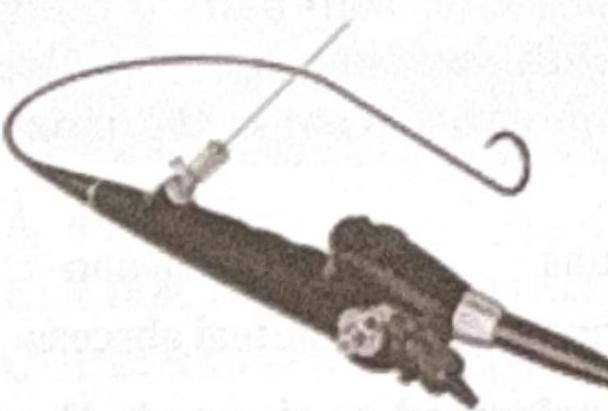

Question 10: Identify the instrument shown in the image.
- A. Nephroscope
- B. Cystoscope
- C. Ureteroscope (Correct Answer)
- D. Laparoscope
Explanation: ***Ureteroscope*** - The image distinctly shows a long, thin, flexible scope with a working channel, consistent with a **flexible ureteroscope**. - The presence of a **guidewire** alongside the scope further indicates its use for navigating the narrow and tortuous ureter. *Nephroscope* - A nephroscope is typically a more rigid and wider instrument used for percutaneous access to the **kidney's collecting system**. - Its design is optimized for procedures within the kidney, not for navigating the ureter. *Cystoscope* - A cystoscope is used to visualize the **bladder** and urethra and is generally shorter and thicker than a ureteroscope. - While it can be flexible or rigid, the instrument shown is too long and thin to be a standard cystoscope. *Laparoscope* - A laparoscope is a rigid instrument used for **abdominal surgery**, inserted through the abdominal wall. - Its design and application are entirely different from the instrument shown, which is designed for internal urinary tract procedures.
