Surface and Radiological Anatomy Practice Questions

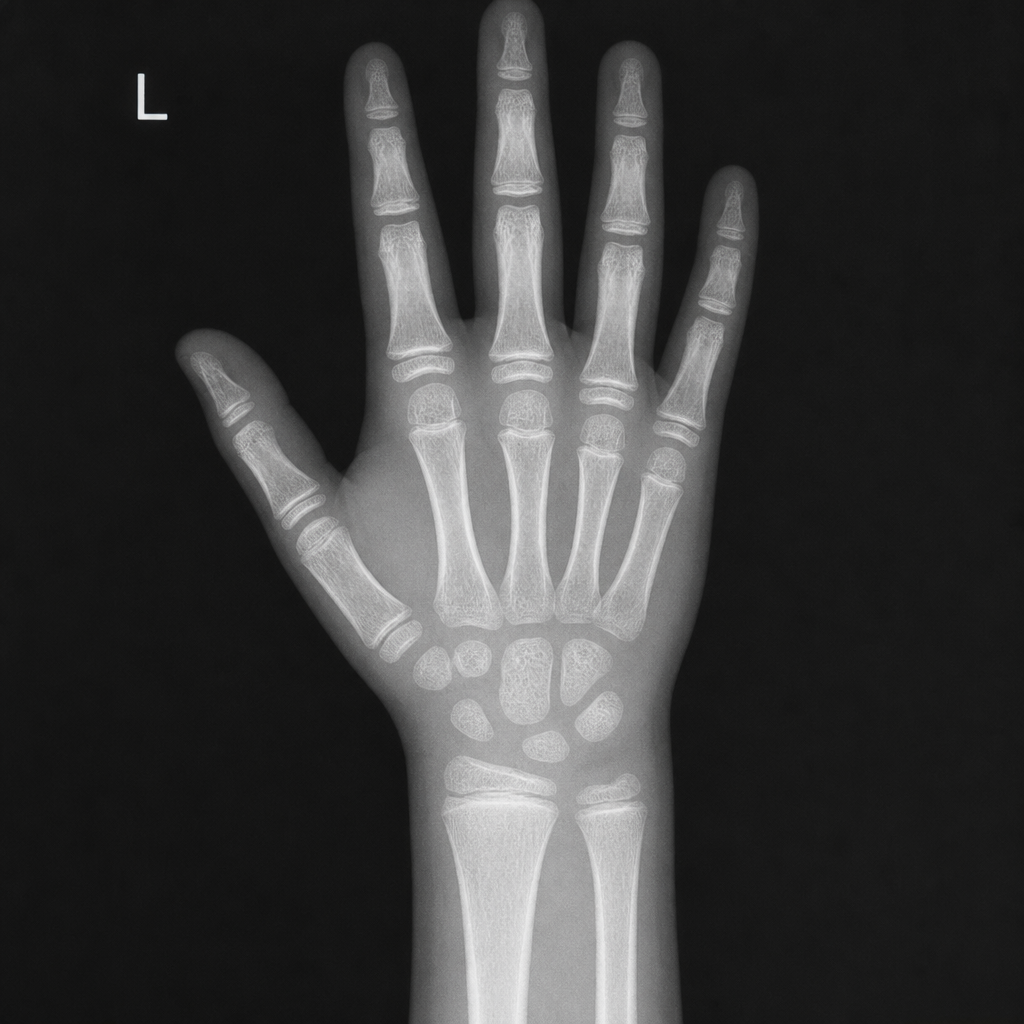

Q: In the following X-ray of the wrist, what is the exact age of the child?

6 years. ***6 years*** - The appearance of **ossification centers** in the carpals and epiphysis of long bones of the hand and wrist indicates a bone age of approximately 6 years. Key markers for this age include the presence of **capitate, hamate, triquetrum, lunate, scaphoid, and trapezium** ossification centers, as well as the initial appearance of the **distal radial epiphysis** and **epiphyses of phalanges and metacarpals**. - Specifically, the **trapezium** and **scaphoid** ossification centers are typically visible by 5-6 years, and the **distal radial epiphysis** has started to ossify but the **distal ulna epiphysis** is not yet visible, which is characteristic of the 6-year-old child. *2 years* - At 2 years of age, fewer **carpal bones** would be ossified, typically only the capitate and hamate, and possibly the triquetrum. - The **epiphyses** of the distal radius and ulna and many of the phalanges and metacarpals would be less developed or not yet visible. *8 years* - By 8 years, the **distal ulna epiphysis** would typically be visible, and the **trapezoid** would also be ossified, which is not clearly evident yet in this image. - The carpal bones present are consistent with a younger age than 8 years. *9 years* - At 9 years, all **carpal ossification centers** (capitate, hamate, triquetrum, lunate, scaphoid, trapezium, trapezoid, and pisiform) would generally be present, with the pisiform appearing around 9-12 years. - The image lacks the full complement of carpal bones consistently seen at 9 years, especially the **pisiform** and a distinctly visible **trapezoid**.

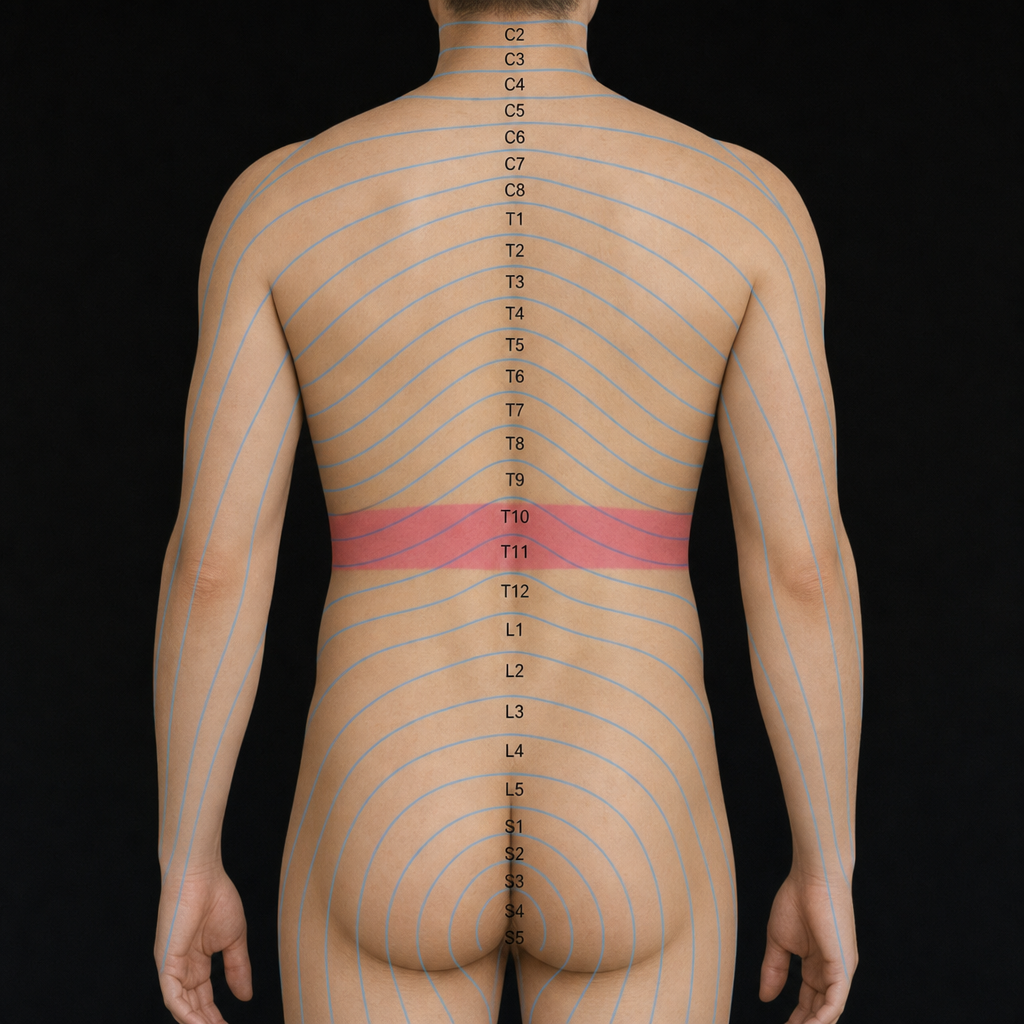

Q: The marked area in the image is supplied by which dermatome?

T10. ***T10*** - The **umbilicus** (navel) is a crucial anatomical landmark for dermatome mapping. - The area around the umbilicus is consistently innervated by the **T10 dermatome**. *T8* - The **T8 dermatome** is located higher on the abdomen, typically around the **xiphoid process**. - It would be too superior to supply the umbilical region. *T9* - The **T9 dermatome** is situated between T8 and T10, above the umbilicus. - It generally covers the region just **above the navel**, but not the navel itself. *T11* - The **T11 dermatome** is located below the umbilicus, closer to the **inguinal region**. - It would be too inferior to innervate the umbilical area.

Q: CT scan of abdomen showing a structure branching within the liver. Identify the structure.

Portal vein. ***Portal vein*** - The image shows a **branching vessel within the liver parenchyma**. The **portal vein** enters the liver at the porta hepatis and branches extensively to supply the liver with nutrient-rich, deoxygenated blood from the gastrointestinal tract. - On a CT scan, the portal vein and its branches appear as prominent, contrast-filled structures centrally located within the liver, consistent with the identified structure. *Superior Vena Cava* - The **superior vena cava** is located in the **chest**, superior to the diaphragm, and drains blood from the upper body into the right atrium; it does not branch within the liver. - This vessel would not be visible in an abdominal CT slice at this level and does not show intrahepatic branching. *Inferior Vena Cava* - The **inferior vena cava (IVC)** is a large vessel located **posterior to the liver**, collecting deoxygenated blood from the lower body and liver (via hepatic veins) before emptying into the right atrium. - While it is in the abdomen, it does not branch within the liver parenchyma in the same manner as the portal vein; rather, **hepatic veins** drain into it from the liver. *Splenic Vein* - The **splenic vein** runs along the **posterior aspect of the pancreas** and eventually joins with the superior mesenteric vein to form the portal vein outside the liver. - It does not enter or branch within the liver itself; its location is too far posterior and outside the liver to match the structure indicated.

Q: Identify the artery labeled as 'X' in the provided angiography anatomy image.

Superior mesenteric artery. ***Superior mesenteric artery*** - The image displays a selective angiogram highlighting an artery branching off the **aorta** in the abdominal region and supplying multiple loops of bowel, characteristic of the superior mesenteric artery. - The location and extensive branching pattern supplying various abdominal structures confirm its identity as the **superior mesenteric artery**, which typically arises below the celiac trunk. *Subclavian artery* - The **subclavian artery** is located in the chest and shoulder region, supplying the upper limbs and parts of the head and neck. - Its anatomical location and distribution are distinctly different from the abdominal artery shown in the image. *Celiac trunk* - The **celiac trunk** is an earlier branch off the aorta, typically arising just below the diaphragm, and it branches into the splenic, left gastric, and common hepatic arteries. - The artery labeled 'X' arises lower than where the celiac trunk would typically originate and demonstrates a different branching pattern. *Brachiocephalic trunk* - The **brachiocephalic trunk** (also known as the innominate artery) is a major artery in the upper chest, typically the first branch off the aortic arch. - It supplies blood to the right arm and head, not abdominal organs, making it anatomically incorrect for the artery labeled 'X'.

Q: Which of the following statements about Langer's lines is false?

Remain constant throughout life time of a person. ***Remain constant throughout life time of a person*** - This statement is **false** because **Langer's lines** are **dynamic**, changing with factors like age, weight fluctuations, and pregnancy. - The orientation of **collagen fibers** in the dermis, which dictates Langer's lines, is influenced by skin tension and underlying tissue changes over time. *Represent lines of natural skin tension* - This statement is **true** because Langer's lines represent the **direction of natural skin tension** created by the predominant orientation of collagen fiber bundles in the dermis. - These lines follow the natural **cleavage lines** of the skin and indicate the direction in which the skin has maximum **extensibility** and **elasticity**. *Correspond to the collagen fibers in dermis* - This statement is **true** because Langer's lines represent the **direction of maximum tension** in the skin, which is determined by the predominant orientation of **collagen fiber bundles** within the dermis. - These lines are an effective mapping of the **structural arrangement** of the skin's connective tissue. *Incision along these lines produces better scar* - This statement is **true** because incisions made **parallel to Langer's lines** experience less tension during healing. - This reduced tension results in **less wound gaping** and subsequent formation of a **finer, less noticeable scar**.

Q: Which of the following terms is used to describe the most prominent point of nasal tip?

Pronasale. Pronasale - This term precisely defines the most **anterior projecting point** of the **nasal tip**. - It is a key **cephalometric landmark** used in facial analysis and surgical planning. *Alare* - The alare refers to the most **lateral point** on the ala of the nose, which is the fleshy part forming the outer wall of the nostril. - It describes the **width of the nose** rather than its projection. *Nasion* - The nasion is a depressed area located at the **root of the nose**, between the eyes. - It is the junction of the **frontal bone** and the **nasal bones**, distinct from the nasal tip. *Columella apex* - The columella is the narrow strip of tissue that separates the nostrils and runs from the nasal tip to the upper lip. - While it contributes to the nasal tip, the **columella apex** specifically refers to the most inferior point of the columella, not the most prominent point of the entire nasal tip.

Q: Which anatomical plane passes through the midpoint between the suprasternal notch and the pubic symphyses?

Transpyloric plane. ***Transpyloric plane*** - The **transpyloric plane** is a commonly used anatomical landmark that is positioned approximately halfway between the **suprasternal notch** (at the top of the sternum) and the **pubic symphysis** (where the pubic bones meet). - This plane typically passes through the **pylorus of the stomach**, the neck of the pancreas, the hila of the kidneys, the fundus of the gallbladder, and the origin of the superior mesenteric artery. - It is located at approximately the level of the **L1 vertebra**. *Transtubercular plane* - The **transtubercular plane** passes through the **iliac tubercles** of the pelvis. - This plane is located at the level of **L5 vertebra**, much lower than the midpoint between the suprasternal notch and the pubic symphysis. *Subcostal plane* - The **subcostal plane** passes through the **lower borders of the 10th costal cartilages**. - This plane is located at the level of **L3 vertebra**, lower than the transpyloric plane. *Transxiphoid plane* - The **transxiphoid plane** passes through the **xiphoid process** of the sternum. - This plane is located at approximately the **T9 vertebra level**, significantly higher than the midpoint between the suprasternal notch and the pubic symphysis.

Q: At what age are the first four carpal bones (capitate, hamate, triquetrum, and lunate) typically visible on an X-ray?

4 years. ***Correct: 4 years*** - By **4 years of age**, all four carpal bones—**capitate**, **hamate**, **triquetrum**, and **lunate**—are typically visible on X-ray. - The **capitate** and **hamate** appear first (around 2-4 months of age). - The **triquetrum** appears around **2-3 years**. - The **lunate** is the last of these four to appear, typically visible by **3-4 years**. - This age marks a significant progression in **skeletal maturation** and provides key milestones for assessing bone age. *Incorrect: 2 years* - At **2 years of age**, typically only the **capitate**, **hamate**, and **triquetrum** are visible on X-ray. - The **lunate** has usually not yet ossified sufficiently to be radiographically apparent at this age. - Since the question asks when all four specified bones are visible, 2 years is too early. *Incorrect: 5 years* - By **5 years of age**, all four carpal bones (capitate, hamate, triquetrum, lunate) would have already been well-established and visible for over a year. - Additionally, the **scaphoid** would likely be appearing or already visible by this age. - This is later than when all four bones first become visible together. *Incorrect: 7 years* - At **7 years of age**, not only these four carpal bones but also additional carpal bones like the **scaphoid**, **trapezium**, and **trapezoid** would be clearly visible. - The visibility of the four bones specified in the question would be well established much earlier than this age. - This represents a much more advanced stage of carpal bone maturation.

Q: In normal X-ray of shoulder, which is the superior most structure?

Coracoid process. ***Coracoid process*** - On a standard **X-ray projection of the shoulder**, especially an **AP view**, the **coracoid process** of the scapula is typically the most superior bony structure visible. - Its anterior projection often situates it cranially to other humeral landmarks. *Greater tubercle* - The **greater tubercle** is part of the proximal humerus and serves as an attachment site for rotator cuff muscles. - While prominent, it usually lies infero-lateral to the coracoid process in most standard shoulder X-ray views. *Surgical neck of the humerus* - The **surgical neck** is located distal to the head and tubercles of the humerus. - It is positioned significantly inferior to the superior aspect of the shoulder joint. *Head of the humerus* - The **head of the humerus** articulates with the glenoid fossa of the scapula. - While superior to much of the humerus, the coracoid process typically extends more superiorly.

Q: Which part of scapula can be palpated in the infraclavicular fossa?

Coracoid process. **Coracoid process** - The **coracoid process** is a hook-like projection from the top of the scapula that extends anteriorly and can be palpated in the **infraclavicular fossa**, just medial to the deltoid. - It serves as an attachment point for various muscles and ligaments, including the **pectoralis minor** and the coracobrachialis. *Spine of scapula* - The **spine of the scapula** is a prominent ridge on the posterior surface of the scapula, easily palpable on the **back**, not in the infraclavicular fossa. - It divides the posterior scapular surface into the supraspinous and infraspinous fossae. *Inferior angle* - The **inferior angle** is the lowest point of the scapula and is palpable on the **posterior chest wall**, typically at the level of the seventh rib. - It is a key landmark for assessing scapular movement and position. *Supraspinous fossa* - The **supraspinous fossa** is a concave area on the posterior aspect of the scapula, superior to the spine of the scapula, housing the **supraspinatus muscle**. - It is located posteriorly and cannot be palpated anteriorly in the infraclavicular fossa.

Question 1

In the following X-ray of the wrist, what is the exact age of the child?

Accepted Answer

6 years

Answer

2 years

Answer

8 years

Answer

9 years

Question 2

The marked area in the image is supplied by which dermatome?

Accepted Answer

T10

Answer

T8

Answer

T9

Answer

T11

Question 3

CT scan of abdomen showing a structure branching within the liver. Identify the structure.

Accepted Answer

Portal vein

Answer

Superior vena cava

Answer

Inferior vena cava

Answer

Splenic vein

Question 4

Identify the artery labeled as 'X' in the provided angiography anatomy image.

Accepted Answer

Superior mesenteric artery

Answer

Subclavian artery

Answer

Celiac trunk

Answer

Brachiocephalic trunk

Question 5

Which of the following statements about Langer's lines is false?

Accepted Answer

Remain constant throughout life time of a person

Answer

Represent lines of natural skin tension

Answer

Correspond to the collagen fibers in dermis

Answer

Incision along these lines produces better scar

Question 6

Which of the following terms is used to describe the most prominent point of nasal tip?

Accepted Answer

Pronasale

Answer

Alare

Answer

Nasion

Answer

Columella apex

Question 7

Which anatomical plane passes through the midpoint between the suprasternal notch and the pubic symphyses?

Accepted Answer

Transpyloric plane

Answer

Subcostal plane

Answer

Transtubercular plane

Answer

Transxiphoid plane

Question 8

At what age are the first four carpal bones (capitate, hamate, triquetrum, and lunate) typically visible on an X-ray?

Accepted Answer

4 years

Answer

2 years

Answer

5 years

Answer

7 years

Question 9

In normal X-ray of shoulder, which is the superior most structure?

Accepted Answer

Coracoid process

Answer

Greater tubercle

Answer

Surgical neck of the humerus

Answer

Head of the humerus

Question 10

Which part of scapula can be palpated in the infraclavicular fossa?

Accepted Answer

Coracoid process

Answer

Spine of scapula

Answer

Inferior angle

Answer

Supraspinous fossa
