Applied Anatomy and Clinical Correlations

Applied Anatomy and Clinical Correlations

Applied Anatomy and Clinical Correlations

On this page

Thoracic Cage & Pleura - Ribs, Lungs, & Leaks

  • Ribs: 12 pairs; True (1-7), False (8-10), Floating (11-12).
    • 📌 Atypical: 1, 2, 10-12.
    • Rib fractures: Flail chest (≥3 ribs, ≥2 places each) → paradoxical breathing.
    • Cervical rib: Thoracic Outlet Syndrome (TOS) risk.
  • Pleura: Parietal (pain-sensitive) & Visceral layers.
    • Recesses: Costodiaphragmatic (fluid collection).
    • Pneumothorax: Air in pleural space.
      • Tension Pneumothorax: Emergency! Tracheal deviation (away), ↓BP, ↑HR. Needle: 2nd ICS MCL; Tube: 5th ICS MAL.
    • Pleural Effusion: Fluid. Transudate vs. Exudate (Light's criteria).
    • Hemothorax (blood), Chylothorax (lymph).

⭐ Tension pneumothorax: Clinical diagnosis. Immediate needle decompression (2nd ICS MCL), then chest tube.

Mediastinum & Nerves - Middle Muddle & Zaps

  • Mediastinum: Central thoracic compartment.
    • Middle Mediastinum: Contains heart, pericardium, origins of great vessels (aorta, pulmonary trunk), main bronchi, phrenic nerves.
    • Anterior Mediastinal Masses: 📌 4 Ts: Thymoma, Teratoma, (Ectopic) Thyroid, Terrible Lymphoma.
  • Key Nerves & Clinical "Zaps":
    • Phrenic Nerve (C3,C4,C5): "C3,4,5 keeps diaphragm alive."
      • Runs anterior to lung root.

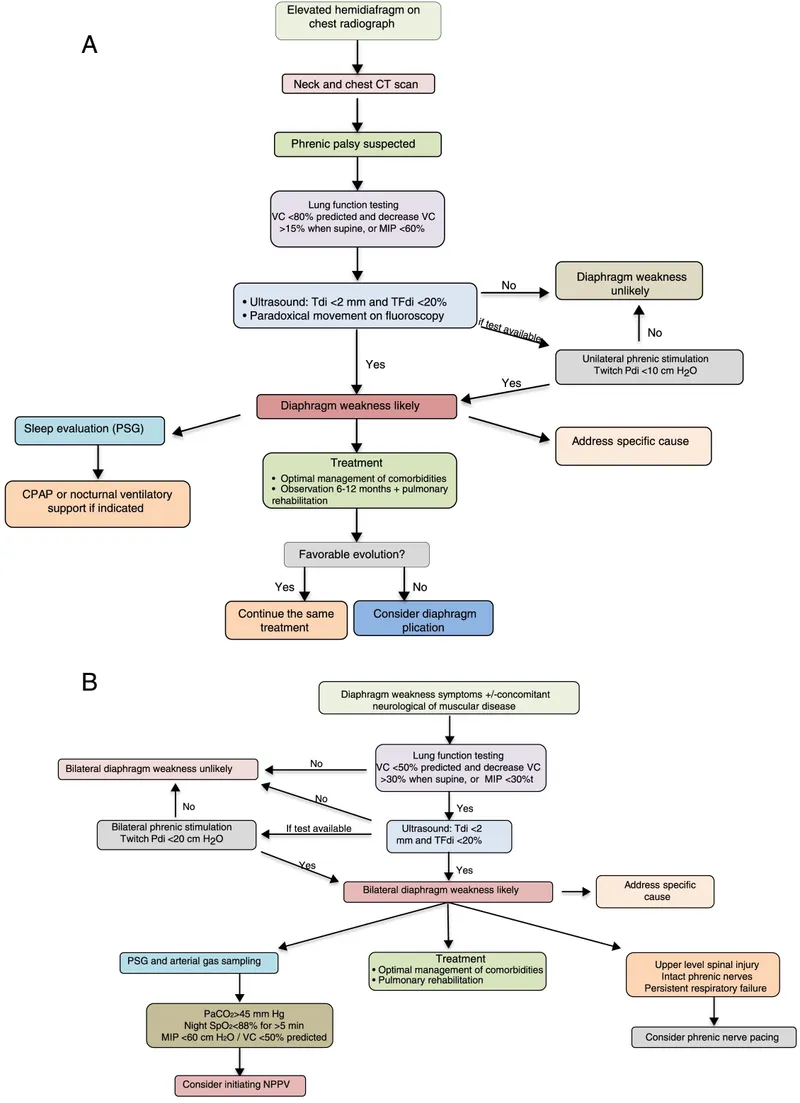

      • Injury → hemidiaphragm paralysis, paradoxical respiration. Diaphragm weakness evaluation and management
    • Vagus Nerve (CN X) & Recurrent Laryngeal Nerves (RLN):
      • Vagus runs posterior to lung root.
      • Left RLN: Hooks under aortic arch; vulnerable to compression.
      • Injury → hoarseness of voice.
    • Sympathetic Trunk:
      • Horner's Syndrome: 📌 PAM (Ptosis, Anhidrosis, Miosis). Caused by lesions affecting cervical/apical thoracic sympathetic chain (e.g., Pancoast tumor).

Ortner's Syndrome (Cardiovocal Syndrome): Hoarseness due to left RLN compression, often by an enlarged left atrium (e.g., in mitral stenosis) or dilated pulmonary artery/aortic arch aneurysm.

Cardiac & Vascular Clinicals - Pump & Pipe Problems

  • Pump Issues (Heart):
    • Myocardial Infarction (MI):
      • ECG: ST ↑ (STEMI), ST ↓/T inversion (NSTEMI).
      • Markers: ↑ Troponin I (specific), ↑ CK-MB.
      • 📌 LAD occlusion → Anterior MI (common).
    • Heart Failure (HF):
      • Systolic (↓EF) vs. Diastolic (impaired fill).
      • Signs: ↑JVP, edema, S3 (systolic), S4 (diastolic).
    • Cardiac Tamponade:
      • Beck's Triad: Hypotension, Muffled heart sounds, ↑JVP.
      • Pulsus paradoxus >10 mmHg.

      ⭐ Electrical alternans on ECG is highly specific for large pericardial effusion/tamponade.

  • Pipe Issues (Vessels):
    • Aortic Dissection:
      • Stanford A (Ascending): Surgery.
      • Stanford B (Descending): Medical Rx.
      • Tearing chest pain radiating to back.
    • Pulmonary Embolism (PE):
      • Source: DVT. Wells score for risk.
      • Dx: CTPA. ECG: S1Q3T3 (rare). Chest X-ray: Widened mediastinum in Aortic Dissection

Airways & Lungs - Breathing Blues & Bumps

  • Trachea & Bronchi:
    • Carina: Bifurcation at T4-T5 vertebral level.
    • Right Main Bronchus: Wider, shorter, more vertical. 📌 "Inhale a bite, goes down the right." Common site for foreign body aspiration.
  • Lungs & Pleura:
    • Lobes: Right lung (3 lobes: superior, middle, inferior); Left lung (2 lobes: superior, inferior + lingula).
    • Pleura: Visceral (covers lungs), Parietal (lines thoracic cavity). Pleural cavity is a potential space.

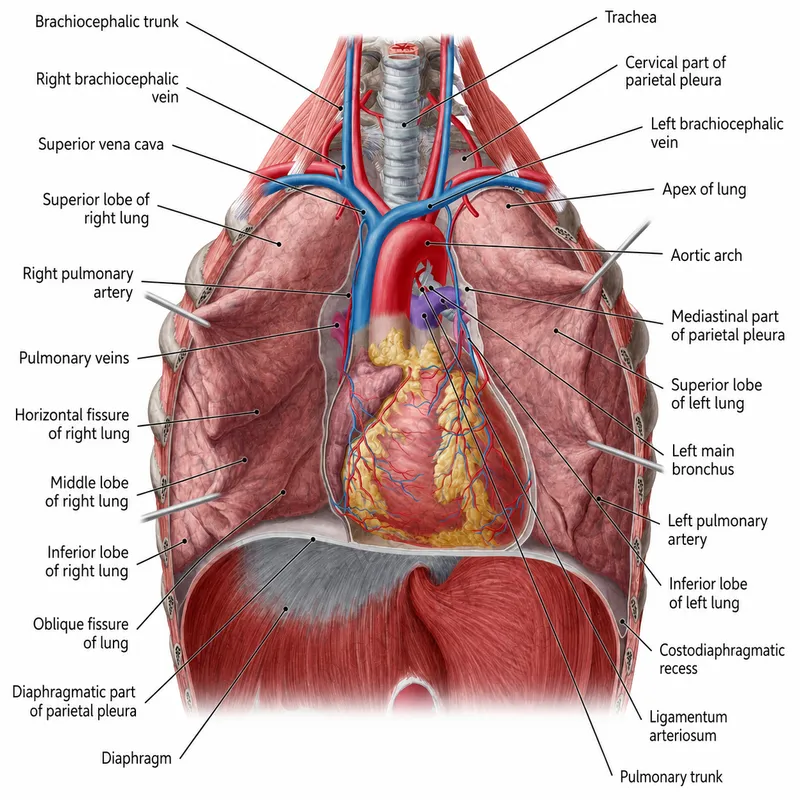

    • Thorax anatomy: lungs, heart, trachea, bronchi, pleura
  • Clinical Correlations:
    • Aspiration Pneumonia: Most common in right lower lobe (gravity-dependent segments).
    • Pneumothorax: Air in pleural cavity. Tension pneumothorax: mediastinal shift, ↓venous return.
    • Pleural Effusion: Fluid in pleural cavity (transudate/exudate).
    • Pancoast Tumor: Apical lung tumor; may cause Horner's syndrome.

    ⭐ Horner's Syndrome: Classic triad of miosis (constricted pupil), ptosis (drooping eyelid), and anhydrosis (decreased sweating) on one side of the face, due to sympathetic chain damage (e.g., by Pancoast tumor).

High‑Yield Points - ⚡ Biggest Takeaways

  • Coarctation of Aorta: Rib notching, "3" sign (X-ray), differential BP (arms > legs).
  • Pancoast Tumor: Apical mass → Horner's syndrome, C8-T1 pain/weakness.
  • Tension Pneumothorax: Contralateral tracheal shift, hyperresonance, urgent needle decompression.
  • Flail Chest: Paradoxical respiration from multiple rib fractures (≥2 ribs, ≥2 places).
  • Cardiac Tamponade: Beck's triad (hypotension, JVD, muffled sounds), pulsus paradoxus.
  • Aortic Dissection: Tearing chest pain to back, widened mediastinum, unequal BP.
  • Diaphragmatic Hernia: Most common left posterolateral (Bochdalek); bowel sounds in chest.

Practice Questions: Applied Anatomy and Clinical Correlations

Test your understanding with these related questions

What is flail chest?

1 of 5

Flashcards: Applied Anatomy and Clinical Correlations

1/10

Which ribs are known as typical ribs?_____

TAP TO REVEAL ANSWER

Which ribs are known as typical ribs?_____

3-9
