Radiographic Anatomy of Skull and Face Indian Medical PG Practice Questions and MCQs
Question 1: Transverse and vertical study of the skeleton can be done in?
- A. SMV
- B. PA ceph (Correct Answer)
- C. OMV
- D. Lateral Ceph
Explanation: ***PA ceph*** - A **posteroanterior (PA) cephalometric radiograph** allows for the evaluation of the skeletal structures in both **transverse (width) and vertical (height) dimensions** of the face and skull. - It is particularly useful for assessing **facial symmetry**, transverse discrepancies, and the vertical relationships of the upper and lower jaws. - This is the **gold standard** for evaluating both transverse and vertical skeletal relationships simultaneously. *SMV* - The **submentovertex (SMV)** projection primarily visualizes the **cranial base**, zygomatic arches, and sphenoid sinuses. - It is mainly used for assessing the **width of the cranial base** and specific structural morphology, but does not provide comprehensive transverse and vertical skeletal analysis in the way PA ceph does. *OMV* - The **occipitomental view (OMV)**, also known as **Waters view**, is a standard radiographic projection primarily used for evaluating **paranasal sinuses** and **facial bones**. - While it shows some anteroposterior and limited transverse information, it is **not the primary projection** for comprehensive transverse and vertical skeletal study. - PA ceph is superior for systematic transverse and vertical skeletal assessment. *Lateral Ceph* - A **lateral cephalometric radiograph** primarily provides a two-dimensional view of the skull and facial bones in the **sagittal plane**. - It is excellent for assessing **anteroposterior (AP) and vertical skeletal relationships**, but it **does not show transverse dimensions or asymmetry** since it's a side view.
Question 2: All pass through jugular foramen except
- A. Mandibular nerve (Correct Answer)
- B. Vagus nerve
- C. Internal jugular vein
- D. Glossopharyngeal nerve
Explanation: ***Mandibular nerve*** - The **mandibular nerve** (CN V3) exits the skull through the **foramen ovale**, not the jugular foramen. - It is a branch of the **trigeminal nerve** and is responsible for motor innervation to muscles of mastication and sensory innervation to the lower face and mouth. *Glossopharyngeal nerve* - The **glossopharyngeal nerve** (CN IX) is one of the three cranial nerves that exit through the **jugular foramen**. - It provides motor, sensory, and parasympathetic innervation including taste from posterior third of tongue and motor to stylopharyngeus muscle. *Vagus nerve* - The **vagus nerve** (CN X) is one of the major cranial nerves that exits the skull through the **jugular foramen**. - It provides extensive motor, sensory, and parasympathetic innervation to the head, neck, thorax, and abdomen. *Internal jugular vein* - The **internal jugular vein** is formed at the jugular foramen by the continuation of the **sigmoid sinus**, and it exits the skull through this foramen. - It is one of the primary venous drainage pathways for the brain.
Question 3: An MRI shows 'salt and pepper' appearance of skull. Which bone scan finding would best support Paget's disease?
- A. Mickey mouse sign
- B. Photopenic lesions
- C. Doughnut sign
- D. Superscan pattern (Correct Answer)
Explanation: ***Superscan pattern*** - A **superscan** on a bone scintigraphy signifies widespread, increased radionuclide uptake in the skeleton, often seen in the disseminated form of **Paget's disease**, particularly involving multiple bones. - While "salt and pepper" skull refers to **osteoporosis circumscripta** in Paget's, the superscan on bone scan indicates diffuse metabolic activity consistent with the overall disease process. *Mickey mouse sign* - This sign is typically associated with **fibrous dysplasia** of the skull, not Paget's disease. - It describes a characteristic appearance on scintigraphy due to asymmetric uptake in the skull base, distinct from Paget's. *Photopenic lesions* - **Photopenic** or "cold" lesions on bone scan indicate areas of decreased metabolic activity or bone destruction, such as in some metastases or avascular necrosis. - Paget's disease is characterized by markedly **increased bone turnover**, resulting in areas of increased uptake, not photopenia. *Doughnut sign* - The **doughnut sign** can be seen in various conditions like benign bone cysts or fibrous dysplasia through bone scintigraphy, but it is not characteristic of Paget's disease. - It represents a central area of decreased uptake surrounded by a rim of increased uptake, which differs from the diffuse uptake pattern in Paget's.
Question 4: Match the following: A) Glossopharyngeal nerve B) Spinal accessory nerve C) Facial nerve D) Mandibular nerve 1) Shrugging of shoulder 2) Touch sensation from the posterior one-third of the tongue 3) Chewing 4) Taste from the anterior two-thirds of the tongue
- A. A-3 , B-1 , C-4 , D-2
- B. A-2 , B-3 , C-4 , D-1
- C. A-4 , B-1 , C-2 , D-3
- D. A-2 , B-1 , C-4 , D-3 (Correct Answer)
Explanation: ***A-2 , B-1 , C-4 , D-3*** - **A) Glossopharyngeal nerve (CN IX)** is responsible for **general sensation and taste from the posterior one-third of the tongue** [1]. (2). - **B) Spinal Accessory nerve (CN XI)** innervates the **sternocleidomastoid** and **trapezius muscles**, which are involved in shrugging the shoulders (1). - **C) Facial nerve (CN VII)** carries **taste sensation from the anterior two-thirds of the tongue** [1] (4) via the chorda tympani. - **D) Mandibular nerve (V3)**, a branch of the trigeminal nerve, innervates the muscles of mastication, enabling **chewing** (3). *A-3 , B-1 , C-4 , D-2* - This option incorrectly associates the **glossopharyngeal nerve** with chewing, which is a function of the mandibular nerve (V3). - It also incorrectly associates the **mandibular nerve** with touch sensation from the posterior one-third of the tongue, which is a function of the glossopharyngeal nerve [1]. *A-2 , B-3 , C-4 , D-1* - This option incorrectly links the **spinal accessory nerve** with chewing; this nerve primarily controls shoulder and neck movements. - It also incorrectly assigns shrugging of the shoulder to the **mandibular nerve** instead of the spinal accessory nerve. *A-4 , B-1 , C-2 , D-3* - This choice incorrectly attributes **taste from the anterior two-thirds of the tongue** to the glossopharyngeal nerve, which supplies the posterior one-third [1]. - It also incorrectly links **touch sensation from the posterior one-third of the tongue** to the facial nerve, which is involved in taste from the anterior two-thirds [1].
Question 5: All of the following structures lie outside the cavernous sinus except:
- A. Sphenoidal air sinus
- B. Maxillary nerve
- C. Internal carotid artery (Correct Answer)
- D. Foramen lacerum
Explanation: ***Internal carotid artery*** - The **internal carotid artery** passes directly through the **venous cavity** of the **cavernous sinus**, surrounded by venous blood. - This anatomical relationship is clinically significant, as trauma to the ICA within the sinus can lead to a **carotid-cavernous fistula**. - The ICA and the **abducent nerve (CN VI)** are the only structures that lie freely within the venous blood of the cavernous sinus. *Sphenoidal air sinus* - The **sphenoidal air sinus** is an air-filled cavity located inferior and anterior to the **cavernous sinus**, separated by a thin bony wall. - It is a distinct anatomical structure completely outside the cavernous sinus. *Maxillary nerve* - The **maxillary nerve (V2)** is located in the **lateral wall** of the cavernous sinus, embedded within the dura mater. - Unlike the ICA, it does **not** lie within the venous cavity itself, but rather within the thickness of the lateral wall. - It exits the skull through the **foramen rotundum** to enter the pterygopalatine fossa. - For the purposes of this question, structures in the lateral wall are considered separate from those within the venous space. *Foramen lacerum* - The **foramen lacerum** is an opening in the base of the skull, inferomedial to the **cavernous sinus**. - It is a bony aperture, not a structure within the cavernous sinus itself. - No major structures fully traverse the foramen lacerum as a completed entity in adults; instead, it is largely filled with fibrocartilage.

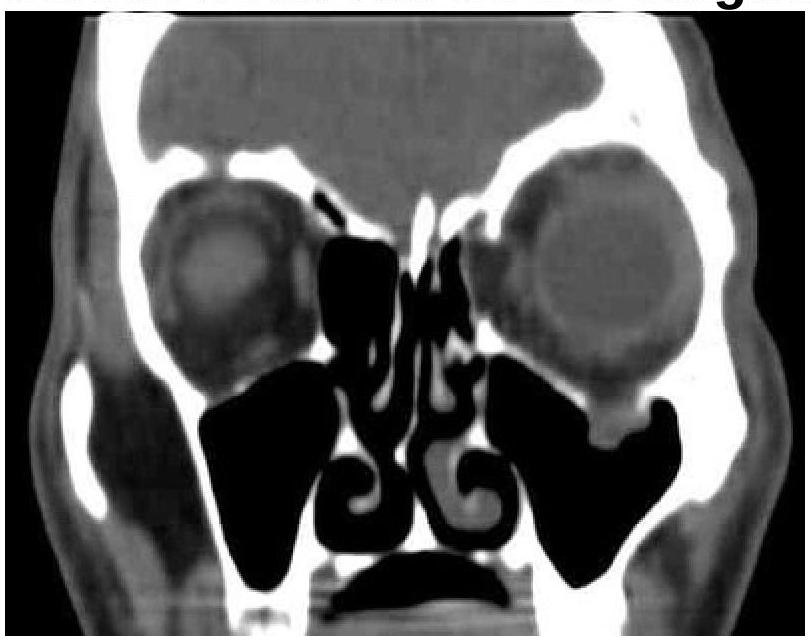

Question 6: A patient presented with a history of diplopia and restricted eye movements. What is the most likely diagnosis based on the clinical and CT images?
- A. Le Fort fracture
- B. Maxillary fracture
- C. Zygomatic fracture
- D. Blowout fracture (Correct Answer)
Explanation: ***Blowout fracture*** - The CT image shows a **fracture of the orbital floor**, with associated **herniation of orbital contents** (fat and inferior rectus muscle) into the maxillary sinus. - This type of fracture commonly causes **diplopia** (due to muscle entrapment) and **restricted eye movements**. *Le Fort fracture* - Le Fort fractures involve the **midface and maxilla** as a whole, typically causing widespread facial instability. - They are classified into three types (I, II, III), none of which are exclusively characterized by an isolated orbital floor fracture with muscle entrapment. *Maxillary fracture* - While an orbital floor fracture involves the maxilla, a "maxillary fracture" is a broad term and does not specifically describe the characteristic features of **orbital content prolapse** and their resulting symptoms. - Isolated maxillary fractures might not cause diplopia or restricted eye movements unless they directly involve the orbit. *Zygomatic fracture* - A zygomatic fracture (either isolated or as part of a zygomaticomaxillary complex fracture) primarily affects the **cheekbone**. - While it can involve the orbital rim, it typically presents with **facial asymmetry**, **numbness** in the infraorbital nerve distribution, and sometimes **trismus**, rather than isolated muscle entrapment causing diplopia, as seen in the image.
Question 7: Hinge fracture is seen in
- A. Posterior cranial fossa
- B. Anterior cranial fossa
- C. Middle cranial fossa (Correct Answer)
- D. Vault
Explanation: ***Middle cranial fossa*** - A **hinge fracture** is a term sometimes used to describe a **linear skull fracture** that extends across the floor of the **middle cranial fossa**. - This type of fracture often involves the **temporal bone** and can lead to damage to structures within, such as the facial nerve or auditory ossicles. *Posterior cranial fossa* - Fractures in the **posterior cranial fossa** are usually related to trauma to the back of the head. - While they can be severe and involve the occipital bone, they are not typically referred to as hinge fractures. *Anterior cranial fossa* - Fractures of the **anterior cranial fossa** commonly involve the frontal bone, ethmoid bone, or sphenoid bone. - These fractures can cause **CSF rhinorrhea** or periorbital ecchymosis (raccoon eyes), but the term hinge fracture is not associated with this location. *Vault* - Fractures of the **cranial vault** typically refer to fractures of the flat bones forming the top and sides of the skull. - These can be linear, depressed, or comminuted, but the characteristic "hinge" description specifically applies to the base of the skull, particularly the middle fossa.
Question 8: Carina is situated at which level?
- A. T3
- B. T4 (Correct Answer)
- C. T9
- D. T6
Explanation: ***T4*** - The **carina**, the point where the trachea bifurcates into the left and right main bronchi, is most commonly located at the level of the **T4-T5 intervertebral disc** or approximately the **T4-T5 vertebral level**. - Among the given options, **T4** is the most accurate answer as it represents the closest anatomical landmark. - The carina corresponds to the **sternal angle (angle of Louis)** anteriorly, which is at the level of the second costal cartilage. - This anatomical landmark is crucial in clinical procedures like **bronchoscopy**, **endotracheal tube placement**, and radiologic imaging. - Note: The exact level varies slightly with respiration and individual anatomy. *T3* - The **T3 vertebral level** is **superior to the carina** and corresponds to structures in the upper mediastinum. - This level is too high for the tracheal bifurcation. *T9* - The **T9 vertebral level** is significantly **inferior to the carina**, located in the lower thoracic region. - This level corresponds to the **xiphisternal junction** anteriorly. - Important structures at this level include the inferior vena cava passing through the diaphragm (at T8). *T6* - The **T6 vertebral level** is **inferior to the carina**. - While the carina may descend to approximately this level during deep inspiration, the anatomical resting position is higher. - This level is associated with the **xiphoid process** anteriorly.
Question 9: Basal skull view (submentovertical view) X-ray is best to visualize which structures?
- A. Ethmoid sinus
- B. Frontal sinus
- C. Sphenoid sinus (Correct Answer)
- D. Maxillary sinus
Explanation: ***Sphenoid sinus*** - The **basal skull view** (submentovertical or SMV view) directs the X-ray beam from below the chin, through the base of the skull, allowing for an optimal profile of the **sphenoid sinus** and its walls. - This view is particularly useful for assessing conditions like **sphenoid sinusitis** or tumors impacting the sphenoid bone. *Ethmoid sinus* - The **ethmoid sinuses** are best visualized in the **Caldwell view** (posteroanterior) and **Waters view** (occipitomental), which provide better detail of the medial orbital walls and ethmoid air cells. - While the SMV view can show some portions, it lacks the clarity and complete visualization of the ethmoid complex compared to other projections. *Frontal sinus* - The **frontal sinuses** are primarily seen in the **Caldwell view** (posteroanterior) and the **lateral view**, which offer a clear representation of their anterior and posterior walls, as well as their superior-inferior extent. - The SMV view projects the frontal sinuses superiorly, making them difficult to evaluate comprehensively due to superimposed structures. *Maxillary sinus* - The **maxillary sinuses** are most clearly demonstrated in the **Waters view** (occipitomental), which projects the petrous ridges below the maxillary sinuses, providing an unobstructed view of their floors and walls. - The SMV view shows the maxillary sinuses, but their detailed evaluation, especially for fluid levels or mucosal thickening, is better achieved with the Waters view.
Question 10: The best view to visualize zygomatic arches is
- A. Skull PA view
- B. Jug Handle view (Correct Answer)
- C. Orthopantamogram
- D. Occipito mental view
Explanation: ***Jug Handle view*** - The **Jug Handle view**, also known as the **submentovertex (SMV) view**, is optimal for visualizing the entire course of both **zygomatic arches**, projecting them free from superimposition by other facial bones. - This projection requires the patient's head to be tilted back so that the central ray passes through the neck and enters the skull vertically, allowing for a clear, unobstructed image of the arches. *Skull PA view* - A **PA (posteroanterior) skull view** primarily demonstrates the frontal bone, orbits, and nasal cavity. - While it shows portions of the zygoma, the **zygomatic arches are often superimposed** by other cranial structures, making detailed assessment difficult. *Orthopantamogram* - An **Orthopantamogram (OPG)** is a panoramic dental X-ray that provides a broad view of the maxilla, mandible, and temporomandibular joints. - It offers a **limited or distorted view of the zygomatic arches**, as its primary purpose is dental assessment, not detailed facial bone evaluation. *Occipito mental view* - The **occipitomental view**, also known as the **Waters' view**, is excellent for visualizing the **maxillary sinuses**, orbits, and nasal bones. - While it shows the **zygomaticomaxillary complex**, it does not provide a true tangential projection of the entire zygomatic arch, which is often partially obscured by other structures.
