Normal Chest Radiographic Anatomy Indian Medical PG Practice Questions and MCQs
Question 1: Anterior Mediastinal nodes are included in which level of lymph nodes?
- A. I
- B. V
- C. VI (Correct Answer)
- D. VII
Explanation: ***VI*** - Level VI lymph nodes are the **prevascular and retrotracheal nodes** located in the **anterior mediastinum** [1]. - According to the **IASLC (International Association for the Study of Lung Cancer)** lymph node mapping system, Level 6 nodes are specifically classified as anterior mediastinal nodes [1]. - These include nodes anterior to the superior vena cava and ascending aorta, and nodes between the trachea and esophagus [1]. *I* - Level I lymph nodes are located in the **low cervical, supraclavicular, and sternal notch** regions. - These are **extra-thoracic nodes** and not part of the mediastinal compartments. - They represent the highest mediastinal, supraclavicular, and sternal notch nodes [1]. *V* - Level V lymph nodes are the **subaortic (aortopulmonary window)** nodes [1]. - These are located in the space between the **aorta and pulmonary artery**, lateral to the ligamentum arteriosum [1]. - While mediastinal, they are specifically in the aortopulmonary window, not classified as anterior mediastinal. *VII* - Level VII lymph nodes are the **subcarinal nodes** located below the carina in the **middle mediastinum** [1]. - These nodes are positioned in the space beneath where the trachea bifurcates into the main bronchi [1]. - They are classified as middle mediastinal nodes, not anterior mediastinal nodes.
Question 2: This 23-year-old man was involved in a motor vehicle accident. He presents with shortness of breath and chest pain. On examination, there is decreased breath sound on the right side and subcutaneous emphysema. Chest X-ray shows a deep, lucent right costophrenic angle. What is the diagnosis?
- A. Cardiac rupture
- B. Pneumothorax (Correct Answer)
- C. Diaphragmatic rupture
- D. Aortic dissection
Explanation: ***Pneumothorax*** - The combination of **shortness of breath**, **chest pain**, **decreased breath sounds** on the affected side, **subcutaneous emphysema**, and a **deep, lucent costophrenic angle** on X-ray (sulcus sign) are classic findings for a pneumothorax, where air accumulates in the pleural space. - The "deep sulcus" sign on a supine chest X-ray indicates air collecting in the **costophrenic recess**, a common presentation of pneumothorax in trauma patients. *Cardiac rupture* - **Cardiac rupture** typically presents with signs of **cardiac tamponade** (e.g., muffled heart sounds, hypotension, distended neck veins), which are not described. - While life-threatening, it doesn't cause decreased breath sounds or a deep costophrenic angle on CXR. *Diaphragmatic rupture* - **Diaphragmatic rupture** can cause shortness of breath and chest pain but would typically involve **herniation of abdominal contents** into the chest, which would be visible on X-ray and is not suggested by the "deep sulcus" sign. - Subcutaneous emphysema is also not a primary feature of diaphragmatic rupture. *Aortic dissection* - **Aortic dissection** causes severe, tearing **chest pain** often radiating to the back, and can lead to pulse deficits or neurological symptoms. - It does not typically cause decreased breath sounds, subcutaneous emphysema, or a deep costophrenic angle, but rather abnormalities in the **aortic contour** on imaging.
Question 3: Blunt trauma to right side of chest, hyperresonance on right side on percussion, dyspnea, tachypnea. Heart rate-100, BP-120/80, best initial diagnostic step is
- A. Needle decompression
- B. Chest X-ray (Correct Answer)
- C. O2 inhalation
- D. IV fluids
Explanation: ***Chest Xray*** - The symptoms (blunt chest trauma, dyspnea, tachypnea, hyperresonance on percussion) are highly suggestive of a **pneumothorax**. - A **Chest X-ray** is the **best initial diagnostic step** to confirm the diagnosis, determine its size, and rule out other life-threatening conditions like hemothorax or tension pneumothorax. *Needle decompression* - This is a **therapeutic intervention** for a **tension pneumothorax**, not a diagnostic step. - While the symptoms are concerning, without confirmation of a tension pneumothorax (e.g., severe hypotension, tracheal deviation, absent breath sounds), empirical needle decompression is not the first step. *O2 inhalation* - **Oxygen administration** is a supportive measure for dyspnea and hypoxemia but does not diagnose the underlying cause of the respiratory distress. - While often given immediately, it's not the primary diagnostic step to understand the chest injury. *IV fluids* - **Intravenous fluids** are used to manage hypovolemia or shock, which is not indicated by the patient's current stable blood pressure (120/80 mmHg). - There is no clinical evidence of significant blood loss or dehydration from the provided information to warrant IV fluids as the best initial step.
Question 4: Which of the following statements regarding axillary lymph nodes is incorrect?
- A. Posterior group lies along subscapular vessels
- B. Lateral group lies along lateral thoracic vessels (Correct Answer)
- C. Apical group is terminal lymph nodes
- D. Apical group lies along axillary vessels
Explanation: ***Lateral group lies along lateral thoracic vessels*** - The **lateral group** of axillary lymph nodes is located along the **axillary vein**, receiving lymph primarily from the upper limb [1]. - The **lateral thoracic vessels** are associated with the central and posterior groups of axillary lymph nodes, not the lateral group. *Posterior group lies along subscapular vessels* - The **posterior (subscapular) group** of axillary lymph nodes is indeed located along the **subscapular vessels**. - This group receives lymph from the posterior wall of the trunk and the posterior shoulder region. *Apical group is terminal lymph nodes* - The **apical group** (also known as the subclavian group) is considered the **terminal lymph nodes** of the axilla. - Lymph from all other axillary nodes eventually drains into the apical group before continuing to the supraclavicular nodes and then into the subclavian lymphatic trunk [2]. *Apical group lies along axillary vessels* - The **apical group** of axillary lymph nodes is situated in the apex of the axilla, superior to the pectoralis minor muscle, and lies in close proximity to the **axillary vessels** [1]. - This location allows it to receive lymph from other axillary groups and drain into the supraclavicular lymph nodes.
Question 5: PA view of chest X-ray is given here. What is the diagnosis?
- A. Right Pneumothorax with left tracheal shift (Correct Answer)
- B. Left Pneumothorax with right tracheal shift
- C. Left Pneumothorax with left tracheal shift
- D. Right Pneumothorax with right tracheal shift
Explanation: ***Right Pneumothorax with left tracheal shift*** - The image shows a large **radiolucency (black area) on the right side** of the chest, indicative of **air in the pleural space**, consistent with a **right-sided pneumothorax**. - The **trachea is shifted towards the left** (away from the pneumothorax), which is the **expected finding** in pneumothorax due to increased pressure in the right pleural space pushing mediastinal structures to the contralateral side. - In pneumothorax, the trachea and mediastinum shift **away from** the affected side due to the pressure effect of air accumulation in the pleural cavity. - This **contralateral tracheal deviation** is a classic radiological sign of pneumothorax and helps confirm the diagnosis. *Right Pneumothorax with right tracheal shift* - While the **right pneumothorax** is correctly identified, the tracheal shift direction is incorrect. - In pneumothorax, the trachea shifts **away from** the affected side (contralateral), not toward it (ipsilateral). - **Ipsilateral tracheal shift** would suggest volume loss (atelectasis) or lung collapse, not pneumothorax alone. *Left Pneumothorax with right tracheal shift* - The pneumothorax is clearly on the **right side**, not the left. - The radiolucency and absent lung markings are visible on the right hemithorax. - A left pneumothorax would show these findings on the left side. *Left Pneumothorax with left tracheal shift* - There is **no pneumothorax on the left side** of the chest. - The left lung shows normal vascular markings and no evidence of pleural air. - This combination would be medically implausible as it suggests pneumothorax with ipsilateral shift.
Question 6: The following are direct signs of lung collapse seen on a chest X-ray, which one of the following is NOT a direct sign?
- A. Crowding of the vessels
- B. Loss of aeration
- C. Mediastinal shift (Correct Answer)
- D. Displacement of the fissure
Explanation: ***Mediastinal shift*** - While mediastinal shift can occur with lung collapse, it is an **indirect sign** caused by the volume loss in the affected hemithorax, pulling the mediastinum towards the collapsed lung. - Direct signs refer to changes observed *within* the collapsed lung tissue itself, such as increased density or displaced structures, whereas mediastinal shift is a secondary effect. *Crowding of the vessels* - This is a **direct sign** of lung collapse, as the pulmonary vessels become compacted due to the loss of lung volume. - The vessels appear closer together and more prominent in the area of collapse. *Loss of aeration* - This is a **direct sign** of lung collapse, as air is expelled or resorbed from the affected lung tissue, leading to increased opacity. - The collapsed lung appears denser and whiter on the X-ray compared to normally aerated lung. *Displacement of the fissure* - This is a **direct sign** of lung collapse, as the interlobar fissures are pulled towards the collapsed lobe due to volume loss. - The displacement of the fissure indicates the location and extent of the collapse.
Question 7: A 60-year-old woman presents with a history of smoking and cough. Chest X-ray shows a solitary pulmonary nodule. Which of the following is the most appropriate next step in management?
- A. Sputum cytology
- B. Bronchoscopy
- C. CT scan of the chest (Correct Answer)
- D. PET scan
Explanation: ***CT scan of the chest*** - A **CT scan** provides a more detailed imaging of the nodule, allowing for better characterization of its size, shape, margins, and density (e.g., calcifications). - This information helps in determining the likelihood of **malignancy** and guiding further management decisions, such as surveillance or biopsy. *Sputum cytology* - **Sputum cytology** has a low diagnostic yield for solitary pulmonary nodules, especially if the nodule is not centrally located or cavitating. - It is more useful for diagnosing **central airway lesions** or widespread pulmonary infiltrates rather than discrete nodules. *Bronchoscopy* - **Bronchoscopy** is generally considered after a CT scan has provided more detailed information about the nodule's location and characteristics. - Its utility in diagnosing a **solitary pulmonary nodule** depends on the nodule's size and proximity to the bronchial tree; peripheral nodules may be difficult to reach. *PET scan* - A **PET scan** is typically used to assess the metabolic activity of a nodule and for staging once malignancy is suspected or confirmed. - It is usually performed **after a CT scan** to characterize the nodule's features, especially if the nodule is indeterminate after initial imaging.

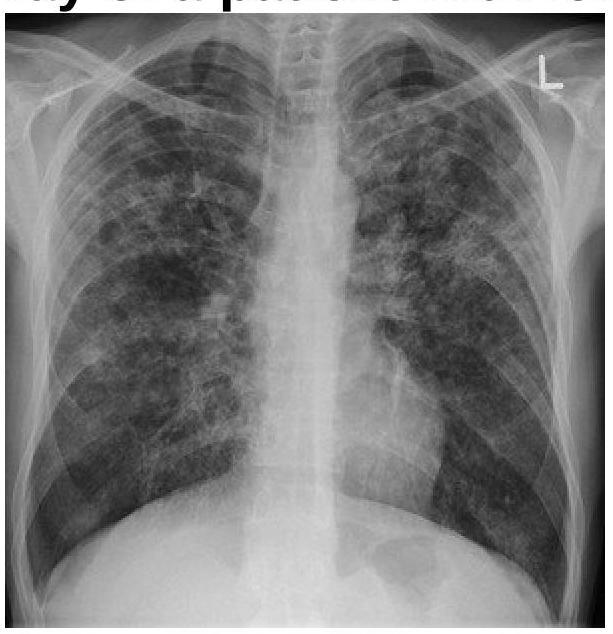

Question 8: Identify the most likely diagnosis based on the chest X-ray findings in a patient with low-grade fever.
- A. ILD
- B. Bronchopneumonia
- C. Miliary TB (Correct Answer)
- D. Consolidation
Explanation: ***Miliary TB*** - The chest X-ray shows diffuse, small, uniformly distributed nodular opacities (2-3 mm in diameter) bilaterally, characteristic of "**millet seed**" pattern seen in **miliary tuberculosis**. - This pattern results from the hematogenous spread of *Mycobacterium tuberculosis* throughout the lungs, often presenting with **low-grade fever** and constitutional symptoms. *ILD* - **Interstitial lung disease (ILD)** typically shows reticular, nodular, or ground-glass opacities, sometimes with honeycombing, but the pattern is usually more heterogeneous and often basal or peripheral, unlike the uniform fine nodularity seen here. - While some ILDs can present with diffuse nodular patterns, the clinical context of **fever** and the classic "millet seed" appearance are more indicative of miliary TB. *Bronchopneumonia* - **Bronchopneumonia** presents as patchy, often ill-defined, multifocal areas of opacification or consolidation, usually distributed around the bronchi. - It does not typically cause the fine, diffuse, and uniform nodular pattern seen in this image, which represents widespread interstitial or alveolar involvement rather than primarily bronchial inflammation. *Consolidation* - **Consolidation** appears as a homogeneous opacification that obliterates vessels and airway walls, often with air bronchograms, typically confined to a lobe or segment. - The image shows diffuse nodular infiltrates rather than large, confluent areas of homogeneous opacification, making isolated consolidation an unlikely primary description.
Question 9: On CT chest, the 'halo sign' is particularly associated with which condition in immunocompromised patients?
- A. Pulmonary hydatid cyst
- B. Round pneumonia
- C. Bronchiectasis
- D. Invasive pulmonary aspergillosis (Correct Answer)
Explanation: ***Invasive pulmonary aspergillosis*** - The **halo sign** on CT chest, characterized by a ground-glass opacity surrounding a nodule, is a classic radiographic finding in **invasive pulmonary aspergillosis**, especially in immunocompromised patients. - This sign represents hemorrhage around the fungal nodule and indicates active tissue invasion by *Aspergillus* species. *Pulmonary hydatid cyst* - Hydatid cysts are typically well-defined, thin-walled cystic lesions, often displaying the **water lily sign** if complicated by rupture, which is different from the halo sign. - These cysts are caused by the larval stage of *Echinococcus granulosus* and are not associated with a peripheral ground-glass opacity. *Round pneumonia* - Round pneumonia is a localized, **spherical consolidation** often seen in children, which does not typically exhibit the perilesional ground-glass opacity characteristic of the halo sign. - It usually represents bacterial infection and resolves with antibiotics, unlike the invasive fungal disease suggested by the halo sign. *Bronchiectasis* - Bronchiectasis is characterized by **irreversible dilation of the bronchi**, often appearing as "tram-track" opacities or "signet ring" signs on CT. - It is a chronic condition related to airway damage and mucus retention, and not associated with acute nodular lesions or the halo sign.
Question 10: A chest X-ray shows bilateral lung infiltrates. What is the next best investigation?
- A. Sputum examination
- B. CT (Correct Answer)
- C. Bronchoscopy
- D. Echocardiography
Explanation: ***CT*** - A **CT scan (preferably HRCT)** provides a more detailed view of the lung parenchyma, allowing for better characterization of the infiltrates (e.g., location, pattern, presence of nodules, ground-glass opacities, or consolidation). - This detailed imagery is crucial for narrowing down the differential diagnosis and guiding further diagnostic or therapeutic interventions. - **CT is the best next investigation** for characterizing bilateral lung infiltrates seen on chest X-ray. *Sputum examination* - While important for identifying infectious causes, **sputum examination** is often only productive in certain types of pneumonia or infections and might not directly clarify the morphology or distribution of the infiltrates as a CT scan would. - It might be a subsequent step once the nature of the infiltrate is better understood through imaging. *Bronchoscopy* - **Bronchoscopy** is an invasive procedure generally reserved for cases where less invasive methods have failed to yield a diagnosis or when specific findings from imaging (like a CT scan) suggest the need for direct visualization, lavage, or biopsy. - It's not typically the immediate next step after identifying bilateral infiltrates on a chest X-ray. *Echocardiography* - **Echocardiography** is useful for evaluating cardiac causes of bilateral infiltrates (such as pulmonary edema from heart failure). - However, it does not directly visualize or characterize the lung parenchymal infiltrates themselves, making CT more valuable as the next investigation.
