Pancreatic Imaging Indian Medical PG Practice Questions and MCQs
Question 1: A 25-year-old obese woman who denies any history of alcohol abuse presents with severe abdominal pain radiating to the back. Laboratory results indicate an increase in serum amylase and lipase, with a marked decrease in calcium. Which of the following likely has caused this condition?
- A. Abetalipoproteinemia
- B. Cholelithiasis (Correct Answer)
- C. Cystic fibrosis
- D. Alcohol
Explanation: **Cholelithiasis** - **Obesity** is a significant risk factor for gallstone formation [2], which can obstruct the pancreatic duct and lead to **pancreatitis** [1]. - The classic presentation of severe abdominal pain radiating to the back, elevated **amylase** and **lipase**, and **hypocalcemia** (due to fat saponification in severe pancreatitis) is highly consistent with pancreatitis secondary to gallstones [1]. *Abetalipoproteinemia* - This is a rare genetic disorder characterized by the inability to synthesize apolipoprotein B, leading to severe **malabsorption** and **neurological deficits**, not pancreatitis. - While it involves lipid abnormalities, it typically presents with steatorrhea, growth failure, and ataxia, not acute abdominal pain. *Cystic fibrosis* - Individuals with **cystic fibrosis** can develop pancreatic insufficiency and chronic pancreatitis due to thick secretions blocking pancreatic ducts, but **acute severe pancreatitis with hypocalcemia** is less typical as an initial presentation in a 25-year-old without a prior diagnosis. - Features like **recurrent respiratory infections** and **failure to thrive** would usually precede or accompany pancreatic issues. *Alcohol* - Although **alcohol abuse** is a very common cause of pancreatitis, the patient explicitly **denies any history of alcohol abuse**, making this etiology less likely in this specific case. - Clinically, alcohol-induced pancreatitis presents similarly, but the absence of positive history rules it out as the primary cause.
Question 2: The duct of Wirsung is:
- A. Parotid duct.
- B. Common bile duct
- C. Main Pancreatic duct (Correct Answer)
- D. Accessory Pancreatic duct
Explanation: ***Main Pancreatic duct*** - The **duct of Wirsung** is the primary duct that drains **pancreatic exocrine secretions** (digestive enzymes and bicarbonate) from the pancreas into the duodenum [1]. - It typically joins the **common bile duct** to form the **ampulla of Vater**, which then empties into the second part of the duodenum [3]. *Parotid duct* - The **parotid duct** (Stensen's duct) drains secretions from the **parotid salivary gland**. - It opens into the buccal mucosa opposite the second maxillary molar tooth, not related to the pancreas. *Common bile duct* - The **common bile duct** is formed by the union of the **common hepatic duct** and the **cystic duct**, carrying bile from the liver and gallbladder [2]. - While it often merges with the main pancreatic duct before entering the duodenum, it is not the duct of Wirsung itself. *Accessory Pancreatic duct* - The **accessory pancreatic duct** (duct of Santorini) is a smaller duct that drains a portion of the head of the pancreas directly into the duodenum. - It is present in many individuals but is distinct from the main pancreatic duct (Wirsung) and often has a separate opening proximal to the ampulla of Vater.
Question 3: Which is the best investigation for carcinoma of the head of pancreas?
- A. Transduodenal/transperitoneal sampling
- B. Guided biopsy
- C. ERCP
- D. EUS (Correct Answer)
Explanation: ***EUS*** - **Endoscopic ultrasound (EUS)** provides the highest resolution imaging of the pancreas and allows for **fine-needle aspiration (FNA)** of suspicious lesions, offering definitive tissue diagnosis. - Its ability to visualize small, early-stage tumors and regional lymph nodes makes it the **most accurate method for diagnosis and staging** of pancreatic head carcinoma. *Guided biopsy* - While a biopsy is necessary for definitive diagnosis, 'guided biopsy' is a broad term that doesn't specify the highly effective EUS guidance. - Other biopsy methods that are not guided by EUS may be less accurate and carry higher risks for pancreatic lesions. *ERCP* - **Endoscopic retrograde cholangiopancreatography (ERCP)** is primarily a therapeutic procedure used for **biliary drainage** in cases of obstruction caused by pancreatic head tumors. - Although it can visualize ductal abnormalities and allow brush cytology, it is **less sensitive for direct tumor visualization** and tissue acquisition compared to EUS-FNA. *Transduodenal/transperitoneal sampling* - These are **invasive surgical approaches** for obtaining tissue samples, typically reserved when less invasive methods like EUS-FNA are unsuccessful or when intraoperative confirmation is needed. - They carry **higher risks** and are not considered the "best investigation" for initial diagnosis due to their invasiveness and potential for complications.

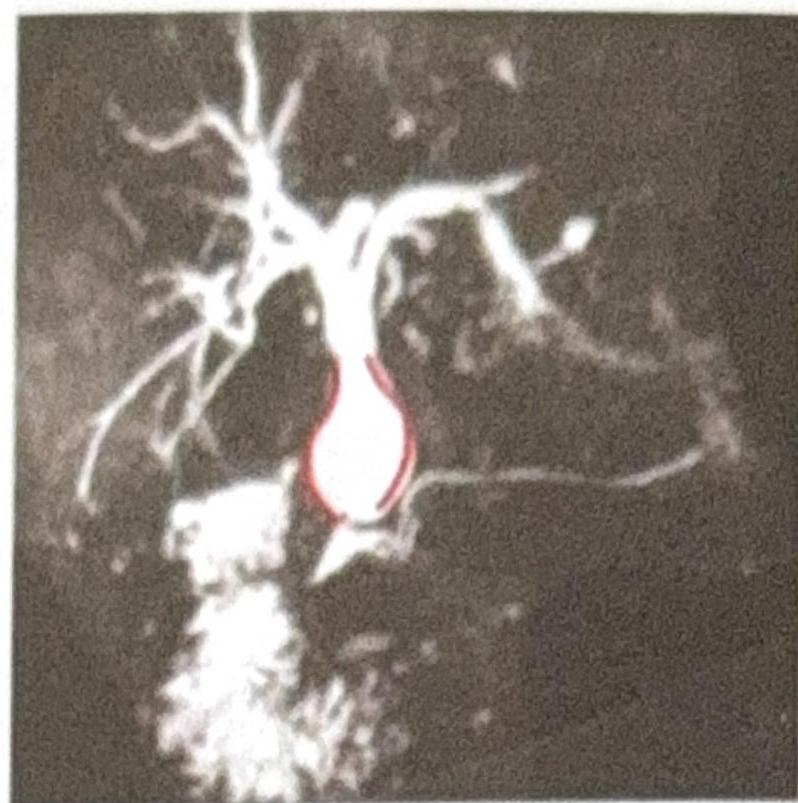

Question 4: What condition does the MRCP (Magnetic Resonance Cholangiopancreatography) image indicate?
- A. Choledochal cyst (Correct Answer)
- B. Dilated CBD (Common Bile Duct)
- C. Acute cholecystitis
- D. Cholangiocarcinoma
Explanation: **Choledochal cyst** - The MRCP image clearly shows a **cystic dilation** of the common bile duct, which is characteristic of a choledochal cyst. - This congenital anomaly involves saccular or fusiform dilation of the bile ducts, as depicted by the **balloon-like structure** in the image. - MRCP is the **gold standard imaging modality** for diagnosing choledochal cysts, providing excellent visualization of the biliary tree anatomy. *Dilated CBD (Common Bile Duct)* - While a choledochal cyst is a type of CBD dilation, simply stating "dilated CBD" is not specific enough, as the image shows a distinct **cystic morphology** beyond just uniform dilation. - Common bile duct dilation can be caused by various factors like stones or strictures, but the **focal, bulbous appearance** points specifically to a cyst. *Acute cholecystitis* - Acute cholecystitis typically presents with signs of gallbladder inflammation, such as **gallbladder wall thickening**, pericholecystic fluid, and gallstones, which are not depicted in this MRCP. - MRCP primarily visualizes the bile ducts and does not typically show the inflammatory changes of the gallbladder wall as clearly as ultrasound or CT. *Cholangiocarcinoma* - Cholangiocarcinoma usually manifests as a **stricture** or **mass** within the bile ducts, causing upstream dilation, rather than the isolated cystic dilation seen in the image. - There is no evidence of an obstructing mass or irregular narrowing within the bile ducts that would suggest a malignancy.
Question 5: What is the imaging modality of choice for localizing neuroendocrine tumors?
- A. USG
- B. CT
- C. MRI
- D. Somatostatin receptor scintigraphy (Correct Answer)
Explanation: ***Somatostatin receptor scintigraphy*** - **Somatostatin receptor scintigraphy** is the imaging modality of choice given that most neuroendocrine tumors (NETs) express a high density of somatostatin receptors. - **68Ga-DOTATATE PET/CT** is the **current preferred technique**, offering superior sensitivity (>90%) and specificity compared to older methods like Indium-111 pentetreotide (Octreoscan). - This functional imaging allows for **whole-body evaluation** and can detect both primary tumors and metastases, including small lesions that may be missed on conventional anatomical imaging. - Particularly valuable for detecting occult primary tumors and staging metastatic disease. *USG* - **Ultrasound** is useful for initial screening or evaluating superficial NETs, particularly in organs like the pancreas or liver. - However, its utility is limited by **operator dependence**, gas artifact, and its inability to detect small or deeply located tumors effectively. - Does not provide functional information about somatostatin receptor expression. *CT* - **Computed tomography** provides good anatomical detail and is useful for assessing tumor size, local invasion, and detecting liver metastases. - While helpful for anatomical characterization, CT can **miss small lesions** (especially <1 cm) and does not provide functional information about receptor status. - Often used in combination with functional imaging for treatment planning. *MRI* - **Magnetic resonance imaging** offers excellent soft tissue contrast and is particularly useful for NETs in the liver and pancreas. - Superior to CT for detecting liver metastases due to better soft tissue resolution. - However, MRI has **lower sensitivity for small or widespread lesions** compared to somatostatin receptor imaging and does not provide functional receptor information.
Question 6: Which of the following is not a recognized complication of chronic pancreatitis?
- A. Renal artery thrombosis (Correct Answer)
- B. Pancreatic pseudocyst
- C. Splenic vein thrombosis
- D. Pancreatic fistula
Explanation: ***Renal artery thrombosis*** - **Renal artery thrombosis** is generally associated with conditions like **atherosclerosis**, atrial fibrillation, or vasculitis, not directly with chronic pancreatitis. - While chronic pancreatitis can lead to systemic complications, direct renal arterial clotting is an atypical and **uncommon sequela**. *Pancreatic pseudocyst* - **Pancreatic pseudocysts** are common complications of chronic pancreatitis, occurring when fluid collections around the pancreas become walled off by fibrous tissue [1]. - They can cause pain, obstruction, and even rupture if left untreated [2]. *Splenic vein thrombosis* - **Splenic vein thrombosis** can result from inflammation and compression of the splenic vein by the diseased pancreatic tissue in chronic pancreatitis [1]. - This can lead to **splenomegaly** and **gastric varices** due to increased pressure in the portal system. *Pancreatic fistula* - A **pancreatic fistula** occurs when pancreatic fluid leaks from the gland, often forming a connection to another organ or the skin [2]. - This is a well-recognized complication of both acute and chronic pancreatitis, usually due to ductal disruption.
Question 7: Monu, a 30-year-old male with a history of chronic alcoholism, presents with sudden onset of epigastric pain that radiates to the back. All are seen except:
- A. Hypocalcaemia
- B. Increased serum amylase
- C. Low serum lipase (Correct Answer)
- D. Increased LDH
Explanation: ***Low serum lipase*** - In **acute pancreatitis**, serum lipase levels are typically **elevated**, not low, due to the inflammation and damage to pancreatic acinar cells. - A low serum lipase level would indicate a lack of pancreatic enzyme release, which contradicts the classic presentation of acute pancreatitis. *Increased LDH* - **Lactate dehydrogenase (LDH)** can be elevated in **severe acute pancreatitis**, indicating **tissue necrosis** and cell damage. - Elevated LDH is a marker of organ damage and can be used as an indicator of prognosis in acute pancreatitis, particularly in established scoring systems like Ranson's criteria. *Hypocalcaemia* - **Hypocalcaemia** can occur in acute pancreatitis due to the **saponification of peripancreatic fat** by free fatty acids, which binds calcium. - This is a serious complication, and severe hypocalcemia can lead to adverse outcomes like tetany and cardiac arrhythmias. *Increased serum amylase* - **Elevated serum amylase** is a hallmark finding in **acute pancreatitis**, typically rising within hours of onset. - Amylase levels are generally at least **three times the upper limit of normal** to be diagnostic of acute pancreatitis.
Question 8: Identify the condition shown in the plain abdominal radiograph.
- A. Pancreatic calcification (Correct Answer)
- B. Mesenteric calcification
- C. Horseshoe kidney
- D. Jejunal fecolith
Explanation: ***Pancreatic calcification*** - The radiograph displays **multiple, punctate, and amorphous calcifications** clustered in the upper abdomen, characteristic of **chronic pancreatitis**. - These calcifications represent **calcium deposits within the pancreatic ducts and parenchyma**, a hallmark sign of chronic inflammation and damage to the pancreas. *Mesenteric calcification* - **Mesenteric calcifications** are typically more scattered and linear, often following the distribution of blood vessels or lymph nodes within the mesentery, which is not seen here. - They are generally less dense and less granular than the calcifications observed in the image. *Horseshoe kidney* - A **horseshoe kidney** is a congenital anomaly where the kidneys are fused at their lower poles, forming a U-shape, and is typically located lower in the abdomen, often overlying the spine. - This condition presents with the characteristic **renal outlines** and not diffuse calcifications as shown. *Jejunal fecolith* - A **jejunal fecolith** would appear as a singular or a few discrete, dense, and typically rounded or oval radio-opacities within the lumen of the jejunum. - The diffuse, scattered pattern of calcifications displayed in the image is inconsistent with a fecolith, which is usually composed of inspissated fecal material.
Question 9: Gas absent from intestine (gasless abdomen) on x-ray is seen in which condition?
- A. Ulcerative colitis
- B. Intussusception
- C. Acute pancreatitis (Correct Answer)
- D. Necrotizing enterocolitis
Explanation: ***Acute pancreatitis*** - In **severe acute pancreatitis**, a **gasless or relatively gasless abdomen** may be seen due to profound **ileus** with fluid accumulation displacing intestinal gas. - The marked inflammatory process can lead to complete loss of intestinal motility and fluid sequestration (third-spacing), resulting in minimal visible bowel gas on X-ray. - **Note**: Classic signs include **sentinel loop sign** (dilated jejunal loop) or **colon cut-off sign**, but in severe cases with massive ascites or fluid collections, a gasless pattern may occur. *Ulcerative colitis* - Typically presents with **dilated loops of large bowel** with visible gas and **toxic megacolon** in severe cases. - Inflammatory changes cause bowel wall thickening, but gas is usually **present and often increased**. *Intussusception* - May show a **target sign** or **meniscus sign** on imaging, with bowel loops dilated proximal to the obstruction. - Gas is typically **present** within the bowel or proximal to the invagination, not absent from the entire abdomen. *Necrotizing enterocolitis* - Characterized by **pneumatosis intestinalis** (gas in the bowel wall) and **portal venous gas**, features directly contradicting a gasless abdomen. - Shows dilated loops with gas and evidence of bowel wall necrosis - **gas is prominently present**.
Question 10: According to endoscopic ultrasound (EUS) criteria for chronic pancreatitis, the main pancreatic duct is considered dilated when its diameter is:
- A. >1 mm
- B. >2 mm
- C. 1.5 mm
- D. >3 mm (Correct Answer)
Explanation: A main pancreatic duct diameter **greater than 3 mm** is a significant endoscopic ultrasound (EUS) criterion for the diagnosis of **chronic pancreatitis**. This dilation indicates advanced disease and is often accompanied by other EUS features like **lobularity**, **hyperechoic foci/stranding**, and cysts. While a dilated pancreatic duct is indicative of chronic pancreatitis, a diameter of **>1 mm** is generally too small to be considered a definitive EUS criterion for significant disease. A main pancreatic duct diameter greater than 2 mm is often considered abnormal [1], but it's **not the established threshold** used in EUS criteria for chronic pancreatitis. A diameter of 1.5 mm is usually considered within the **normal range** for the main pancreatic duct in many clinical contexts.
