Abdominal and Pelvic Radiology Practice Questions

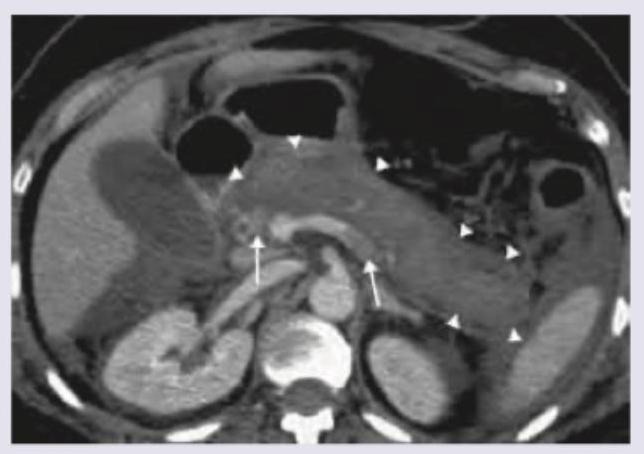

Q: A 40-year-old alcoholic presents with severe epigastric pain and hemodynamic collapse. CT abdomen was performed after fluid resuscitation which shows: (Recent NEET Pattern 2016-17)

Severe acute pancreatitis. ***Severe acute pancreatitis*** - The CT scan shows significant **peripancreatic fat stranding** and **fluid collections** (indicated by arrowheads), which are hallmark features of acute pancreatitis - The presence of **hemodynamic collapse** with extensive peripancreatic inflammatory changes indicates **severe acute pancreatitis** (previously called necrotizing pancreatitis) - Clinical context: **alcoholic patient** with severe epigastric pain and shock—classic presentation requiring ICU care - The **revised Atlanta classification** defines severe acute pancreatitis by the presence of organ failure (hemodynamic collapse = cardiovascular failure) *Acute pancreatitis* - While the CT undeniably shows acute pancreatitis, this option is **too non-specific** given the clinical severity - The presence of **hemodynamic collapse** (organ failure) by definition classifies this as **severe** acute pancreatitis, not simple acute pancreatitis - Missing the severity classification could lead to underestimation of disease gravity and inadequate management *Perforation peritonitis* - Would typically show **free intraperitoneal air** (pneumoperitoneum) on CT, which is absent here - The CT findings are specifically pancreatic: **peripancreatic inflammation and fluid collections**, not diffuse peritoneal contamination - While severe epigastric pain and collapse can occur with perforation, the imaging is diagnostic for pancreatic pathology *Pseudo-pancreatic cyst* - Pseudocyst is a **late complication** of acute pancreatitis, typically forming **4-6 weeks** after the initial attack - Represents a **mature, well-defined fluid collection** with a fibrous wall, not acute inflammatory changes - The patient's **acute presentation** with immediate pain and hemodynamic collapse, along with diffuse peripancreatic inflammatory changes (not a discrete encapsulated collection), excludes this diagnosis

Q: A 50-year-old man went for his annual medical check-up. CT scan is shown below. Diagnosis is?

Renal angiomyolipoma. ***Renal angiomyolipoma*** - The CT scan shows a renal mass with areas of **macroscopic fat density**, which is the hallmark of an angiomyolipoma. - Angiomyolipomas are **benign renal tumors** composed of variable amounts of smooth muscle, vascular tissue, and mature adipose tissue. *Renal cell carcinoma* - While renal cell carcinoma can present as a solid renal mass, it typically does **not contain macroscopic fat**. - It usually enhances heterogeneously with contrast and may show areas of necrosis or hemorrhage, but the presence of fat rules out typical RCC. *Renal cyst* - Renal cysts are typically **simple fluid-filled structures** with very low attenuation values (close to water) and **do not contain solid components or fat**. - They also have thin, imperceptible walls and do not enhance with contrast. *Rhabdomyosarcoma* - Rhabdomyosarcomas are **malignant soft tissue tumors** rarely found in the kidney, and would appear as a solid, often heterogeneous mass on CT. - They do **not contain fat** and are aggressive tumors, often associated with a different patient demographic (e.g., children).

Q: The following image shows the presence of?

Bladder stone. ***Bladder stone*** - The image displays multiple **radiopaque densities** (stones) clustered within the pelvic cavity, specifically in the region where the urinary bladder is anatomically located. - The aggregation and rounded shapes are characteristic of **vesical calculi** (bladder stones). *Ureter stone* - **Ureteral stones** would typically appear as a single or a few stones following the course of the ureters, which are tubular structures extending from the kidneys to the bladder. - The diffuse, multi-focal collection seen in the image is not consistent with the typical presentation of a ureteric calculus. *Urethral stone* - A **urethral stone** would be located within the urethra, which is inferior to the bladder and would typically present as a single, elongated calculus in the distal urinary tract. - The location and multiple, scattered appearance in the image do not match a urethral stone. *Prostate calcification* - **Prostatic calcifications** are usually smaller, often punctate, and concentrated within the confines of the prostatic gland, typically inferior to the bladder neck. - The calcifications in the image are larger and more widely distributed, not confined to the typical anatomical borders of the prostate.

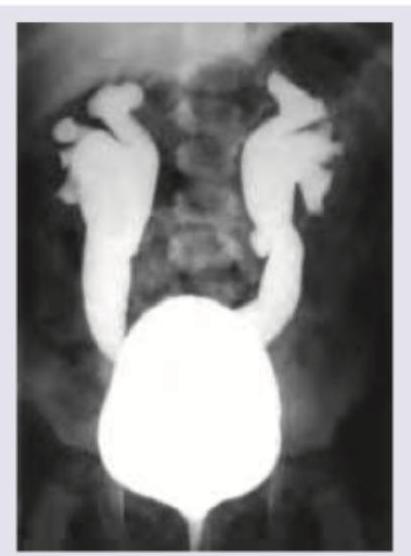

Q: Identify the grade of vesico-ureteric reflux in the picture below?

Grade V. ***Grade V*** - This image shows **severe dilation** and **tortuosity of the ureter**, along with **blunting of the renal calyces** and loss of papillary impressions, extending all the way to the renal pelvis. - Grade V VUR indicates the most severe form of reflux, with significant distortion of the pelvicalyceal system, often associated with **renal parenchymal damage**. *Grade II* - Grade II VUR involves reflux into the **ureter, renal pelvis, and calyces**, but with **no dilation** and normal calyces. - The image clearly displays significant dilation and blunting of calyces, which is beyond Grade II. *Grade III* - In Grade III VUR, there is reflux into the **ureter** and **pelvicalyceal system (renal pelvis and calyces)** with **mild to moderate dilation** and slight blunting of the calyces. - The marked tortuosity and severe dilation seen in the image exceed the characteristics of Grade III. *Grade IV* - Grade IV VUR is characterized by **moderate to severe dilation** and **tortuosity of the ureter** and pelvicalyceal system, with **moderate blunting** of the calyces. - While there is severe dilation and tortuosity, the extent of calycial blunting and loss of papillary impressions in the image is more consistent with Grade V.

Q: An abdominal X-ray of a patient with ulcerative colitis shows peripheral placed bowel dilatations with loss of haustrations. The transverse colon diameter measures 7 cm. The image shown is characteristic of:

Toxic megacolon. ***Toxic megacolon*** - The description of **peripheral placed bowel dilatations**, loss of haustrations, and large bowel dilatation with a transverse/ascending colon diameter >6cm are classic radiological signs of **toxic megacolon**. - This condition is often seen in patients with **ulcerative colitis (UC)** and can be triggered by factors like electrolyte abnormalities and narcotics, as mentioned in the question. *Intestinal pneumatosis* - This condition is characterized by the presence of **intramural bowel gas**, which means gas within the wall of the intestine. - While it can be a severe condition and is seen in some acute abdominal pathologies like necrotizing enterocolitis, it is not primarily described by the given features of lumenal dilatation and loss of haustrations. *Volvulus* - **Volvulus** refers to the twisting of a section of the bowel on its mesentery, leading to obstruction and potentially ischemia. - The radiological hallmark is often a **"coffee bean sign"** (in sigmoid volvulus) or a significantly dilated loop of bowel at the site of torsion, which is distinct from the diffuse peripheral dilatation and loss of haustrations described. *Ileus* - **Ileus** is a functional obstruction of the bowel due to the temporary arrest of intestinal peristalsis. - While it involves bowel dilatation, it typically affects both small and large bowel somewhat uniformly, and the description of **loss of haustrations** and specific diameter cutoffs for the transverse/ascending colon are more indicative of toxic megacolon.

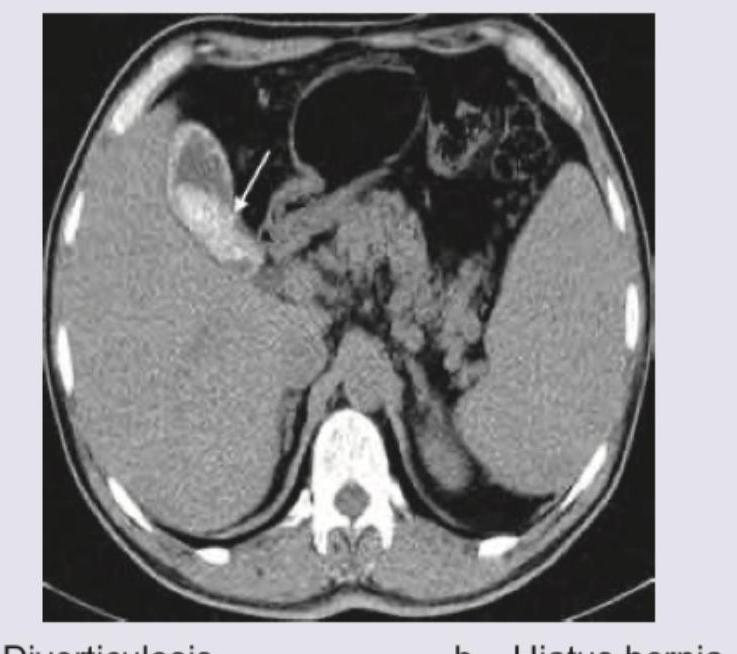

Q: CT abdomen shows: (Recent NEET Pattern 2016-17)

Diverticulosis. ***Diverticulosis*** - The image shows an out-pouching of the colonic wall (indicated by the white arrow), characteristic of a **diverticulum**. - **Diverticulosis** refers to the presence of multiple such diverticula, often seen in the colon on CT scans. *Hiatus hernia* - A hiatus hernia involves the protrusion of the **stomach** through the **esophageal hiatus** of the diaphragm into the chest cavity. - This image does not show any gastric organ extending above the diaphragm. *Gallstones* - Gallstones are calcified deposits found within the **gallbladder**, appearing as bright, high-density structures. - The structure indicated by the arrow is clearly an out-pouching of the bowel wall, not a calcified stone within the gallbladder. *Acute pancreatitis* - Acute pancreatitis is characterized by **inflammation of the pancreas**, often visible as pancreatic enlargement, peripancreatic fat stranding, and fluid collections. - The image does not show any signs suggestive of pancreatic inflammation or changes in the pancreas itself.

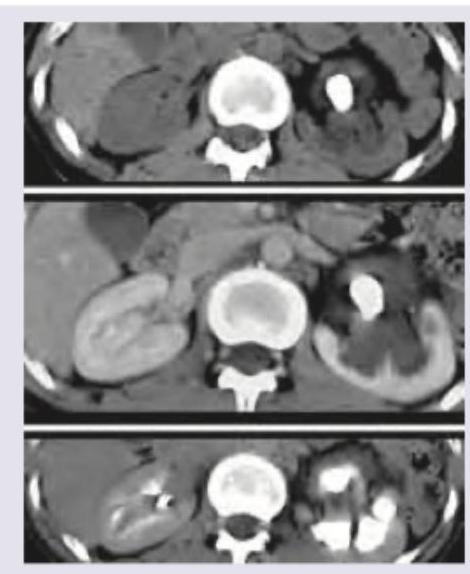

Q: The following image shows:

Xanthogranulomatous pyelonephritis. ***Xanthogranulomatous pyelonephritis*** - The imaging shows an enlarged kidney with replacement of renal parenchyma by **hypodense mass lesions** and ill-defined contours, often described as a **"bear paw" sign** due to dilated calyces containing purulent material. - The presence of **calcifications** (staghorn calculus) and chronic inflammatory changes in the renal parenchyma further supports xanthogranulomatous pyelonephritis, a severe chronic infection often associated with **obstructive nephropathy**. *Splenic hematoma* - A splenic hematoma would appear as a **hypodense collection within the spleen**, potentially with surrounding active extravasation if acute, which is not depicted in the image (the visible pathology is renal). - The spleen appears distinct from the kidney pathology shown, and there are no characteristic features of a splenic injury. *Emphysematous pyelonephritis* - This condition is characterized by **gas formation within the renal parenchyma** and collecting system, appearing as hypodense areas with specific Hounsfield units corresponding to gas, which is not primarily seen here. - While both are severe kidney infections, the main features in the image point to chronic destruction rather than acute gas-forming infection. *Renal pelvic calculus* - A renal pelvic calculus would appear as a **bright, hyperdense structure within the renal pelvis or calyces**, distinct and well-defined. - While calcifications are present, they are part of a larger, destructive process involving the entire kidney parenchyma, which is more characteristic of xanthogranulomatous pyelonephritis rather than an isolated calculus.

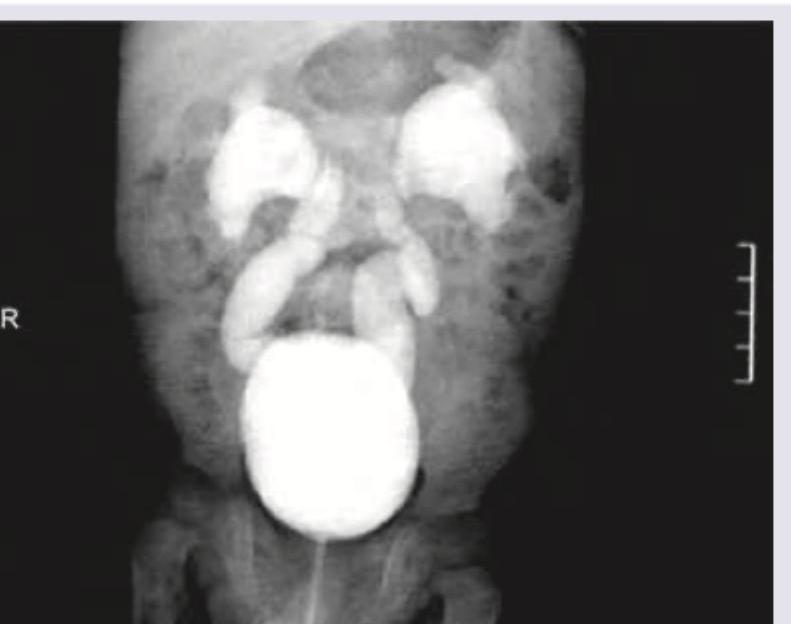

Q: The following urinary bladder on MCU is diagnostic of:

VUR. ***VUR (Vesicoureteral Reflux)*** - The image is a **micturating cystourethrogram (MCU)** showing the urinary bladder filled with contrast - The white arrows point to areas where **contrast material is refluxing from the bladder back into the ureters** - This retrograde flow of urine from the bladder into the ureters is **diagnostic of VUR** - VUR is graded from I to V based on the severity of reflux and associated ureteral/renal pelvic dilatation *Posterior urethral valve* - Would show a **dilated posterior urethra** with abrupt narrowing at the valve level - Typically seen as a **keyhole sign** on MCU in male children - May have secondary VUR but the primary finding would be urethral obstruction - Not the primary diagnosis in this image showing bilateral ureteral reflux *Bladder diverticulum* - Would appear as an **outpouching from the bladder wall** - Shows contrast-filled sac communicating with the bladder lumen - Does not show reflux into ureters as the primary finding - Not demonstrated in this MCU *Ureterocele* - Appears as a **cystic dilatation of the distal ureter** within the bladder - Seen as a **cobra head sign** or filling defect in the bladder - May cause obstruction but does not show retrograde reflux into ureters - Not the finding depicted in this image

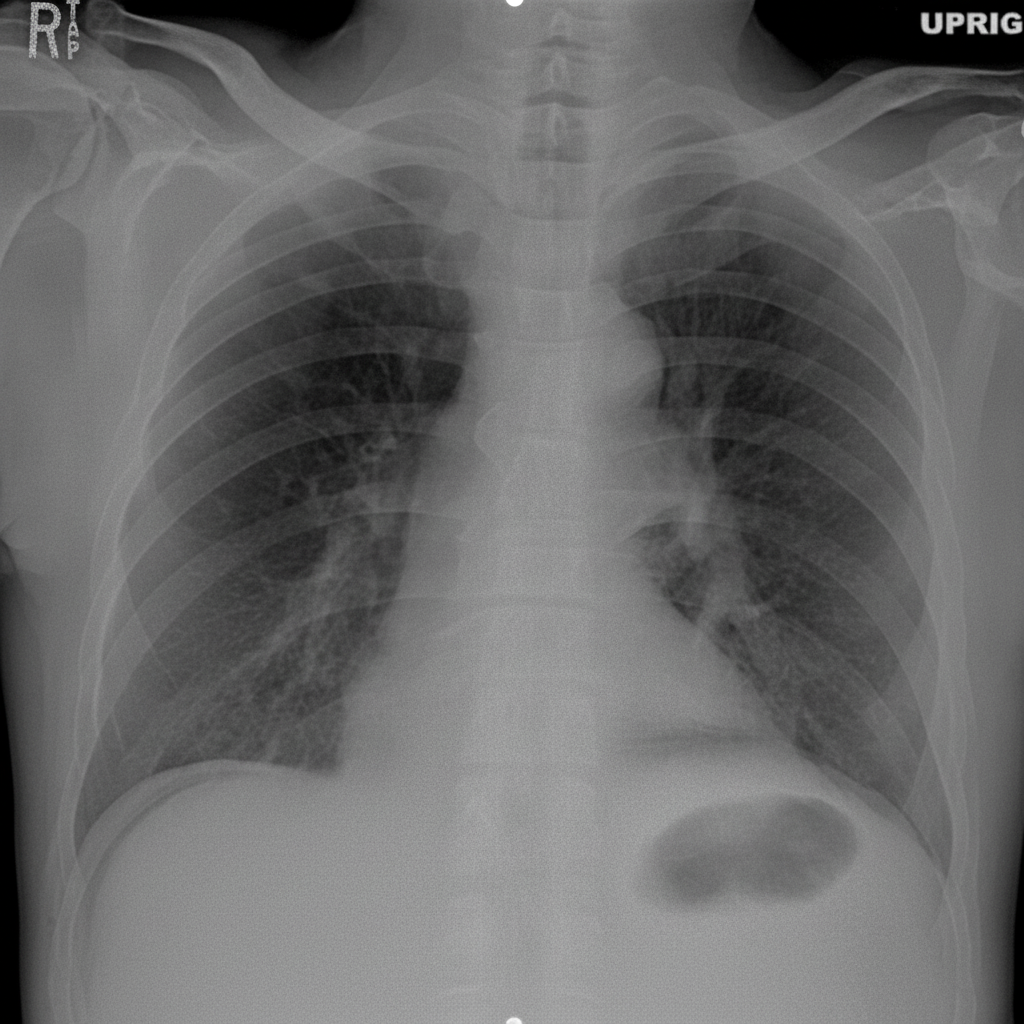

Q: What does the X-ray film show?

Perforated abdominal viscus. ***Perforated abdominal viscus*** - X-ray findings in perforated viscus include **free air under the diaphragm** (pneumoperitoneum) on erect chest/abdominal X-ray, which is the hallmark sign - **Rigler's sign** (both sides of bowel wall visible) and **football sign** (large amount of free air outlining abdominal organs) may be seen - Common causes include **perforated peptic ulcer**, perforated appendix, or bowel perforation from trauma or ischemia - This represents a **surgical emergency** requiring immediate intervention *Intestinal obstruction* - Shows **dilated bowel loops** with **air-fluid levels** on erect X-ray - **Absent or reduced gas in distal bowel** in complete obstruction - Does not typically show free intraperitoneal air unless there is associated perforation - Multiple air-fluid levels at different heights distinguish it from perforation *Pneumoperitoneum* - While pneumoperitoneum (free intraperitoneal air) is a **radiological finding**, it is not a diagnosis in itself - It is a **sign** that indicates perforation of a hollow viscus - "Perforated abdominal viscus" is the more complete clinical diagnosis that explains the cause of pneumoperitoneum *Right hydropneumothorax* - Shows **air-fluid level in the pleural space** (thoracic cavity, not abdominal) - Air appears as **radiolucency in upper part** with fluid level below in the pleural cavity - Caused by trauma, infection (empyema with gas-forming organisms), or iatrogenic causes - Would be seen in the **chest**, not abdomen, and would not show subdiaphragmatic free air

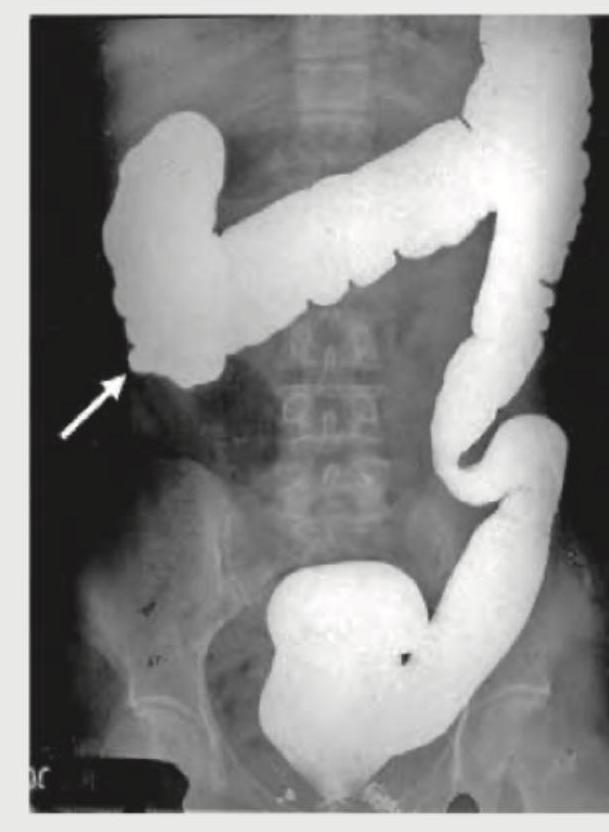

Q: A patient presents with abdominal pain, diarrhea and weight loss. He gives a history of taking treatment for pulmonary TB. What does the barium film of the patient show?

Pulled up cecum. ***Pulled up cecum*** - The image shows a **deformed and pulled-up cecum** (indicated by the arrow) which is characteristic of **intestinal tuberculosis (TB)**, especially when combined with a history of pulmonary TB, abdominal pain, diarrhea, and weight loss. - This appearance is due to **fibrosis and contracture** caused by chronic inflammation from Mycobacterium tuberculosis infection affecting the ileocecal region, leading to architectural distortion and shortening. *Saw tooth* - A "sawtooth" appearance is typically associated with **spasm** or **haustral changes** in the colon, which is not the primary finding or most specific sign for intestinal tuberculosis. - While irregular contours can be seen, the dominant feature here is the **distortion and displacement** of the cecum, not simple serrations. *Intestinal perforation* - Intestinal perforation would result in the extravasation of contrast material into the peritoneal cavity, which is **not seen** in this barium study. - Perforation is an acute, life-threatening condition, and its imaging findings are distinct from the chronic changes shown here. *Diverticulum formation* - **Diverticula** appear as small, pouch-like outpouchings from the bowel wall, which are **absent** in this image. - Diverticulosis is a common condition but does not explain the patient's symptoms or the specific cecal deformity shown, especially in the context of prior TB.

Question 1

A 40-year-old alcoholic presents with severe epigastric pain and hemodynamic collapse. CT abdomen was performed after fluid resuscitation which shows: (Recent NEET Pattern 2016-17)

Accepted Answer

Severe acute pancreatitis

Answer

Acute pancreatitis

Answer

Perforation peritonitis

Answer

Pseudo-pancreatic cyst

Question 2

A 50-year-old man went for his annual medical check-up. CT scan is shown below. Diagnosis is?

Accepted Answer

Renal angiomyolipoma

Answer

Renal cell carcinoma

Answer

Renal cyst

Answer

Rhabdomyosarcoma

Question 3

The following image shows the presence of?

Accepted Answer

Bladder stone

Answer

Ureter stone

Answer

Urethral stone

Answer

Prostate calcification

Question 4

Identify the grade of vesico-ureteric reflux in the picture below?

Accepted Answer

Grade V

Answer

Grade II

Answer

Grade III

Answer

Grade IV

Question 5

An abdominal X-ray of a patient with ulcerative colitis shows peripheral placed bowel dilatations with loss of haustrations. The transverse colon diameter measures 7 cm. The image shown is characteristic of:

Accepted Answer

Toxic megacolon

Answer

Intestinal pneumatosis

Answer

Volvulus

Answer

Ileus

Question 6

CT abdomen shows: (Recent NEET Pattern 2016-17)

Accepted Answer

Diverticulosis

Answer

Hiatus hernia

Answer

Gallstones

Answer

Acute pancreatitis

Question 7

The following image shows:

Accepted Answer

Xanthogranulomatous pyelonephritis

Answer

Splenic hematoma

Answer

Emphysematous pyelonephritis

Answer

Renal pelvic calculus

Question 8

The following urinary bladder on MCU is diagnostic of:

Accepted Answer

VUR

Answer

Posterior urethral valve

Answer

Bladder diverticulum

Answer

Ureterocele

Question 9

What does the X-ray film show?

Accepted Answer

Perforated abdominal viscus

Answer

Right hydropneumothorax

Answer

Intestinal obstruction

Answer

Pneumoperitoneum

Question 10

A patient presents with abdominal pain, diarrhea and weight loss. He gives a history of taking treatment for pulmonary TB. What does the barium film of the patient show?

Accepted Answer

Pulled up cecum

Answer

Saw tooth

Answer

Intestinal perforation

Answer

Diverticulum formation
