An E cylinder of oxygen contains approximately how many liters?
Which of the following drugs undergoes Hoffman's elimination?
The 'train of four' stimulation is characteristically used in relation to which of the following?
The bronchoscope is best sterilized with?
What does central venous pressure measure?
What is the most common cause for a fall in end-tidal CO2?
Which of the following medications should be dosed according to total body weight (TBW), instead of lean body mass in morbidly obese patients?
What is the characteristic EEG pattern seen in the surgical tolerance stage of anesthesia?
Name the given device?
Which of the following is the main determinant of carbon dioxide elimination in a Mapleson circuit?
Anesthetic Equipment and Monitoring Indian Medical PG Practice Questions and MCQs
Question 71: An E cylinder of oxygen contains approximately how many liters?
- A. 500
- B. 1200
- C. 900
- D. 680 (Correct Answer)
Explanation: **Explanation:** The correct answer is **680 liters**. In anesthesiology, the **E cylinder** is the standard size used on anesthesia machines for backup oxygen supply. **Why 680 is correct:** A full E cylinder of oxygen is pressurized to approximately **1900–2200 psi** (pounds per square inch). According to Boyle’s Law ($P_1V_1 = P_2V_2$), the volume of gas is inversely proportional to the pressure. When this high-pressure gas is released to atmospheric pressure, it expands to a volume of approximately **660 to 680 liters**. For NEET-PG purposes, 660 or 680 are the standard values taught. **Analysis of Incorrect Options:** * **A (500) & C (900):** These values do not correspond to any standard medical gas cylinder volumes used in clinical practice. * **B (1200):** This is significantly higher than the capacity of an E cylinder. Larger cylinders, like the **H cylinder** (used for bulk storage), hold much more (approx. 6900 liters). **High-Yield Clinical Pearls for NEET-PG:** 1. **Color Coding:** Oxygen cylinders are **Black with a White shoulder** (International/ISO) or **Green** (USA). 2. **Pin Index Safety System (PISS):** The pin position for Oxygen is **2, 5**. 3. **Calculation Tip:** To estimate how long a cylinder will last, use the formula: * *Duration (mins) = [Current Pressure (psi) × 0.3] / Flow rate (L/min).* 4. **Physical State:** Oxygen is stored as a gas in cylinders, meaning the pressure gauge falls linearly as the gas is consumed (unlike Nitrous Oxide, which is stored as a liquid).
Question 72: Which of the following drugs undergoes Hoffman's elimination?
- A. Atracurium (Correct Answer)
- B. Pancuronium
- C. Mivacurium
- D. Vecuronium
Explanation: **Explanation:** **Atracurium** is the correct answer because it is a benzylisoquinolinium neuromuscular blocking agent that undergoes **Hofmann elimination**. This is a unique, non-enzymatic, spontaneous chemical degradation that occurs at physiological pH and temperature. Because it does not rely on renal or hepatic function for its clearance, it is the drug of choice for patients with **renal or liver failure**. **Analysis of Incorrect Options:** * **B. Pancuronium:** A long-acting steroid-based muscle relaxant primarily excreted unchanged by the **kidneys** (80%). It is contraindicated in renal failure. * **C. Mivacurium:** A short-acting benzylisoquinolinium that is metabolized by **plasma pseudocholinesterase**, similar to succinylcholine. It does not undergo Hofmann elimination. * **D. Vecuronium:** An intermediate-acting steroid-based relaxant primarily metabolized and excreted by the **liver/bile** (deacetylation). **High-Yield Clinical Pearls for NEET-PG:** * **Cisatracurium:** An isomer of atracurium that also undergoes Hofmann elimination. It is more potent and produces less **laudanosine** (a metabolite of atracurium that can cross the blood-brain barrier and potentially cause seizures). * **Organ-Independent Elimination:** Both Atracurium and Cisatracurium are preferred in "multiorgan failure" scenarios. * **Temperature & pH Sensitivity:** Since Hofmann elimination is a chemical process, it is **slowed by acidosis and hypothermia**, leading to a prolonged duration of action in such clinical states.
Question 73: The 'train of four' stimulation is characteristically used in relation to which of the following?
- A. Malignant hyperthermia
- B. Non-depolarizing neuromuscular blockers (Correct Answer)
- C. Mechanical ventilation
- D. Assessment of hemodynamic parameters
Explanation: **Explanation:** **Train of Four (TOF)** stimulation is the standard method for monitoring **Neuromuscular Blockade (NMB)** during anesthesia. It involves delivering four supramaximal electrical stimuli (2 Hz) every 0.5 seconds to a peripheral nerve (most commonly the **ulnar nerve**, observing the adductor pollicis muscle). **Why Option B is Correct:** In the presence of **Non-depolarizing Neuromuscular Blockers** (e.g., Vecuronium, Rocuronium), there is a characteristic "fade" in the response. This happens because these drugs competitively block pre-junctional nicotinic receptors, preventing the rapid mobilization of acetylcholine required for repeated stimuli. The **TOF ratio** (amplitude of the 4th twitch divided by the 1st) is used to assess the depth of the block and the adequacy of recovery (a ratio >0.9 is required for safe extubation). **Why Other Options are Incorrect:** * **A. Malignant Hyperthermia:** This is a hypermetabolic state triggered by volatile anesthetics or succinylcholine. It is monitored via core temperature and end-tidal CO₂ (EtCO₂), not TOF. * **C. Mechanical Ventilation:** Monitoring involves airway pressures, tidal volumes, and blood gas analysis. * **D. Hemodynamic Parameters:** These are assessed via BP, Heart Rate, CVP, or Cardiac Output monitoring. **High-Yield Clinical Pearls for NEET-PG:** * **Phase II Block:** Depolarizing agents (Succinylcholine) usually show no fade (equal reduction in all four twitches). However, in high doses, they can produce a "Phase II block" which mimics the fade seen in non-depolarizing agents. * **Post-Tetanic Count (PTC):** Used when the TOF count is zero to assess very deep levels of blockade. * **Order of Muscle Recovery:** Diaphragm recovers first, followed by peripheral muscles, and lastly the **adductor pollicis** (making it the "gold standard" for monitoring recovery).
Question 74: The bronchoscope is best sterilized with?
- A. Ethylene oxide
- B. 2% Glutaraldehyde (Correct Answer)
- C. Betadine
- D. Infrared radiation
Explanation: **Explanation:** The sterilization of flexible fiberoptic bronchoscopes requires a method that is highly effective against a broad spectrum of microorganisms (including spores) while being non-corrosive to delicate optical components and heat-sensitive materials. **Why 2% Glutaraldehyde is correct:** 2% Glutaraldehyde (commonly known by the brand name **Cidex**) is a high-level disinfectant and a "cold sterilant." It works by alkylation of amino, carboxyl, and hydroxyl groups of microorganisms, altering RNA, DNA, and protein synthesis. It is the gold standard for heat-sensitive endoscopes because it is non-corrosive to metal, rubber, and plastic, and it provides excellent penetration into the narrow channels of the scope. For high-level disinfection, an immersion time of **20 minutes** is required, while full sterilization requires **10 hours**. **Why other options are incorrect:** * **Ethylene oxide (ETO):** While ETO can sterilize bronchoscopes, it is not the "best" or most practical choice for routine use. It requires long cycle times (up to 12 hours) and extensive aeration periods to remove toxic residues, making it inefficient for quick instrument turnover. * **Betadine (Povidone-iodine):** This is an antiseptic used for skin preparation and wound cleaning. It is not a sterilant and is ineffective against many spores and viruses; it would also leave residues that damage optical lenses. * **Infrared radiation:** This is a method of thermal sterilization (dry heat). The high temperatures generated would melt the plastic components and destroy the fiberoptic bundles of the bronchoscope. **High-Yield Clinical Pearls for NEET-PG:** * **Ortho-phthalaldehyde (OPA):** A newer alternative to Glutaraldehyde that is faster (5-12 mins) and doesn't require activation, though it is more expensive. * **Sterilization vs. Disinfection:** Remember that for "critical" items (entering sterile tissue), sterilization is needed. For "semi-critical" items like bronchoscopes (touching mucous membranes), **High-Level Disinfection (HLD)** is the minimum requirement. * **Cidex Test:** The potency of 2% Glutaraldehyde must be monitored with test strips; it usually has a shelf life of **14–28 days** once activated.
Question 75: What does central venous pressure measure?
- A. Pressure in the inferior vena cava
- B. Pressure in the superior vena cava
- C. Pressure in the right atrium (Correct Answer)
- D. Pressure in the right ventricle
Explanation: **Explanation:** Central Venous Pressure (CVP) is defined as the pressure measured at the junction of the vena cava and the **right atrium**. It serves as a direct reflection of right atrial pressure and, in the absence of tricuspid valve disease, provides an estimate of right ventricular end-diastolic pressure (RVEDP). * **Why Option C is correct:** The tip of a central venous catheter is ideally positioned in the superior vena cava just above its junction with the right atrium. Because there are no valves between the great veins and the right atrium, the pressure equilibrates, making CVP synonymous with **Right Atrial Pressure**. It is a key indicator of venous return and right-sided cardiac function. * **Why Option A & B are incorrect:** While the catheter passes through the SVC (or occasionally the IVC), these are merely conduits. The physiological goal of monitoring CVP is to assess the filling pressure of the heart itself, not the vascular resistance of the great veins. * **Why Option D is incorrect:** Right ventricular pressure is significantly higher during systole. Measuring RV pressure requires advancing the catheter through the tricuspid valve, which is not the standard practice for CVP and can cause arrhythmias. **High-Yield Clinical Pearls for NEET-PG:** 1. **Reference Point:** The zero transducer level for CVP is the **phlebostatic axis** (4th intercostal space, mid-axillary line). 2. **Waveform:** A normal CVP trace has three positive waves: **'a'** (atrial contraction), **'c'** (tricuspid bulging), and **'v'** (venous filling). 3. **Cannon 'a' waves:** Seen in AV dissociation (e.g., complete heart block or VT) when the atrium contracts against a closed tricuspid valve. 4. **Absent 'a' waves:** Characteristic of Atrial Fibrillation.
Question 76: What is the most common cause for a fall in end-tidal CO2?
- A. Cardiac arrest
- B. Extubation (Correct Answer)
- C. Hypothermia
- D. Hypercapnia
Explanation: **Explanation:** Capnography (ETCO2) measures the concentration of carbon dioxide in exhaled air. A sudden, complete fall in ETCO2 to zero or near-zero levels is most commonly caused by a **disconnection in the breathing circuit** or **accidental extubation**. **1. Why Extubation is Correct:** When the endotracheal tube is displaced from the trachea (extubation) or misplaced into the esophagus, the sensor no longer detects alveolar CO2. This results in an immediate and dramatic drop in the ETCO2 waveform. In clinical practice, "disconnection" and "extubation" are the most frequent mechanical causes for a sudden loss of the ETCO2 trace. **2. Analysis of Incorrect Options:** * **Cardiac Arrest:** While cardiac arrest causes a rapid drop in ETCO2 due to the cessation of pulmonary blood flow (no CO2 delivered to lungs), it is a clinical emergency rather than the most common cause of a falling trace in a controlled setting. * **Hypothermia:** This causes a **gradual** decrease in ETCO2 because it lowers the basal metabolic rate, thereby reducing CO2 production. It does not cause a sudden fall. * **Hypercapnia:** This refers to an *increase* in arterial CO2, which would typically lead to a **rise** in ETCO2 (unless there is a massive ventilation-perfusion mismatch). **Clinical Pearls for NEET-PG:** * **Sudden drop to zero:** Think Extubation, Circuit Disconnection, or Total Obstruction. * **Sudden drop (not to zero):** Think Pulmonary Embolism or Cardiac Arrest. * **Gradual decrease:** Think Hypothermia, Hyperventilation, or Hypovolemia. * **Gold Standard:** Capnography is the most reliable method to confirm endotracheal tube placement.
Question 77: Which of the following medications should be dosed according to total body weight (TBW), instead of lean body mass in morbidly obese patients?
- A. Pancuronium
- B. Vecuronium
- C. Morphine PCA
- D. Succinylcholine (Correct Answer)
Explanation: In morbidly obese patients, dosing medications is challenging due to changes in body composition (increased fat mass) and physiological shifts (increased blood volume and cardiac output). **Succinylcholine (Correct Answer):** Succinylcholine is the only neuromuscular blocker that must be dosed according to **Total Body Weight (TBW)**. In obesity, both the extracellular fluid volume and the activity of **pseudocholinesterase** (the enzyme that degrades succinylcholine) increase significantly. To ensure a rapid and effective neuromuscular blockade for intubation, the dose must be scaled to TBW (usually 1.0–1.5 mg/kg TBW). **Explanation of Incorrect Options:** * **Pancuronium & Vecuronium:** These are non-depolarizing neuromuscular blockers (NDMRs). Dosing them based on TBW in obese patients leads to excessive drug accumulation and prolonged paralysis because their clearance does not increase proportionally with weight. They should be dosed based on **Ideal Body Weight (IBW)** or **Lean Body Mass (LBM)**. * **Morphine PCA:** Opioids are highly lipophilic but can cause significant respiratory depression in obese patients (who often have underlying OSA). Dosing is generally based on **IBW/LBM** to avoid overdose and delayed recovery. **Clinical Pearls for NEET-PG:** * **TBW Dosing:** Succinylcholine, Dexmedetomidine, Neostigmine, and Maintenance dose of Propofol. * **IBW/LBM Dosing:** Non-depolarizing muscle relaxants (Vecuronium, Rocuronium), Induction dose of Propofol, Thiopentone, and Opioids (Fentanyl/Morphine). * **Key Rule:** For Succinylcholine, the increase in pseudocholinesterase activity is the primary reason for TBW-based dosing.
Question 78: What is the characteristic EEG pattern seen in the surgical tolerance stage of anesthesia?
- A. Alpha
- B. Beta
- C. Delta (Correct Answer)
- D. Theta
Explanation: **Explanation:** The correct answer is **Delta**. In clinical anesthesiology, the Electroencephalogram (EEG) serves as a vital surrogate for monitoring the depth of anesthesia. As the concentration of anesthetic agents increases and the patient moves from wakefulness to surgical planes of anesthesia, the EEG undergoes a predictable progression from high-frequency, low-amplitude waves to low-frequency, high-amplitude waves. 1. **Why Delta is correct:** Delta waves (0.5–4 Hz) are high-amplitude, slow-frequency waves. They are characteristic of **Stage III (Surgical Anesthesia)** and deep sleep. During this stage, there is significant cortical depression, which is necessary to ensure the patient is unresponsive to surgical stimuli. 2. **Why other options are incorrect:** * **Alpha (8–13 Hz):** These waves are seen in an awake, relaxed state with eyes closed. * **Beta (>13 Hz):** These are high-frequency waves seen during active concentration or "light" anesthesia (Stage I/Induction). Paradoxically, low doses of barbiturates or benzodiazepines can cause "Beta excitement." * **Theta (4–7 Hz):** These waves are typically seen during Stage II (Excitement phase) or light sleep. **Clinical Pearls for NEET-PG:** * **Burst Suppression:** This is a pattern of high-voltage activity alternating with periods of electrical silence (isoelectricity), indicating very deep anesthesia or cerebral hypoxia. * **BIS (Bispectral Index):** A processed EEG parameter used to monitor depth. A BIS value of **40–60** is considered the "sweet spot" for general anesthesia to prevent intraoperative awareness. * **Ketamine Exception:** Unlike most anesthetics that depress the EEG, Ketamine increases high-frequency activity (Beta/Gamma) despite the patient being in a state of dissociative anesthesia.

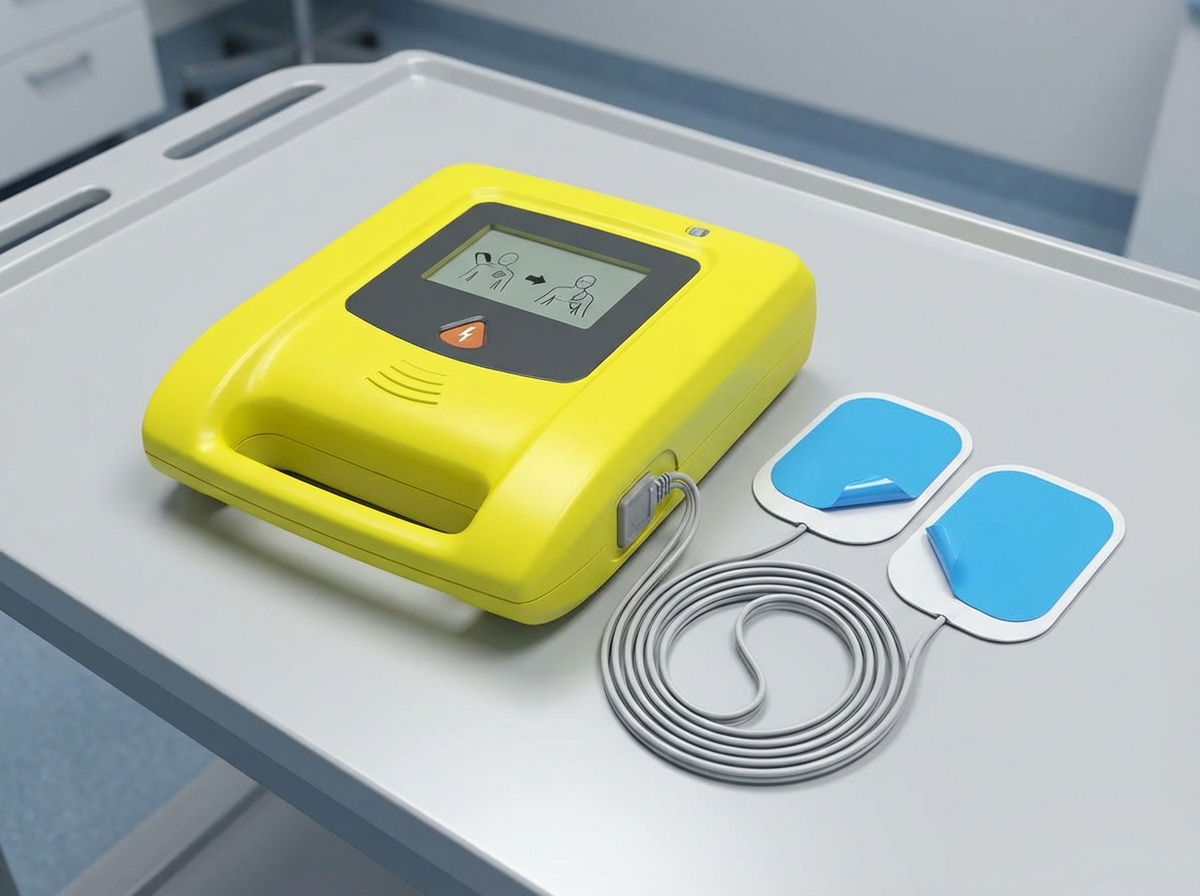

Question 79: Name the given device?
- A. Automated External Desynchronizer
- B. Automated External Decompressor
- C. Manual External Defibrillator
- D. Automated External Defibrillator (Correct Answer)
Explanation: ***Automated External Defibrillator*** - An **AED** is a portable, life-saving device that **automatically analyzes heart rhythm** and delivers electrical shocks to treat **ventricular fibrillation (VF)** and **ventricular tachycardia (VT)**. - Features **voice-guided prompts** and **automated shock delivery**, making it safe for use by **untrained bystanders** during cardiac emergencies. *Automated External Desynchronizer* - This is **not a real medical device** - "desynchronizer" is not a recognized term in emergency medical equipment. - **Defibrillation** involves synchronizing chaotic heart rhythms, not desynchronizing them. *Automated External Decompressor* - This is **not a real medical device** in the context of cardiac emergency equipment. - **Decompression** refers to relieving pressure, which is unrelated to **electrical cardioversion** for arrhythmias. *Manual External Defibrillator* - While this device exists, it requires **trained medical personnel** to interpret rhythms and manually determine **energy levels** and **timing of shocks**. - Lacks the **automated analysis** and **voice guidance** features that make AEDs suitable for public use.
Question 80: Which of the following is the main determinant of carbon dioxide elimination in a Mapleson circuit?
- A. Type of circuit
- B. Fresh gas flow (Correct Answer)
- C. Type of ventilation
- D. Age of patient
Explanation: ### Explanation In Mapleson (semi-open) circuits, there is no chemical carbon dioxide absorber (like soda lime). Therefore, the prevention of rebreathing and the subsequent elimination of $CO_2$ depend almost entirely on the **Fresh Gas Flow (FGF)**. **1. Why Fresh Gas Flow is the Correct Answer:** Mapleson circuits rely on a high FGF to "wash out" the exhaled gases (containing $CO_2$) from the circuit before the patient takes the next breath. If the FGF is sufficient, the exhaled gas is pushed out through the APL (Adjustable Pressure Limiting) valve. If the FGF is inadequate, the patient will rebreathe exhaled $CO_2$, leading to hypercapnia. **2. Analysis of Incorrect Options:** * **Type of circuit:** While the efficiency of $CO_2$ elimination varies between types (e.g., Mapleson A is best for spontaneous; Mapleson D is best for controlled ventilation), the *determinant* of elimination within any specific circuit remains the FGF. * **Type of ventilation:** Whether the patient is breathing spontaneously or via controlled ventilation changes the *efficiency* of the circuit, but it does not determine the elimination process itself, which still requires FGF to clear the dead space. * **Age of patient:** While the patient's size determines the required tidal volume and minute ventilation, the circuit’s ability to clear $CO_2$ is a function of the gas physics provided by the FGF. **Clinical Pearls for NEET-PG:** * **Mapleson A (Magill):** Most efficient for **Spontaneous Ventilation** (FGF = Minute Ventilation). * **Mapleson D (Bain’s):** Most efficient for **Controlled Ventilation** (FGF = 1.5 to 2 times Minute Ventilation). * **Mapleson E & F (Jackson-Rees):** Commonly used in **Paediatric anesthesia** due to low resistance and no valves. * **Mnemonic (Dog’s Rule):** To remember efficiency for Spontaneous Ventilation: **A > D > C > B**. (A is best, B is worst).
