Anesthetic Equipment and Monitoring — MCQs
On this page
The device shown can deliver FiO2 up to ____ :
The pin index of the following cylinder is:
The pin index of the following cylinder is:
The following capnographic tracing shows:
The following capnographic tracing represents:
The following capnographic tracing is seen in:
The following capnography recording indicates:
What is the next best step in patient with the following capnography tracing?
The image shows capnography recording. Et CO2 is measured at:
What does the marking $X$ at endotracheal tube indicate? (Recent NEET Pattern 2016-17)
Anesthetic Equipment and Monitoring Indian Medical PG Practice Questions and MCQs

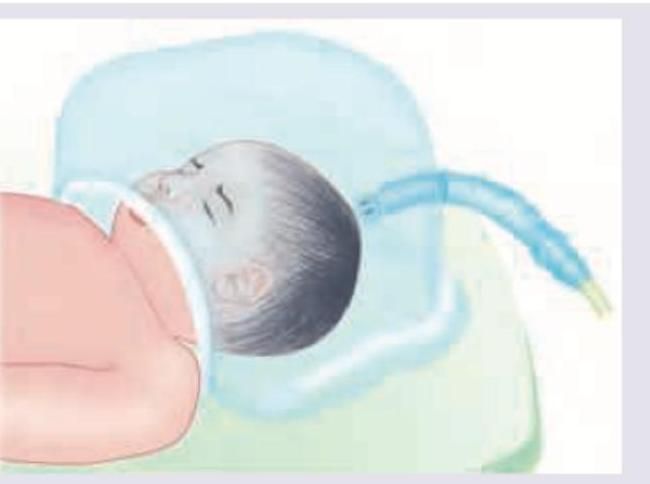

Question 291: The device shown can deliver FiO2 up to ____ :
- A. 40%
- B. 60%
- C. 80%
- D. 100% (Correct Answer)
Explanation: ***100%*** - Oxygen hoods, as pictured, are designed to deliver a specific and controlled **fraction of inspired oxygen (FiO2)** directly around an infant's head. - They allow for the delivery of **pure oxygen (100%)**, often mixed with air to achieve the desired FiO2, which can be monitored very closely for neonatal respiratory support.

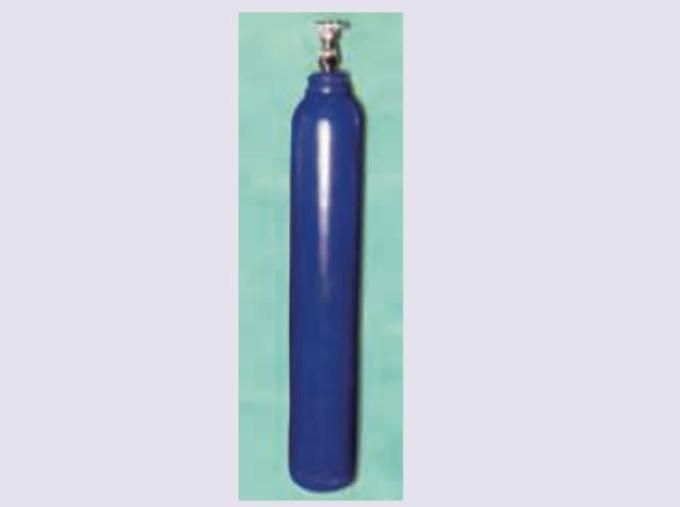

Question 292: The pin index of the following cylinder is:
- A. 1,5
- B. 2,5 (Correct Answer)
- C. 3,5
- D. 1,6
Explanation: ***2,5*** - The image displays a **blue gas cylinder**, which commonly indicates that it contains **nitrous oxide**. - According to the **Pin-Index Safety System**, the pin-index for nitrous oxide cylinders is **2 and 5**. *1,5* - The combination of **1 and 5** is typically associated with **medical air** cylinders. - This cylinder is blue, indicating nitrous oxide, not medical air. *3,5* - The pin index of **3 and 5** is designated for **nitrogen gas**. - The color of the cylinder (blue) does not correspond to nitrogen. *1,6* - The pin index of **1 and 6** is typically designated for **carbon dioxide** cylinders. - The cylinder's color and the intended gas (nitrous oxide) do not match this pin index.
Question 293: The pin index of the following cylinder is:
- A. 1,5
- B. 2,5 (Correct Answer)
- C. 3,5
- D. 7
Explanation: ***2,5*** - The image displays a gas cylinder with a **pin index safety system** where pins are evident at positions 2 and 5. This specific pin configuration is standard for **nitrous oxide** cylinders. - The pin index system for medical gases is designed to prevent incorrect gas connections, ensuring that only the proper regulator can be attached to a specific gas cylinder. *1,5* - A pin index of 1,5 is associated with **oxygen** cylinders. The cylinder in the image has a different pin configuration, which indicates it does not contain oxygen. - The physical appearance and color coding (blue body with a white shoulder/top, though not clearly visible in this image other than the body color) of this cylinder are not consistent with oxygen. *3,5* - A pin index of 3,5 is designated for **air** cylinders. The pin configuration in the image does not match this setting. - Each medical gas has a unique and standardized pin index combination to ensure safety and prevent medical errors. *7* - A single pin at position 7 is associated with **carbon dioxide** cylinders. The cylinder in the image clearly shows two pins, not one. - The pin index system relies on precise hole and pin placement to achieve gas-specific connections.

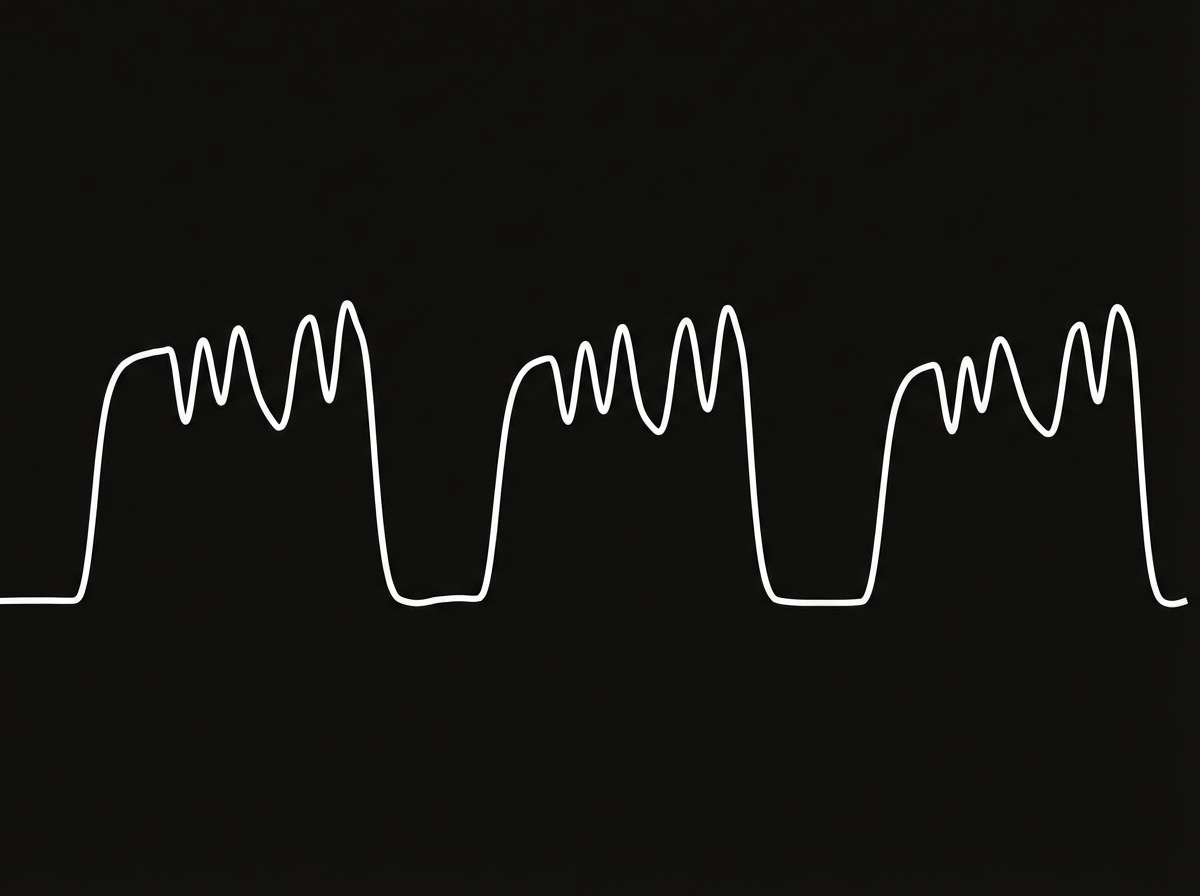

Question 294: The following capnographic tracing shows:
- A. Multiple rebreathing (Correct Answer)
- B. Cardiogenic oscillations
- C. Bronchospasm
- D. Normal capnography
Explanation: ***Multiple rebreathing*** - The **multiple oscillations** in the expiratory plateau (phase 3) indicate that the patient is repeatedly rebreathing exhaled gases, which are incompletely flushed from the breathing system. - This pattern is often due to **inadequate fresh gas flow** in a semi-open or non-rebreathing circuit, or a malfunctioning expiratory valve allowing exhaled CO2 to return into the inspiratory limb.

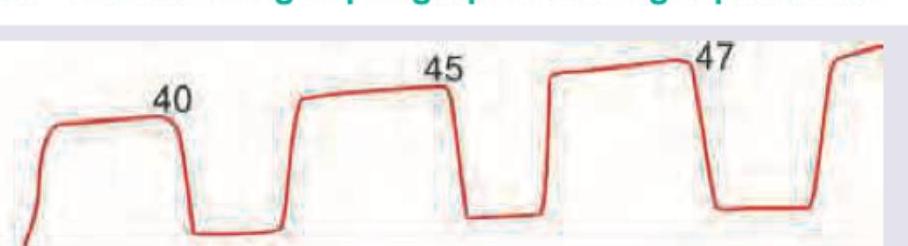

Question 295: The following capnographic tracing represents:
- A. Endobronchial intubation
- B. Pregnancy
- C. Esophageal intubation
- D. Malfunction of carbon dioxide rebreather system (Correct Answer)
Explanation: ***Malfunction of carbon dioxide rebreather system*** - The capnograph shows a **progressive increase in baseline CO2** and an increasing end-tidal CO2 (ETCO2) from 40 to 47 mmHg, indicating a buildup of CO2 due to inadequate CO2 removal. - This pattern is characteristic of a malfunctioning rebreather system, such as **exhausted soda lime** in an anesthetic circuit, where exhaled CO2 is not effectively absorbed. *Endobronchial intubation* - Endobronchial intubation typically results in **unilateral breath sounds** and can cause a decrease in ETCO2 due to reduced effective alveolar ventilation. - It does not typically lead to a progressively increasing baseline CO2 or ETCO2 in the manner shown, as CO2 exchange is still occurring, just less efficiently. *Pregnancy* - Pregnancy is associated with a **physiologic decrease in ETCO2** due to increased tidal volume and respiratory rate, leading to chronic hyperventilation to facilitate CO2 transfer to the fetus. - It would not cause a rising baseline CO2 or an increasing ETCO2 as depicted in the tracing. *Esophageal intubation* - Esophageal intubation is characterized by the **absence of a sustained capnograph waveform**, as no significant CO2 is exhaled from the esophagus. - A transient, small amount of CO2 may be detected initially from gastric CO2, but it quickly drops to zero, which is distinctly different from the waveform shown.
Question 296: The following capnographic tracing is seen in:
- A. Endobronchial intubation
- B. Pregnancy
- C. Esophageal intubation
- D. Curare cleft (Correct Answer)
Explanation: ***Curare cleft*** - The capnography tracing shows an abrupt **dip or 'cleft'** in the plateau phase, which is characteristic of a 'curare cleft' or 'window' on the capnogram. This occurs when the effect of **muscle relaxants (like curare)** starts to wear off, and the patient attempts to breathe spontaneously against a ventilator. - The spontaneous inspiratory effort causes a temporary decrease in **CO2 delivery to the airway**, leading to the characteristic dip in the capnogram. *Endobronchial intubation* - Endobronchial intubation typically results in a **reduced tidal volume** to the non-occluded lung and increased dead space ventilation in the occluded lung, but it does not cause this specific "cleft" morphology. - The capnogram might show a **gradual decrease in end-tidal CO2 (ETCO2)** due to ventilation-perfusion mismatch, but not an abrupt dip. *Pregnancy* - Pregnancy leads to various physiological changes, including an **increase in minute ventilation** and a **decrease in arterial PCO2 (PaCO2)**. - The capnogram in a pregnant patient would likely show a **lower baseline ETCO2** due to hyperventilation but would not exhibit a 'curare cleft'. *Esophageal intubation* - Esophageal intubation is characterized by the **absence of CO2** or very low, inconsistent CO2 readings on the capnogram, as the esophagus does not contain significant CO2. - The trace would appear as a **flat line or show minimal, erratic CO2 fluctuations**, clearly distinct from the described curvilinear pattern with a dip.
Question 297: The following capnography recording indicates:
- A. Pulmonary embolism
- B. Bronchospasm
- C. Esophageal intubation
- D. Curare cleft (Correct Answer)
Explanation: ***Curare cleft*** - The image displays a prominent "curare cleft" or "wagon wheel" pattern, which is a dip in the plateau phase of the capnograph waveform. - This cleft indicates the spontaneous **respiratory efforts** of a patient who is not adequately paralyzed or whose muscle relaxant is wearing off. *Pulmonary embolism* - A pulmonary embolism typically causes a sudden decrease in **end-tidal CO2 (EtCO2)** due to increased dead space, leading to a lower plateau, but not a "cleft" pattern. - The waveform would show a flat plateau at a lower CO2 value with an increased alpha angle. *Bronchospasm* - Bronchospasm results in an **obstructive pattern** on the capnogram, characterized by a **prolonged expiratory phase** and a "shark fin" appearance, where the ascending limb is steep, and the alveolar plateau is sloped. - It does not present as a dip in the plateau phase. *Esophageal intubation* - Esophageal intubation would result in a **flatline capnograph** or very small, sporadic waveforms, because no CO2 is being exhaled from the lungs. - The waveform in the image clearly shows significant CO2 exhalation, ruling out esophageal intubation.
Question 298: What is the next best step in patient with the following capnography tracing?
- A. Check for position of endotracheal tube (Correct Answer)
- B. Check for connections of anesthesia machine
- C. Change the soda lime canister
- D. Give skeletal muscle relaxant
Explanation: ***Check for position of endotracheal tube*** - The "curare cleft" or re-curarization pattern on the capnography indicates that the patient is spontaneously breathing against the ventilator, suggesting the effects of **muscle relaxants are wearing off**. - This pattern can also indicate a partially obstructed or dislodged endotracheal tube, where the patient's spontaneous breaths against the obstruction cause a dip in the expiratory plateau. Therefore, checking the **endotracheal tube position** is a critical immediate step. *Check for connections of anesthesia machine* - While machine connections are important for proper ventilation, this specific **"curare cleft" pattern** is more indicative of patient respiratory effort or tube issues rather than a primary machine connection problem. - A machine connection issue would typically manifest as a **loss of waveform** or an abnormal overall shape, not specifically a dip in the expiratory plateau. *Change the soda lime canister* - A depleted soda lime canister causes an **elevation of the baseline** (inspire CO2 not zero) and a rise in end-tidal CO2, as CO2 is not effectively reabsorbed. - This capnography tracing does not show an elevated baseline, making a depleted soda lime canister an **unlikely cause** of the observed "curare cleft." *Give skeletal muscle relaxant* - While the "curare cleft" can indicate that the effects of muscle relaxants are waning and the patient is beginning to spontaneously breathe, the **immediate next step** is to ensure airway patency and security. - Administering a muscle relaxant without first checking the **airway and tube position** could mask a serious issue. Re-dosing relaxants might be considered after ensuring the airway is secure and the tube is correctly positioned if the patient's spontaneous breathing is detrimental.

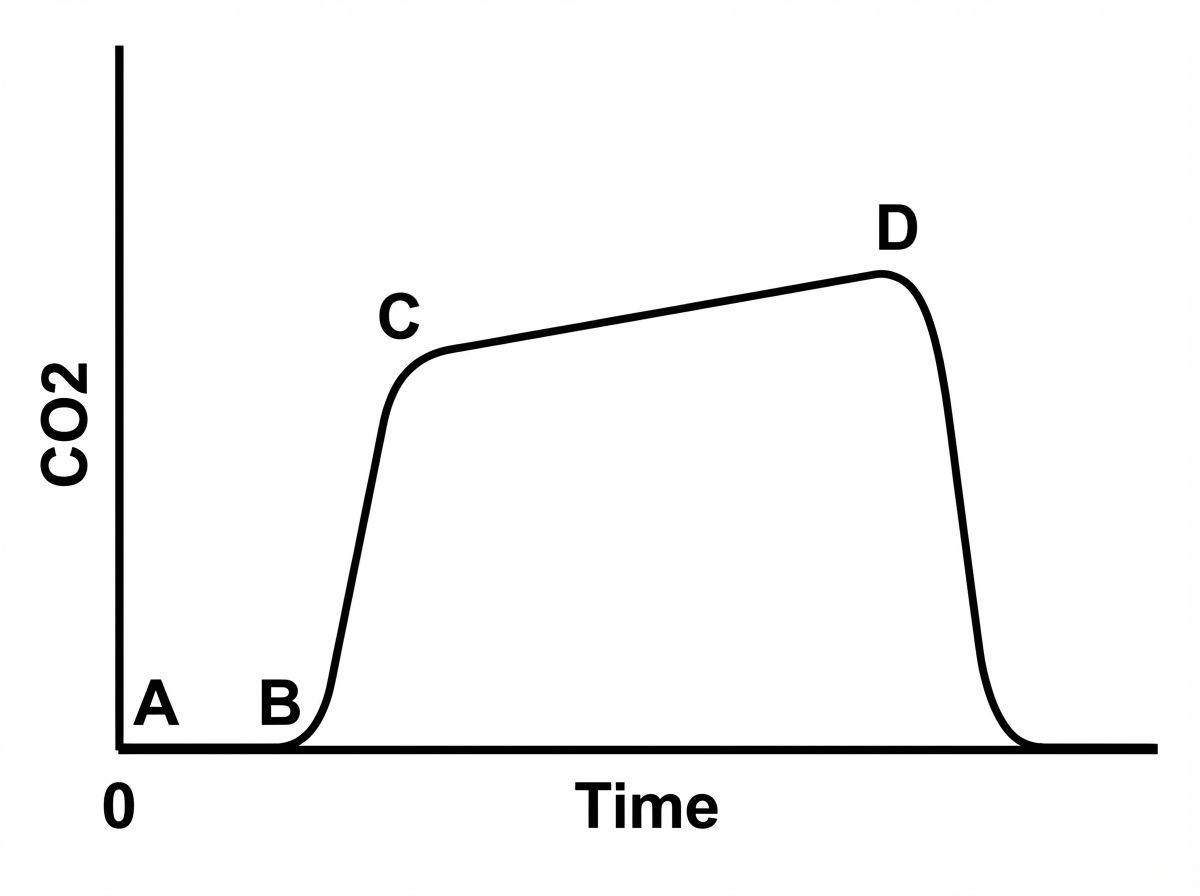

Question 299: The image shows capnography recording. Et CO2 is measured at:
- A. Point A
- B. Point B
- C. Point C
- D. Point D (Correct Answer)
Explanation: ***At point D*** - This point represents the **end-tidal CO2 (EtCO2)**, which is the maximum concentration of CO2 at the end of exhalation. - The capnogram displays CO2 concentration over time, and point D is the peak of the CO2 waveform for that breath cycle, indicating the CO2 level just before inspiration begins.

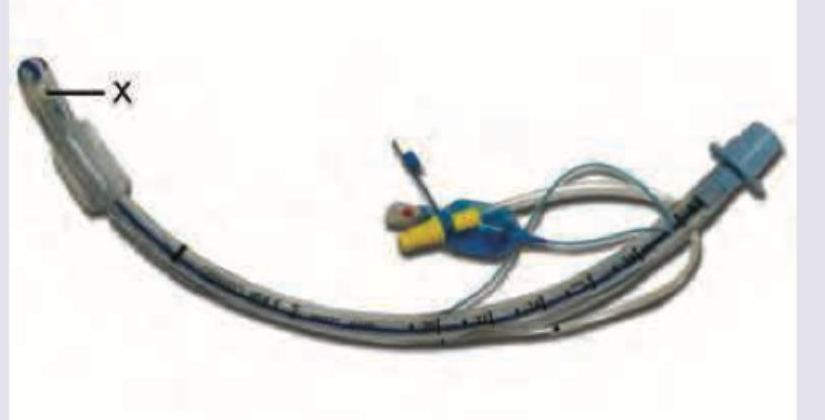

Question 300: What does the marking $X$ at endotracheal tube indicate? (Recent NEET Pattern 2016-17)
- A. Vocal cord marker (Correct Answer)
- B. Murphy's eye
- C. Inflatable cuff
- D. Lanz pressure regulating valve
Explanation: ***Vocal cord marker*** - The **"X" mark** on the endotracheal tube indicates the position that should ideally be aligned with the **vocal cords** upon successful intubation. - This helps in positioning the tube correctly within the trachea, ensuring the cuff is seated below the vocal cords but above the carina, preventing airway trauma and optimizing ventilation. *Murphy's eye* - The **Murphy's eye** is a hole located at the **distal tip** of the endotracheal tube, opposite the main bevel. - It serves as a safety feature to allow for ventilation even if the main opening of the tube becomes occluded. *Inflatable cuff* - The **inflatable cuff** is a balloon-like structure located near the distal end of the endotracheal tube, which, once inflated, **seals the airway** to prevent air leakage and aspiration. - The image shows the cuff inflated, but "X" points to a specific marking on the tube, not the cuff itself. *Lanz pressure regulating valve* - The **Lanz pressure regulating valve** is a device used to automatically maintain a safe and constant pressure in the endotracheal tube cuff, preventing over-inflation and reducing the risk of tracheal damage. - It is typically a separate component connected to the pilot balloon line, not a marking on the tube itself.
