Anesthetic Equipment and Monitoring Indian Medical PG Practice Questions and MCQs
Question 91: In a typical blood gas analyser, which of the following is true?
- A. Oxygen tension will be overstimulated in hypothermia
- B. pH is a derived measurement
- C. Standard bicarbonate can be used to indicate the respiratory component
- D. The oxygen tension can be measured using a Clarke electrode. (Correct Answer)
Explanation: ### Explanation **1. Why Option D is Correct:** The **Clark electrode** (a polarographic electrode) is the gold standard for measuring the partial pressure of oxygen ($PaO_2$). It consists of a platinum cathode and a silver/silver chloride anode immersed in an electrolyte solution. Oxygen diffuses across a gas-permeable membrane and is reduced at the cathode, generating a current proportional to the oxygen tension. **2. Analysis of Incorrect Options:** * **Option A:** In hypothermia, the solubility of gases increases, but the partial pressure ($PaO_2$ and $PaCO_2$) actually **decreases**. If a sample from a hypothermic patient is analyzed at the standard $37^\circ\text{C}$ without correction, the $PaO_2$ will appear **falsely elevated** (overestimated), not overstimulated. * **Option B:** In a blood gas analyzer, **pH, $PaCO_2$, and $PaO_2$ are directly measured** using specific electrodes (Sanz, Severinghaus, and Clark electrodes, respectively). Bicarbonate ($HCO_3^-$) and Base Excess are the derived/calculated values. * **Option C:** Standard bicarbonate is used to assess the **metabolic component**, not the respiratory component. It represents the bicarbonate concentration at a $PaCO_2$ of $40\text{ mmHg}$ and full oxygen saturation, thereby "standardizing" it to eliminate respiratory influences. **3. Clinical Pearls for NEET-PG:** * **Sanz Electrode:** Measures pH. * **Severinghaus Electrode:** Measures $PaCO_2$ (a modified pH electrode). * **Temperature Correction:** If the patient’s temperature is not $37^\circ\text{C}$, the ABG machine must be adjusted. For every degree Celsius rise in temperature, $PaO_2$ increases by approximately 7% and $PaCO_2$ by 4%. * **Heparin:** Use **liquid heparin** sparingly (only to coat the syringe) as excess heparin is acidic and can dilute the sample, falsely lowering $PaCO_2$. Lithium heparin is preferred.

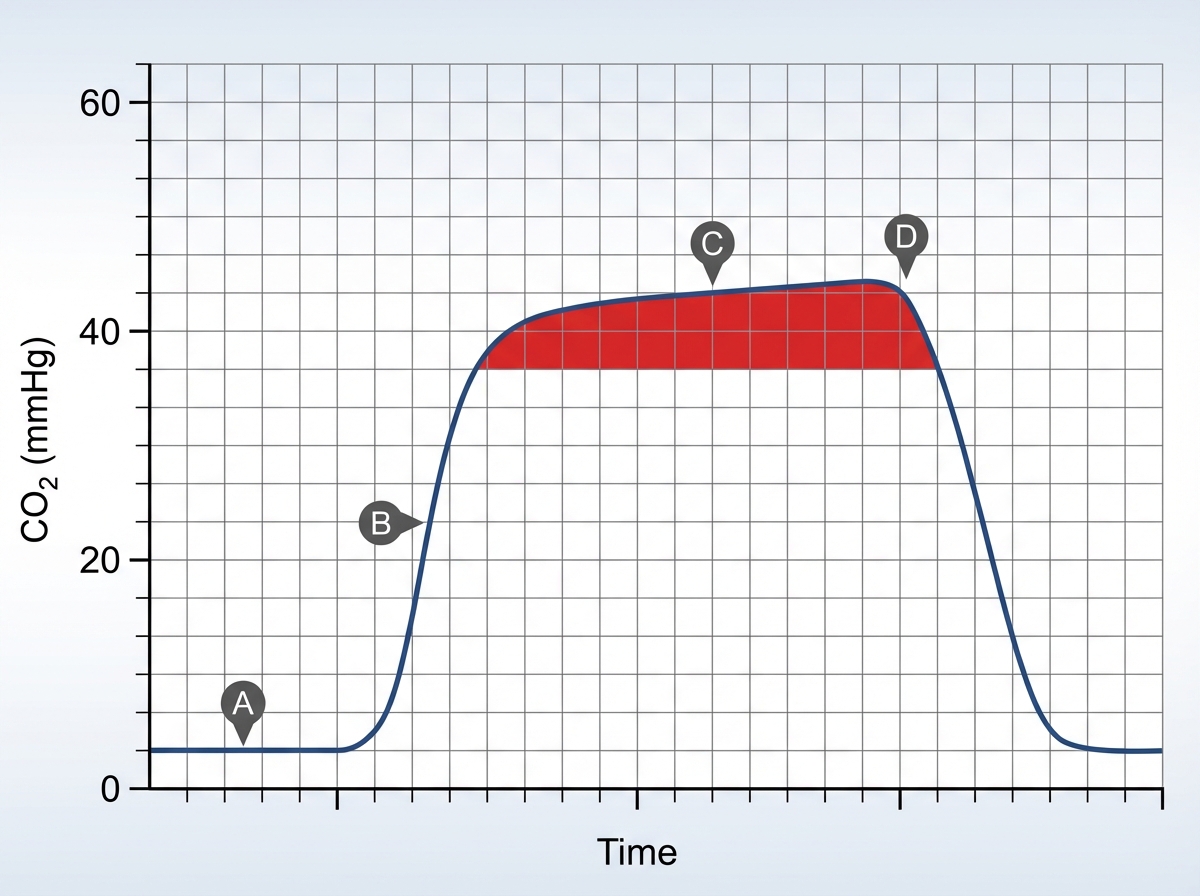

Question 92: In the provided capnograph tracing, what does the red parameter represent?
- A. Alveolar ventilation during expiration (Correct Answer)
- B. Inspiration
- C. Expiration
- D. Dead space ventilation
Explanation: ***Alveolar ventilation during expiration*** - The red parameter represents **Phase III** of the capnograph waveform, also known as the **alveolar plateau** or **expiratory plateau**. - This phase reflects CO2 from the **alveolar gas** being exhaled, representing true **alveolar ventilation** and providing the most accurate measurement of **end-tidal CO2**. *Inspiration* - **Phase IV** of the capnograph represents inspiration, showing a sharp **downward deflection** as fresh air with minimal CO2 enters the lungs. - The red parameter shows a **plateau phase**, not the characteristic downward slope of inspiratory flow. *Expiration* - While the red parameter occurs during expiration, it specifically represents only **one phase** of the expiratory cycle, not the entire expiratory process. - **Total expiration** includes Phase I (dead space), Phase II (upstroke), and Phase III (alveolar plateau) - the red parameter is specifically Phase III only. *Dead space ventilation* - **Dead space ventilation** is represented by **Phase I** of the capnograph, showing minimal CO2 levels from anatomical dead space. - The red parameter shows **elevated CO2 levels** characteristic of alveolar gas, not the low CO2 levels seen in dead space ventilation.
Question 93: Which cylinder size is most commonly used in an anesthesia machine?
- A. A
- B. B
- C. D
- D. E (Correct Answer)
Explanation: **Explanation:** In modern anesthesia practice, the **E-cylinder** is the standard size used for attachment directly to the anesthesia machine (Boyle’s apparatus). These cylinders are mounted via the **Pin Index Safety System (PISS)** to the yoke of the machine, serving as a secondary or emergency supply of gases like Oxygen, Nitrous Oxide, and Medical Air in case the central pipeline system fails. **Analysis of Options:** * **Option D (E-cylinder):** This is the correct answer. It is portable yet holds a sufficient volume of gas (e.g., 660 liters of Oxygen at 1900–2000 psi) to sustain a patient during a procedure or transport. * **Options A & B (A and B cylinders):** These are much smaller cylinders. While they are used in specialized portable equipment or for specific laboratory purposes, they do not have the capacity required for standard anesthesia machine use. * **Option C (D-cylinder):** These are intermediate in size. While sometimes used in emergency kits or for patient transport, they are not the standard fit for the anesthesia machine yoke. * **Note on H-cylinders:** Large **H-cylinders** (bulk cylinders) are used in the manifold room to supply the central pipeline system but are too large to be attached to the machine itself. **High-Yield Clinical Pearls for NEET-PG:** 1. **Pin Index Safety System (PISS):** Crucial for preventing accidental cross-connection. * **Oxygen:** 2, 5 * **Nitrous Oxide:** 3, 5 * **Air:** 1, 5 2. **Color Coding (India/ISO):** Oxygen (Black body/White shoulder), Nitrous Oxide (Blue), Air (Grey body/White & Black shoulder). 3. **Capacity:** An E-cylinder of Oxygen contains ~660L at 137 bar (2000 psi). The pressure gauge is a direct reflection of the volume remaining for Oxygen, but **not** for Nitrous Oxide (until the liquid phase is exhausted).
Question 94: Capnography basically monitors:
- A. Central venous pressure
- B. Blood pressure during anesthesia
- C. Concentration of exhaled CO2 (Correct Answer)
- D. Concentration of inhaled O2
Explanation: **Explanation:** **Capnography** is the continuous, non-invasive monitoring of the concentration or partial pressure of carbon dioxide ($CO_2$) in the respiratory gases. It is considered a "gold standard" monitor in anesthesia for verifying airway patency and ventilation. **Why Option C is correct:** Capnography measures the **End-Tidal $CO_2$ ($EtCO_2$)**, which is the level of $CO_2$ released at the end of expiration. This value closely approximates the arterial $CO_2$ ($PaCO_2$) in healthy lungs. It provides real-time data on three critical processes: 1. **Metabolism:** $CO_2$ production in tissues. 2. **Perfusion:** Transport of $CO_2$ to the lungs via blood. 3. **Ventilation:** Elimination of $CO_2$ from the lungs. **Why other options are incorrect:** * **Option A:** Central Venous Pressure (CVP) is monitored via a central venous catheter to assess fluid status and right heart function. * **Option B:** Blood pressure is monitored using a sphygmomanometer (NIBP) or an arterial line (IBP). * **Option D:** Inhaled $O_2$ concentration is monitored by an oxygen analyzer (FiO2 monitor) within the anesthesia circuit to prevent hypoxic mixtures. **High-Yield Clinical Pearls for NEET-PG:** * **Gold Standard for Intubation:** A persistent $CO_2$ waveform is the most reliable method to confirm **endotracheal tube placement** and rule out esophageal intubation. * **CPR Monitoring:** During cardiac arrest, $EtCO_2$ is used to assess the quality of chest compressions. A sudden increase in $EtCO_2$ is the earliest sign of **ROSC** (Return of Spontaneous Circulation). * **Malignant Hyperthermia:** An unexplained, rapid rise in $EtCO_2$ is often the **earliest sign** of Malignant Hyperthermia. * **Curare Cleft:** A dip in the plateau of the capnograph indicates that the patient is attempting to breathe spontaneously against a muscle relaxant.
Question 95: What is the name of the following instrument?
- A. TENS box
- B. Peripheral nerve stimulator
- C. Peripheral nerve locator (Correct Answer)
- D. Portable ECG
Explanation: ***Peripheral nerve locator*** - A **peripheral nerve locator** is specifically designed for **regional anesthesia** to locate peripheral nerves by delivering low-intensity electrical stimulation. - It helps anesthesiologists identify the correct anatomical position of nerves before injecting **local anesthetic** for nerve blocks. *TENS box* - A **TENS (Transcutaneous Electrical Nerve Stimulation)** device is used for **pain management** through surface electrodes, not for nerve localization. - It provides continuous electrical stimulation for **chronic pain relief** rather than precise nerve identification during procedures. *Peripheral nerve stimulator* - A **peripheral nerve stimulator** is primarily used to monitor **neuromuscular blockade** during anesthesia by stimulating motor nerves. - It assesses the degree of **muscle relaxation** from neuromuscular blocking agents, not for locating nerves for regional blocks. *Portable ECG* - A **portable ECG** is used for **cardiac monitoring** and recording electrical activity of the heart. - It has no role in **nerve localization** or regional anesthesia procedures, focusing solely on cardiac rhythm analysis.
Question 96: What is the intraoperative use of the following device?
- A. To prevent intraoperative awareness (Correct Answer)
- B. To measure cerebral oxygenation
- C. None of the above
- D. Both
Explanation: ***To prevent intraoperative awareness*** - The **BIS (Bispectral Index) monitor** processes **EEG signals** to provide a numerical score (0-100) indicating the depth of anesthesia, with target range of **40-60** for general anesthesia. - It helps anesthesiologists titrate anesthetic agents appropriately to prevent **intraoperative awareness** while avoiding excessive anesthesia. *To measure cerebral oxygenation* - Cerebral oxygenation is measured using **NIRS (Near-Infrared Spectroscopy)** or **cerebral oximetry devices**, not BIS monitors. - BIS monitors analyze **processed EEG activity** to assess consciousness level, not oxygen saturation in brain tissue. *None of the above* - This is incorrect as the BIS monitor has a well-established **intraoperative use** for monitoring anesthetic depth. - The device specifically helps prevent **intraoperative awareness** by providing real-time feedback on the patient's level of consciousness. *Both* - While BIS monitors prevent intraoperative awareness, they do **not measure cerebral oxygenation** - this requires different technology. - BIS technology is based on **EEG analysis**, while cerebral oxygenation monitoring uses **near-infrared light absorption** principles.
Question 97: Which of the following muscle relaxants is free of cardiovascular effects over the entire clinical dose range?
- A. Pancuronium
- B. Vecuronium (Correct Answer)
- C. Atracurium
- D. Pipecuronium
Explanation: **Explanation:** The cardiovascular stability of neuromuscular blocking agents (NMBAs) is determined by their lack of effect on the autonomic nervous system (specifically muscarinic receptors) and their potential for histamine release. **1. Why Vecuronium is Correct:** Vecuronium is a monoquaternary aminosteroid NMBA. It is considered the "gold standard" for cardiovascular stability because it lacks both vagolytic activity and histamine-releasing properties. Even at doses significantly higher than its $ED_{95}$ (up to 0.28 mg/kg), it produces no significant changes in heart rate or mean arterial pressure, making it safe for patients with coronary artery disease or valvular heart disease. **2. Analysis of Incorrect Options:** * **Pancuronium:** A long-acting aminosteroid that causes significant **tachycardia** and hypertension. This is due to its potent vagolytic effect (blocking $M_2$ receptors in the SA node) and its ability to inhibit norepinephrine reuptake. * **Atracurium:** A benzylisoquinolinium compound known for dose-dependent **histamine release**. At higher doses (e.g., >0.5 mg/kg), it can cause hypotension and reflex tachycardia. * **Pipecuronium:** While it is a long-acting steroid with high cardiovascular stability, it is not considered "entirely free" of effects across the widest clinical range compared to the established profile of Vecuronium in standard practice. **Clinical Pearls for NEET-PG:** * **Rocuranium** is also highly stable but can cause mild increases in heart rate at very high doses. * **Mivacurium** is the NMBA most likely to cause profound histamine release. * **Cisatracurium** is the isomer of atracurium that does *not* cause histamine release, making it the most stable benzylisoquinolinium. * **Drug of choice for Renal Failure:** Cisatracurium/Atracurium (due to Hoffman elimination). * **Drug of choice for Cardiac Surgery:** Vecuronium or Pipecuronium (due to stability).
Question 98: Which is the main component of soda-lime used in a closed circuit system?
- A. Sodium hydroxide
- B. Barium hydroxide
- C. Calcium hydroxide (Correct Answer)
- D. Potassium hydroxide
Explanation: **Explanation:** In a closed-circuit anesthetic system, **Soda-lime** is used to absorb exhaled carbon dioxide (CO₂), allowing for the conservation of anesthetic gases and moisture. **1. Why Calcium Hydroxide is Correct:** Calcium hydroxide (Ca(OH)₂) is the primary constituent of soda-lime, making up approximately **80%** of its composition. The chemical reaction involves CO₂ reacting with water to form carbonic acid, which then reacts with the hydroxides to form carbonates, water, and heat (an exothermic reaction). Calcium hydroxide provides the bulk of the neutralizing capacity. **2. Analysis of Incorrect Options:** * **Sodium hydroxide (NaOH):** While present in soda-lime, it acts only as a **catalyst** to speed up the initial reaction. It typically comprises only 4% of the mixture. * **Potassium hydroxide (KOH):** Previously used as a catalyst, it has been largely removed from modern soda-lime formulations because it was linked to the production of **Carbon Monoxide** (when using desflurane) and **Compound A** (with sevoflurane). * **Barium hydroxide:** This is the main component of **Bara-lyme** (not Soda-lime). Bara-lyme is no longer commonly used due to its higher risk of fire and carbon monoxide production. **High-Yield Clinical Pearls for NEET-PG:** * **Composition:** 80% Calcium hydroxide, 4% Sodium hydroxide, 15% Water, and a trace of Silica (added for hardness to prevent dust formation). * **Indicator:** **Ethyl violet** is the most common indicator; it turns from white to **purple/blue** when the pH drops below 10.3, signaling exhaustion. * **Mesh Size:** The standard size is **4–8 mesh** to provide a balance between high surface area for absorption and low resistance to gas flow. * **Safety:** To prevent "Compound A" formation with Sevoflurane, ensure the soda-lime is not desiccated (dried out).
Question 99: What is the modified shock index?
- A. Heart rate divided by systolic blood pressure
- B. Heart rate divided by diastolic blood pressure
- C. Heart rate divided by mean arterial pressure (Correct Answer)
- D. None of the above
Explanation: **Explanation:** The **Modified Shock Index (MSI)** is a clinical tool used to assess hemodynamic stability and predict mortality or the need for massive transfusion in emergency and perioperative settings. 1. **Why Option C is Correct:** The MSI is defined as the ratio of **Heart Rate (HR) to Mean Arterial Pressure (MAP)**. * **Formula:** $MSI = \frac{HR}{MAP}$ * **Medical Concept:** While the traditional Shock Index uses Systolic Blood Pressure (SBP), the MSI incorporates MAP because MAP represents the actual perfusion pressure seen by organs. It accounts for both systolic and diastolic components, making it a more sensitive indicator of systemic vascular resistance and left ventricular stroke work than SBP alone. An MSI > 1.3 is generally considered a predictor of poor clinical outcomes. 2. **Why Other Options are Incorrect:** * **Option A (HR/SBP):** This is the **Traditional Shock Index (SI)**. It is widely used to identify occult shock but can be less sensitive than MSI because SBP may remain compensated in early stages of shock. * **Option B (HR/DBP):** This is known as the **Diastolic Shock Index (DSI)**. While it is an emerging marker for mortality in septic shock, it is not the "Modified" version. 3. **High-Yield Clinical Pearls for NEET-PG:** * **Normal Range:** The normal MSI range is typically **0.7 to 1.3 bpm/mmHg**. * **Predictive Value:** MSI is superior to both HR and BP alone in predicting the severity of hypovolemia and the risk of mortality in trauma patients. * **Age Factor:** In pediatric patients, the **Age-Adjusted Shock Index (SIPA)** is used instead of standard values. * **Key Threshold:** An MSI **> 1.3** suggests a high risk of clinical deterioration and the need for immediate intervention.
Question 100: What is the colour coding of halothane, isoflurane, sevoflurane, and desflurane, respectively?
- A. red, purple, blue, yellow
- B. red, purple, yellow, blue (Correct Answer)
- C. red, yellow, purple, blue
- D. red, blue, purple, yellow
Explanation: **Explanation:** The color coding of volatile anesthetic agents is standardized globally by the **ASTM (American Society for Testing and Materials)** and the **ISO** to prevent medication errors and ensure that the correct agent is filled into the corresponding agent-specific vaporizer. **1. Why Option B is Correct:** The standard color codes for the most commonly used volatile anesthetics are: * **Halothane:** **Red** * **Isoflurane:** **Purple** * **Sevoflurane:** **Yellow** * **Desflurane:** **Blue** These colors are found on the agent bottle labels, the vaporizer dial/casing, and the specific filling keys (keyed fillers) to ensure a "fail-safe" mechanism during equipment setup. **2. Analysis of Incorrect Options:** * **Option A:** Incorrectly lists Blue for Sevoflurane and Yellow for Desflurane. * **Option C:** Swaps the positions of Isoflurane (Purple) and Sevoflurane (Yellow). * **Option D:** Swaps the positions of Isoflurane (Purple) and Desflurane (Blue). **3. High-Yield Clinical Pearls for NEET-PG:** * **Mnemonic:** Remember **"HIP-S-Y"** (Halothane-Red/Hot, Isoflurane-Purple, Sevoflurane-Yellow). * **Desflurane Unique Feature:** Unlike others, Desflurane requires a special heated, pressurized vaporizer (e.g., Tec 6) because its boiling point is near room temperature (23.5°C). * **Historical Agent:** **Enflurane** is color-coded **Orange** (rarely used now but important for exams). * **Methoxyflurane:** Color-coded **Green**. * **Safety Mechanism:** The **Selectatec®** system ensures that only one vaporizer can be turned on at a time, preventing the delivery of mixed anesthetic vapors.
