Identify the pelvis type given below.
Identify the type of pelvis in the given image.
Which lymph node is most commonly involved in prostate cancer?
Match the following anatomical structures with their correct image labels: 1. Seminal vesicles 2. Ureter 3. Prostate 4. Vas deferens
Identify the structure correctly labeled in the given image.

The image shows left hip bone lateral surface. Name the muscles attached at X and Y sites respectively:

What is the afferent nerve of the superficial reflex shown?

Name the ligament marked as $X$.

Identify the urogenital diaphragm in the image given below:

Gland of Cloquet is :
Explanation: ***Android*** - This pelvis is characterized by a **heart-shaped** or triangular inlet, with a narrow forepelvis, as seen in the image. - It features **prominent ischial spines** and a narrow subpubic arch, making it unfavorable for vaginal delivery and associated with a higher risk of **dystocia**. *Platypoid* - The platypoid pelvis has a **kidney-shaped** or **transversely oval** inlet, where the transverse diameter is significantly wider than the anteroposterior diameter. - This type is the rarest and is unfavorable for childbirth as the fetal head may have difficulty engaging in the short anteroposterior diameter. *Anthropoid* - The anthropoid pelvis has a **long, narrow, oval-shaped** inlet, where the anteroposterior diameter is greater than the transverse diameter. - This shape often leads to the engagement of the fetal head in the **occiput-posterior** position but is generally favorable for vaginal delivery. *Gynecoid* - This is the classic female pelvis, featuring a **rounded** or slightly oval inlet with a wide transverse diameter, which is most favorable for childbirth. - It has a wide **subpubic arch** (greater than 90 degrees), non-prominent ischial spines, and a spacious pelvic cavity, facilitating an uncomplicated vaginal delivery.
Explanation: ***Gynecoid pelvis***- The **Gynecoid pelvis** is considered the classic female pelvis, characterized by a **round** or slightly oval pelvic inlet and a well-curved sacrum.- This type is optimal for vaginal delivery, featuring straight side walls, a spacious midpelvis, and a **wide subpubic angle** (arch of 90 degrees or more).*Android pelvis*- The **Android pelvis** possesses a characteristic **heart-shaped** or triangular pelvic inlet because the sacrum is pushed forward, leading to converging side walls.- This shape is typically associated with the male structure and increases the likelihood of obstructed labor due to a **narrow subpubic arch**.*Anthropoid pelvis*- The **Anthropoid pelvis** has an oval shape where the **anteroposterior diameter** is significantly longer than the transverse diameter (long, narrow oval).- The fetal head often engages in the occipito-anterior or occipito-posterior position, which may increase the chance of difficulty with rotation to the transverse diameter.*Platypelloid pelvis*- The **Platypelloid pelvis** (or flat pelvis) is characterized by a severely flattened, transversely oval or **kidney-shaped** inlet, meaning the transverse diameter is much greater than the AP diameter.- It frequently prevents the fetal head from properly engaging or rotating, often leading to transverse arrest and necessity for **cesarean section**.
Explanation: ***Internal iliac*** - The **internal iliac (hypogastric) lymph nodes** are the **primary and most common** site of lymphatic drainage from the prostate gland. - These nodes, along with the **obturator** and **external iliac** nodes, form the regional pelvic lymph node basin for prostate cancer metastasis. - In prostate cancer staging, metastasis to regional pelvic nodes (N1 disease) most commonly involves the **internal iliac nodes** as the first echelon. - This is the most anatomically specific and clinically relevant answer for the primary lymphatic drainage of the prostate. *Deep inguinal* - **Deep inguinal nodes** drain structures distal to the prostate, such as the lower limb and parts of the external genitalia. - These nodes are not part of the primary drainage pathway for the prostate gland. - Involvement would only occur in very advanced disease with extensive spread. *Pelvic* - While "pelvic lymph nodes" is a correct broad anatomical term encompassing the internal iliac, obturator, and external iliac nodes, it is **too non-specific** for this question. - When asked for the **most common** specific lymph node group involved, the answer should identify the **primary drainage site** (internal iliac) rather than the general region. *Superficial inguinal* - These nodes primarily drain the skin and superficial tissues of the lower abdominal wall, perineum, and lower limbs. - They are not involved in primary prostatic drainage and would only be affected in extremely advanced disease with local invasion.
Explanation: ***Correct: 1-D, 2-C, 3-A, 4-B*** - This option correctly identifies the labeled structures: **A** is the **prostate gland**, inferior to the bladder; **B** is the **vas deferens**, hooking over the ureter; **C** is the **ureter**, entering the posterior bladder wall; and **D** are the **seminal vesicles**, located posterior to the bladder. - The relationships are accurate: the **vas deferens (B)** transports sperm from the epididymis, the **seminal vesicles (D)** produce seminal fluid, the **prostate (A)** contributes prostatic fluid, and the **ureter (C)** transports urine from the kidneys. *Incorrect: 1-A, 2-B, 3-C, 4-D* - This option incorrectly identifies the **prostate gland (A)** as the seminal vesicles. The prostate is a single, walnut-sized gland, whereas the seminal vesicles (D) are paired and lobulated. - It also mislabels the **ureter (C)** as the prostate and the **vas deferens (B)** as the ureter, which is anatomically incorrect. *Incorrect: 1-B, 2-C, 3-D, 4-A* - This option incorrectly labels the **vas deferens (B)** as the seminal vesicles and the **seminal vesicles (D)** as the prostate. - The prostate (A) is a singular structure at the base of the bladder, not the vas deferens, which is a tubular structure. *Incorrect: 1-D, 2-B, 3-A, 4-C* - This choice incorrectly swaps the **ureter** and the **vas deferens**. Label **C** points to the ureter entering the bladder, not the vas deferens. - Label **B** points to the **vas deferens**, which is seen hooking over the ureter (C), and not the ureter itself.

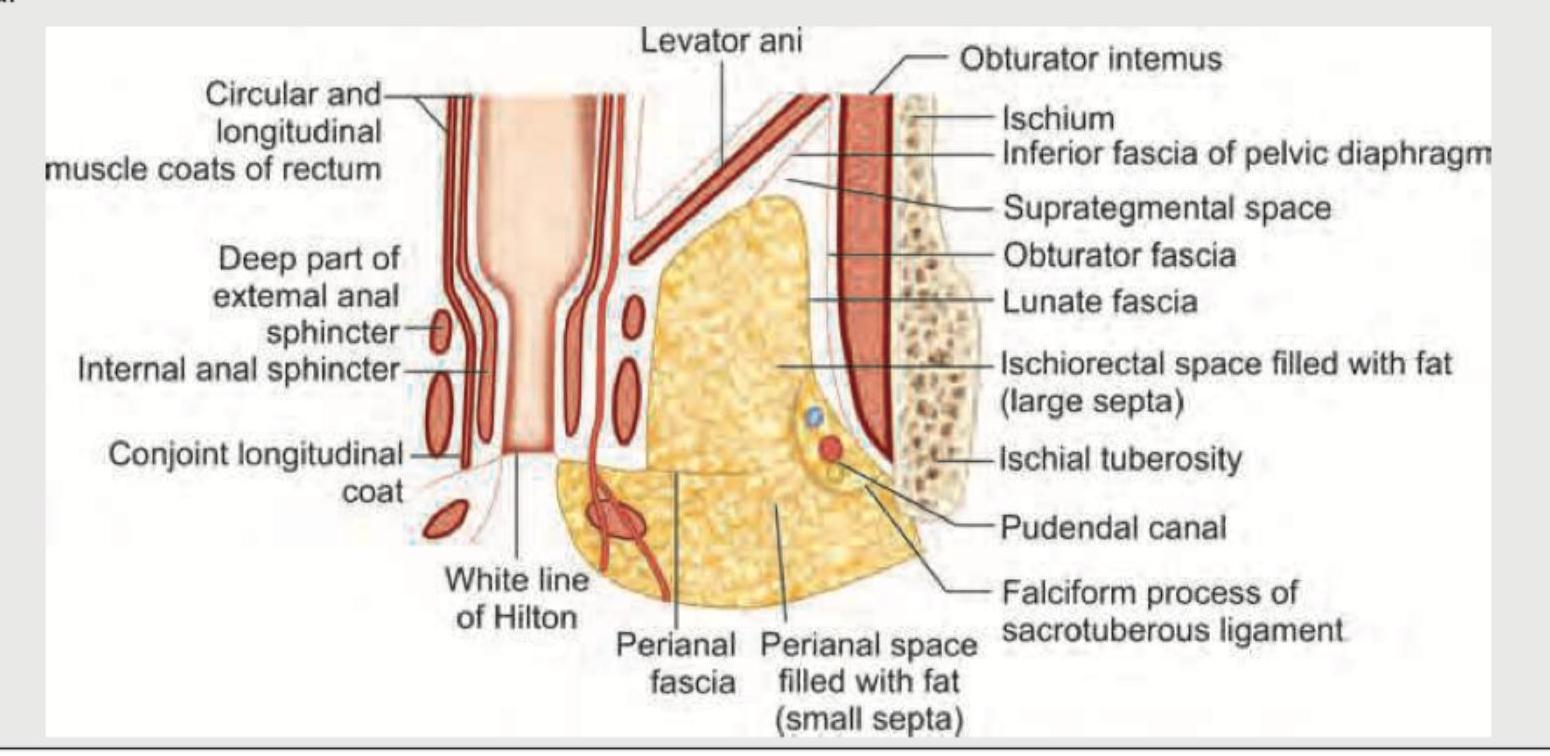

Explanation: ***Pudendal canal*** - The **pudendal canal (Alcock's canal)** is correctly identified in the image as the structure located in the lateral wall of the **ischiorectal fossa**. - It is formed by a fascial sheath derived from the **obturator internus fascia** and contains: - Internal pudendal artery and vein - Pudendal nerve and its branches - This canal extends from the **lesser sciatic foramen** to the **posterior edge of the urogenital diaphragm**. - Clinical significance: Site for pudendal nerve block for perineal anesthesia during obstetric procedures. *Internal anal sphincter* - The **internal anal sphincter** is the involuntary smooth muscle sphincter formed by thickening of the circular muscle layer of the rectum. - While this is a valid anatomical structure, if incorrectly labeled or positioned in the image, it would not be the correct answer. *Deep part of external anal sphincter* - The **deep part of external anal sphincter** forms the deepest component of the three-part external anal sphincter (subcutaneous, superficial, and deep parts). - It is a voluntary skeletal muscle that blends with the puborectalis portion of levator ani. - If this structure is mislabeled in the image, it would be an incorrect choice. *Levator ani* - The **levator ani** is a broad muscle sheet forming the major part of the **pelvic diaphragm**. - It consists of: pubococcygeus, puborectalis, and iliococcygeus muscles. - Functions include support of pelvic viscera and maintaining fecal and urinary continence. - If incorrectly labeled in the image, this would not be the correct answer.

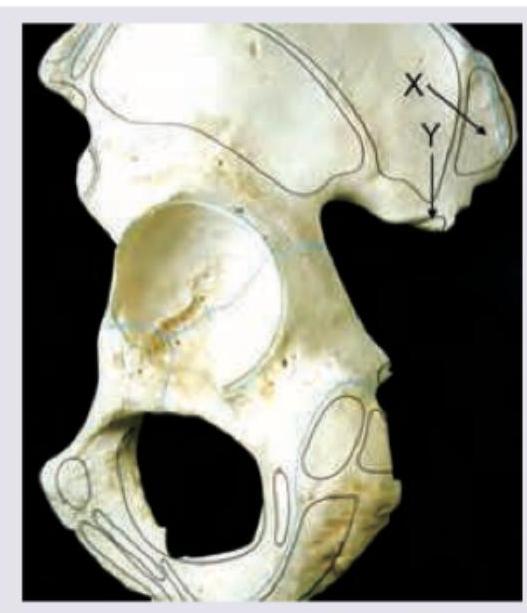

Explanation: ***X= Gluteus medius and Y= Piriformis*** - X indicates the attachment site for the **gluteus medius** muscle on the lateral surface of the ilium, specifically between the anterior and posterior gluteal lines. - Y indicates the region of the **greater sciatic notch** through which the **piriformis** muscle exits the pelvis. The piriformis originates from the anterior surface of the sacrum (S2-S4) and inserts on the greater trochanter of the femur, passing through the greater sciatic notch as a key anatomical landmark. *X= Gluteus minimus and Y= Gluteus maximus* - The **gluteus minimus** attaches to the ilium anterior to the gluteus medius (between anterior and inferior gluteal lines), not at site X which is positioned for gluteus medius. - The **gluteus maximus** attaches primarily to the posterior gluteal line of the ilium and the sacrum/coccyx, not at the greater sciatic notch region marked as Y. *X= Gluteus maximus and Y= Piriformis* - The **gluteus maximus** attaches posterior to site X; X represents the gluteus medius attachment area between the anterior and posterior gluteal lines. - While Y is correctly associated with the **piriformis** muscle and greater sciatic notch, the identification of X is incorrect. *X= Quadratus femoris and Y= Gluteus maximus* - The **quadratus femoris** attaches to the lateral border of the ischial tuberosity and the intertrochanteric crest of the femur, not at site X on the ilium's lateral surface. - The **gluteus maximus** does not attach at the greater sciatic notch region marked as Y; this area is associated with the piriformis muscle's passage.

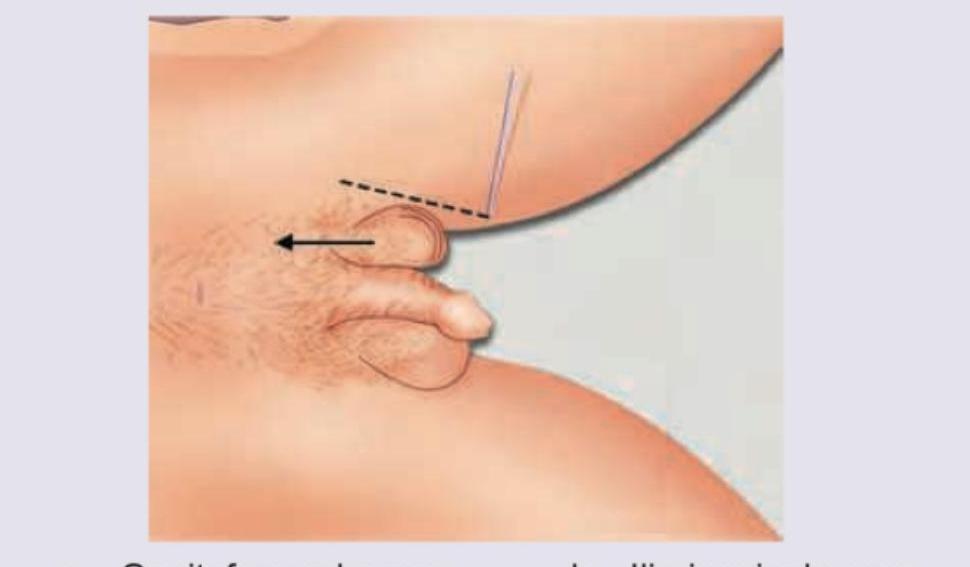

Explanation: ***Ilio-inguinal nerve*** - The **ilio-inguinal nerve (L1)** provides the **primary sensory afferent innervation** for the cremasteric reflex shown in the image. - It supplies sensory fibers to the skin of the **inguinal region**, **anterior scrotal wall** (in males), and **mons pubis/labium majus** (in females), carrying the sensory stimulus that initiates the reflex. *Ilio-hypogastric nerve* - This nerve **(T12-L1)** primarily innervates the skin of the **suprapubic region** and **lateral gluteal area**, not the specific area where the cremasteric reflex is elicited. - It does not contribute significantly to the **sensory afferent limb** of the cremasteric reflex. *Ilio-femoral nerve* - This is **not a recognized anatomical nerve** name in standard medical literature. - Serves as a **distractor option** and is not involved in any superficial reflex pathways. *Genitofemoral nerve* - The **genital branch** of the genitofemoral nerve **(L1, L2)** primarily provides **motor innervation** to the cremaster muscle (efferent limb). - While it has some sensory components, it is **not the primary sensory afferent** for the cremasteric reflex, but rather plays a role in the motor response.

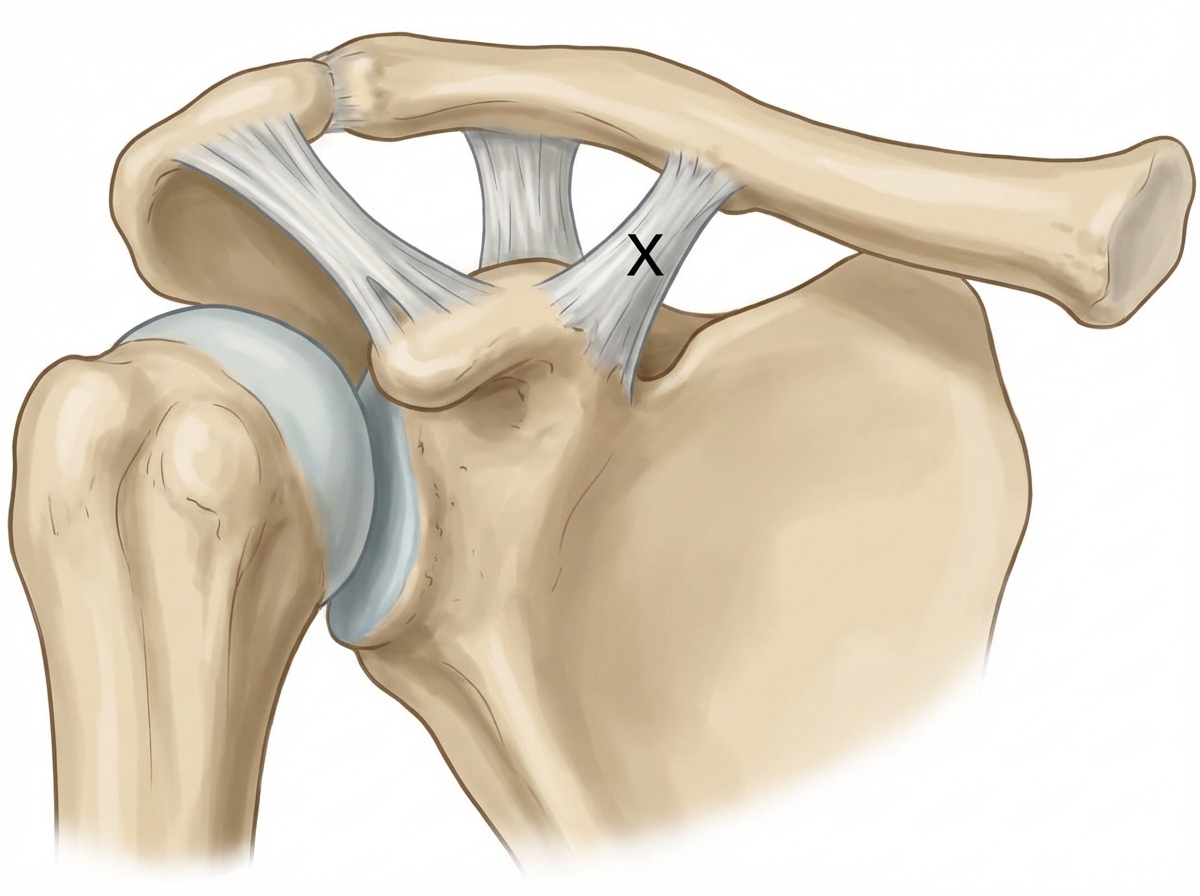

Explanation: ***Conoid ligament*** - The image displays the **coracoclavicular ligaments**, which consist of the trapezoid and conoid ligaments. Ligament 'X' is positioned more **medially** and is shaped like an **inverted cone**. - The **conoid ligament** originates from the **conoid tubercle** on the inferior surface of the clavicle and inserts onto the **posteromedial aspect of the coracoid process** of the scapula. - It functions to stabilize the shoulder girdle and prevent **superior displacement** of the clavicle. *Trapezoid ligament* - This is the **lateral component** of the coracoclavicular ligament complex. - It is broader and quadrilateral in shape, located **lateral to the conoid ligament**. - It extends from the **trapezoid line on the clavicle** to the **superior surface of the coracoid process**. *Coracoacromial ligament* - This ligament extends from the **coracoid process to the acromion** of the scapula. - It forms part of the **coracoacromial arch**, which prevents superior displacement of the humeral head. - It is **not part of the coracoclavicular ligament complex**. *Coracohumeral ligament* - This ligament extends from the **coracoid process to the greater tubercle of the humerus**. - It strengthens the **superior aspect of the glenohumeral joint capsule**. - It is distinct from the coracoclavicular ligaments and attaches to the humerus, not the clavicle.

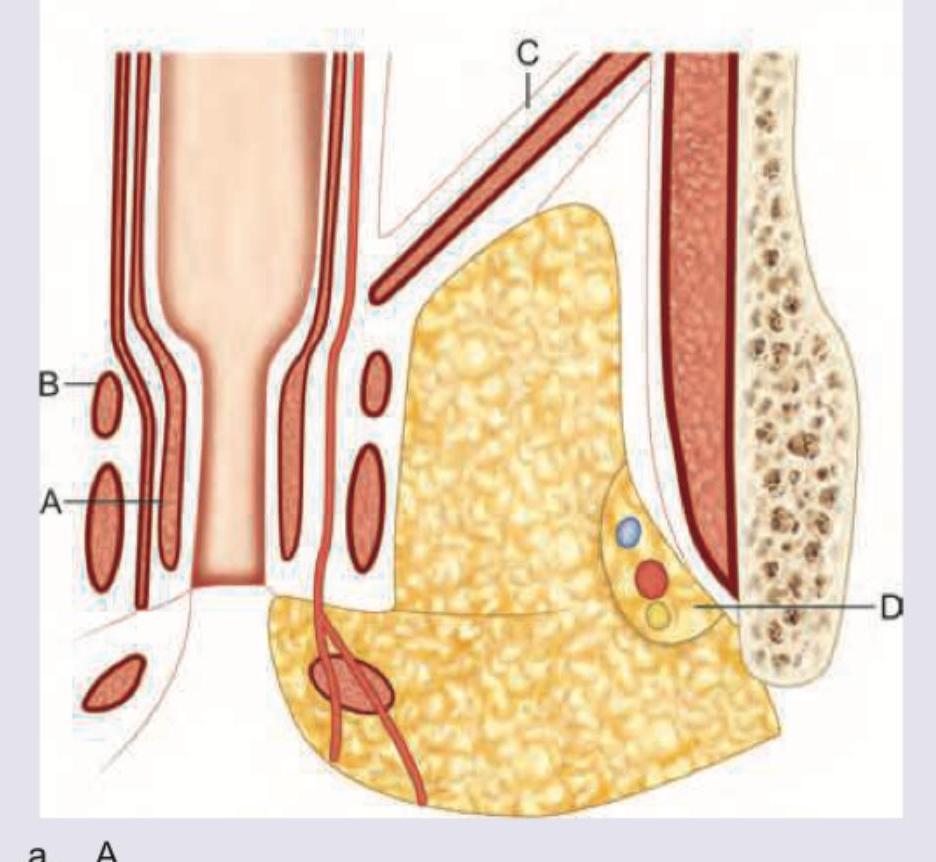

Explanation: ***A*** - Label **A** points to the **urogenital diaphragm**, which is located inferior to the pelvic diaphragm and supports the structures of the perineum. - It consists primarily of the **deep transverse perineal muscle** and the **sphincter urethrae muscle**, enclosed by superior and inferior fascias. *B* - Label **B** indicates the **ischioanal fossa**, a fat-filled space located lateral to the anal canal, - This fossa is important for the passage of vessels and nerves to the anal region and allows for the **distension of the anal canal** during defecation. *C* - Label **C** points to the **levator ani muscle**, which forms a significant part of the **pelvic diaphragm**. - The **pelvic diaphragm** supports the pelvic organs and helps maintain continence. *D* - Label **D** indicates a collection of neurovascular structures within the **pudendal canal** or Alcock's canal. - This canal contains the **pudendal nerve** and the internal pudendal artery and vein.
Explanation: ***lymphatic drainage of vulva*** - The **glands of Cloquet** (or the **node of Cloquet**) specifically refer to a deep inguinal lymph node, often considered the most superior and medial node in the femoral triangle. - This node is crucial in the **lymphatic drainage of the vulva**, as it is one of the final nodes before lymph flows into the external iliac nodes. *lymphatic drainage of cervix* - The **cervix** primarily drains to the **internal iliac**, **obturator**, and **presacral lymph nodes**, not the inguinal nodes associated with Cloquet's gland. - Lymphatic pathways for the cervix are more deeply located within the pelvis. *lymphatic drainage of uterus* - The **uterus** largely drains to the **para-aortic** (or lumbar), **internal iliac**, **external iliac lymph nodes**. - The pathways are distinct from the superficial inguinal drainage where Cloquet's gland is found. *lubricating glands of vagina* - The main lubricating glands of the vagina are the **Bartholin's glands** and numerous small **vaginal glands** (Skene's glands are associated with the urethra). - "Glands of Cloquet" refers to a lymph node, not a secretory gland involved in lubrication.
