Neuromuscular Junction

On this page

NMJ Structure - Synaptic Setup

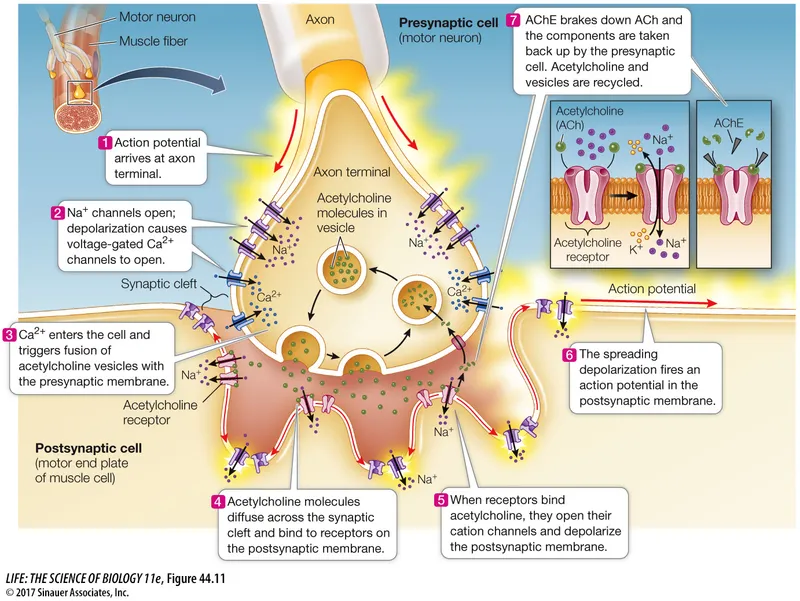

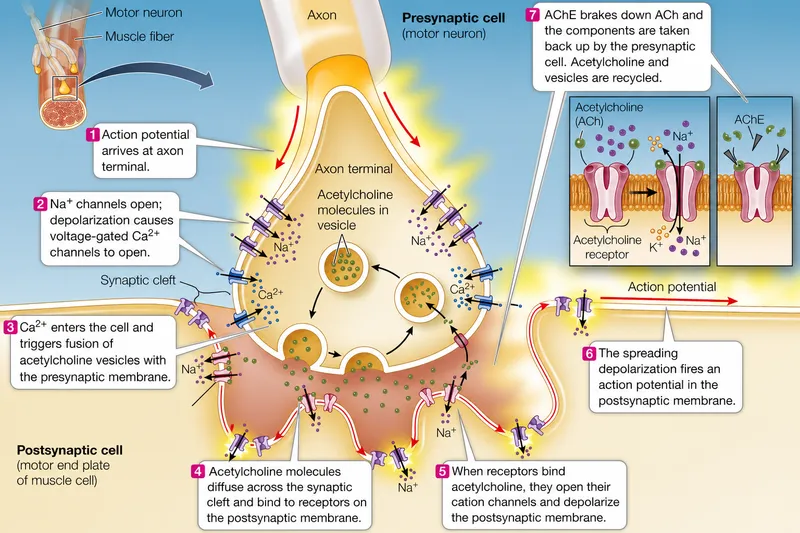

Neuromuscular Junction Structure and Function

  • Presynaptic Terminal (Axon Bouton):
    • Synaptic vesicles (~50 nm diameter) with Acetylcholine (ACh).
    • Active zones: aligned with postsynaptic folds for ACh release.
    • Voltage-gated Ca²⁺ channels (VGCCs) trigger exocytosis.
  • Synaptic Cleft:
    • Gap: 20-50 nm wide.
    • Basal lamina: extracellular matrix containing Acetylcholinesterase (AChE).
  • Postsynaptic Membrane (Motor End Plate on Sarcolemma):
    • Junctional folds: ↑ surface area for nAChRs.
    • Nicotinic ACh Receptors (nAChRs): ligand-gated ion channels, concentrated at crests of folds.
    • Voltage-gated Na⁺ channels (VGSCs): located in depths of folds, crucial for action potential propagation.

⭐ Acetylcholinesterase (AChE) is concentrated in the basal lamina within the synaptic cleft, ensuring rapid termination of ACh action and preventing continuous muscle stimulation.

ACh Synthesis & Release - Pre-Synaptic Saga

  • Synthesis (Cytoplasm):

    • Choline + Acetyl CoA $\xrightarrow{Choline Acetyltransferase (ChAT)}$ Acetylcholine (ACh).
    • Rate-limiting step: Choline uptake by Na⁺-Choline Transporter 1 (CHT1). 📌 ChATs make ACh, CHT1 brings in Choline.
  • Storage (Synaptic Vesicles):

    • ACh actively concentrated into vesicles by Vesicular ACh Transporter (VAChT) using H⁺ gradient.
    • Each vesicle: ~5,000-10,000 ACh molecules (one quantum).
  • Release (Ca²⁺-Dependent Exocytosis):

    • SNARE proteins are targets for Botulinum & Tetanus toxins. ⚠️

⭐ ACh is released in discrete quanta. Each quantum (contents of one vesicle, ~5k-10k molecules) evokes a Miniature End-Plate Potential (MEPP).

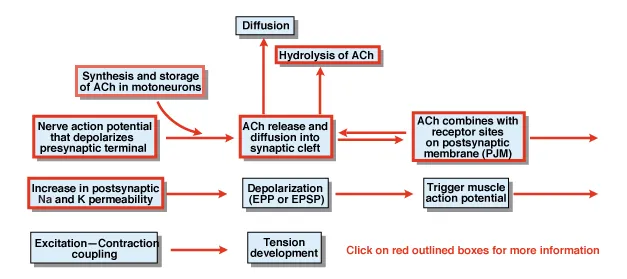

Presynaptic events at the neuromuscular junction

Postsynaptic Events - Muscle's Spark

  • ACh diffuses across synaptic cleft; 2 ACh molecules bind to α-subunits of nicotinic ACh receptors (nAChR) on the motor end plate.
  • nAChR, a ligand-gated ion channel, opens:
    • Predominant Na+ influx, lesser K+ efflux.
  • Causes local, non-propagated depolarization: End Plate Potential (EPP).
    • EPP is graded; its amplitude depends on the amount of ACh released.
  • If EPP reaches threshold voltage (approx. -55mV), voltage-gated Na+ channels open.
  • This triggers a propagated muscle fiber Action Potential (AP).
  • AP initiates excitation-contraction coupling.

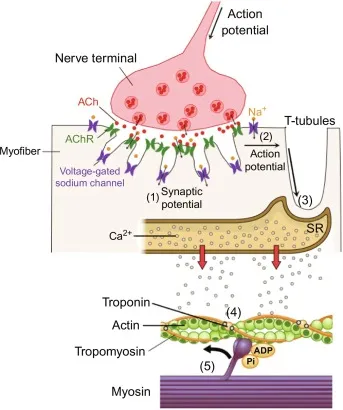

  • ACh action is terminated by Acetylcholinesterase (AChE) hydrolysis in the synaptic cleft. Neuromuscular junction excitation-contraction coupling

⭐ The End Plate Potential (EPP) is a graded, non-propagated potential; if it reaches threshold, it triggers a propagated muscle fiber action potential that leads to muscle contraction.

ACh Inactivation - Clearing the Cleft

  • Mechanism: Rapid enzymatic hydrolysis of acetylcholine (ACh).
  • Enzyme: Acetylcholinesterase (AChE).
    • Location: Synaptic cleft, anchored to basal lamina.
  • Reaction: ACh $\xrightarrow{AChE}$ Choline + Acetate.
  • Choline Fate: Actively reuptaken by presynaptic terminal (Na$^+$-Choline Transporter, ChT) for ACh resynthesis.
  • Significance:
    • Terminates ACh signal promptly.
    • Enables muscle fiber repolarization and relaxation.
    • Prevents continuous stimulation & receptor desensitization.

⭐ Rapid hydrolysis of ACh by acetylcholinesterase is essential for timely muscle relaxation and repolarization of the endplate.

NMJ Clinical Aspects - Meds & Mayhem

  • NMJ Blockers:
    • Depolarizing: Succinylcholine (fasciculations → paralysis).
    • Non-depolarizing: "-curoniums", "-curiums". Reversal: AChE inhibitors.
  • Toxins/Poisons:
    • Organophosphates: AChE inhibition. 📌 DUMBBELS (Diarrhea, Urination, Miosis, Bronchospasm, Bradycardia, Emesis, Lacrimation, Salivation). Antidote: Atropine, Pralidoxime.
    • Botulinum toxin: Blocks ACh release.
FeatureMyasthenia Gravis (MG)Lambert-Eaton (LEMS)
SitePostsynaptic (nAChR Ab)Presynaptic (VGCC Ab)
Effect↓ EPP, weakness worsens↓ ACh release, weakness improves
EMGDecremental responseIncremental response (>100%)
AssociationThymomaSmall Cell Lung Cancer

⭐ Myasthenia Gravis: Autoimmune, antibodies vs. postsynaptic nAChRs, ↓ EPP amplitude, muscle weakness that worsens with use.

High‑Yield Points - ⚡ Biggest Takeaways

  • Acetylcholine (ACh) is the primary neurotransmitter at the NMJ, binding to nicotinic ACh receptors (nAChR).
  • Acetylcholinesterase (AChE) in the synaptic cleft rapidly hydrolyzes ACh, terminating its action.
  • Presynaptic Ca2+ influx is essential for ACh vesicle release.
  • The End Plate Potential (EPP) is a graded potential; if threshold is met, it initiates a muscle action potential.
  • Myasthenia Gravis involves autoantibodies against nAChRs, reducing EPP amplitude and causing muscle weakness.
  • Lambert-Eaton Syndrome features impaired ACh release due to antibodies against presynaptic Ca2+ channels.
  • Botulinum toxin blocks ACh release; organophosphates and neostigmine inhibit AChE, prolonging ACh action.

Practice Questions: Neuromuscular Junction

Test your understanding with these related questions

Which of the following is a characteristic feature of myasthenia gravis?

1 of 5

Flashcards: Neuromuscular Junction

1/10

Stretch reflex:Activation of _____ motor neurons leads to direct contraction of the muscle

TAP TO REVEAL ANSWER

Stretch reflex:Activation of _____ motor neurons leads to direct contraction of the muscle

alpha
