Cardiac Cycle

On this page

Cardiac Cycle Overview - Heart's Rhythm Roadmap

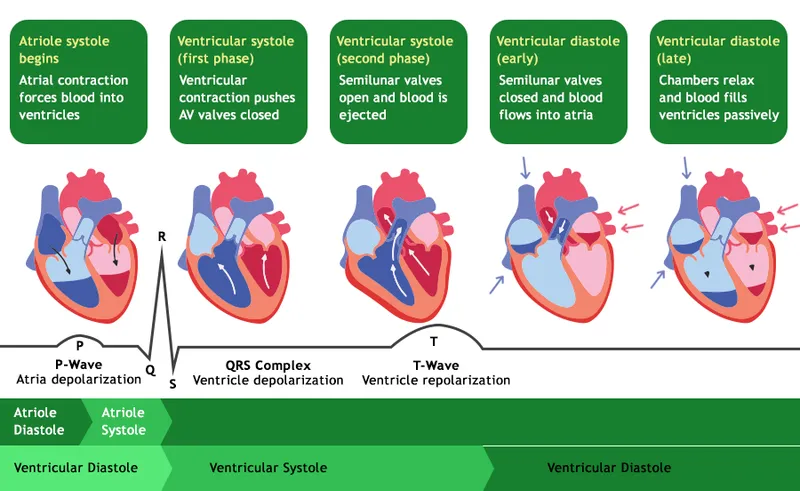

  • Sequence of mechanical and electrical events during one complete heartbeat.
  • Duration: Typically 0.8 seconds at 75 beats per minute (bpm).
    • Calculated as: $Cardiac Cycle Duration (s) = 60 / Heart Rate (bpm)$.

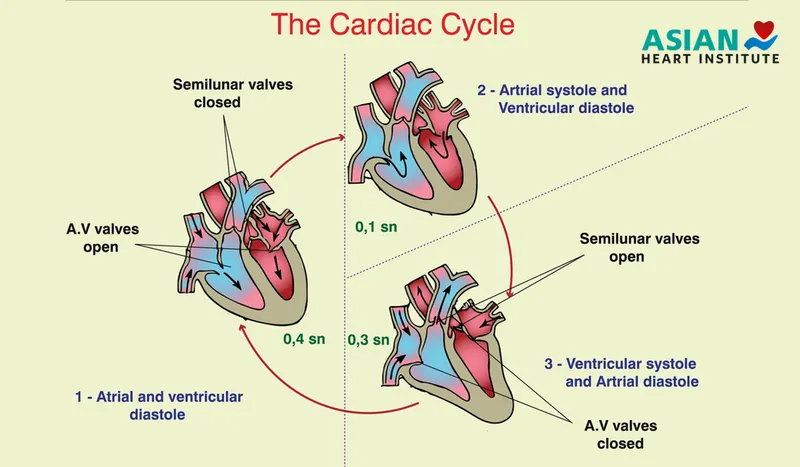

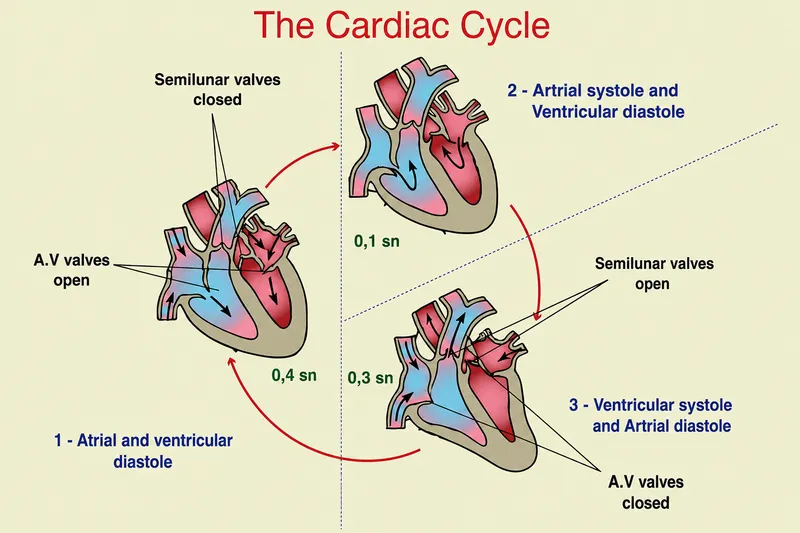

  • Two Major Phases:
    • Systole: Ventricular contraction and ejection.
    • Diastole: Ventricular relaxation and filling.

⭐ With increased heart rate, the cardiac cycle shortens. This reduction is disproportionately greater for diastole compared to systole.

Mechanical Events: Systole - The Big Squeeze

  • Ventricular depolarization (QRS complex) initiates contraction. Duration: ~0.27s-0.35s.
  • Comprises three phases:
    • Isovolumetric Contraction: Ventricles contract, all valves closed. Pressure ↑↑, volume constant. S1 sound.
    • Rapid Ejection: Semilunar valves open. Ventricular pressure > great arteries. Max outflow. Volume ↓↓.
    • Reduced Ejection: Ejection slows. Ventricular pressure starts to ↓. Volume ↓.
  • End-Systolic Volume (ESV): ~50ml. Stroke Volume (SV) = $EDV - ESV$.
Loading diagram…

⭐ During isovolumetric contraction, all heart valves are closed, ventricular pressure rises sharply, and ventricular volume remains unchanged, producing the S1 heart sound.

Mechanical Events: Diastole - Relax & Refill

  • Ventricular relaxation and filling. Duration: ~0.5s (at 75bpm).
  • Phases:
    • Isovolumetric Relaxation: All valves closed. Vent. pressure ↓. Volume constant (ESV). S2 sound (semilunar valve closure).
    • Rapid Filling: AV valves open. Vent. pressure < Atrial pressure. Vent. volume ↑ rapidly.
    • Reduced Filling (Diastasis): Slow ventricular filling. Longest phase.
    • Atrial Systole ('Atrial Kick'): Atrial contraction. Adds last 20-30% to ventricular filling (EDV ~120ml).
Loading diagram…

⭐ The 'atrial kick' significantly contributes to ventricular filling, especially in conditions like hypertension or tachycardia where passive filling time is reduced.

Pressure-Volume Dynamics - Wiggers & Loops

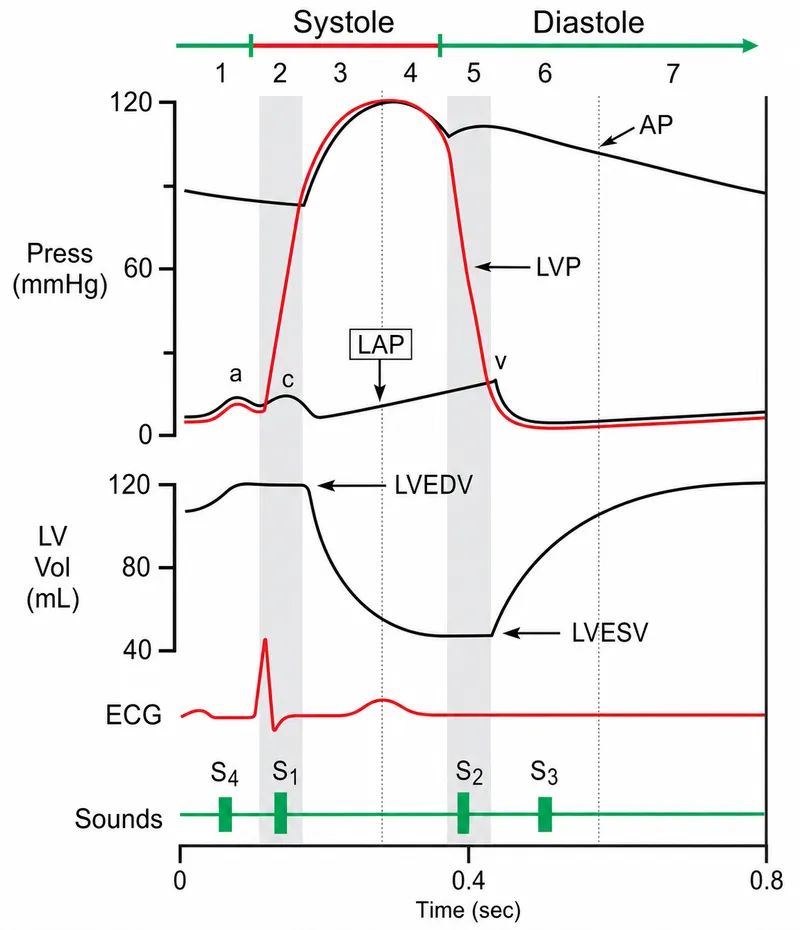

  • Wiggers Diagram: Synchronizes ECG, heart sounds, and pressure/volume changes in atria, ventricles, and aorta during one cardiac cycle.
  • Pressure-Volume (PV) Loop: Plots ventricular pressure vs. volume.
    • Phases: Ventricular Filling, Isovolumetric Contraction, Ejection, Isovolumetric Relaxation.
    • Stroke Volume (SV) = $EDV - ESV$ (loop width).
    • Ejection Fraction (EF) = $(SV / EDV) * 100%$; Normal >55%.

⭐ The width of the Pressure-Volume loop represents Stroke Volume; its area approximates ventricular stroke work.

Heart Sounds - Cardiac Symphony

SoundCauseTimingCharacteristicsClinical Significance
S1AV valve closure (M1, T1)Start Systole'LUB' 📌Loud: MS, ↑CO. Soft: MR, long PR.
S2Semilunar valve closure (A2, P2)End Systole'DUB' 📌A2 before P2.
S3Rapid ventricular fillingEarly DiastoleLow pitch, 'Kentucky' 📌Normal <40 yrs; Path: LVF, MR.
S4Atrial contraction (stiff ventricle)Late DiastoleLow pitch, 'Tennessee' 📌Path: LVH, AS, HOCM, acute MI.

High‑Yield Points - ⚡ Biggest Takeaways

  • Cardiac cycle duration is 0.8s (at 75 bpm); systole 0.3s, diastole 0.5s.
  • S1 (lub): AV valve closure (mitral/tricuspid); marks start of ventricular systole.
  • S2 (dub): Semilunar valve closure (aortic/pulmonary); marks end of ventricular systole.
  • Isovolumetric phases (contraction & relaxation): All valves closed; ventricular volume constant.
  • Majority of ventricular filling is passive during early diastole (rapid inflow).
  • Dicrotic notch in aortic pressure curve signifies aortic valve closure and start of diastole.
  • Atrial systole contributes the final 20-30% of ventricular filling ("atrial kick").

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Cardiac Cycle

  1. 1. A healthy 28-year-old woman stands up from a supine position. Which baroreceptor-mediated compensatory cardiovascular response is most likely?

    • A. Dilation of large veins
    • B. Decreased arteriolar tone
    • C. Decreased contractility
    • D. Increased heart rate
    Show answer

    Answer: D. Increased heart rate

    Increased heart rate is the baroreceptor-mediated compensatory response: standing reduces venous return and initially lowers arterial pressure, decreasing arterial baroreceptor stretch and firing. Reduced vagal activity and increased sympathetic activity then increase heart rate. Dilation of large veins may describe passive gravitational distension of dependent veins, but the compensatory sympathetic response is venoconstriction. Decreased arteriolar tone is incorrect because reflex arteriolar vasoconstriction increases resistance. Decreased contractility is incorrect because increased sympathetic stimulation increases contractility.

  2. 2. Which of the following directly increases left ventricular stroke volume at a fixed preload and afterload?

    • A. Standing from a supine position
    • B. Inhalation during quiet breathing
    • C. Increased parasympathetic activity
    • D. Increased myocardial contractility
    Show answer

    Answer: D. Increased myocardial contractility

    Increased myocardial contractility increases left ventricular stroke volume by reducing end-systolic volume at unchanged preload and afterload. Standing from a supine position reduces venous return and preload rather than directly increasing stroke volume under fixed-loading conditions. Inhalation during quiet breathing chiefly alters ventricular filling and does not directly augment left ventricular ejection at fixed preload and afterload. Increased parasympathetic activity primarily slows heart rate and has little direct ventricular inotropic effect, so it does not directly increase left ventricular stroke volume.

  3. 3. Aortic valve closure occurs in which part of cardiac cycle?

    • A. Beginning of rapid ventricular filling
    • B. Beginning of isovolumetric relaxation
    • C. Beginning of isovolumetric contraction
    • D. Beginning of ventricular ejection
    Show answer

    Answer: B. Beginning of isovolumetric relaxation

    Beginning of isovolumetric relaxation - Aortic valve closure marks the end of ventricular systole and the beginning of isovolumetric relaxation, while ventricular volume remains constant. - This closure produces the second heart sound (S2); ventricular pressure then falls while both ventricular valves remain closed. Beginning of rapid ventricular filling - Rapid ventricular filling follows isovolumetric relaxation when the mitral valve opens, allowing blood to enter the ventricle from the atrium. - Although the aortic valve is closed during rapid filling, its closure has already occurred at the beginning of isovolumetric relaxation. Beginning of isovolumetric contraction - Isovolumetric contraction begins with closure of the mitral and tricuspid valves, producing the first heart sound as ventricular pressure rises. - The aortic valve remains closed during this phase because ventricular pressure has not yet exceeded aortic pressure; it opens only before ejection. Beginning of ventricular ejection - Ventricular ejection begins when ventricular pressure exceeds aortic pressure and the aortic valve opens, allowing blood to leave the left ventricle. - Aortic valve closure occurs after ejection, when ventricular pressure falls below aortic pressure, so it cannot mark ejection’s beginning.

  4. 4. Which rhythm classification is best supported by this single-lead ECG tracing?

    • A. Supraventricular tachycardia
    • B. Atrial fibrillation with rapid ventricular response
    • C. Ventricular fibrillation
    • D. Ventricular tachycardia
    Show answer

    Answer: A. Supraventricular tachycardia

    Supraventricular tachycardia - A rapid, regular rhythm with narrow QRS complexes supports a supraventricular origin and is best classified as regular narrow-complex supraventricular tachycardia. - The single-lead tracing does not clearly define atrial activity, so a specific mechanism such as AVNRT, AVRT, or atrial tachycardia cannot be determined reliably. Ventricular tachycardia - Ventricular tachycardia typically arises within the ventricles and produces a rapid rhythm with wide QRS complexes. - The tracing instead shows narrow QRS complexes, making ventricular tachycardia less consistent with the supported rhythm classification. Atrial fibrillation with rapid ventricular response - Atrial fibrillation with rapid ventricular response characteristically produces an irregularly irregular ventricular rhythm rather than a consistently regular rhythm. - Although the tracing is rapid, its regularity argues against atrial fibrillation with rapid ventricular response. Ventricular fibrillation - Ventricular fibrillation is a chaotic ventricular rhythm caused by disorganized electrical activity and lacks organized QRS complexes. - The tracing shows an organized, regular rhythm with identifiable narrow QRS complexes, which is incompatible with ventricular fibrillation.

  5. 5. What is the approximate normal interstitial fluid pressure in loose subcutaneous tissue?

    • A. -5 mmHg
    • B. -3 mmHg
    • C. 5 mmHg
    • D. 3 mmHg
    Show answer

    Answer: B. -3 mmHg

    −3 mmHg is the conventional approximate normal interstitial fluid pressure in loose subcutaneous tissue. −5 mmHg is more negative than this standard estimate. 5 mmHg and 3 mmHg are positive pressures and do not represent the usual value in normal loose subcutaneous tissue.

  6. 6. An S3 may be heard in all of the following conditions EXCEPT:

    • A. Ventricular septal defect
    • B. Atrial septal defect
    • C. Mitral regurgitation
    • D. Constrictive pericarditis
    Show answer

    Answer: D. Constrictive pericarditis

    Constrictive pericarditis characteristically produces a pericardial knock rather than an S3. Ventricular septal defect can produce a left-sided S3 through left ventricular volume overload. Mitral regurgitation can produce an S3 through increased early-diastolic filling of the left ventricle. Atrial septal defect can produce a right-sided S3 through right ventricular volume overload.

  7. 7. Pressure-Volume loop of cardiac cycle is shown below. What does point C represent?

    • A. Aortic valve closes
    • B. Aortic valve opens
    • C. Mitral valve closes
    • D. Mitral valve opens
    Show answer

    Answer: B. Aortic valve opens

    Aortic valve opens - At point C, left ventricular pressure exceeds aortic pressure, overcoming the pressure gradient that previously kept the aortic valve closed. - Opening of the aortic valve initiates ventricular ejection, during which blood leaves the left ventricle and enters the aorta. Aortic valve closes - The aortic valve closes at point F, not C, when left ventricular pressure falls below aortic pressure after ejection. - This closure marks the end of ventricular ejection and the beginning of isovolumetric relaxation, with ventricular volume remaining constant. Mitral valve closes - The mitral valve closes at point B, when ventricular pressure rises above left atrial pressure at the end of filling. - Its closure initiates isovolumetric contraction and prevents blood from flowing backward into the left atrium as ventricular pressure increases. Mitral valve opens - The mitral valve opens at point A, when ventricular pressure falls below left atrial pressure during ventricular relaxation. - This event begins ventricular filling, allowing blood to flow from the left atrium into the left ventricle while ventricular volume increases.

  8. 8. Which of the following is correct about the pressure volume loop of left ventricle?

    • A. 1 to 2 indicates isovolumetric relaxation
    • B. Point 3 indicates pulmonic valve opening
    • C. Point 2 indicates aortic valve opening
    • D. 2 to 3 indicates ventricular diastole
    Show answer

    Answer: C. Point 2 indicates aortic valve opening

    Point 2 indicates aortic valve opening - At point 2, left ventricular pressure exceeds aortic pressure, causing the aortic valve to open. - This marks the transition from isovolumetric contraction to ventricular ejection, during which ventricular volume decreases. 1 to 2 indicates isovolumetric relaxation - From 1 to 2, left ventricular pressure rises while volume remains constant, indicating isovolumetric contraction, not relaxation. - During this phase, both the mitral and aortic valves are closed; isovolumetric relaxation occurs from 3 to 4 after aortic valve closure. Point 3 indicates pulmonic valve opening - Point 3 represents aortic valve closure at the end of left ventricular ejection, not valve opening. - The pulmonic valve belongs to the right ventricular circuit and opens during right ventricular ejection into the pulmonary artery. 2 to 3 indicates ventricular diastole - The interval from 2 to 3 represents ventricular ejection, which is part of ventricular systole rather than diastole. - During this phase, the aortic valve is open and blood leaves the left ventricle, reducing ventricular volume.

  9. 9. The recording of cardiac cycle is drawn below. Which of the following is correct about $X$ and $Y$ shown in the image?

    • A. $X=$ LV ejection time and $Y=$ Pre-ejection period
    • B. $X=$ Pre-ejection period and $Y=$ LV ejection time
    • C. $X=$ Electromechanical systole and $Y=$ LV ejection time
    • D. $X=$ Pre-ejection period and $Y=$ Electromechanical systole
    Show answer

    Answer: B. $X=$ Pre-ejection period and $Y=$ LV ejection time

    $X=$ Pre-ejection period and $Y=$ LV ejection time - X represents the pre-ejection period, extending from the Q wave to aortic valve opening and including isovolumetric ventricular contraction. - Y represents LV ejection time, the interval from aortic valve opening to closure during which blood is ejected into the aorta. $X=$ LV ejection time and $Y=$ Pre-ejection period - X is the interval before ventricular ejection, from ventricular depolarization to aortic valve opening; therefore it represents the pre-ejection period, not LV ejection time. - Y extends between aortic valve opening and closure, representing LV ejection time; the option reverses the sequence of these two intervals. $X=$ Electromechanical systole and $Y=$ LV ejection time - X is not electromechanical systole; it is only the pre-ejection period, which occurs before aortic valve opening. - Y correctly denotes LV ejection time, but the option is incorrect because electromechanical systole includes both pre-ejection and ejection intervals. $X=$ Pre-ejection period and $Y=$ Electromechanical systole - X correctly represents the pre-ejection period, but it does not represent the entire electromechanical systole. - Electromechanical systole extends from the Q wave to aortic valve closure and includes both X and Y, whereas Y alone is LV ejection time.

  10. 10. Which of the following is correct about the 'X' marking in Arterial Waveform?

    • A. Closure of mitral valve
    • B. Closure of aortic valve
    • C. Closure of tricuspid valve
    • D. Rapid filling of left ventricle
    Show answer

    Answer: B. Closure of aortic valve

    Closure of aortic valve - The "X" marking in the arterial waveform, also known as the dicrotic notch, represents the brief reversal of blood flow in the aorta due to the closure of the aortic valve. - This event signifies the end of systole and the beginning of diastole in the arterial pressure waveform. Closure of mitral valve - The closure of the mitral valve occurs at the beginning of ventricular systole and is not directly represented as a dicrotic notch on an arterial pressure waveform. - Mitral valve closure is associated with the first heart sound (S1) and changes in left ventricular pressure, not a notch in the arterial waveform. Closure of tricuspid valve - The closure of the tricuspid valve also occurs at the beginning of ventricular systole, similar to the mitral valve, only on the right side of the heart. - This event is not reflected as a dicrotic notch in the systemic arterial pressure waveform. Rapid filling of left ventricle - Rapid filling of the left ventricle occurs during early diastole, when the mitral valve is open. - This phase is associated with changes in ventricular pressure, but not with the dicrotic notch, which signifies arterial pressure changes due to aortic valve closure.

Flashcards: Cardiac Cycle

  1. 1. x descent on JVP: Corresponds to the  as the ventricular systole pulls the tricuspid valve.

    Show answer

    atrial relaxation

  2. 2. The _____ valve closes slightly before the _____ valve, thus heart sound S1 may be split

    Show answer

    mitral · tricuspid

  3. 3. Peak ventricular pressure occurs during

    Show answer

    ventricular ejection::Cardiac cycle phase

  4. 4. Preload is approximated by _____ ventricular _____

    Show answer

    left · end-diastolic volume (EDV)

  5. 5. Electromechanical systole is the time interval between _____ wave and _____ heart sound.

    Show answer

    Q · second

  6. 6. A decreased blood volume (or venous tone) causes the cardiac output to _____ and right atrial pressure to _____

    Show answer

    decrease · decrease

  7. 7. Effect of valvular diseases on PV loop:The pressure-volume curve is shifted to the left and down in

    Show answer

    Mitral stenosis

  8. 8. Isovolumetric _____ corresponds to the end of the _____ wave on ECG

    Show answer

    relaxation · T

  9. 9. Does the following cardiac/vascular function graph reflect a patient with chronic anemia or anaphylaxis? _____

    Show answer

    Anaphylaxis

  10. 10. The image shows a _____ pulse waveform.

    Show answer

    normal
