Orbital Trauma

On this page

Orbital Anatomy & Basics - Bony Box Blueprint

  • Structure: 4-sided pyramid; Volume: 30 mL. Apex points posteromedially.
  • Orbital Bones (7): 📌 "Many Friendly Zebras Enjoy Lazy Summer Picnics"
    • Frontal, Sphenoid, Zygomatic, Maxilla, Lacrimal, Ethmoid, Palatine.
  • Key Walls & Features:
    • Roof: Frontal, Sphenoid (lesser wing).
    • Floor: Maxillary, Palatine, Zygomatic.
    • Medial: Ethmoid (lamina papyracea - thinnest), Lacrimal, Maxillary, Sphenoid.
    • Lateral: Zygomatic, Sphenoid (greater wing) - strongest. Bony Orbit Anatomy

⭐ The posteromedial orbital floor (maxillary bone) is the weakest part, prone to blowout fractures.

Orbital Fractures - Crack-Up Cases

Blunt trauma often causes orbital fractures. Key types:

Fracture TypeBones InvolvedKey FeaturesImaging Sign(s)
BlowoutFloor (maxillary), Medial wall (ethmoid)Diplopia (esp. up/downgaze), Enophthalmos >2mm, Infraorbital anesthesia, Restricted EOM (inf. rectus)'Teardrop', 'Hanging drop'
Tripod (ZMC)Zygoma (arch, body, orbital rim), MaxillaMalar flattening, Trismus, Infraorbital anesthesia, Palpable step-off'Floating zygoma'
NOENasal, Ethmoid, Lacrimal, Medial orbital rimTelecanthus (MCT injury), Nasal bridge depression/widening, CSF rhinorrhea, Epiphora. 📌 NOE = Nose Out EverywhereDisrupted Medial Canthal Tendon (MCT)

⭐ 'Teardrop sign' on CT scan is characteristic of an orbital floor blowout fracture with herniation of orbital contents into the maxillary sinus.

Penetrating Injuries & FBs - Eye Spy Intruders

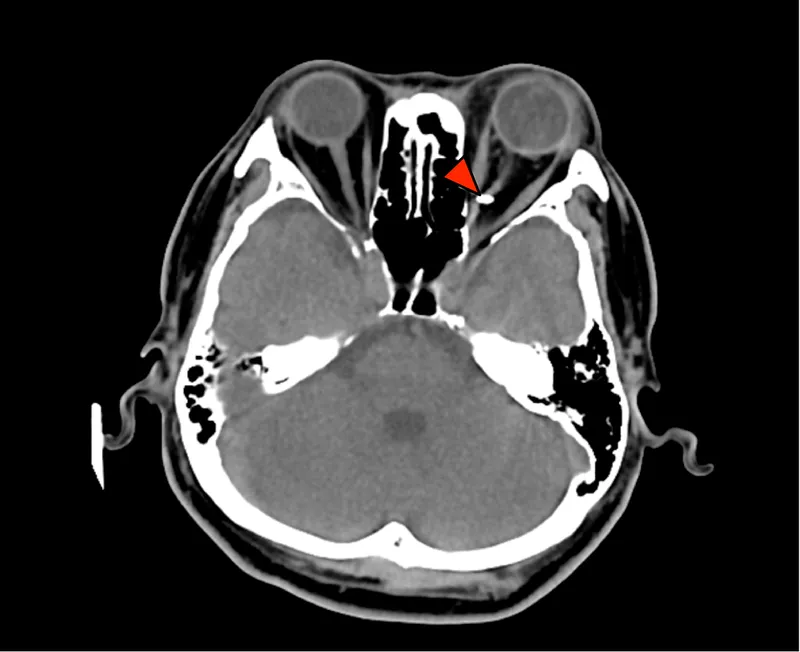

CT scan showing intraorbital foreign body

  • History: Sharp/high-velocity trauma. Signs: Entry wound, ↓vision, pain, diplopia.
  • Always assess globe integrity (e.g., Seidel test for perforation).
  • ⭐ > MRI is contraindicated if a metallic intraorbital foreign body (IOFB) is suspected; CT is the investigation of choice (IOC).
  • Investigations:
    • CT scan (orbit): IOC, esp. for metallic/bony FBs. 📌 NO MRI for Metallic Intruders!
    • X-ray: Radio-opaque FBs.
    • B-scan USG: Non-metallic FBs, posterior segment.
  • Management:
    • Tetanus prophylaxis, broad-spectrum IV antibiotics.
    • Surgical exploration & FB removal (consider material: inert vs. organic).

Clinical Evaluation & Management - Trauma Triage Tactics

  • Initial Assessment:
    • History (mechanism), VA, pupils (RAPD), IOP.
    • Motility, proptosis/enophthalmos, palpation (crepitus, step-offs), globe integrity.
  • Key Investigations:
    • CT scan (orbit/brain): Gold standard for fractures, FBs.
    • MRI: Optic nerve/soft tissue (NO metallic FB).
  • Management Priorities:
    • ⚠️ Emergencies:
      • OCS/RBH: 📌 P.A.I.N.: Proptosis, Periorbital swelling, Afferent Pupillary Defect, Increased IOP (>40 mmHg), Ophthalmoplegia, Numbness. Immediate lateral canthotomy & cantholysis.
      • Penetrating Globe Injury: Shield, NPO, IV Abx, tetanus, surgery.
    • Urgent: Fractures (entrapment), optic neuropathy.

⭐ Orbital Compartment Syndrome (OCS) is an ophthalmic emergency requiring immediate lateral canthotomy and cantholysis to prevent irreversible vision loss.

High‑Yield Points - ⚡ Biggest Takeaways

  • Blowout fractures most commonly involve the orbital floor, causing diplopia (especially on upgaze) and enophthalmos.
  • Orbital emphysema, air in the orbit from sinus communication, presents with eyelid swelling and crepitus.
  • Retrobulbar hemorrhage is an emergency: proptosis, ↑IOP, RAPD, vision loss; treat with lateral canthotomy & cantholysis.
  • Traumatic Optic Neuropathy (TON) causes acute visual loss and RAPD post-trauma; steroids controversial.
  • CT scan (axial and coronal views) is crucial for diagnosing orbital fractures and associated injuries.
  • Carotid-Cavernous Fistula (CCF) can present post-trauma with pulsatile exophthalmos, bruit, and chemosis.
  • Always rule out globe rupture in severe orbital trauma; signs include uveal prolapse, ↓vision, and abnormal anterior chamber depth.
