🔬 Forensic Toxicology: The Chemical Detective's Arsenal

Forensic toxicology transforms invisible chemical traces into courtroom evidence, bridging laboratory precision with legal consequence. You'll master how toxicologists detect poisons and drugs in biological samples, interpret concentrations to reconstruct timelines of exposure, and present findings that withstand legal scrutiny. From selecting the right analytical instrument to understanding postmortem redistribution, you'll build the systematic thinking required to solve cases where chemistry becomes the silent witness. This lesson equips you to read the chemical story hidden in blood, tissue, and time itself.

The discipline demands mastery of analytical techniques, pharmacokinetic principles, postmortem redistribution patterns, and BNSS testimony requirements. Understanding these interconnected systems enables accurate interpretation of toxicological findings that withstand rigorous cross-examination and contribute to justice.

📌 Remember: FACTS - Forensic samples, Analytical methods, Concentration interpretation, Time factors, Sample integrity - the five pillars supporting every toxicological conclusion under BSA framework

Modern forensic toxicology employs sophisticated instrumentation capable of detecting substances at nanogram levels, analyzing specific panels of relevant compounds, and providing high specificity for compound identification. This technological precision, combined with expert interpretation, transforms chemical evidence into legal proof.

Clinical Pearl: Postmortem redistribution (PMR) varies significantly by drug properties, sampling site, and postmortem interval, requiring drug-specific interpretation rather than fixed multipliers

The field encompasses three primary domains: postmortem toxicology for cause-of-death determination under BNS homicide provisions, human performance toxicology for impairment assessment, and forensic drug testing for workplace and legal compliance. Each domain requires specialized knowledge of sampling protocols, analytical limitations, and interpretation criteria.

💡 Master This: Understanding the relationship between antemortem therapeutic levels and postmortem concentrations predicts whether detected substances contributed to death or represent incidental findings

Connect these foundational principles through analytical methodology mastery to understand how chemical detection transforms into legal evidence.

🔬 Forensic Toxicology: The Chemical Detective's Arsenal

⚗️ Analytical Methodology: The Precision Instrument Symphony

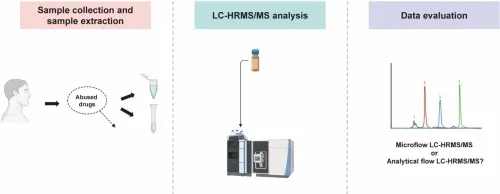

LC-HRMS workflow for forensic toxicology drug screening

Screening Methodologies

  • Immunoassays (ELISA/FPIA)

    • Detection threshold: 25-1000 ng/mL depending on analyte
    • Turnaround time: 2-4 hours for complete panel
    • Cross-reactivity potential: 5-15% false positive rate
      • Amphetamines: Cross-react with pseudoephedrine, phenylephrine
      • Opiates: Detect morphine, codeine but miss fentanyl, oxycodone
      • Cannabinoids: THC-COOH metabolite detection for 3-30 days
  • High-Performance Liquid Chromatography (HPLC)

    • Separation efficiency: 10,000-100,000 theoretical plates
    • Detection limits: 1-50 ng/mL for most therapeutic drugs
    • Analysis time: 15-45 minutes per sample
      • UV detection: 190-800 nm wavelength range
      • Fluorescence detection: 100-fold sensitivity improvement
      • Electrochemical detection: Specific for oxidizable compounds

📌 Remember: SCREEN - Sensitive immunoassays, Chromatographic separation, Rapid turnaround, Eliminate negatives, Enrich positives, Narrow focus for confirmation

Confirmatory Analysis Standards

ParameterGC-MS RequirementsLC-MS/MS RequirementsLegal ThresholdPrecisionAccuracy
Retention Time±0.1 minutes±0.2 minutesAbsolute match±2%±5%
Ion Ratios±20% relative±25% relativeQualifier ions±15%±10%
Quantitation2+ transitions3+ transitionsLOQ validation±10%±15%
Calibration6-point curve8-point curveR² ≥ 0.995±5%±10%
QC SamplesEvery 20 samplesEvery 15 samples±20% target±8%±12%

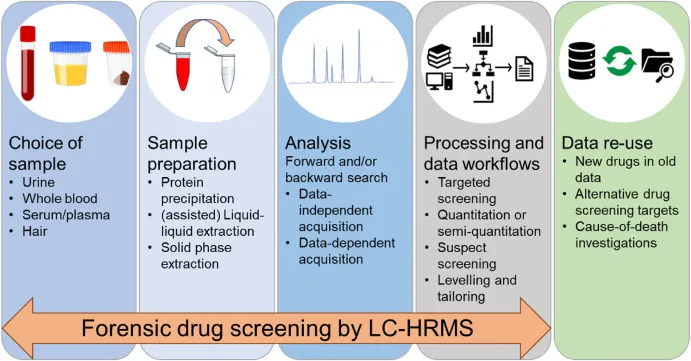

Forensic drug screening by LC-HRMS workflow

Advanced Analytical Techniques

  • Liquid Chromatography-Tandem Mass Spectrometry (LC-MS/MS)

    • Multiple reaction monitoring: 100+ compounds simultaneously
    • Detection limits: 0.1-10 ng/mL for most analytes
    • Matrix effects: ±30% ion suppression/enhancement potential
      • Protein precipitation: 80-95% recovery efficiency
      • Solid-phase extraction: 85-98% recovery with cleanup
      • Internal standard correction: Compensates ±15% matrix variation
  • Time-of-Flight Mass Spectrometry (TOF-MS)

    • Mass accuracy: <5 ppm error for molecular identification
    • Resolution: >40,000 FWHM for isobaric separation
    • Acquisition rate: 20+ spectra/second for comprehensive profiling

💡 Master This: Understanding analytical limitations prevents overinterpretation - a negative screen doesn't guarantee absence, and positive confirmation requires proper quantitation with validated methods meeting BSA admissibility standards

Connect analytical precision through sample integrity protocols to understand how proper collection and handling preserve chemical evidence for accurate interpretation under BNSS procedural requirements.

⚗️ Analytical Methodology: The Precision Instrument Symphony

🧪 Sample Matrix Mastery: The Evidence Preservation Protocol

Biological Matrix Characteristics

  • Blood Samples

    • Cardiac blood: 2-10 fold higher concentrations due to postmortem redistribution
    • Peripheral blood: Most representative of antemortem levels
    • Femoral blood: While generally preferred, other sites like subclavian or iliac blood may also be suitable depending on circumstances and specific substance analyzed
      • Stability: Varies significantly based on specific analyte - while 7-14 days at 4°C with sodium fluoride is a general guideline, some analytes may degrade faster or remain stable longer
      • Volume required: 10-20 mL for comprehensive analysis
      • Preservatives: Sodium fluoride (100 mg) + potassium oxalate (25 mg)
  • Urine Analysis

    • Detection window: 1-3 days for most drugs, 30+ days for cannabinoids
    • Concentration factors: 10-100 fold higher than blood levels
    • Stability considerations: pH 4-9 range maintains most analytes
      • Cocaine: Degrades 50% in 24 hours at room temperature
      • THC-COOH: Stable >30 days when frozen
      • Amphetamines: pH dependent stability (optimal pH 6-8)

📌 Remember: MATRIX - Multiple sites, Adequate volume, Temperature control, Right preservatives, Integrity maintenance, X-contamination prevention

Postmortem Redistribution Patterns

Drug ClassCardiac:Peripheral RatioLiver:Blood RatioTime DependencyRedistribution Mechanism
Tricyclic Antidepressants3-15:110-50:1Increases >6 hoursHigh lipophilicity, tissue binding
Digoxin2-8:15-20:1Rapid onsetActive transport, cellular uptake
Cocaine1.5-4:13-12:1VariableMetabolism continues postmortem
Morphine1-3:12-8:1ModerateGlucuronide hydrolysis
Ethanol1-1.3:10.8-1.2:1MinimalUniform distribution

Alternative Matrix Applications

  • Hair Analysis

    • Detection window: 90+ days for most substances
    • Growth rate: 1 cm/month allows temporal correlation
    • Limitations: Cosmetic treatments reduce concentrations 50-90%
      • Cocaine: Stable in hair >6 months
      • Cannabis: Detection threshold 0.1 ng/mg
      • Opiates: Distinguish heroin use from poppy seed consumption
  • Vitreous Humor

    • Glucose levels: Indicate antemortem diabetes (>200 mg/dL)
    • Electrolyte stability: Potassium increases 0.17 mEq/L/hour postmortem
    • Drug concentrations: While valuable for certain analyses, correlation with blood for water-soluble compounds is not always straightforward and requires careful interpretation
      • Volume available: 2-4 mL per eye
      • Stability: Superior to blood for alcohols, electrolytes
      • Contamination risk: Minimal due to anatomical protection

💡 Master This: Selecting appropriate biological matrices based on case circumstances and analytical objectives maximizes the probability of detecting relevant substances while minimizing interpretive complications under BSA Section 45 evidence requirements

Connect sample integrity principles through concentration interpretation frameworks to understand how analytical results transform into toxicological conclusions for BNS Section 105 investigations.

🧪 Sample Matrix Mastery: The Evidence Preservation Protocol

📊 Concentration Interpretation: The Numerical Narrative Decoder

Therapeutic vs. Toxic Concentration Ranges

  • Narrow Therapeutic Index Drugs

    • Digoxin: Therapeutic 0.8-2.0 ng/mL, Toxic >2.5 ng/mL, Potentially Lethal >10 ng/mL
    • Lithium: Therapeutic 0.6-1.2 mEq/L, Toxic >1.5 mEq/L, Potentially Lethal >3.0 mEq/L
    • Phenytoin: Therapeutic 10-20 μg/mL, Toxic >25 μg/mL, Potentially Lethal >50 μg/mL
      • Tolerance factor: 2-5 fold increase in chronic users
      • Protein binding: 90% bound, only free fraction active
      • Half-life: 12-36 hours, allowing accumulation
  • Wide Therapeutic Index Drugs

    • Acetaminophen: Therapeutic 10-30 μg/mL, Toxic >150 μg/mL, Potentially Lethal >300 μg/mL
    • Ibuprofen: Therapeutic 15-30 μg/mL, Toxic >100 μg/mL, Potentially Lethal >700 μg/mL
    • Sertraline: Therapeutic 25-50 ng/mL, Toxic >200 ng/mL, Potentially Lethal >1000 ng/mL

📌 Remember: LEVELS - Laboratory correlation, Effective concentrations, Variable tolerance, Elimination kinetics, Legal implications, Sample timing

Postmortem Concentration Interpretation

Interpretation CategoryBlood ConcentrationSignificanceConfidence LevelContributing Factors
Therapeutic RangeWithin normal limitsUnlikely causativeRequires clinical correlationStandard dosing, compliance
Elevated Therapeutic1.5-3x therapeuticPossible contributionModerate confidenceOverdose, accumulation, interactions
Toxic Range3-10x therapeuticMay be causativeRequires comprehensive analysisIntentional overdose, toxicity
High Concentration>10x therapeuticPotentially significantContext-dependentMassive overdose, acute poisoning
Extreme Concentration>50x therapeuticHighly significantRequires expert interpretationIntentional poisoning, suicide

Tolerance and Dependency Considerations

  • Chronic Opioid Users

    • Morphine tolerance: 10-50 fold increase in tolerance threshold
    • Methadone: Therapeutic 100-400 ng/mL, potentially toxic in naive users >400 ng/mL
    • Fentanyl: Tolerance develops rapidly, concerning levels >10 ng/mL (naive) vs >100 ng/mL (tolerant)
      • Cross-tolerance: Incomplete between opioid classes
      • Withdrawal effects: Reduced tolerance during abstinence periods
      • Combination effects: Synergistic toxicity with alcohol, benzodiazepines
  • Alcohol Dependency Patterns

    • Chronic alcoholics: May tolerate BAC >300 mg/dL without coma
    • Social drinkers: Impairment at BAC 80-100 mg/dL
    • Naive individuals: High risk at BAC >350 mg/dL
      • Elimination rate: 15-25 mg/dL/hour (average 20 mg/dL/hour)
      • Zero-order kinetics: Constant elimination regardless of concentration
      • Congener effects: Methanol, isopropanol alter interpretation

💡 Master This: The interpretation of postmortem drug concentrations should always integrate the decedent's medical history, circumstances of death, autopsy findings, and environmental factors. Analytical toxicology determines presence and concentration, while interpretive toxicology by forensic pathologists provides definitive conclusions for BNS determinations.

Connect concentration interpretation through temporal analysis frameworks to understand how timing factors influence toxicological conclusions and legal determinations under BNSS procedures.

📊 Concentration Interpretation: The Numerical Narrative Decoder

⏰ Temporal Analysis: The Timeline Reconstruction Engine

Pharmacokinetic Timeline Reconstruction

  • Absorption Phase Characteristics

    • Oral administration: Peak levels 1-4 hours post-ingestion (acknowledging significant inter-individual variability in absorption)
    • Intravenous injection: Immediate peak, rapid distribution
    • Transdermal absorption: Delayed peak 6-12 hours, prolonged duration
      • Cocaine: Oral 60-90 minutes, Nasal 15-30 minutes, IV 5-10 minutes
      • Morphine: Oral 30-60 minutes (heroin rarely detected after oral administration due to extensive first-pass metabolism), IM 30-60 minutes, IV immediate
      • THC: Smoking 5-10 minutes, Oral 60-180 minutes
  • Distribution and Elimination Patterns

    • Volume of distribution: Determines tissue penetration and redistribution
    • Protein binding: Affects free drug concentration and activity
    • Hepatic metabolism: First-pass effect reduces oral bioavailability
      • Propranolol: 30% oral bioavailability due to extensive first-pass
      • Morphine: 25% oral bioavailability, 6-glucuronide active metabolite and 3-glucuronide major metabolite
      • Cocaine: Plasma cholinesterase hydrolysis, variable half-life (forensic significance in benzoylecgonine metabolite)

📌 Remember: TIMING - Therapeutic window, Ingestion interval, Metabolism rate, Intoxication peak, Negative elimination, Genetic factors

Half-Life and Elimination Calculations

Drug CategoryHalf-Life RangeElimination RateDetection WindowMetabolite Significance
Short-Acting1-6 hoursRapid clearance12-24 hoursOften inactive
Intermediate6-24 hoursModerate clearance1-3 daysVariable activity
Long-Acting24-72 hoursSlow clearance3-7 daysOften active
Ultra-Long>72 hoursVery slow clearance>7 daysHighly active
VariableDose-dependentNon-linear kineticsUnpredictableComplex patterns

Postmortem Interval Considerations

  • Early Postmortem Period (0-6 hours)

    • Postmortem redistribution can occur rapidly for many drugs depending on physicochemical properties
    • Continued enzymatic activity varies with temperature, pH, and matrix conditions
    • Site-specific sampling (central vs. peripheral) affects interpretation
      • Cocaine esterases: Postmortem activity influenced by environmental factors
      • Alcohol metabolism: Complex interplay of enzymatic degradation and microbial production
      • Bacterial metabolism: Environmental-dependent onset timing
  • Late Postmortem Period (>24 hours)

    • Significant redistribution from tissues to blood complicates concentration interpretation
    • Bacterial production of alcohols and other compounds
    • Chemical degradation of unstable analytes
      • Putrefaction alcohols: Ethanol production from glucose
      • Tissue breakdown: Release of sequestered drugs
      • pH changes: Affect drug stability and protein binding

💡 Master This: Correlating drug concentrations with estimated time of death and postmortem interval enables determination of whether detected levels represent antemortem intoxication or postmortem artifacts, considering the complexities of postmortem redistribution in forensic interpretation

Connect temporal analysis through BSA expert testimony requirements to understand how toxicological findings translate into courtroom evidence under BNSS procedural frameworks.

⏰ Temporal Analysis: The Timeline Reconstruction Engine

Evidence Admissibility Standards

  • BSA 2023 Criteria for Scientific Evidence

    • Expert Qualifications: Under BSA Sections 45-51, emphasis on knowledge, skill, experience, training, and education
    • Scientific Reliability: Methods must be based on sound scientific principles and peer-reviewed protocols
    • Relevance: Expert opinion must assist the court on points of science and analytical chemistry
      • Method validation: While Accuracy ±15% and Precision ±10% are common guidelines, validation must be fit for purpose per ISO/IEC 17025 standards
      • Quality control: ±20% acceptance criteria for control samples following SWGTOX guidelines
      • Proficiency testing: >95% success rate in external challenges per accreditation requirements
  • Chain of Custody Requirements

    • Documentation: Every transfer, storage, analysis step recorded per BNSS procedures
    • Security: Tamper-evident seals, restricted access, surveillance
    • Continuity: Unbroken chain from collection to disposal
      • Sample integrity: Temperature logs, storage conditions
      • Personnel accountability: Signatures, dates, times for all handling
      • Laboratory security: Access controls, sample tracking systems

📌 Remember: COURT - Chain of custody, Objective analysis, Unbiased interpretation, Reliable methods, Testifiable conclusions

Expert Testimony Framework

Testimony ComponentRequirementsPreparation TimeDocumentation NeededPotential Challenges
QualificationsEducation, training, experience per BSA Sec 451-2 hoursCV, certifications, case historyCredential attacks
MethodologyValidated procedures, QC data3-4 hoursSOPs, validation studiesTechnical challenges
ResultsAnalytical data, calculations2-3 hoursRaw data, chromatogramsData interpretation
InterpretationToxicological significance4-6 hoursLiterature, case studiesAlternative explanations
ConclusionsCause-effect relationships per BSA Sec 462-4 hoursDifferential diagnosisReasonable doubt

Report Writing and Documentation

  • Analytical Report Structure

    • Case information: Decedent demographics, circumstances, sample details
    • Methodology: Analytical procedures, instrumentation, validation data
    • Results: Quantitative findings, detection limits, quality control
      • Positive findings: Concentration ± uncertainty, method validation
      • Negative results: Detection limits, method scope, limitations
      • Interferences: Matrix effects, co-eluting compounds, analytical artifacts
  • Interpretive Conclusions

    • Toxicological significance: Therapeutic vs. toxic concentration ranges
    • Cause-effect relationships: Likelihood of contribution to death
    • Alternative explanations: Natural disease, other substances, trauma
      • Confidence levels: High, moderate, low based on evidence strength
      • Limitations: Postmortem changes, sample quality, analytical scope
      • Recommendations: Additional testing, scene investigation, medical records

💡 Master This: Effective expert testimony requires translating complex analytical chemistry into clear, understandable language while maintaining scientific accuracy and acknowledging limitations under BSA 2023 framework

Connect legal framework mastery through rapid reference tools to understand how comprehensive toxicological knowledge transforms into practical clinical and forensic expertise.

⚖️ Legal Framework Integration: The Courtroom Evidence Architecture

🎯 Rapid Mastery Arsenal: The Toxicologist's Command Center

Essential Concentration Reference Matrix

Substance ClassTherapeutic RangeToxic ThresholdLethal LevelPostmortem FactorKey Metabolites
Tricyclic Antidepressants50-300 ng/mL*>500 ng/mL*>1000 ng/mL*Variable (3-15x)**Hydroxylated forms
Benzodiazepines20-200 ng/mL*>500 ng/mL*>2000 ng/mL*Variable (1.5-3x)**Glucuronide conjugates
Opioids (Morphine)10-80 ng/mL*>200 ng/mL*>500 ng/mL*Variable (2-5x)**Morphine-6-glucuronide
CocaineNot applicable>500 ng/mL*>1000 ng/mL*Variable (2-4x)**Benzoylecgonine
Digoxin0.8-2.0 ng/mL*>2.5 ng/mL*>10 ng/mL*Variable (5-20x)**Minimal metabolism
**Postmortem redistribution factors are highly variable and context-dependent

📌 Remember: RAPID - Reference ranges, Analytical limits, Postmortem factors, Interpretive guidelines, Documentation standards per BSA requirements

Critical Decision Algorithms

  • Sample Priority Matrix

    • Cardiac blood: Screening only - expect significant elevation (variable)
    • Femoral blood: Quantitation preferred - less redistribution but still variable
    • Urine: Detection window - 1-30 days depending on substance
      • Vitreous humor: Alcohols, electrolytes - stable concentrations
      • Liver tissue: Drug storage - highly variable concentrations (drug-dependent)
      • Hair: Chronic exposure - 90+ day detection window
  • Interpretation Confidence Levels

    • High confidence (>95%): Peripheral blood, validated methods, quality controls passed
    • Moderate confidence (80-95%): Cardiac blood with careful interpretation, established redistribution patterns
    • Low confidence (<80%): Decomposed samples, novel substances, limited validation

Clinical Pearl: Femoral blood provides more reliable postmortem concentrations than cardiac blood, but redistribution still occurs and requires careful interpretation considering multiple factors

Emergency Consultation Protocol

  • Immediate Assessment Questions

    • Sample type and condition: Fresh vs. decomposed, volume available
    • Suspected substances: History, scene findings, clinical presentation
    • Timeline requirements: Urgent vs. routine, BNSS legal deadlines
      • Stat analysis: 2-4 hours for common drugs
      • Comprehensive screening: 24-48 hours for full panel
      • Confirmation testing: 48-72 hours with quantitation
  • Rapid Screening Priorities

    • Volatiles: Alcohols, solvents - analyze immediately
    • Unstable compounds: Cocaine, heroin - refrigerate, analyze quickly
    • Common poisons: Carbon monoxide, cyanide - specialized methods
      • Carboxyhemoglobin: >50% suggests CO poisoning
      • Cyanide: >0.5 mg/L in blood indicates toxicity
      • Methemoglobin: >20% causes clinical symptoms

💡 Master This: Systematic application of analytical protocols, interpretive frameworks, and BSA legal standards enables confident toxicological conclusions that withstand scientific scrutiny and legal challenge under the Bharatiya Nyaya Sanhita 2023

This comprehensive forensic toxicology framework provides the analytical precision, interpretive expertise, and legal knowledge required for accurate determination of substance-related deaths and impairment cases under the new 2024 legal framework. Master these interconnected systems to deliver reliable toxicological evidence that serves justice and protects public safety.

🎯 Rapid Mastery Arsenal: The Toxicologist's Command Center

Practice Questions: Forensic Toxicology

Test your understanding with these related questions

CSF examination is most commonly indicated in:

1 of 5

Flashcards: Forensic Toxicology

1/10

In deaths due to poisoning from HCN, rigor mortis sets in _____ and persists longer.

TAP TO REVEAL ANSWER

In deaths due to poisoning from HCN, rigor mortis sets in _____ and persists longer.

early

browseSpaceflip

Enjoying this lesson?

Get full access to all lessons, practice questions, and more.

Start Your Free Trial
