Frontal Sinus Anatomy - Sinus Superhighway

The "sinus superhighway" refers to the complex frontal sinus outflow tract.

  • Frontal Recess: Key drainage area; variable hourglass shape.
    • Anterior boundary: Agger nasi cell.
    • Posterior boundary: Ethmoid bulla.
    • Medial boundary: Middle turbinate (vertical attachment).
    • Lateral boundary: Lamina papyracea.
  • Drainage Pathway: Frontal sinus ostium → Frontal recess → Middle meatus (via ethmoidal infundibulum or direct).
  • Anatomical Variations: Kuhn cells (e.g., supra-agger, supra-bullar) can narrow the recess.

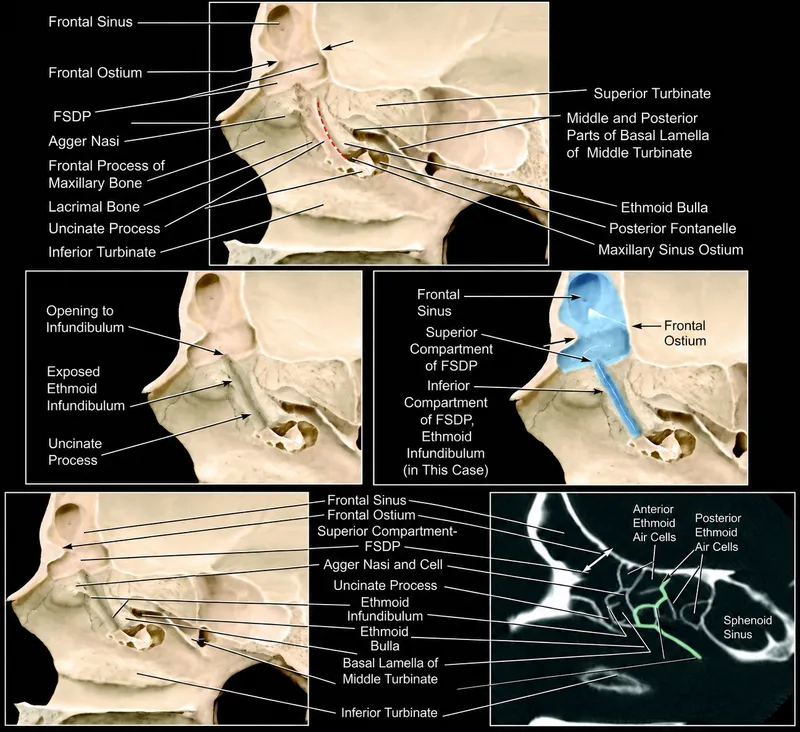

    ⭐ The narrowest part of the frontal sinus outflow tract is often the frontal ostium itself. Frontal sinus drainage pathway anatomy

Indications & Pre-op - Go or No-Go?

  • Indications:
    • Chronic Rhinosinusitis (CRS) refractory to maximal medical therapy
    • Mucocele, Pyocele
    • Complications: orbital, intracranial
    • Tumors: benign, malignant
    • Trauma: CSF leak, fracture repair
  • Pre-op Checklist:
    • CT PNS (axial, coronal, sagittal); Lund-Mackay score
    • Diagnostic Nasal Endoscopy
    • Co-morbidity evaluation & optimization
    • Informed Consent

⭐ Kero's classification of olfactory fossa depth is crucial; Type III (> 3mm) signifies high risk for iatrogenic CSF leak during surgery.

Draf Procedures - The Escalation Ladder

Surgical options for chronic frontal sinusitis, graded by extent:

  • Draf I (Simple Drainage): Uncinectomy, ethmoidectomy, opening frontal recess. Minimal bone removal.
  • Draf IIa (Extended Drainage - Medial): Removal of frontal sinus floor medial to lamina papyracea, anterior to skull base.
  • Draf IIb (Extended Drainage - Complete): Extends Draf IIa; removes entire frontal sinus floor between lamina papyracea and middle turbinate remnant.
  • Draf III (Median Drainage / Modified Lothrop): Most extensive. Connects both frontal sinuses into a common cavity. Involves removing intersinus septum, superior nasal septum, and bilateral frontal sinus floors.

Draf I, IIa, IIb, and III frontal sinusotomies

Draf III is also known as the Endoscopic Modified Lothrop Procedure (EMLP) and provides the widest possible drainage pathway for the frontal sinuses, often reserved for recalcitrant disease or cases with significant neo-osteogenesis.

Surgical Toolkit - Precision Instruments

  • Endoscopes: 0°, 30°, 45°, 70° for visualization.
  • Frontal Sinus Probes/Seekers: J-curette, Kuhn seeker for pathway identification.
  • Angled "Giraffe" Instruments: Forceps, punches for difficult access.
  • Microdebrider: Angled blades for precise tissue removal.
  • Drills: Cutting/diamond burs for bone work (Draf procedures).
  • Image Guidance System (IGS): Crucial for navigation in complex/revision cases.
  • Suction Freer Elevator: Mucoperiosteal elevation.
  • Ball-tipped probes: Gentle exploration.

Frontal Sinus Surgery: Setup and Instruments

⭐ Image Guidance Systems (IGS) are vital for complex frontal sinus surgery, especially in revisions or Draf III, enhancing safety and precision.

Complications & Aftercare - Navigating Recovery

  • Complications:
    • Intraoperative:
      • CSF leak (cribriform plate/fovea ethmoidalis).
      • Orbital injury: hematoma, EOM damage, optic nerve injury (blindness).
      • Hemorrhage: Anterior/Posterior Ethmoidal Artery.
    • Postoperative:
      • Early: Epistaxis, infection, adhesions (synechiae), frontal ostium stenosis.
      • Late: Mucocele formation, recurrent sinusitis, Pott's puffy tumor (osteomyelitis).
  • Aftercare Essentials:
    • Frequent nasal saline irrigation.
    • Systemic antibiotics & topical/oral steroids.
    • Regular endoscopic debridement.
    • Avoid nose blowing, heavy lifting for 2-4 weeks.

    ⭐ Persistent clear nasal discharge post-op, especially unilateral, should raise suspicion for CSF leak; test for Beta-2 Transferrin.

High‑Yield Points - ⚡ Biggest Takeaways

  • Draf classification (I, IIa, IIb, III/Lothrop) guides surgical extent.
  • AEA is a critical landmark (~24mm from ant. nasal spine) & bleeding source.
  • Keros classification (olfactory fossa depth) vital to prevent CSF leaks.
  • Master frontal sinus drainage pathway anatomy.
  • Draf III (Modified Lothrop): most extensive, creates common frontal ostium.
  • Key complications: CSF leak, orbital injury, bleeding, mucocele.
  • Frontal beak removal often key for surgical access.
