Laryngeal Imaging Intro - Vocal Cord Views

  • Indications for Advanced Laryngeal Imaging (Stroboscopy, HSDI):
    • Persistent dysphonia (e.g., >3 weeks)
    • Suspected vocal fold pathology (nodules, polyps, cysts, paralysis)
    • Pre- and post-phonosurgery evaluation
    • Assessment of professional voice users
  • Basic Principles:
    • Light Source: Stroboscopic (flashing light, e.g., xenon) or continuous high-intensity light (for high-speed digital imaging - HSDI).
    • Recording: Digital camera captures images of vocal fold vibration.
  • Imaging Access - Endoscopy Types:
    • Rigid (Transoral): Offers superior image magnification and clarity; may elicit gag reflex.
    • Flexible (Transnasal): Better tolerated, allows assessment during dynamic tasks like speech or singing.

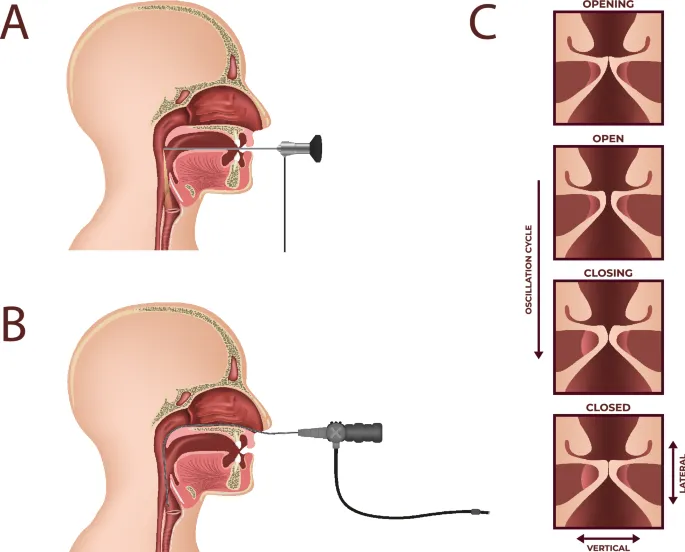

Laryngeal endoscopy and vocal fold oscillation

⭐ Stroboscopy is considered the clinical gold standard for evaluating vocal fold vibratory characteristics in most voice disorders.

Stroboscopy Deets - Flicker & Function

  • Principle: Talbot's law & stroboscopic effect. Xenon light flashes synchronized near vocal fold $F_0$ create apparent slow-motion.
  • Key Parameters (📌 Mnemonic: SAMPLe C & P):
    • Symmetry of movement
    • Amplitude of vibration
    • Mucosal wave
    • Periodicity
    • **(L)**ateral excursion/edge
    • Closure pattern (e.g., complete, gap)
    • Phase (Symmetry & Closure)
    • Also: Fundamental frequency ($F_0$), Non-vibrating portion. Stroboscopy: Vocal Fold Assessment Parameters
  • Advantages: Dynamic assessment, widely available.
  • Limitations: Requires periodic vibration, $F_0$ tracking issues, not true slow motion.

⭐ Stroboscopy relies on the Talbot-Plateau law, creating an optical illusion of slow-motion vocal fold vibration by timing light flashes slightly offset from the vocal fold's fundamental frequency.

High-Speed Imaging - Real-Time Reels

  • Principle: Records actual vocal fold motion at high frame rates (e.g., 2000-8000 fps).

  • Comparison with Stroboscopy:

    • HSDI: True, real-time motion.
    • Stroboscopy: Apparent motion (illusion).
    • Crucial for aperiodic/aphonic voices where stroboscopy is unreliable.
  • Derived Analyses:

    • Videokymography (VKG): Spatiotemporal analysis of a single line across the glottis, detailing mucosal wave.
  • Advantages:

    • Accurate depiction of vocal fold vibration.
    • Effective for irregular/aperiodic vibrations.
    • Provides detailed cycle-to-cycle information.
  • Disadvantages:

    • Expensive equipment.
    • Large data storage needs.
    • Lengthy analysis time.

⭐ High-Speed Digital Imaging (HSDI) is particularly valuable for assessing highly dysphonic or aphonic patients where vocal fold vibration is too irregular for stroboscopy to track.

Pathology Spotting - Voice Vice Views

Stroboscopy & High-Speed Digital Imaging (HSDI) are crucial for visualizing vocal fold vibration and diagnosing pathologies.

PathologyKey Stroboscopic/HSDI Findings
NodulesBilateral, ↓ mucosal wave at lesion, hourglass closure, often symmetric
PolypsOften unilateral, ↓ wave at lesion, incomplete closure, asymmetric
CystsUnilateral, absent/markedly ↓ wave over lesion, stiffness, adynamic segment
ParalysisImmobility/paresis, asymmetric vibration, ↓/absent wave (affected side), glottic gap
Sulcus VocalisGroove/furrow, ↓/absent wave over sulcus, stiffness, spindle-shaped gap
Reinke's EdemaBilateral, diffuse swelling, ↑ floppy mucosal wave, ↓ amplitude, often complete closure

⭐ In vocal fold cysts, a key diagnostic feature on stroboscopy is the marked reduction or absence of the mucosal wave over the lesion, often contrasting with a more preserved wave on the rest of the fold.

High‑Yield Points - ⚡ Biggest Takeaways

  • Stroboscopy: Apparent slow-motion of vocal folds via intermittent light (Talbot's Law), assessing mucosal wave.
  • Key parameters: Amplitude, glottic closure pattern, periodicity, symmetry, and phase closure.
  • High-Speed Videoendoscopy (HSV): Captures true, real-time vocal fold motion (2000-8000 fps).
  • HSV excels for aperiodic/irregular vibrations, spasmodic dysphonia, and short phonatory segments.
  • Stroboscopy is unreliable with severe aperiodicity; HSV provides accurate analysis.
  • Both are crucial for diagnosing voice disorders and planning phonosurgery.
