Anatomy of the Ear

On this page

External Ear - Outer Sound Funnel

  • Components: Auricle (Pinna) & External Acoustic Meatus (EAM).
  • Auricle:
    • Elastic fibrocartilage (lobule: fat).
    • Function: Sound collection, localization.
  • EAM:
    • Length: ~2.5 cm (24 mm); S-shaped.
    • Outer 1/3 (cartilaginous, 8 mm): Cerumen, hair.
    • Inner 2/3 (bony, 16 mm): Thin skin.
    • Isthmus: Narrowest part.

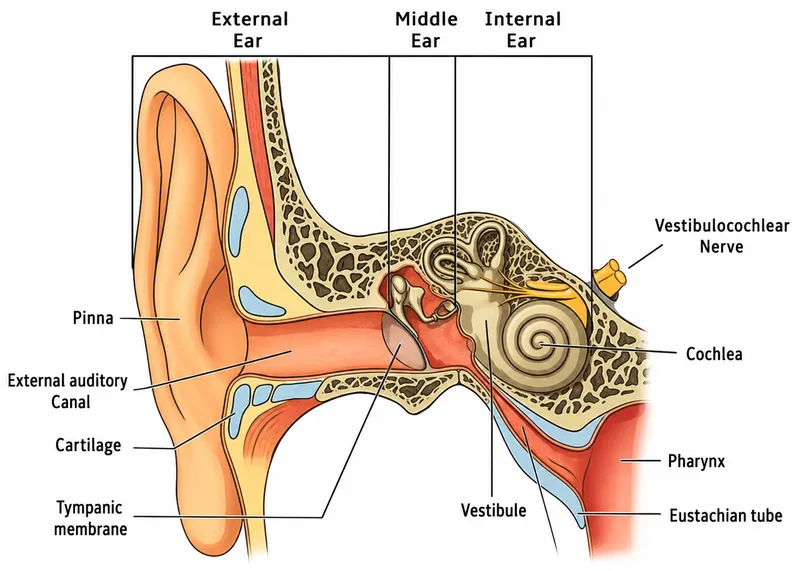

    • Nerves: V3, VII, X (Arnold's - cough reflex). Anatomy of the Ear: External, Middle, and Internal Ear

⭐ Arnold's nerve (Vagus branch) in EAM causes cough reflex (Arnold's reflex) on stimulation.

Middle Ear - Tiny Bones, Big Job

Middle Ear Anatomy: Ossicles, Muscles, Tympanic Membrane

  • Cavity: Air-filled tympanic cavity (temporal bone); TM to oval window.
  • Ossicles (MIS): Malleus, Incus, Stapes. Function: Sound transmission & amplification.
    • Malleus: Attached to TM; head in epitympanum.
    • Incus: Connects malleus to stapes.
    • Stapes: Footplate on oval window. Smallest bone.
    • 📌 Mnemonic: Make It Sound.
  • Muscles: Protective reflexes.
    • Tensor tympani (CN V3): To malleus; tenses TM.
    • Stapedius (CN VII): To stapes; dampens loud sounds. Smallest skeletal muscle.
  • Function: Impedance matching (air to cochlear fluid). Amplifies sound pressure ~22x.
  • Communications: Eustachian tube (pressure balance), Aditus ad antrum (to mastoid cells).

⭐ Stapedius muscle paralysis (CN VII lesion) causes hyperacusis (increased sensitivity to sounds).

Inner Ear - Maze of Hearing & Balance

  • Two main parts: Bony & Membranous Labyrinths.
    • Bony Labyrinth: Contains perilymph (↑Na+, ↓K+).
      • Cochlea: Hearing. Snail-shaped, 2.5-2.75 turns. Scala vestibuli & tympani.
      • Vestibule: Balance. Houses utricle & saccule.
      • Semicircular Canals (SCCs): Balance. Superior, posterior, lateral.
    • Membranous Labyrinth: Contains endolymph (↑K+, ↓Na+; from stria vascularis).
      • Cochlear Duct (Scala Media): Within cochlea. Houses Organ of Corti (hearing sensory organ).
      • Utricle & Saccule: Within vestibule. Detect linear acceleration, gravity (maculae).
      • Semicircular Ducts: Within SCCs. Detect angular acceleration (cristae ampullares).
  • Innervation: Vestibulocochlear nerve (CN VIII). Inner ear membranous and bony labyrinth

⭐ Endolymph has a high K+ concentration, crucial for hair cell depolarization.

Nerves & Vessels - Ear's Lifelines

  • Nerve Supply:
    • Ext. Ear: Auriculotemporal n. (V3), Great auricular (C2,C3), Vagal (Arnold's - X), Facial (VII - sensory).
    • Middle Ear: Tympanic plexus (IX) - sensory; Chorda tympani (VII) - taste.
    • Inner Ear: Vestibulocochlear n. (VIII) - hearing & balance.

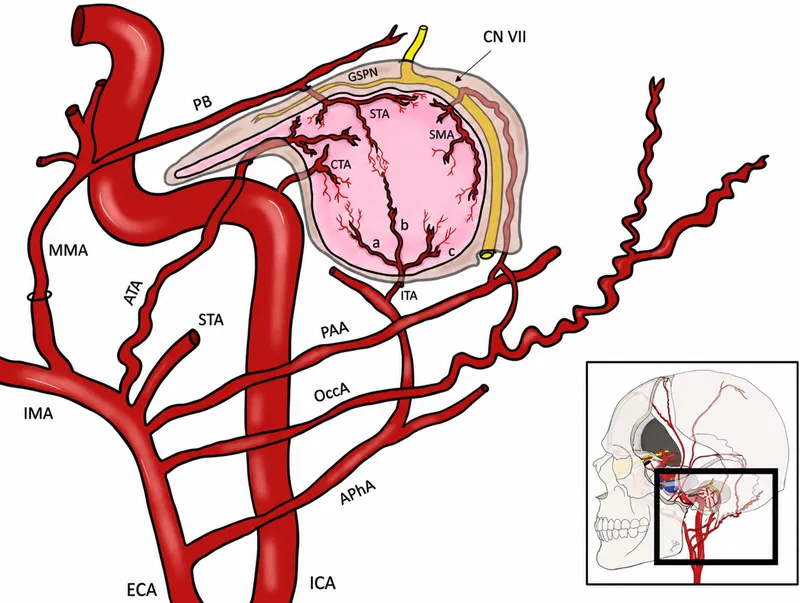

  • Arterial Supply:
    • Ext. Ear: Posterior auricular a., Superficial temporal a. (from ECA).
    • Middle Ear: Branches from ECA (e.g., Maxillary, Post. auricular) & ICA.
    • Inner Ear: Labyrinthine artery (from AICA/Basilar a.).

⭐ Arnold's nerve (Vagal br. - CN X) stimulation causes cough (Arnold's reflex). Neurovascular supply of the ear

High‑Yield Points - ⚡ Biggest Takeaways

  • External Auditory Canal (EAC): S-shaped; outer 1/3 cartilaginous, inner 2/3 bony. Isthmus narrowest.
  • Tympanic Membrane (TM): 3 layers; Pars Tensa (vibrates), Pars Flaccida (retraction).
  • Middle Ear Ossicles: Malleus, Incus, Stapes (smallest bone); transmit sound.
  • Eustachian Tube: Links middle ear to nasopharynx; shorter, wider, more horizontal in infants.
  • Inner Ear: Cochlea (hearing); Vestibular system (balance: semicircular canals, utricle, saccule).
  • Facial Nerve (CN VII): Close relation to middle ear/mastoid; vulnerable in surgery.
  • Round & Oval Windows: Connect middle to inner ear; Stapes at Oval Window.
