Ultrasound-Guided Neuraxial Anesthesia - Echoes & Spines

  • Why USG? ↑ success rates, ↓ needle passes & complications. Essential for challenging anatomy (obesity, scoliosis, previous surgery).
  • Indications: Predicted difficult access, coagulopathy (visualize epidural space depth), teaching tool.
  • Probe Selection:
    • Low-frequency (2-5 MHz) curvilinear: Adults, deeper penetration.
    • High-frequency (10-13 MHz) linear: Pediatrics, superficial structures.
  • Views & Structures:
    • Transverse: Interspinous view (target window), articular processes.
    • Paramedian Sagittal: Interlaminar view ("sawtooth" laminae).
    • Identify: Ligamentum flavum, posterior dura, epidural space, thecal sac. Para-sagittal oblique view of L5-S1 junction

⭐ The "paramedian sagittal oblique" (PSO) view is often optimal for visualizing the interlaminar space and guiding real-time needle insertion for neuraxial blocks in adults.

Ultrasound-Guided Neuraxial Anesthesia - Picture Perfect Punctures

  • Goal: Precise needle placement, ↑ success, ↓ attempts, ↓ complications.
  • Probe: Curvilinear (low frequency, deeper) or linear (high frequency, superficial).
  • Views:
    • Transverse Process View: Identifies spinous process & transverse processes.
    • Sagittal Paramedian View: "Sawtooth" appearance of laminae; identifies interlaminar spaces.
  • Key Structures (Hyperechoic → Hypoechoic):
    • Bone (spinous process, laminae): Hyperechoic with posterior acoustic shadow.
    • Ligamentum Flavum: Hyperechoic band.
    • Dura Mater: Hyperechoic line (anterior to ligamentum flavum).
    • Epidural Space: Hypoechoic, between ligamentum flavum & dura.
    • Intrathecal Space (CSF): Anechoic.
    • Posterior Longitudinal Ligament & Vertebral Body: Deeper hyperechoic lines.

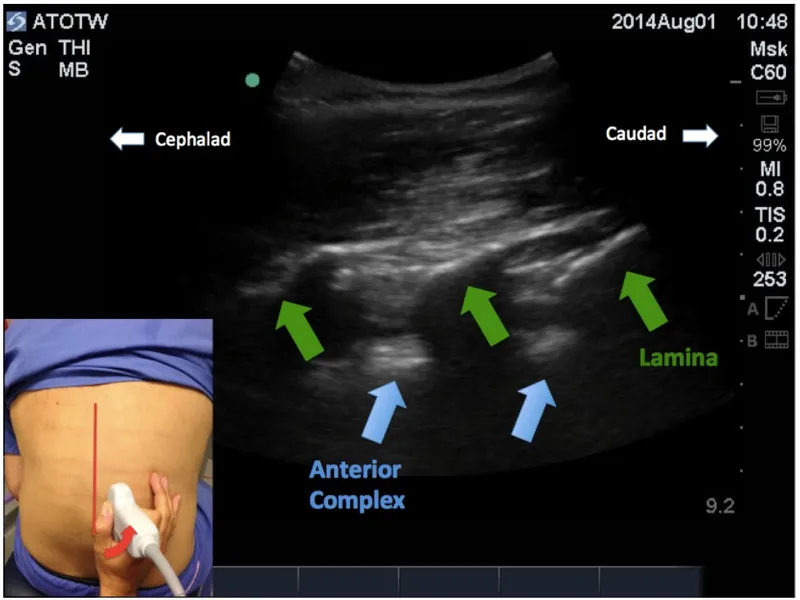

Ultrasound Sagittal Paramedian View Lumbar Spine

  • Techniques:
    • Pre-procedural scanning: Mark skin entry point & trajectory.
    • Real-time guidance: Needle visualized during insertion.
  • Advantages: Identifies midline, depth to epidural/intrathecal space, intervertebral level, detects anatomical variations (e.g., scoliosis).

"Shamrock Sign" (Transverse view): Spinous process (stem) & two transverse processes (leaves) help identify the paramedian window for thoracic epidurals.

  • Considerations: Thoracic spine challenging due to acute angulation of spinous processes; paramedian approach often preferred.
  • 📌 Mnemonic: "TITS & LITS" - Transverse Interspinous Transverse Sagittal (views) & Ligamentum flavum Intrathecal Target Space (layers).

Ultrasound-Guided Neuraxial Anesthesia - Guided Needle Navigation

  • Pre-procedural Scanning:

    • Identify midline (spinous processes).
    • Determine optimal interspace (widest, easiest access).
    • Measure depth to epidural/intrathecal space (ligamentum flavum, posterior dura).
    • Plan needle trajectory: angle, entry point.
    • Assess for scoliosis, previous surgery, or anatomical variations.
  • Real-Time Needle Guidance:

    • In-Plane (Longitudinal):
      • Needle shaft & tip visualized in the plane of ultrasound beam.
      • Preferred for continuous visualization.
      • Transducer aligned with needle path.
    • Out-of-Plane (Transverse):
      • Needle visualized as a hyperechoic dot (cross-section).
      • Tip localization can be challenging; requires fanning transducer.
      • Useful for initial angulation.
  • Needle Visualization:

    • Often challenging due to steep insertion angles.
    • Techniques to improve: hydro-dissection, stylet movement, echogenic needles.

High-Yield: The paramedian sagittal oblique view is often superior for visualizing the needle tip and its path through the ligamentum flavum into the epidural space during in-plane guidance.

Ultrasound-Guided Neuraxial Anesthesia - Smooth Sailing Scans

  • Benefits: ↑ success rates, ↓ needle passes & complications. Crucial for difficult neuraxial access (obesity, scoliosis, prior surgery).
  • Views & Landmarks:
    • Paramedian Sagittal (PMS): "Sawtooth" sign (laminae), ligamentum flavum-dura complex.
    • Transverse Interlaminar (TI): "Flying bat" sign (spinous process, laminae).
  • Technique: Pre-procedural marking or real-time needle guidance.
  • Key Structures: Ligamentum flavum, epidural space, dura mater.
  • Troubleshooting: Optimize probe (frequency, depth, gain), patient positioning; consider hydrodissection for difficult advancement.

⭐ Ultrasound guidance significantly reduces needle passes and improves first-attempt success in neuraxial blockade, especially in predicted difficult spinal anesthesia.

High‑Yield Points - ⚡ Biggest Takeaways

  • Ultrasound guidance boosts neuraxial block success rates and reduces attempts.
  • Crucial for obese patients and difficult spinal anatomy (e.g., scoliosis).
  • Essential views: Paramedian Sagittal Oblique (PSO) and Transverse Median (TM).
  • Accurate level identification via "counting up" from sacrum or "down" from T12.
  • Pre-scan maps midline, depth to epidural space, and best needle path.
  • Real-time needle tracking improves safety, minimizing traumatic punctures and reducing PDPH.
  • Visualizes key structures: ligamentum flavum, epidural space, dura mater.
