Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Practice Questions and MCQs
Practice Indian Medical PG questions for Thoracic Imaging and Cross-sectional Anatomy. These multiple choice questions (MCQs) cover important concepts and help you prepare for your exams.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 1: Best imaging modality for acute pulmonary embolism
- A. V/Q scan
- B. CT pulmonary angiogram (Correct Answer)
- C. Chest X-ray
- D. MRI
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***CT pulmonary angiogram***
- This is the **gold standard** imaging modality for diagnosing acute pulmonary embolism due to its high sensitivity and specificity in visualizing pulmonary arteries.
- It rapidly provides detailed images of the pulmonary vasculature, allowing for direct visualization of **thrombi**.
*V/Q scan*
- A **V/Q scan** measures ventilation and perfusion of the lungs and is less definitive than CTPA, especially in patients with pre-existing lung disease.
- It is often considered when **CTPA is contraindicated**, such as in cases of severe renal impairment or contrast allergy.
*Chest X-ray*
- A **chest X-ray** is generally used to rule out other causes of chest pain and shortness of breath, such as pneumonia or pneumothorax, rather than to diagnose PE directly.
- It has **low sensitivity and specificity** for pulmonary embolism, as findings are often non-specific or normal even in the presence of PE.
*MRI*
- **Magnetic resonance angiography (MRA)** can be used, but it is typically reserved for patients who cannot undergo CTPA or V/Q scan due to contraindications like **pregnancy** or **renal failure**.
- It often takes longer to perform and has lower spatial resolution compared to CTPA for pulmonary artery visualization.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 2: Which of the following segments is present in the middle lobe of the right lung?
- A. Medial (Correct Answer)
- B. Anterior
- C. Upper
- D. Lower
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Medial***

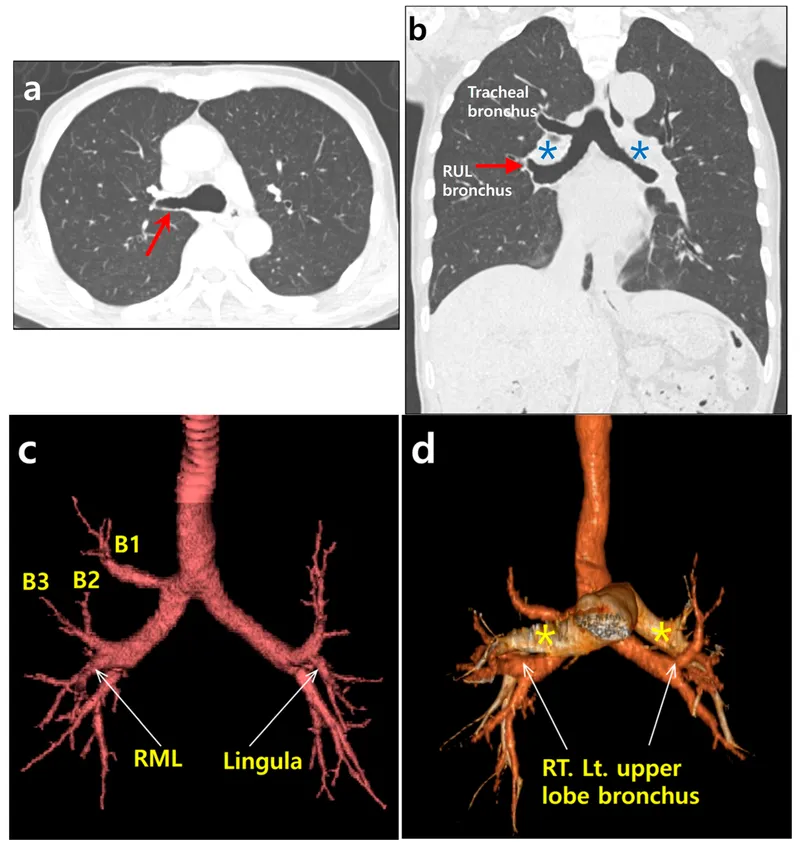

- The **right middle lobe** of the lung consists of two bronchopulmonary segments: the **medial segment (S4)** and the lateral segment (S5) [1].
- The **medial segment** is located closer to the mediastinum and is supplied by the medial segmental bronchus.
- These segments are defined by the branching pattern of the **bronchial tree** and pulmonary arteries, supplying specific areas of lung tissue [1].
*Anterior*
- The **anterior segment** is part of the **right upper lobe**, not the middle lobe [1].
- The right upper lobe contains three segments: apical, posterior, and anterior segments [1].
- The middle lobe is separated from the upper lobe by the **horizontal (transverse) fissure**.
*Upper*
- "Upper" is not a specific bronchopulmonary segment name but rather refers to the **upper lobe** itself.
- The **right upper lobe** is a distinct anatomical region from the middle lobe and contains apical, posterior, and anterior segments [1].
*Lower*
- "Lower" is not a specific segment of the middle lobe but refers to the **lower lobe**.
- The **right lower lobe** contains five segments: superior, medial basal, anterior basal, lateral basal, and posterior basal [1].
- The lower lobe is separated from the middle lobe by the **oblique fissure**.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 3: Which of the following statements regarding axillary lymph nodes is incorrect?
- A. Posterior group lies along subscapular vessels
- B. Lateral group lies along lateral thoracic vessels (Correct Answer)
- C. Apical group is terminal lymph nodes
- D. Apical group lies along axillary vessels
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Lateral group lies along lateral thoracic vessels***
- The **lateral group** of axillary lymph nodes is located along the **axillary vein**, receiving lymph primarily from the upper limb [1].
- The **lateral thoracic vessels** are associated with the central and posterior groups of axillary lymph nodes, not the lateral group.
*Posterior group lies along subscapular vessels*
- The **posterior (subscapular) group** of axillary lymph nodes is indeed located along the **subscapular vessels**.
- This group receives lymph from the posterior wall of the trunk and the posterior shoulder region.
*Apical group is terminal lymph nodes*
- The **apical group** (also known as the subclavian group) is considered the **terminal lymph nodes** of the axilla.
- Lymph from all other axillary nodes eventually drains into the apical group before continuing to the supraclavicular nodes and then into the subclavian lymphatic trunk [2].
*Apical group lies along axillary vessels*
- The **apical group** of axillary lymph nodes is situated in the apex of the axilla, superior to the pectoralis minor muscle, and lies in close proximity to the **axillary vessels** [1].
- This location allows it to receive lymph from other axillary groups and drain into the supraclavicular lymph nodes.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 4: A chest X-ray shows a 'silhouette sign' with opacity obscuring the right heart border. Which lobe of the lung is most likely affected?
- A. Right upper lobe
- B. Right middle lobe (Correct Answer)
- C. Right lower lobe
- D. Left lower lobe
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Right middle lobe***

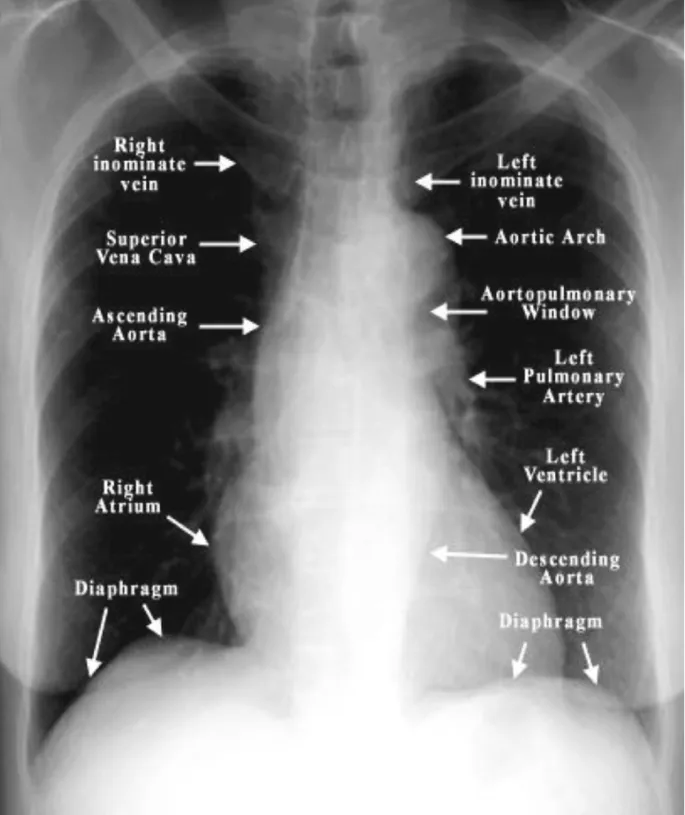

- The **silhouette sign** occurs when two objects of similar radiographic density are in direct contact, obscuring their common border.
- The **right middle lobe** is adjacent to the right heart border, so an opacity in this lobe will typically obscure the border.
*Right upper lobe*
- The right upper lobe is positioned superiorly and medially, meaning opacification would more likely obscure the **right paratracheal stripe** or the superior mediastinal borders.
- It does not directly border the right heart, thus it would not produce a silhouette sign with the cardiac outline.
*Right lower lobe*
- The right lower lobe is primarily associated with obscuring the **right hemidiaphragm** when it collapses or becomes consolidated.
- Although it is somewhat posterior to the heart, it usually does not directly obscure the anterior right heart border.
*Left lower lobe*
- The left lower lobe is on the opposite side of the chest and opacification would not affect the **right heart border**.
- Consolidation here would more likely obscure the **left hemidiaphragm** or the medial part of the left cardiac silhouette in certain views.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 5: The thoracic duct crosses from the right to the left at the level of
- A. T12 vertebra
- B. T2 vertebra
- C. T4-T5 vertebra (Correct Answer)
- D. T6 vertebra
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***T4-T5 vertebra***
- The **thoracic duct** crosses from the right to the left side of the vertebral column at the level of the **T4-T5 vertebrae**, specifically just above the root of the left lung.
- This crossover is an important anatomical landmark as it signifies the duct's ascent towards the neck to drain into the left subclavian vein.
*T12 vertebra*
- The **thoracic duct** originates from the **cisterna chyli** at the level of the L1 or L2 vertebra and ascends into the thorax at or below the T12 vertebra, it does not cross over at this level.
- This level primarily marks its entry into the thoracic cavity, not its main crossover point.
*T6 vertebra*
- While the **thoracic duct** is present in the thorax at this level, it does not undergo its characteristic crossover from right to left at the T6 vertebra.
- The duct continues its ascent along the right side of the vertebral column before moving across.
*T2 vertebra*
- By the level of the T2 vertebra, the **thoracic duct** has already crossed to the left side of the vertebral column and is ascending towards its termination in the neck.
- The crossover event occurs more inferiorly, at the T4-T5 level.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 6: The incidence of a foreign body being aspirated into the right lung is higher than into the left lung. All of the following statements support this, EXCEPT?
- A. Tracheal bifurcation directs the foreign body to the right lung
- B. Right lung is shorter and wider than left lung (Correct Answer)
- C. Right inferior lobar bronchus is in continuation with the right principal bronchus
- D. Right principal bronchus is more vertical than the left bronchus
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Right lung is shorter and wider than left lung***
- This statement, while anatomically true, does **NOT directly explain** why foreign bodies preferentially enter the right lung
- The dimensions of the **lung parenchyma itself** (shorter due to the diaphragm being pushed up by the liver, and wider) are unrelated to aspiration patterns
- What determines aspiration is the **bronchial tree geometry** (angle, diameter, verticality), not the overall lung size
- This is the EXCEPTION - it's a true anatomical fact but doesn't support the aspiration phenomenon
*Incorrect - Tracheal bifurcation directs the foreign body to the right lung*
- This statement DOES support higher right aspiration, so it cannot be the answer
- The **carina angle** and bifurcation geometry favor the right side, directing foreign bodies preferentially to the right main bronchus
- This is a key anatomical reason for the higher incidence
*Incorrect - Right inferior lobar bronchus is in continuation with the right principal bronchus*
- This statement DOES support higher right aspiration
- After the right superior lobar bronchus branches off, the **intermediate bronchus** continues more directly toward the inferior lobe
- This creates a straighter pathway from trachea → right main bronchus → intermediate bronchus → inferior lobar bronchus
- Foreign bodies follow this direct path, often lodging in the right inferior lobe
*Incorrect - Right principal bronchus is more vertical than the left bronchus*
- This statement DOES support higher right aspiration
- The right main bronchus diverges at approximately **25 degrees** from vertical, while the left diverges at **45 degrees**
- This more vertical orientation makes the right bronchus a more direct continuation of the trachea
- Gravity and airflow naturally direct aspirated material down this straighter path
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 7: Carina is situated at which level?
- A. T3
- B. T4 (Correct Answer)
- C. T9
- D. T6
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***T4***
- The **carina**, the point where the trachea bifurcates into the left and right main bronchi, is most commonly located at the level of the **T4-T5 intervertebral disc** or approximately the **T4-T5 vertebral level**.
- Among the given options, **T4** is the most accurate answer as it represents the closest anatomical landmark.
- The carina corresponds to the **sternal angle (angle of Louis)** anteriorly, which is at the level of the second costal cartilage.
- This anatomical landmark is crucial in clinical procedures like **bronchoscopy**, **endotracheal tube placement**, and radiologic imaging.
- Note: The exact level varies slightly with respiration and individual anatomy.
*T3*
- The **T3 vertebral level** is **superior to the carina** and corresponds to structures in the upper mediastinum.
- This level is too high for the tracheal bifurcation.
*T9*
- The **T9 vertebral level** is significantly **inferior to the carina**, located in the lower thoracic region.
- This level corresponds to the **xiphisternal junction** anteriorly.
- Important structures at this level include the inferior vena cava passing through the diaphragm (at T8).
*T6*
- The **T6 vertebral level** is **inferior to the carina**.
- While the carina may descend to approximately this level during deep inspiration, the anatomical resting position is higher.
- This level is associated with the **xiphoid process** anteriorly.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 8: Which of the following statements about the atrioventricular groove is true?
- A. Contains left anterior descending coronary artery
- B. Also called coronary sulcus (Correct Answer)
- C. Contains posterior descending artery
- D. Contains left coronary artery
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Also called coronary sulcus***
- The **atrioventricular groove** is a critical anatomical landmark that separates the atria from the ventricles on the external surface of the heart.
- This anatomical division is consistently referred to as the **coronary sulcus**, which encircles the entire heart.
*Contains left anterior descending coronary artery*
- The **left anterior descending (LAD) coronary artery**, also known as the anterior interventricular artery, lies within the **interventricular groove** (or sulcus), not the atrioventricular groove.
- The interventricular groove separates the left and right ventricles, distinct from the atrioventricular separation.
*Contains left coronary artery*
- The **left coronary artery (LCA)** is a short main trunk that almost immediately divides into the **left anterior descending** (LAD) and **circumflex arteries** [1].
- While the **circumflex artery** (a branch of the LCA) runs in the left part of the atrioventricular groove, the main left coronary artery itself is too short to be considered within the groove [1].
*Contains posterior descending artery*
- The **posterior descending artery (PDA)**, also known as the posterior interventricular artery, lies within the **posterior interventricular groove**, separating the ventricles posteriorly.
- The PDA is a branch of either the right coronary artery (in most people) or the circumflex artery, but it follows the interventricular septum, not the atrioventricular border.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 9: The aortic hiatus is formed by the right and left crura of the diaphragm. Which of the following structures does NOT pass through the aortic hiatus?
- A. Thoracic duct
- B. Left vagus nerve
- C. Left gastric vein (Correct Answer)
- D. Azygos vein
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Left gastric vein***
- The **left gastric vein** is part of the **portal venous system** and drains into the portal vein.
- It **does NOT pass through the diaphragm** via the aortic hiatus or any other diaphragmatic opening.
- It has **no anatomical relationship** with the aortic hiatus, making it the best answer to this question.
*Thoracic duct*
- The **thoracic duct** is the largest lymphatic vessel in the body and **passes through the aortic hiatus** along with the aorta.
- It ascends through the aortic hiatus at the **T12 vertebral level** to eventually drain into the left subclavian vein.
- It lies posterior to the aorta as it traverses the hiatus.
*Left vagus nerve*
- The **left vagus nerve** does NOT pass through the aortic hiatus, but it **does pass through the esophageal hiatus** at the T10 level.
- It contributes to the **anterior vagal trunk** as it enters the abdomen with the esophagus.
- While this structure doesn't pass through the aortic hiatus, it does traverse the diaphragm through a different opening, making it a less definitive answer than the left gastric vein.
*Azygos vein*
- The **azygos vein** typically **passes through the aortic hiatus** alongside the aorta and thoracic duct.
- It may occasionally pass through a separate opening in the right crus of the diaphragm.
- It collects deoxygenated blood from the posterior walls of the thorax and abdomen before draining into the superior vena cava.
Thoracic Imaging and Cross-sectional Anatomy Indian Medical PG Question 10: Left superior intercostal vein drains into?
- A. Brachiocephalic vein (Correct Answer)
- B. Hemiazygos vein
- C. Internal thoracic vein
- D. Azygos vein
Thoracic Imaging and Cross-sectional Anatomy Explanation: ***Brachiocephalic vein***
- The **left superior intercostal vein** is formed by the confluence of the **2nd and 3rd** left posterior intercostal veins.
- It typically drains into the **left brachiocephalic vein**, which then contributes to the superior vena cava.
*Hemiazygos vein*
- The **hemiazygos vein** is on the left side of the vertebral column and primarily drains the lower left posterior intercostal veins (9th-11th).
- It usually joins the **azygos vein** around the T8-T9 vertebral level, rather than directly receiving the left superior intercostal vein.
*Internal thoracic vein*
- The **internal thoracic veins** drain the anterior sensory chest wall and typically run alongside the sternum.
- While they eventually drain into the brachiocephalic veins, they do not directly receive the posterior intercostal veins like the left superior intercostal vein.
*Azygos vein*
- The **azygos vein** is primarily on the right side of the vertebral column, draining the right posterior intercostal veins.
- It usually receives the **hemiazygos** and **accessory hemiazygos veins** but not the left superior intercostal vein directly.
