Pleura and Lungs

On this page

Pleura - Slippery Bodyguards

  • Layers:
    • Visceral: Covers lungs; autonomic supply (pain insensitive).
    • Parietal: Lines thoracic cavity wall, diaphragm, mediastinum; somatic supply (pain sensitive). Parts: Costal, Diaphragmatic, Mediastinal, Cervical (Cupola).
  • Pleural Cavity: Potential space between layers; contains ~5-15 ml serous fluid for lubrication.
  • Recesses: Potential spaces for lung expansion, not filled during quiet breathing.
    • Costodiaphragmatic Recess: Lowest point; common site for pleural effusion accumulation.
    • Costomediastinal Recess: Anteriorly, behind sternum.
  • Nerve Supply:
    • Parietal: Intercostal nerves (costal & peripheral diaphragmatic pleura) & Phrenic nerve (central diaphragmatic & mediastinal pleura); pain can be referred.

      ⭐ Pain from central diaphragmatic pleura (Phrenic n. C3,4,5) referred to shoulder tip.

    • Visceral: Autonomic nerves (insensitive to pain).
  • Blood Supply: Parietal (intercostal, internal thoracic, musculophrenic aa.); Visceral (bronchial aa.).
  • Lymphatic Drainage: Parietal pleura drains to intercostal, parasternal, diaphragmatic, mediastinal nodes; Visceral pleura drains to bronchopulmonary nodes.
  • Applied Aspects:
    • Pleurisy: Inflammation of pleura.
    • Pleural Effusion: Excess fluid in pleural cavity, often collects in recesses.
    • Pneumothorax: Air in pleural cavity.

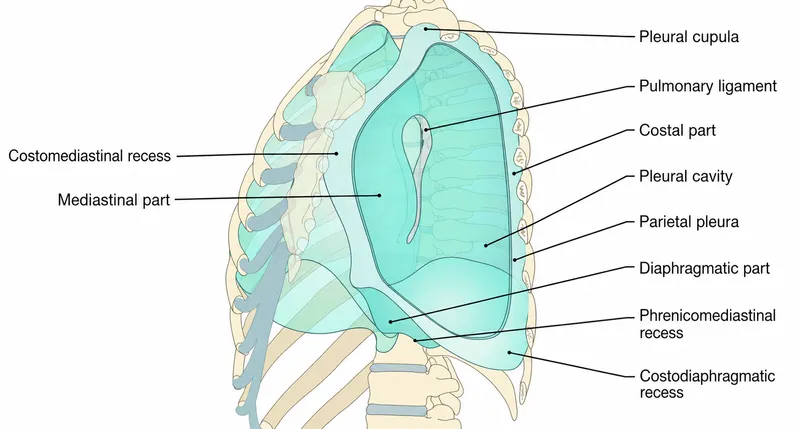

Pleural layers, parts of parietal pleura, and recesses

Lungs: Gross Anatomy - Spongy Air Sacks

  • Paired, spongy; in thoracic cavity.
  • Apex: Superior; into neck root.
  • Base: Inferior; on diaphragm.
  • Surfaces (3): Costal, Mediastinal, Diaphragmatic.
  • Borders (3): Ant, Post, Inf.

Anterior view of lungs: lobes, fissures, and pleura

  • Right vs. Left Lung Differences:

    FeatureRight LungLeft Lung
    Lobes3 (Sup, Mid, Inf)2 (Sup, Inf)
    FissuresOblique, HorizontalOblique
    Cardiac NotchNoYes (for heart)
    LingulaNoYes (homologue of middle lobe)

⭐ The horizontal fissure separates the superior and middle lobes of the right lung.

  • Hilum: Medial depression for root structures.
    • Root Contents: Bronchus, Pulm. artery & veins, nerves, lymphatics.
    • 📌 General Ant-Post: Vein, Artery, Bronchus (VAB).
    • 📌 Pulm. Artery to Bronchus: RALS (Right Anterior, Left Superior).

Right and Left Lung Hila Anatomy Hilum of Lungs: Medial View with Key Structures

  • Mediastinal Impressions:
    • Right: SVC, IVC, Azygos v., Esophagus, Cardiac.
    • Left: Aortic arch, Desc. aorta, Esophagus, Cardiac (larger).

Lungs: Airways & Segments - Branching Out

  • Trachea: Bifurcates at Carina (level T4/T5) into two primary bronchi.
  • Primary (Main) Bronchi:
    • Right: Wider, shorter, more vertical. 📌 "Right is Ready for Reception" (foreign bodies).
    • Left: Narrower, longer, more horizontal.

⭐ Foreign bodies are more likely to enter the right main bronchus due to its wider diameter and more vertical orientation.

  • Airway Branching (Tracheobronchial Tree):
-   Secondary (Lobar) Bronchi: **3** for right lung (supplying superior, middle, inferior lobes); **2** for left lung (supplying superior, inferior lobes).
-   Tertiary (Segmental) Bronchi: Each supplies a Bronchopulmonary Segment.
  • Bronchopulmonary Segments (BPS):
    • Definition: Anatomically and functionally distinct, surgically resectable lung units.
    • Shape: Pyramidal, with apex pointing towards the hilum and base towards the pleura/periphery.
    • Number: Typically Right 10, Left 8-10.
  • Distal Airways: Terminal Bronchioles → Respiratory Bronchioles → Alveolar Ducts → Alveoli (primary site of gas exchange).

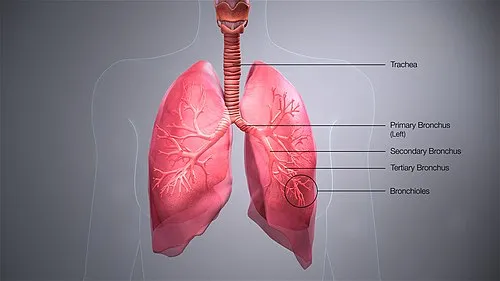

Tracheobronchial Tree Branching

Lungs: Supply Lines - Pipes & Wires

  • Blood Supply: Dual circulation.
    • Pulmonary arteries: Deoxygenated blood (Right Ventricle → alveoli).
    • Pulmonary veins: Oxygenated blood (Alveoli → Left Atrium).
    • Bronchial arteries: Oxygenated blood (Aorta/Intercostal arteries → lung tissue, bronchi, visceral pleura).
    • Bronchial veins: Drain to azygos/hemiazygos or pulmonary veins.
  • Nerve Supply: Pulmonary plexus (anterior & posterior to lung root).
    • Sympathetic (T2-T5): Bronchodilation, vasoconstriction.
    • Parasympathetic (Vagus, CN X): Bronchoconstriction, vasodilation, secretomotor.
  • Lymphatic Drainage: Superficial (subpleural) & Deep (bronchial) plexuses → Hilar nodes → Tracheobronchial nodes → Paratracheal nodes → Bronchomediastinal trunks → Thoracic duct (L) / Right lymphatic duct (R).

⭐ The lungs have a dual blood supply: pulmonary circulation for gas exchange and bronchial circulation for tissue nutrition.

High-Yield Points - ⚡ Biggest Takeaways

  • Parietal pleura pain-sensitive (phrenic/intercostal nerves); visceral pleura insensitive.
  • Costodiaphragmatic recess: most dependent, site for pleural effusion.
  • Right lung: 3 lobes, 2 fissures. Left lung: 2 lobes, 1 fissure, lingula, cardiac notch.
  • Bronchopulmonary segments: surgically resectable; 10 (R), 8-10 (L).
  • Hilum (RALS): R PA anterior to bronchus; L PA superior. Bronchus posterior.
  • Aspiration: common in posterior RUL (supine), superior RLL (erect).

Practice Questions: Pleura and Lungs

Test your understanding with these related questions

Which of the following factors does not directly influence oxygen delivery to tissues?

1 of 5

Flashcards: Pleura and Lungs

1/10

_____ one-third of the liver is related to both the lung and the pleura

TAP TO REVEAL ANSWER

_____ one-third of the liver is related to both the lung and the pleura

Upper
