Aorta - The Big Red Highway

  • Largest artery; systemic arterial outflow from Left Ventricle (LV).
  • Parts & Course:
    • Ascending Aorta:
      • Origin: LV outflow tract.
      • Branches: Right & Left Coronary Arteries (from aortic sinuses).
    • Arch of Aorta:
      • Curves posterosuperiorly, leftwards. Begins & ends at Sternal Angle (T4/T5).
      • Branches (Right to Left): 📌 Artery (Brachiocephalic), Common Carotid (Left), Subclavian (Left) - (BCS).
      • Ligamentum arteriosum: Connects to pulmonary trunk.
    • Descending Thoracic Aorta:
      • Extends from T4/T5 to T12 (aortic hiatus).
      • Branches: Posterior intercostal (3rd-11th), subcostal, bronchial, esophageal, pericardial, mediastinal, superior phrenic arteries.
  • Clinical Points:
    • Aortic Isthmus: Narrowing distal to L. Subclavian origin; common site of coarctation & traumatic rupture.

⭐ Coarctation of the aorta is classically associated with rib notching on CXR (due to dilated intercostal arteries) and differential blood pressure between upper and lower limbs.

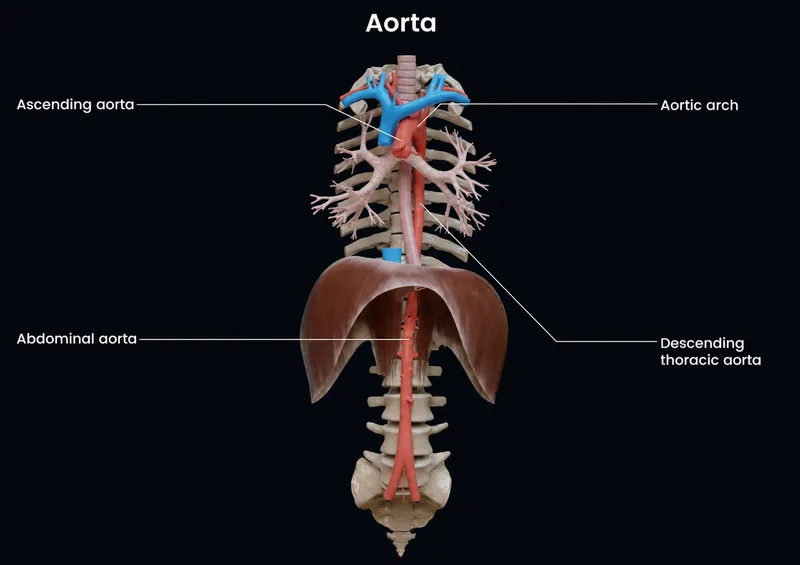

Anterior view of the aorta

Pulmonary Vessels & Vena Cavae - Blue Blood Return

  • Pulmonary Circulation (RV → Lungs → LA)
    • Pulmonary Trunk (from RV): Bifurcates → R & L Pulmonary Arteries (deO₂ blood).
      • Ligamentum arteriosum: Ductus arteriosus remnant.
    • Pulmonary Arteries:
      • RPA: Longer, posterior to Asc. Aorta & SVC.
      • LPA: Shorter, anterior to Desc. Aorta.
    • Pulmonary Veins (4): Carry O₂ blood from lungs → LA. Valveless.
  • Systemic Venous Return (Body → RA)
    • Superior Vena Cava (SVC):
      • Formed by: R & L Brachiocephalic veins.
      • Drains: Upper body. Enters RA.
      • Receives: Azygos vein.
    • Inferior Vena Cava (IVC):
      • Formed by: Common iliac veins (at L5).
      • Drains: Lower body. Enters RA.
      • Pierces diaphragm: T8 (Caval opening).
      • Eustachian valve (IVC valve): Rudimentary.

    ⭐ Azygos vein arches over right lung root, drains into SVC; key radiological landmark.

Pulmonary Vessels, SVC, IVC, Heart, and Lungs Diagram

Azygos System - The Unpaired Detour

  • Drains posterior thorax & abdomen walls; vital SVC-IVC collateral.
  • Components:
    • Azygos Vein (Right):
      • Origin: R. ascending lumbar + R. subcostal vv. (L1-L2).
      • Arches over R. lung root; drains to SVC (T4).
      • Receives: R. post. intercostals (2-11), hemiazygos, acc. hemiazygos vv.
    • Hemiazygos Vein (Left, Lower):
      • Origin: L. ascending lumbar + L. subcostal vv.
      • Drains L. post. intercostals (9-11); crosses at T9 to Azygos.
    • Accessory Hemiazygos Vein (Left, Upper):
      • Drains L. post. intercostals (4-8); crosses at T7/T8 to Azygos.

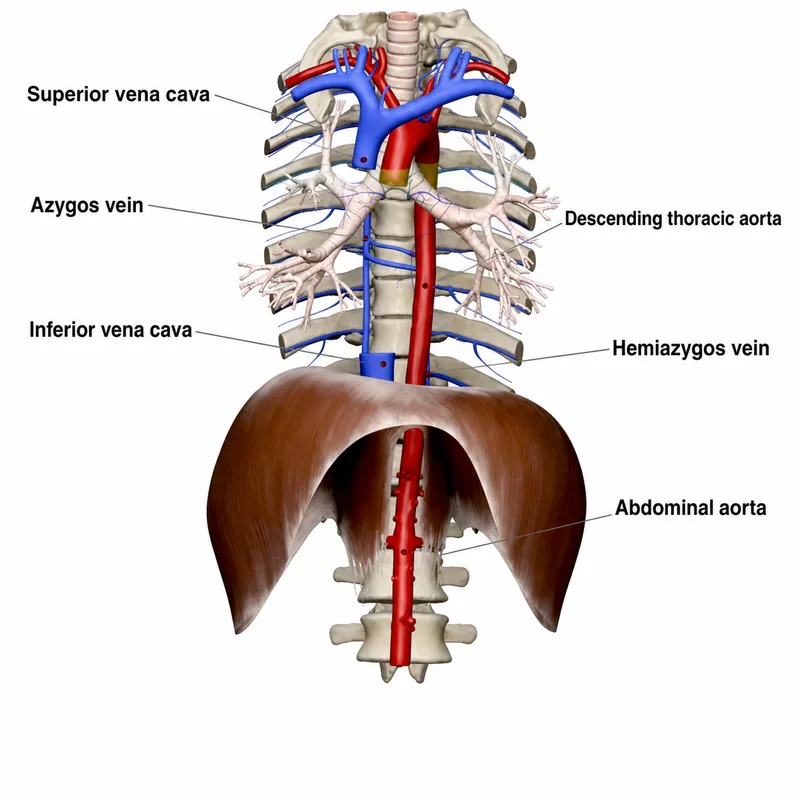

Azygos and Hemiazygos Veins

⭐ Azygos vein can form an "Azygos Lobe" in the right lung if it courses abnormally, a notable finding on chest X-ray.

  • Clinical: Dilates in IVC/SVC obstruction, offering collateral return.

Thoracic Duct & Clinical Hits - Lymph & Vessel Woes

  • Thoracic Duct:
    • Origin: Cisterna chyli (L1-L2); enters via aortic hiatus (T12).
    • Course: Ascends posterior mediastinum, crosses left at T5.
    • Drains: Left venous angle.
    • Collects lymph: Lower body, L. thorax, L. arm, L. head/neck.
    • Injury: Chylothorax (milky effusion); causes: trauma, malignancy. Thoracic Duct Duplication and Azygos Vein Anatomy
  • Azygos System:
    • Azygos v.: Drains to SVC; IVC collateral.
    • Hemiazygos/Accessory: Drain L. side to azygos.
  • Clinical Hits:
    • Aortic Dissection: Stanford A (ascending, surgical emergency) vs B.
    • SVC Obstruction: Facial/arm edema. 📌 Pemberton's sign.
    • Coarctation: Rib notching; BP ↑arms, ↓legs.

⭐ Chylothorax: Pleural fluid triglycerides > 110 mg/dL confirms diagnosis post thoracic duct injury.

High‑Yield Points - ⚡ Biggest Takeaways

  • Aortic Arch: Brachiocephalic trunk, Left Common Carotid, Left Subclavian a.
  • SVC: Union of R & L brachiocephalic vv.; drains to RA (Right Atrium).
  • Azygos vein: Drains posterior thorax/abdomen; arches over R. lung root to SVC.
  • Hemiazygos/Accessory Hemiazygos: Drain L. posterior thorax into azygos v.
  • Thoracic Duct: Empties at L. venous angle (L. Subclavian/IJV junction).
  • Coarctation of Aorta: Post-ductal common; causes rib notching, UE hypertension.
  • Ligamentum Arteriosum: Remnant of ductus arteriosus (connects pulmonary artery to aorta).
