Diencephalon

On this page

Diencephalon Overview & Third Ventricle - Brain's Central Hub

  • Location: Central core of forebrain, between cerebral hemispheres & brainstem; surrounds 3rd ventricle.
  • Primary Divisions (Paired):
    • Thalamus: Major sensory (not olfaction) & motor relay to cortex.
    • Hypothalamus: Regulates ANS, endocrine system (pituitary), homeostasis.
    • Epithalamus: Pineal gland (melatonin, circadian rhythms), habenulae.
    • Subthalamus: Motor control (subthalamic nucleus).
    • 📌 T-HES: Thalamus, Hypothalamus, Epithalamus, Subthalamus.
  • Third Ventricle:
    • Narrow, median CSF-filled cleft in diencephalon.
    • Communications:
      • To Lateral Ventricles: Interventricular foramina (Monro).
      • To 4th Ventricle: Cerebral aqueduct (Sylvius).

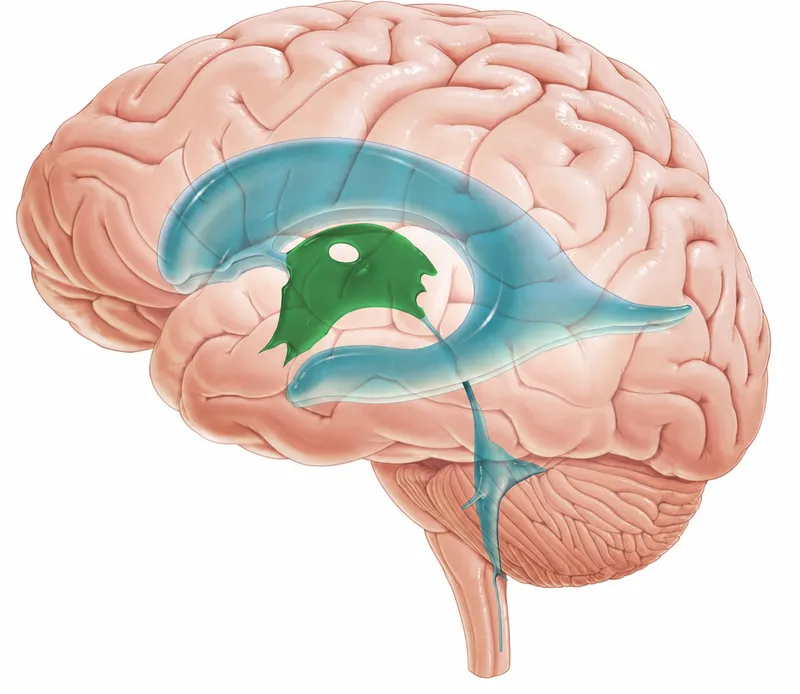

    • Choroid plexus in roof produces CSF. Diencephalon and ventricles within the human brain

⭐ Lamina terminalis, anterior 3rd ventricle boundary, marks rostral end of embryonic neural tube.

Thalamus - The Grand Central Station

  • Largest diencephalic component; paired grey matter masses flanking 3rd ventricle.
  • Primary function: Major sensory relay station to cerebral cortex (all senses except olfaction).
  • Other roles: Motor system integration, consciousness, sleep-wake cycles, alertness.
  • Internal Structure: Y-shaped internal medullary lamina divides thalamus into:
    • Anterior nuclear group (limbic system, memory)
    • Medial nuclear group (prefrontal cortex, mood, motivation)
    • Lateral nuclear group (sensory & motor relay)
      • Ventral Posterolateral (VPL): Somatosensation (body)
      • Ventral Posteromedial (VPM): Somatosensation (face - trigeminal)
      • Lateral Geniculate Nucleus (LGN): Vision (📌 LGN = Light)
      • Medial Geniculate Nucleus (MGN): Audition (📌 MGN = Music/Microphone)
      • Ventral Anterior (VA) / Ventral Lateral (VL): Motor control (basal ganglia, cerebellum input)
  • Blood Supply: Primarily posterior cerebral artery branches (e.g., thalamoperforating arteries). Thalamic Nuclei: 3D Reconstruction and Coronal Views

⭐ All sensory pathways, except olfaction, synapse in the thalamus before projecting to the cerebral cortex. This makes thalamic lesions cause contralateral sensory loss across all modalities (hemianesthesia).

Hypothalamus - Master Regulator

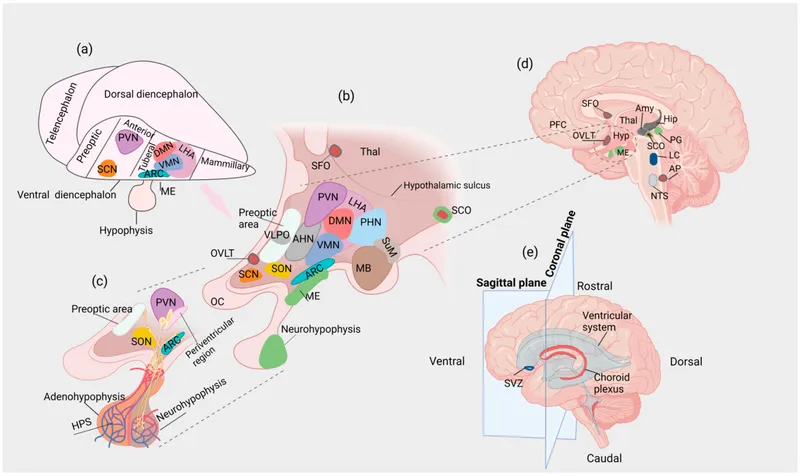

Hypothalamus and Diencephalon Anatomy and Connections

  • Location: Below thalamus; forms floor/lower walls of 3rd ventricle.
  • Key Functions (HEAL 📌):
    • Homeostasis: Temp, thirst, hunger, sleep-wake.
    • Endocrine control: Via pituitary gland.
    • Autonomic nervous system (ANS) control.
    • Limbic system: Integrates emotional/behavioral responses.
  • Major Nuclei & Functions (Simplified):
    • Anterior (Supraoptic, Paraventricular): ADH, Oxytocin synthesis.
      • Roles: Water balance (ADH), milk ejection/uterine contraction (Oxytocin).
    • Middle (Tuberal - Arcuate, Ventromedial, Dorsomedial):
      • RH/IH for Anterior Pituitary (e.g., GnRH, GHRH, TRH).
      • Ventromedial Nucleus (VMN): Satiety center.
      • Lateral Hypothalamic Area (LHA): Hunger center.
    • Posterior (Mamillary bodies, Posterior nucleus):
      • Posterior nucleus: Thermoregulation (heat conservation), sympathetic response.
      • Mamillary bodies: Memory (input from hippocampus via fornix).
  • Key Connections: To pituitary (infundibulum), limbic system, brainstem, retina.

⭐ Lesion of ventromedial nucleus (VMN) of hypothalamus leads to hyperphagia and obesity.

Epithalamus & Subthalamus - Pineal & Motor Modulators

  • Epithalamus: Dorsoposterior to thalamus.
    • Pineal Gland: Secretes melatonin (sleep-wake, circadian rhythm); inhibits GnRH. Contains pinealocytes, corpora arenacea ("brain sand").
    • Habenular Nuclei: Limbic relay (stria medullaris thalami) to midbrain; negative reward, aversion.
  • Subthalamus: Inferior to thalamus.
    • Subthalamic Nucleus (STN): Glutamatergic; basal ganglia indirect pathway. Modulates motor output. Parkinson's DBS target.

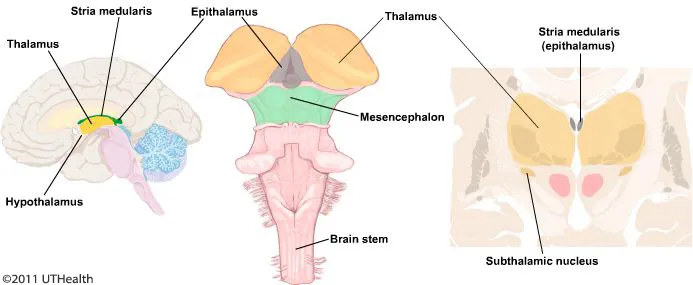

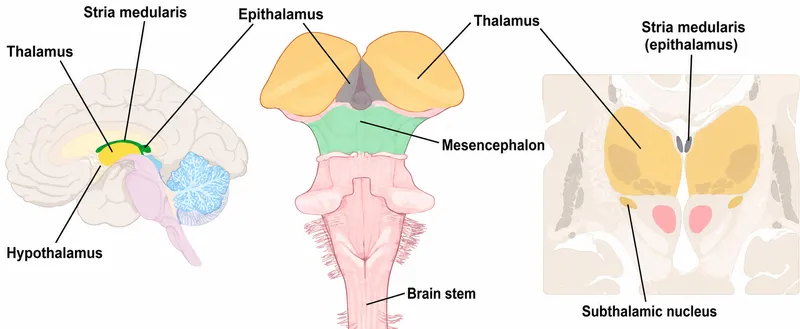

    • Zona Incerta: GABAergic; roles in arousal, attention, pain modulation. Includes Fields of Forel. Diencephalon Anatomy: Epithalamus and Subthalamus

⭐ Lesion of subthalamic nucleus (STN) causes contralateral hemiballismus: sudden, violent, flinging limb movements.

High‑Yield Points - ⚡ Biggest Takeaways

  • Diencephalon comprises: Thalamus, Hypothalamus, Epithalamus, and Subthalamus.
  • Thalamus: Major sensory relay station (all senses except olfaction) to cortex; also involved in motor circuits.
  • Hypothalamus: Key regulator of autonomic nervous system, endocrine system (via pituitary), and homeostasis.
  • Epithalamus: Contains pineal gland (melatonin, circadian rhythms) and habenular nuclei.
  • Subthalamus: Houses subthalamic nucleus, vital for basal ganglia motor control; lesion causes hemiballismus.
  • The diencephalon surrounds the third ventricle of the brain.

Practice Questions: Diencephalon

Test your understanding with these related questions

All of the following are known functions of hypothalamus except

1 of 5

Flashcards: Diencephalon

1/10

Axons from the _____ are the fourth-order neurons in the visual pathway.

TAP TO REVEAL ANSWER

Axons from the _____ are the fourth-order neurons in the visual pathway.

lateral geniculate body
