Brainstem Anatomy

On this page

Brainstem Overview - The Vital Stalk

  • Connects cerebrum to spinal cord & cerebellum; vital conduit & control center.
  • Divisions (superior to inferior):
    • Midbrain (Mesencephalon)
    • Pons (Metencephalon)
    • Medulla Oblongata (Myelencephalon)

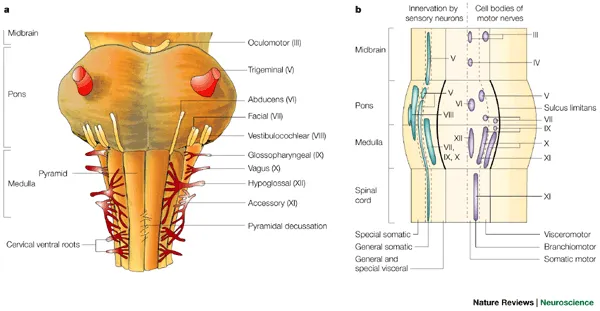

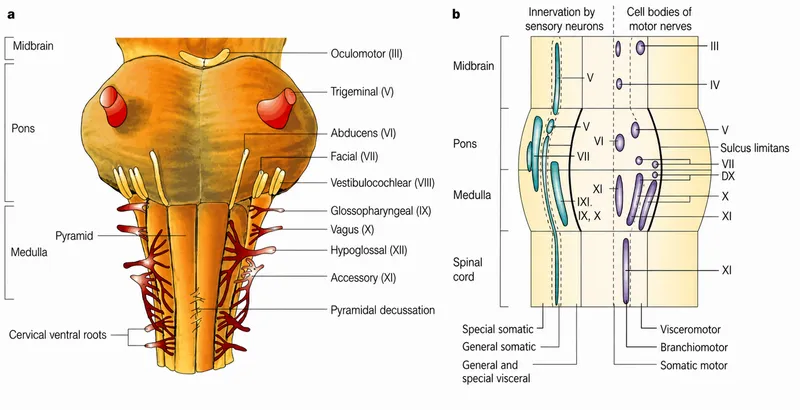

  • Core Functions: Regulates consciousness (Reticular Activating System), sleep-wake cycles, respiration, cardiovascular function, and relays sensory/motor information. Brainstem anatomy and cranial nerve origins

⭐ The brainstem is the origin of 10 out of 12 cranial nerves (CN III-XII).

Medulla Oblongata - Life's Conductor

  • Caudal-most brainstem part, vital for life; links to spinal cord.
  • Key Structures:
    • Pyramids: Corticospinal tract decussation (motor control).
    • Inferior Olives: Motor learning coordination.
    • Dorsal Column Nuclei (Gracile, Cuneate): Fine touch, proprioception.
  • Cranial Nerves (last 4): IX (Glossopharyngeal), X (Vagus), XI (Accessory), XII (Hypoglossal). 📌 Remember: 4 CNs in medulla.
  • Vital Centers:
    • Respiratory (breathing rhythm)
    • Cardiovascular (heart rate, blood pressure)

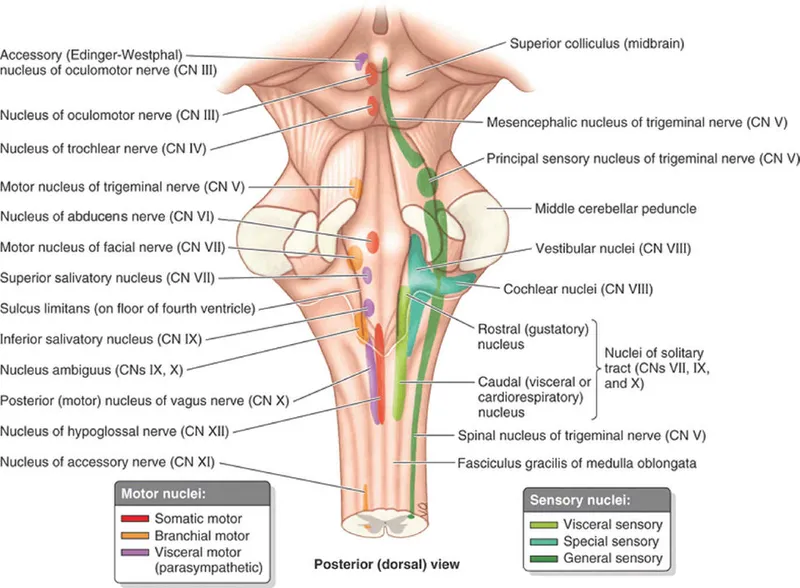

    • Reflexes (vomiting, swallowing, coughing) Brainstem nuclei, posterior view

⭐ The area postrema (chemoreceptor trigger zone for vomiting) is located in the dorsal medulla near the fourth ventricle.

Pons - The Bridge Between

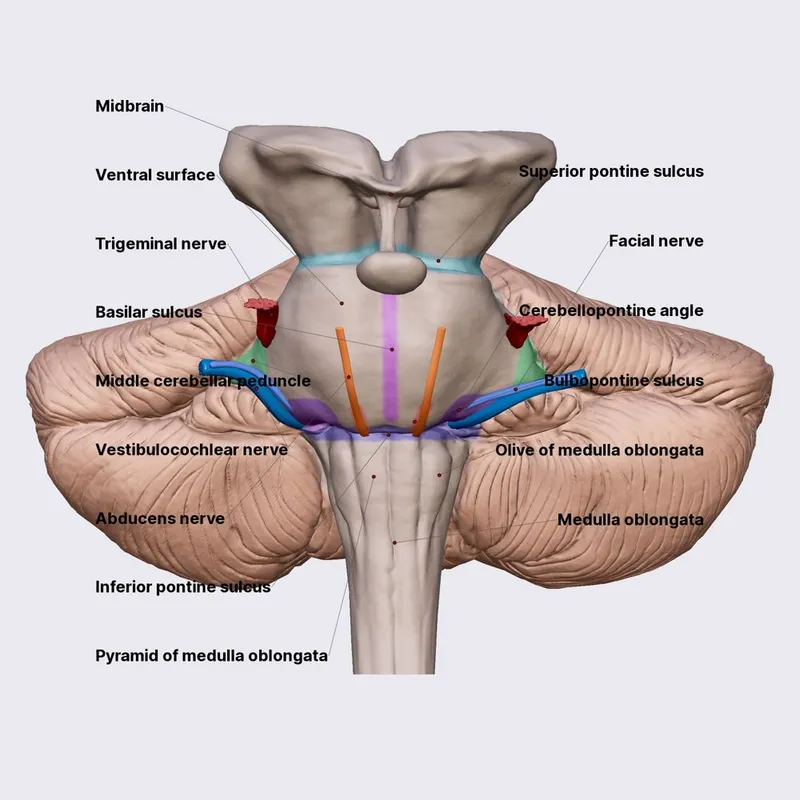

Brainstem ventral view with cranial nerves

  • Location: Between midbrain & medulla; anterior to cerebellum.
  • Structure:
    • Ventral (Basilar) Pons: Corticospinal tracts, pontine nuclei, transverse pontocerebellar fibers. Basilar groove (basilar artery).
    • Dorsal (Tegmentum) Pons: Rostral floor of 4th ventricle. CN nuclei, ascending tracts (medial & lateral lemnisci), reticular formation.
  • Cranial Nerve Nuclei (CN):
    • V (Trigeminal): Main sensory, motor.
    • VI (Abducens).
    • VII (Facial): Motor, superior salivatory (parasympathetic).
    • VIII (Vestibulocochlear): Vestibular, cochlear (partially).

⭐ The facial colliculus in the dorsal pons is formed by fibers of the facial nerve (CN VII) looping around the abducens nucleus (CN VI).

  • Key Connections: Middle Cerebellar Peduncle (to cerebellum).
  • Blood Supply: Branches of basilar artery; Anterior Inferior Cerebellar Artery (AICA).
  • 📌 CNs in Pons: V, VI, VII, VIII.

Midbrain - The Little Giant

  • Location: Superior-most brainstem part, connecting pons to diencephalon.
  • Key Divisions & Structures:
    • Tectum (posterior): "Corpora Quadrigemina"
      • Superior Colliculi (visual reflexes - 📌 "Superior for Sight")
      • Inferior Colliculi (auditory pathway relay - 📌 "Inferior for In-the-ear/Sound")
    • Tegmentum (anterior):
      • Cranial Nerve Nuclei: CN III (Oculomotor), CN IV (Trochlear)
      • Red Nucleus (motor control, rubrospinal tract)
      • Substantia Nigra (dopamine; lesion → Parkinson's disease)
      • Periaqueductal Gray (PAG) (pain modulation)
    • Crus Cerebri (Cerebral Peduncles - anterior): Corticospinal, corticobulbar tracts.
  • Cerebral Aqueduct (of Sylvius): Connects 3rd & 4th ventricles; CSF flow. Obstruction → non-communicating hydrocephalus.

Midbrain cross-section anatomy

⭐ The periaqueductal gray (PAG) matter in the midbrain, surrounding the cerebral aqueduct, is crucial for descending pain modulation.

Brainstem Syndromes - Clinical Hotspots

Brainstem Stroke Syndromes by Vascular Territory

  • Weber's (Midbrain): CN III palsy, contra hemiplegia.
  • Benedikt's (Midbrain): CN III palsy, contra ataxia/tremor.
  • Millard-Gubler (Pons): CN VI & VII palsy, contra hemiplegia.
  • Wallenberg's (Lat. Medulla/PICA): Ipsi Horner's, ataxia, facial numbness; contra body pain/temp loss. Dysphagia.
  • Medial Medullary (ASA): Ipsi CN XII palsy; contra hemiplegia, ↓proprioception.

Wallenberg syndrome (Lateral Medullary Syndrome) is most commonly caused by occlusion of the Posterior Inferior Cerebellar Artery (PICA).

High‑Yield Points - ⚡ Biggest Takeaways

  • Brainstem = Midbrain, Pons, Medulla; controls vital functions.
  • Rule of 4 aids localization of CN nuclei & long tract lesions.
  • Medial structures (4M's): Motor pathway (corticospinal), Medial Lemniscus, MLF, Motor nuclei (CN III,IV,VI,XII).
  • Lateral structures (4S's): Spinocerebellar tract, Spinothalamic tract, Sensory nucleus CN V, Sympathetic pathway.
  • CNs by level: Midbrain (III, IV); Pons (V, VI, VII, VIII); Medulla (IX, X, XI, XII).
  • Locked-in Syndrome: Ventral pontine lesion (e.g., basilar artery occlusion); consciousness intact.
  • Weber's Syndrome: Midbrain lesion; ipsilateral CN III palsy + contralateral hemiplegia.
