Deep Cervical Fascia - Neck's Scaffolding

  • Dense connective tissue; forms fascial planes, compartmentalizes neck structures.
  • Main Layers:
    • Investing Layer: Encloses Sternocleidomastoid (SCM) & Trapezius.
    • Pretracheal Layer: Anterior neck; encloses thyroid, trachea, esophagus. Has muscular & visceral parts.
    • Prevertebral Layer: Surrounds vertebral column & associated muscles (scalenes, longus colli/capitis).
    • Carotid Sheath: Vascular compartment; contains common/internal carotid artery, internal jugular vein (IJV), vagus nerve (CN X). 📌 Mnemonic: "I See 10 CCs in an IV" (IJV, CN X, CCA, Carotid Sheath).
  • Clinical Importance: Defines spaces for infection spread.

    ⭐ Retropharyngeal space (Danger Space) infections can spread to the posterior mediastinum.

Posterior Triangle (Deep Contents) - Nerve & Vessel Passageway

  • Nerves:
    • Accessory Nerve (CN XI): Crosses superficially; motor to trapezius & SCM.
    • Cervical Plexus: Sensory branches (e.g., supraclavicular); motor contributions (e.g., phrenic nerve roots C3, C4, C5).
    • Brachial Plexus Trunks: Emerge between anterior & middle scalene muscles.
  • Vessels:
    • Subclavian Artery (Third Part): Major arterial component.
    • Subclavian Vein: Anterior to anterior scalene; may arch into triangle.
    • Transverse Cervical & Suprascapular Arteries: Branches of thyrocervical trunk.
    • External Jugular Vein: Terminates in this region.

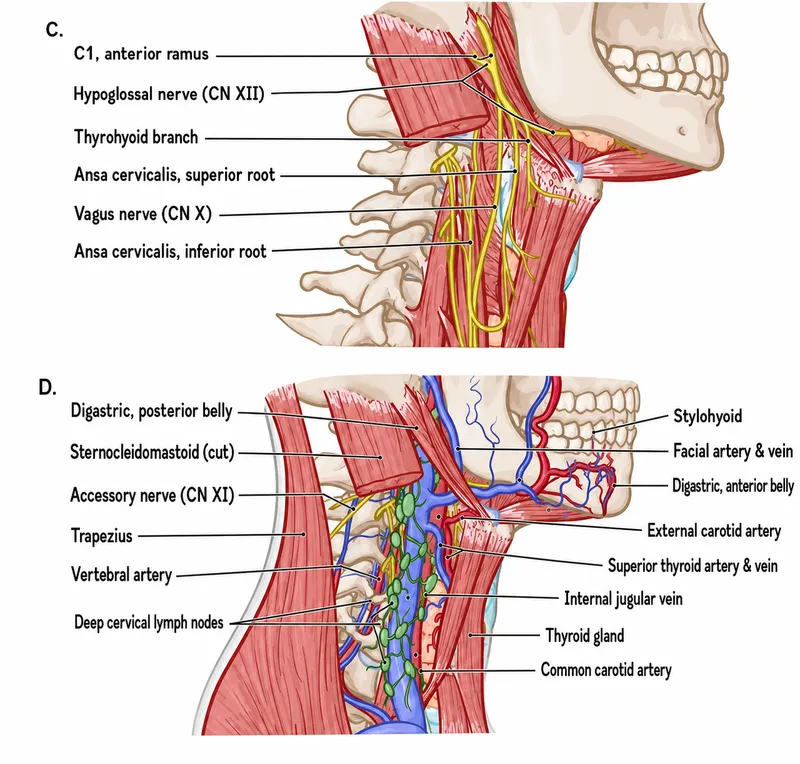

Deep structures of the neck: nerves, vessels, lymphatics

⭐ The accessory nerve (CN XI) is vulnerable to injury during procedures in the posterior triangle, leading to trapezius muscle weakness.

Anterior Triangle (Deep Contents) - Carotid Kingdom

  • Carotid Sheath: Encloses Common Carotid Artery (CCA), Internal Carotid Artery (ICA), Internal Jugular Vein (IJV), Vagus Nerve (CN X).
  • CCA Bifurcation: At C3-C4 vertebral level (upper border of thyroid cartilage).
    • Carotid Sinus: Baroreceptor (CN IX, X).
    • Carotid Body: Chemoreceptor (CN IX, X).
  • External Carotid Artery (ECA) Branches: (📌 SALFOPMS)
    • Superior thyroid
    • Ascending pharyngeal
    • Lingual
    • Facial
    • Occipital
    • Posterior auricular
    • Maxillary
    • Superficial temporal
  • Internal Carotid Artery (ICA): No branches in the neck; enters skull via carotid canal.
  • Nerves: Ansa cervicalis (C1-C3) supplies infrahyoid muscles; Hypoglossal nerve (CN XII) crosses ECA/ICA.

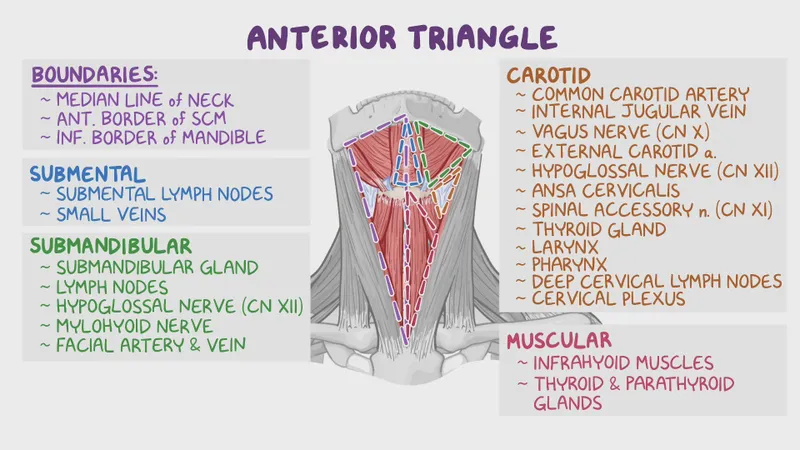

Anterior Triangle of Neck: Boundaries and Contents

⭐ The carotid sinus, innervated by CN IX (Hering's nerve) and CN X, acts as a baroreceptor.

Root of the Neck - Gateway Junction

  • Transition zone: Neck ↔ Thorax (aka Superior Thoracic Aperture).
  • Boundaries:
    • Anterior: Manubrium sterni.
    • Posterior: T1 vertebra.
    • Lateral: 1st ribs & costal cartilages.
  • Key Contents:
    • Arteries: Subclavian, Common Carotid.
    • Veins: Subclavian, Internal Jugular.
    • Nerves: Vagus (CN X), Phrenic, Sympathetic trunk, Brachial plexus (roots C5-T1).
    • Lymphatics: Thoracic duct (L), Right lymphatic duct (R).
    • Viscera: Apices of lungs, Trachea, Esophagus.

⭐ Pancoast tumor at the lung apex can compress structures at the root of the neck, causing Horner's syndrome (due to sympathetic trunk involvement).

Deep Neck Viscera & Lymphatics - Central Command

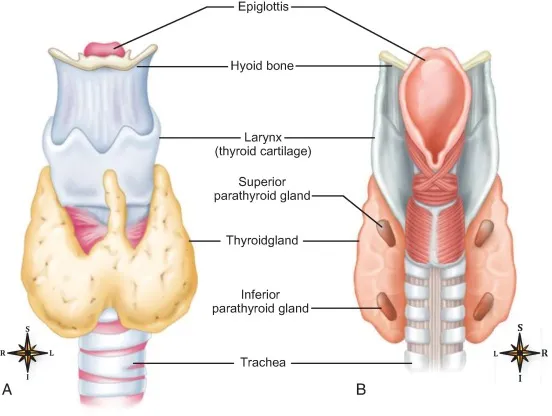

Thyroid, parathyroid, larynx, trachea, epiglottis

  • Thyroid Gland:
    • Anterior neck (C5-T1). Two lobes, isthmus.
    • Blood: Sup. & Inf. thyroid arteries. Veins: Sup, Mid, Inf. thyroid.
  • Parathyroid Glands (Usually 4):
    • Posterior to thyroid. Secrete PTH ($Ca^{2+}$ regulation).
  • Cervical Lymphatics:
    • Deep cervical nodes: Along Internal Jugular Vein (IJV).
    • Thoracic duct: Drains to L. venous angle (L. IJV & L. subclavian v. jnct.).
      • Right lymphatic duct: Drains to R. venous angle.

⭐ The thoracic duct drains into the junction of the left internal jugular and subclavian veins; Virchow's node (left supraclavicular) enlargement can indicate metastatic gastric cancer.

High-Yield Points - ⚡ Biggest Takeaways

  • Carotid sheath: CCA/ICA (medial), IJV (lateral), Vagus nerve (posterior); Ansa cervicalis anteriorly.
  • Prevertebral fascia encloses vertebrae, prevertebral/scalene muscles, phrenic nerve, brachial plexus roots, sympathetic trunk.
  • Retropharyngeal space: between buccopharyngeal & prevertebral fascia; infection can reach mediastinum.
  • Phrenic nerve (C3,C4,C5) runs on Scalenus Anterior.
  • Sympathetic trunk: posterior to carotid sheath, anterior to prevertebral muscles.
  • Thoracic duct (left) arches over subclavian artery to brachiocephalic vein.
  • Recurrent laryngeal nerve: in tracheo-esophageal groove; vulnerable in thyroid surgery.

Practice Questions: Deep Structures of the Neck

Test your understanding with these related questions

Which of the following is NOT a content of the occipital triangle?

1 of 5

Flashcards: Deep Structures of the Neck

1/10

From lateral to medial the three major structures within carotid sheath includes the _____ vein, vagus nerve, and the common carotid arteryBonus: what is in the fascia?

TAP TO REVEAL ANSWER

From lateral to medial the three major structures within carotid sheath includes the _____ vein, vagus nerve, and the common carotid arteryBonus: what is in the fascia?

internal jugular
