Cervical Fascia & Spaces - Infection Highways

  • Superficial Cervical Fascia: Contains platysma, cutaneous nerves, superficial vessels & lymphatics.
  • Deep Cervical Fascia (DCF): Layers form compartments, influencing infection spread.
    • Investing Layer: Surrounds entire neck; splits to enclose SCM & trapezius.
    • Pretracheal Layer: Encloses thyroid, trachea, esophagus. Extends from hyoid to superior mediastinum.
    • Prevertebral Layer: Covers prevertebral muscles, vertebral column. Extends from skull base to coccyx.
  • Cervical Spaces & Infection Spread:
    • Retropharyngeal Space: Between prevertebral fascia & buccopharyngeal fascia (part of pretracheal).
      • Infection can spread to superior mediastinum.
    • Prevertebral Space (Danger Space): Between alar fascia (anteriorly) and prevertebral fascia (posteriorly).
      • Extends from skull base to diaphragm. Infections here can reach posterior mediastinum.
    • Carotid Sheath: Contains common/internal carotid artery, IJV, vagus nerve (CN X).

Neck Fascia and Spaces: Sagittal and Axial Views

Ludwig's Angina: Aggressive cellulitis of submandibular space (often odontogenic); can rapidly obstruct airway. Involves bilateral sublingual & submaxillary spaces. Spread to parapharyngeal & retropharyngeal spaces is common.

Triangles of the Neck - Surgical Hotspots

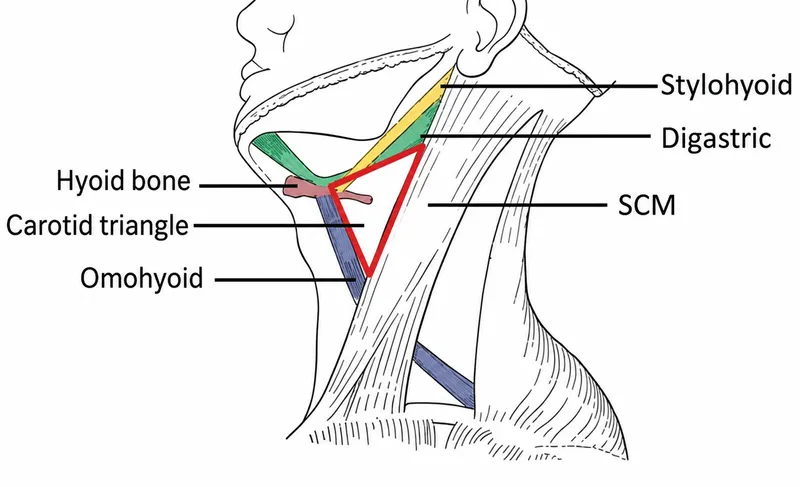

Carotid triangle and surrounding structures

SCM divides neck: Anterior & Posterior triangles.

  • Anterior Triangle (Midline, Mandible, SCM):
    • Submental: Lymph nodes.
    • Submandibular: Submandibular gland, Facial a./v., CN XII.
    • Carotid: Carotid sheath (CCA, IJV, CN X), CN XI, CN XII. Site for carotid endarterectomy.
    • Muscular: Thyroid, Parathyroids, Infrahyoid muscles.
  • Posterior Triangle (SCM, Trapezius, Clavicle):
    • Occipital: CN XI (superficial course!), Cervical plexus.
    • Supraclavicular: Subclavian a./v., Brachial plexus trunks, External Jugular Vein.
    • 📌 SANES: Spinal Acc. N. (CN XI), Arteries (subclavian), Nerves (brachial/cervical), EJV, Subclavian v.

⭐ The Spinal Accessory Nerve (CN XI) is highly vulnerable to iatrogenic injury in the posterior triangle, especially during lymph node biopsies (e.g., for lymphoma staging).

Neck Neurovasculature - Delicate Lifelines

  • Carotid System:
    • Common carotid: bifurcates C3-C4.
    • ICA: no neck branches. ECA: supplies head/neck.
    • Carotid sinus (baro), body (chemo) at bifurcation.
    • Clinical: Stenosis, TIA, dissection.
  • Jugular Veins:
    • IJV: main drainage; in carotid sheath (CCA, CN X).
    • EJV: superficial, crosses SCM.
    • Clinical: JVP (Rt IJV for CVP), central lines.
  • Key Nerves & Syndromes:
    • Vagus (X): RLN injury (thyroidectomy) → hoarseness. Bilateral → aphonia/stridor.
    • Accessory (XI): Injury (post. triangle biopsy) → trapezius weakness, shoulder droop.
    • Hypoglossal (XII): Injury → tongue deviates to lesion.
    • Sympathetic Trunk: Lesion (Pancoast) → Horner's.

⭐ Horner's: Ptosis, Miosis, Anhidrosis (📌 PAM).

Neurovasculature of the Neck

Neck Viscera & Lymphatics - Vital Passageways

  • Thyroid Gland: Largest endocrine gland.
    • Blood: Sup/Inf thyroid arteries. RLN vulnerable during surgery.
    • Clinical: Goiter, carcinoma. Pyramidal lobe (thyroglossal duct remnant).
  • Parathyroid Glands: Regulate calcium; risk of hypocalcemia post-thyroidectomy.
  • Larynx & Trachea: Airway.
    • Cricothyroidotomy (emergency), tracheostomy. RLN injury → hoarseness.
  • Pharynx & Esophagus: Food passage. Zenker's diverticulum (Killian's dehiscence).
  • Cervical Lymph Nodes:
    • Levels I-VII crucial for staging cancer.
    • Waldeyer's ring: lymphoid tissue (adenoids, tonsils).
    • Virchow's node (left supraclavicular): sentinel for GI/thoracic malignancy.
    • Thoracic duct drains to left venous angle. Lymphatic drainage of head and neck

⭐ The recurrent laryngeal nerve is most commonly injured during thyroidectomy at its entry point into the larynx, posterior to the cricothyroid joint.

High‑Yield Points - ⚡ Biggest Takeaways

  • Carotid pulse: palpate medial to SCM at cricoid cartilage (C6).
  • IJV cannulation: between SCM heads, aim for ipsilateral nipple.
  • Thyroidectomy: risks recurrent laryngeal nerve (hoarseness) & external laryngeal nerve (weak, high-pitch voice loss).
  • Cervical nodes: key for metastasis (Virchow's) & TB.
  • Torticollis: SCM spasm or contracture.
  • Retropharyngeal "Danger Space": infections spread to posterior mediastinum.
  • Phrenic nerve (C3-C5): injury causes ipsilateral diaphragmatic paralysis.
