LL Nerve Injuries - Nerve Wrecks

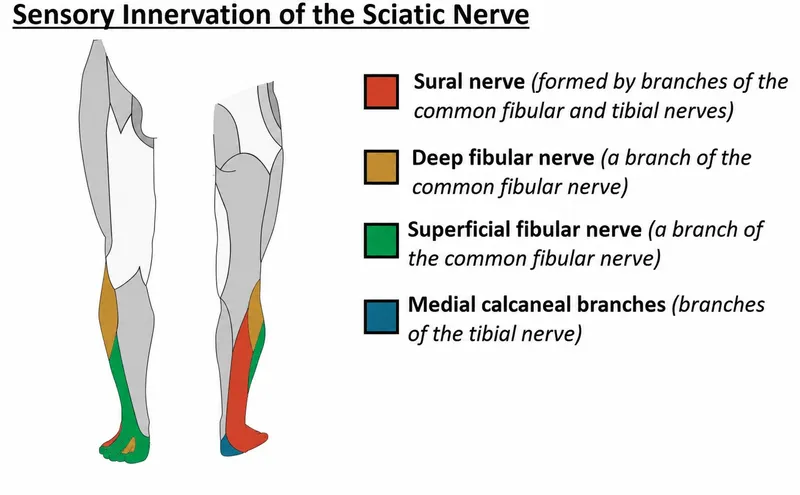

Sciatic Nerve Sensory Innervation

  • Sciatic (L4-S3): Post. hip dislocation/IM inj. → Hamstrings, all below-knee muscles affected (foot drop, flail foot). Sensory: post. thigh, leg, foot (spares saphenous).
  • Common Peroneal (L4-S2): Fibular neck #/cast. → Foot drop (steppage gait), eversion loss. Sensory: ant-lat leg, dorsum foot.

    ⭐ Common peroneal nerve is the most commonly injured nerve in the lower limb, especially vulnerable as it winds around the neck of the fibula.

  • Tibial (L4-S3): Popliteal fossa/tarsal tunnel. → Plantarflex/inversion loss (no tiptoe). Sensory: sole.
  • Femoral (L2-L4): Pelvic #/iatrogenic. → Quadriceps weak (↓ knee ext., ↓ patellar reflex). Sensory: ant. thigh, med. leg/foot.
  • Obturator (L2-L4): Ant. hip dislocation/pelvic surgery. → Adduction loss. Sensory: med. thigh.

LL Vascular Issues - Flow Failures

  • Acute Limb Ischemia (ALI)

    • Causes: Embolism (e.g., AF), thrombosis (e.g., atherosclerosis), trauma.
    • Symptoms: 📌 6 P's (Pain, Pallor, Paresthesia, Pulselessness, Paralysis, Poikilothermia).
    • Management: Urgent revascularization (embolectomy, bypass, thrombolysis).

    ⭐ The 6 P's (Pain, Pallor, Paresthesia, Pulselessness, Paralysis, Poikilothermia) are classical signs of acute limb ischemia, often seen in compartment syndrome or arterial occlusion.

  • Compartment Syndrome

    • Patho: ↑ Pressure in fascial compartment → ↓ tissue perfusion → ischemia.
    • Signs: Severe pain (out of proportion), tense limb, paresthesia. Pulses may be present initially.
    • Dx: Compartment pressure > 30 mmHg or ΔP (Diastolic BP - Compartment Pressure) < 20-30 mmHg.
    • Tx: Emergency fasciotomy.
  • Peripheral Artery Disease (PAD) / Chronic Limb-Threatening Ischemia (CLTI)

    • Cause: Atherosclerosis.
    • Symptoms: Intermittent claudication, rest pain, ischemic ulcers, gangrene.
    • Dx: Ankle-Brachial Index (ABI) < 0.9 (severe < 0.4).
    • Tx: Risk factor modification, exercise, antiplatelets, revascularization.

Lower limb arterial supply diagram

LL Fractures & Dislocations - Break Points

Radiograph of ankle fracture and dislocation

  • Hip Region:
    • Femoral Neck: Intracapsular (↑AVN risk with displacement) vs. Extracapsular. Garden classification for intracapsular.
    • Intertrochanteric/Subtrochanteric.
    • Posterior Hip Dislocation: Sciatic nerve injury; dashboard injury.
  • Femur Shaft: High energy trauma; risk of fat embolism, compartment syndrome.
  • Knee Region:
    • Patellar Fracture: Direct blow or forceful quadriceps contraction.
    • Tibial Plateau Fracture: Axial load with valgus/varus stress.
    • Knee Dislocation: ⚠️ High risk of popliteal artery injury!
  • Tibia/Fibula:
    • Shaft Fractures: Open fractures common; compartment syndrome risk.
    • Ankle Fractures: Pott's (malleolar), Maisonneuve (proximal fibula # + medial ankle injury).
  • Foot:
    • Calcaneus: Fall from height; associated spinal injuries.
    • Talus: Neck fractures (↑AVN risk).
    • Lisfranc Fracture-Dislocation: Midfoot injury.
    • Jones Fracture: Base of 5th metatarsal (watershed area).

⭐ Avascular necrosis (AVN) of the femoral head is a major complication of displaced intracapsular fractures of the neck of femur due to disruption of the main blood supply from retinacular arteries (medial circumflex femoral artery branches).

LL Joint Pathologies & Gait - Joint Jam

  • Osteoarthritis (OA): Degenerative. Hip/knee. Osteophytes, ↓joint space.
  • Rheumatoid Arthritis (RA): Autoimmune. Symmetrical. Pannus, erosions.
  • Gout: Urate crystals. Podagra (1st MTP). Tophi.
  • Septic Arthritis: Infection. Fever, ↑WBC. Emergency.
GaitFeature(s)Cause(s)
Antalgic↓ stance phase (pain)Pain
TrendelenburgPelvic drop (swing side)Gluteus med/min weak (Sup. Gluteal N.)
WaddlingDuck-like, trunk swayBilateral hip abductor weak (myopathy)
Foot DropHigh step, foot slapWeak dorsiflexors (Common Peroneal N.)
CircumductoryLeg swings outStiff hip/knee, leg length diff.

High‑Yield Points - ⚡ Biggest Takeaways

  • Trendelenburg gait indicates superior gluteal nerve injury, affecting gluteus medius/minimus.
  • Foot drop results from common peroneal nerve damage, typically at the fibular neck.
  • Femoral hernias are medial to the femoral vein and carry a high strangulation risk.
  • The "unhappy triad" involves injury to the ACL, MCL, and medial meniscus.
  • Achilles tendon rupture often presents with a positive Thompson test and sudden pain.
  • Anterior compartment syndrome is the most common in the leg, requiring urgent fasciotomy.
  • Meralgia Paresthetica: Entrapment of lateral femoral cutaneous nerve causes anterolateral thigh burning pain/paresthesia.
