Ventricular System and CSF - Brain's Fluid Spaces

  • Ventricular Anatomy:
    • Lateral Ventricles (paired): Largest. Connect via Foramen of Monro to 3rd.
    • Third Ventricle: Midline slit. Cerebral Aqueduct (Sylvius) connects to 4th.
    • Fourth Ventricle: Diamond-shaped. Outflow via Foramina Luschka (2 lateral) & Magendie (1 median) to subarachnoid space.
  • Cerebrospinal Fluid (CSF):
    • Production: Choroid plexus (all ventricles, mainly lateral).
    • Absorption: Arachnoid granulations into dural venous sinuses.

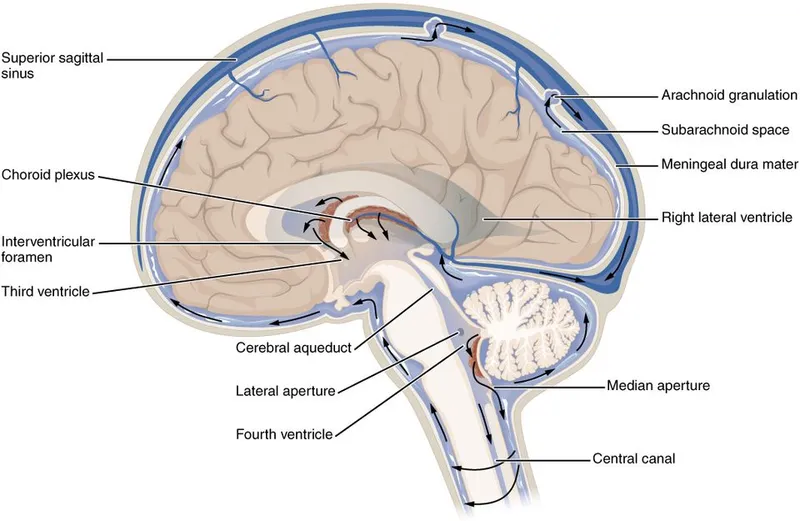

    • Volume: 150 ml. Rate: 20 ml/hr (500 ml/day). Brain Ventricular System and CSF Circulation

⭐ Obstruction of the narrow cerebral aqueduct (Sylvius) is a common cause of non-communicating hydrocephalus. 📌 Mnemonic (CSF Flow): Love My 3 Amazing 4 Little Monkeys (Lateral Ventricle → Monro → 3rd Ventricle → Aqueduct → 4th Ventricle → Luschka/Magendie).

Ventricular System and CSF - The Cranial Elixir

  • Ventricles: Paired Lateral, Third, Fourth. Connected by:
    • Foramen of Monro (Lateral → 3rd)
    • Cerebral Aqueduct (of Sylvius) (3rd → 4th)

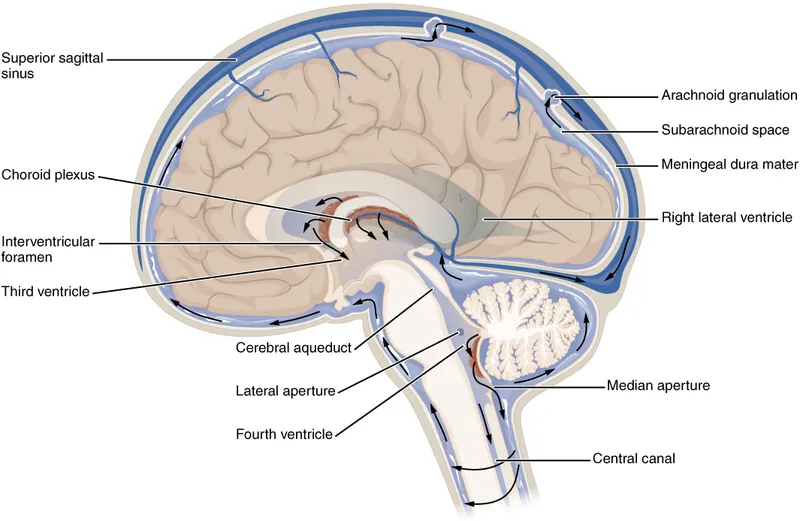

    • Foramina of Luschka (2 lateral) & Magendie (1 medial) (4th → Subarachnoid space) CSF flow through brain ventricular system
  • CSF Production: Choroid plexus (mainly lateral, also 3rd & 4th ventricles).
    • Rate: 0.3-0.4 mL/min; ~20 mL/hr; 450-500 mL/day.
    • Total volume: 125-150 mL. Turnover: 3-4 times/day.
  • CSF Composition (vs Plasma): Clear, colorless.
    • ↓ Protein (<45 mg/dL), ↓ Glucose (50-80 mg/dL or ~⅔ plasma), ↓ K⁺, ↓ Ca²⁺.
    • ↑ Cl⁻, ↑ Mg²⁺. Cells: 0-5 lymphocytes/mm³.
  • Functions: Buoyancy (reduces effective brain weight from ~1400g to <50g), shock absorption, waste removal, nutrient/hormone transport.

⭐ Xanthochromia (yellow CSF) indicates previous subarachnoid hemorrhage; bilirubin from RBC breakdown appears after 2-4 hours, peaks 24-48 hours, can last 2-4 weeks.

Ventricular System and CSF - The Great CSF Flow

  • CSF Genesis & Properties:

    • Produced mainly by choroid plexus (specialized ependymal cells + capillaries) in lateral, then 3rd & 4th ventricles. Some extrachoroidal production.
    • Formation rate: 0.3-0.4 mL/min; ~500 mL/day. Total volume: ~125-150 mL.
    • Normal pressure: 5-15 mmHg (70-180 mmH₂O). Clear, colorless, acellular; low protein, glucose ~2/3 of plasma.
  • The Great CSF Flow Path:

  • Vital Functions:

    • Buoyancy: Reduces effective brain weight from ~1400g to ~50g.
    • Protection: Acts as a crucial mechanical shock absorber for the CNS.
    • Homeostasis: Intracranial pressure regulation, nutrient supply, and metabolic waste removal.

    ⭐ The Aqueduct of Sylvius, being the narrowest part of the ventricular system, is a common site for obstructive (non-communicating) hydrocephalus, especially congenital. CSF Circulation Pathway Diagram 📌 Mnemonic for 4th ventricle outlets: Luschka = Lateral (paired); Magendie = Median (single).

Ventricular System and CSF - Pressure & Problems

  • Normal CSF Pressure: Adults 5-15 mmHg (70-180 mmH₂O); Children 3-7 mmHg.
  • Increased ICP (>20 mmHg):
    • Causes: Mass, bleed, hydrocephalus, edema, meningitis.
    • Symptoms: Headache (AM), vomiting, papilledema, AMS.
    • Cushing's Triad (late): Hypertension, bradycardia, irregular respiration. 📌 HIB.
  • Hydrocephalus: Excess CSF.
    • Communicating: ↓Absorption (post-meningitis, SAH). Symmetric ventricular enlargement.
    • Non-communicating (Obstructive): Flow block (aqueductal stenosis, tumor). Proximal ventricular dilation.

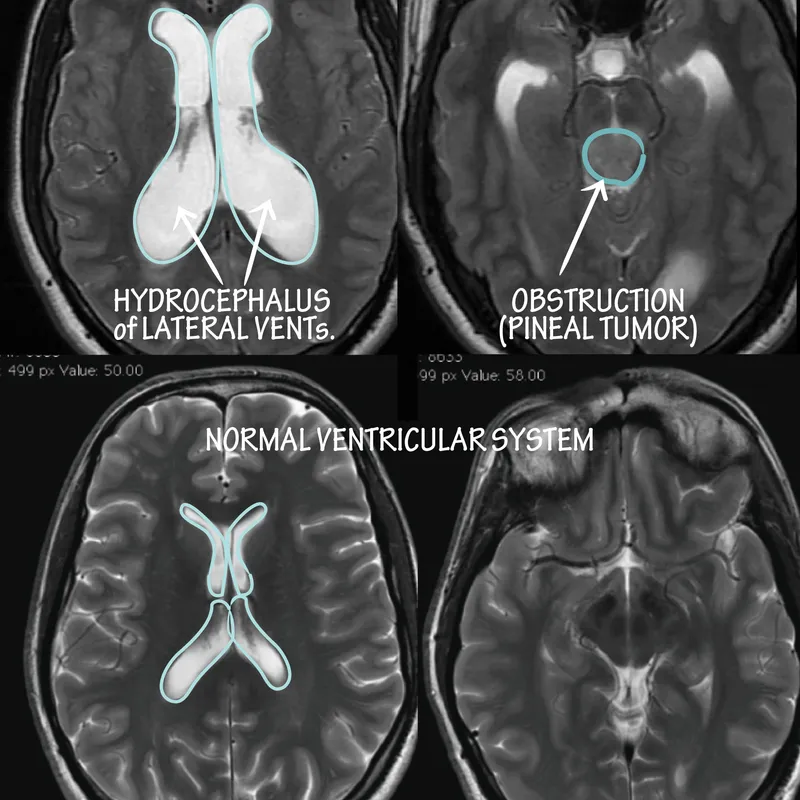

    • NPH: Dementia, gait apraxia, urinary incontinence. 📌 "Wet, Wobbly, Wacky". LP pressure normal. MRI: Hydrocephalus vs Normal Ventricular System
  • Lumbar Puncture (LP):
    • Site: L3-L4 / L4-L5. 📌 Cord ends L1-L2 (adults), L3 (infants).
    • Contraindications: ↑ICP + mass, coagulopathy, local infection.

⭐ Bacterial meningitis CSF: Glucose <40 mg/dL (<40% serum), Protein >45 mg/dL, ↑PMNs, ↑Pressure.

High‑Yield Points - ⚡ Biggest Takeaways

  • CSF produced mainly by choroid plexus; total volume ~150 mL, daily production ~500 mL.
  • Flow: Lateral ventricles → Foramen of Monro → 3rd ventricle → Sylvian aqueduct → 4th ventricle → Foramina of Luschka & Magendie → Subarachnoid space.
  • Absorbed by arachnoid granulations into dural venous sinuses.
  • Normal CSF pressure: 70-180 mm H2O.
  • Aqueduct of Sylvius: narrowest point; its obstruction causes non-communicating hydrocephalus.
  • Communicating hydrocephalus results from impaired CSF absorption by arachnoid villi.
