Abdominal Wall & Hernias - Breaches in the Barrier

  • Layers (Outer→Inner): Skin, Subcutaneous (Camper's, Scarpa's), Ext. Oblique, Int. Oblique, Transversus Abd., Fascia Transversalis, Extraperitoneal Fat, Peritoneum.
  • Common Hernia Sites: Inguinal (Hesselbach's Δ), femoral, umbilical, linea alba, incisional, Spigelian.
  • Inguinal Hernias:
    • Indirect: Lateral to Inf. Epigastric Vessels (IEV), patent processus vaginalis.
    • Direct: Medial to IEV, Hesselbach's Δ.

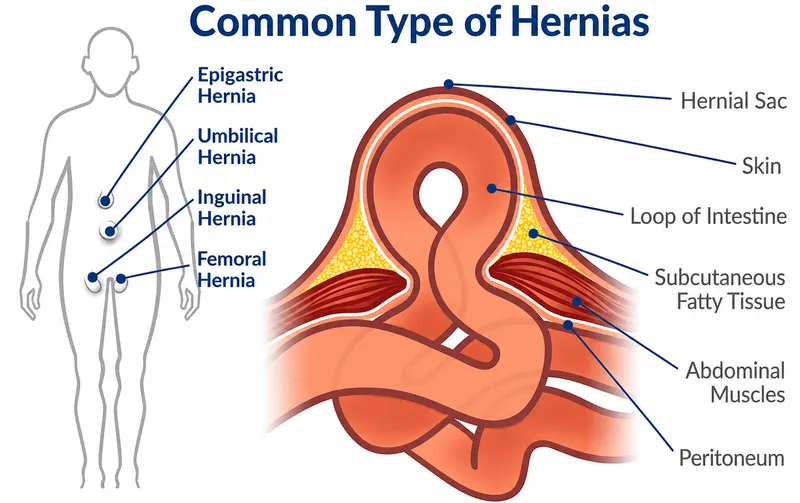

  • Femoral Hernia: Inferior to inguinal ligament, ↑risk of strangulation. Common Abdominal Hernia Locations and Anatomy

⭐ Hesselbach's Triangle (📌 Mnemonic: RIP): Rectus abdominis (medial), Inferior epigastric vessels (superolateral), Poupart's ligament (inguinal ligament - inferior).

Peritoneum & Clinical Spaces - The Abdominal Cavity's Secrets

  • Peritoneum: Serous membrane. Parietal (lines abdominal wall), visceral (covers organs). Peritoneal cavity: potential space between layers.
  • Key Folds & Structures:
    • Greater Omentum: "Policeman of abdomen"; limits infection spread.
    • Lesser Omentum: Connects stomach/duodenum to liver; contains portal triad.
    • Mesentery: Suspends small intestine from posterior abdominal wall.
  • Clinical Spaces (Fluid/Pus Collection & Spread):
    • Morrison's Pouch (Hepatorenal recess): Most dependent part of upper abdomen when supine.
    • Pouch of Douglas (Rectouterine/Rectovesical): Most dependent part of peritoneal cavity when upright.
    • Paracolic Gutters: Channels for fluid/infection movement; right paracolic gutter is continuous with Morrison's pouch.

Peritoneal cavity fluid flow and key spaces

⭐ The right subphrenic space (including Morrison's pouch) is a common site for abscesses post-abdominal surgery, potentially causing referred right shoulder tip pain (phrenic nerve irritation C3,4,5).

Upper GI & Hepatobiliary-Pancreatic - Foregut's Fiery Issues

  • GERD: Reflux → esophagitis. Complication: Barrett's esophagus (intestinal metaplasia, ↑ adenoCa risk).
    • Endoscopic view of Barrett esophagus
  • Peptic Ulcer Disease (PUD):
    • H. pylori (common), NSAIDs.
    • Duodenal ulcer: Pain relieved by food. Gastric ulcer: Pain worsened by food.
    • Complications: Perforation (X-ray: free air), Bleeding, Obstruction. 📌 PBO
  • Acute Pancreatitis:
    • Causes: Gallstones, Ethanol. 📌 I GET SMASHED
    • Diagnosis: ↑ Lipase (specific), ↑ Amylase. Severity: Ranson's/Glasgow criteria.
  • Cholecystitis: Gallbladder inflammation (gallstones).
    • Murphy's sign positive.
  • Ascending Cholangitis: Biliary tree infection.
    • Charcot's triad: Jaundice, Fever, RUQ pain.
    • Reynold's pentad: Charcot's + Hypotension + Altered Mental Status.

⭐ Courvoisier's Law: Palpable, non-tender gallbladder + jaundice = likely periampullary tumor (not stones).

Midgut & Hindgut Conditions - Intestinal Twists & Troubles

  • Midgut Volvulus:

    • Rotation around SMA axis; neonatal bilious vomiting.
    • UGI: "Corkscrew" sign. Ladd's procedure.
  • Intussusception:

    • Telescoping bowel, common in infants (6-36 months).
    • Triad: colicky pain, palpable sausage-shaped mass, red currant jelly stool.
    • USG: "Target sign". Air/contrast enema (dx & tx).
  • Hirschsprung's Disease (Aganglionic Megacolon):

    • Absent ganglion cells (Meissner's/Auerbach's). Neural crest migration failure.
    • Delayed meconium (>48 hrs), constipation, distension.
    • Dx: Rectal biopsy. Tx: Pull-through.

    ⭐ Often associated with RET proto-oncogene mutations.

  • Meckel's Diverticulum:

    • Vitelline duct remnant. 📌 Rule of 2s: 2% pop, 2 ft from ICV, 2 in long, 2% symptomatic, 2 ectopic tissues (gastric/pancreatic), age <2.
    • Painless bleeding (if gastric mucosa). Tc-99m scan.

Retroperitoneum, Vessels & Nerves - Deep & Vital Structures

  • Retroperitoneal Structures: Kidneys, adrenals, ureters, pancreas (most), D2-D4, A/D colon, Aorta, IVC. (📌 SAD PUCKER)
  • Vessels: Aorta (bifurcates L4), IVC (forms L5).
    • L. renal vein: anterior to aorta, posterior to SMA (Nutcracker phenomenon).
  • Nerves: Lumbar plexus (L1-L4) in psoas; forms femoral, obturator, lat. fem. cutaneous nerves. Lumbar Plexus and Nerves with Injection

⭐ L. gonadal & L. suprarenal veins drain to L. renal vein; R. gonadal & R. suprarenal veins drain directly to IVC.

High‑Yield Points - ⚡ Biggest Takeaways

  • McBurney's point tenderness: key for acute appendicitis.
  • Murphy's sign (inspiratory arrest, RUQ palpation): indicates acute cholecystitis.
  • Referred pain: diaphragmatic irritation to shoulder (C3-C5); ureteric colic to groin/genitalia.
  • Portal hypertension complications: esophageal varices, caput medusae, ascites.
  • Direct inguinal hernia: through Hesselbach's triangle, medial to inferior epigastric vessels.
  • Indirect inguinal hernia: through deep inguinal ring, lateral to inferior epigastric vessels; often congenital.
  • Pancreatitis pain: radiates to back; Grey Turner's/Cullen's signs suggest hemorrhagic type.

Practice Questions: Applied Anatomy and Clinical Correlations

Test your understanding with these related questions

A previously healthy infant presents with a recurrent episode of abdominal pain. The mother says that the child has been passing an altered stool after episodes of pain, but gives no history of vomiting or bleeding per rectum. Which of the following is the most likely diagnosis –

1 of 5

Flashcards: Applied Anatomy and Clinical Correlations

1/10

ID Artery: _____

TAP TO REVEAL ANSWER

ID Artery: _____

Left gastric
