Optics and Refraction Practice Questions

Q: A posterior staphyloma was observed on indirect ophthalmoscopy. What is the likely diagnosis?

High myopia. ***High myopia*** - A **posterior staphyloma** is an outpouching of the sclera at the posterior pole of the eye, which is a pathognomonic sign of **pathological** or **high myopia** due to excessive axial elongation. - Other associated fundus findings in high myopia include **chorioretinal atrophy**, **lacquer cracks** (breaks in Bruch's membrane), and an increased risk of **retinal detachment**. *Hypermetropia* - Hypermetropia (farsightedness) is characterized by a **shorter axial length**, which is the opposite of the anatomical changes seen in high myopia that lead to staphyloma formation. - Fundus examination in hypermetropia may reveal a small, crowded optic disc, sometimes referred to as **pseudopapilledema**, but not scleral ectasia. *Primary open-angle glaucoma* - The primary funduscopic sign of glaucoma is progressive damage to the **optic nerve head**, manifesting as an increased **cup-to-disc ratio** and thinning of the neuroretinal rim. - While a myopic optic disc can be difficult to assess for glaucoma, a staphyloma itself is a feature of the sclera and retina, not a primary sign of glaucoma. *Retinitis pigmentosa* - This is an inherited retinal dystrophy with characteristic fundus findings including **bone-spicule pigmentation** in the mid-periphery, **arteriolar attenuation**, and **waxy pallor of the optic disc**. - These changes result from photoreceptor and retinal pigment epithelium degeneration, and are not associated with the formation of a posterior staphyloma.

Q: A 45-year-old patient with eye examination findings of a deep anterior chamber and jet-black pupil is prescribed +12D glasses. Likely diagnosis?

Aphakia. **Aphakia** - The natural lens contributes approximately +15 to +20 diopters of refractive power; its absence (aphakia) results in severe **hypermetropia**, requiring a strong convex lens, typically around **+10D to +12D**, for correction. - The clinical findings—a **deep anterior chamber** (due to the backward displacement of the iris) and a distinctive **jet-black pupil** (due to the lack of the lens obscuring the view of the retina/fundus)—are classic signs of aphakia. *Pseudophakia* - **Pseudophakia** is the state of having an **intraocular lens (IOL)**, which restores the eye's refractive power, meaning the patient typically needs minimal spectacle correction, usually < +3D, not +12D. - While the pupil might appear black, the necessary post-operative correction power rules out residual uncorrected aphakia that requires +12D. *Myopia* - **Myopia** (nearsightedness) requires **concave (minus)** lenses for correction, standing in direct contrast to the strong **convex (+12D)** lens prescribed to this patient. - Myopia is caused by excessive axial length or corneal curvature, and it does not result in a pathologically deep anterior chamber or necessitate high-plus glasses. *Hypermetropia* - Although aphakia causes hypermetropia, primary, non-aphakic **hypermetropia** is usually corrected with lenses significantly weaker than **+12D** (typically < +6D). - Primary hypermetropia is usually related to a short axial length but is not typically associated with the defining features of a **jet-black pupil** or an abnormally **deep anterior chamber**.

Q: A patient presents with complaints of eye strain. The given image shows the focus of light rays in different meridians in the eye. Which refractive error is present in this patient?

Astigmatism. ***Astigmatism*** - The image illustrates that light rays passing through different meridians (vertical and horizontal) of the eye are focused at two separate points, which is the defining feature of **astigmatism**. - This refractive error, typically caused by an irregularly shaped **cornea** or lens, results in the formation of a **conoid of Sturm** (the interval between the two focal lines), causing blurred vision and symptoms like **eye strain**. *Amblyopia* - **Amblyopia**, or lazy eye, is a neurodevelopmental condition where vision is reduced in one eye because the eye and the brain are not working together properly; it is not a refractive error itself. - It can be caused by untreated refractive errors (like severe astigmatism) or **strabismus** during early childhood, but the diagram depicts an optical-physical phenomenon, not a neurological one. *Hypermetropia* - In **hypermetropia** (farsightedness), parallel light rays from all meridians would focus at a single point **behind the retina**, not at two different points as shown. - The image's depiction of two distinct focal lines for vertical and horizontal planes is inconsistent with the uniform focusing seen in simple hypermetropia. *Presbyopia* - **Presbyopia** is the age-related loss of **accommodation**, which is the eye's ability to change focus for near objects due to hardening of the **lens**. - It does not involve different refractive powers in different meridians and therefore is not represented by the optical diagram shown.

Q: Which of the following statements is correct regarding indirect ophthalmoscopy?

It provides 3-5x magnification.. ***It provides 3-5x magnification.*** - Indirect ophthalmoscopy typically provides a lower magnification, ranging from **3x to 5x**, which is essential for yielding a much **wider field of view** - The wide field of view allows the examiner to visualize large areas of the **peripheral retina**, facilitating screening for detachments or tears - This lower magnification is a trade-off for the **stereoscopic viewing** and **broader illuminated area** *The image is erect and real.* - The image formed by indirect ophthalmoscopy is **real** but **inverted** (upside down), not erect - The examiner must mentally reorient the inverted image during examination - An **erect (upright)** and **virtual** image is characteristic of **direct ophthalmoscopy** *The condenser lens needs to be kept close to the eye.* - The **condenser lens** is held at **arm's length**, at its **focal distance** from the patient's eye (not close to the examiner's eye) - Typically held at about 10-15 cm from the patient's cornea - If held too close or too far, the examiner will lose the **red reflex** or clear retinal details *It provides 15x magnification.* - A magnification of approximately **15x** is characteristic of **direct ophthalmoscopy**, not indirect - Direct ophthalmoscopy is used for fine detail work near the macula and optic disc - Indirect ophthalmoscopy sacrifices magnification for a **broader field of view** and **stereoscopic depth perception**

Q: A 6-year-old child presents with a refractive error of -2D in the right eye and +1D in the left eye. Visual acuity is normal in both eyes with correction, and fundus examination reveals normal retinal findings. What is the most likely diagnosis?

Anisometropia. ***Anisometropia*** - This diagnosis refers to the condition where the two eyes have significantly **unequal refractive powers**, usually a difference of 2 diopters or more, as seen in this case (-2D vs +1D = 3 diopters). - Anisometropia is critical because the brain suppresses the blurred image from the eye with the greater refractive error, making it the most important cause of **refractive amblyopia** in children. *Myopia* - Myopia (nearsightedness) refers to the refractive error where light focuses in front of the retina, characteristic only of the **right eye** (-2D). - This term fails to describe the overall condition, which involves two different types of errors (**myopia and hyperopia**) in the same patient. *Hyperopia* - Hyperopia (farsightedness) refers to the refractive error where light focuses behind the retina, characteristic only of the **left eye** (+1D). - Applying this term alone ignores the presence of myopia in the right eye and the crucial **disparity in focus** between the two eyes. *Amblyopia* - Amblyopia (lazy eye) is reduced vision in an eye uncorrectable with lenses, often due to conditions like anisometropia that cause visual deprivation during the critical period. - The key differentiating factor here is that the patient is noted to have **normal visual acuity** despite the refractive disparity, meaning amblyopia has not yet developed (though the patient is at high risk).

Q: A 70-year-old patient who has been using presbyopia glasses for the past few years can now read the newspaper comfortably without the glasses. What is the most likely diagnosis?

Index myopia. ***Index myopia*** - This classic phenomenon, often referred to as **"second sight,"** is caused by an increase in the refractive index of the crystalline lens nucleus due to early **nuclear sclerosis** (a type of cataract). - The change in refractive index leads to an acquired **myopic shift**, which effectively compensates for the patient's existing **presbyopia**, allowing near vision without reading glasses. *Index hypermetropia* - **Index hypermetropia** (a hyperopic shift) would significantly worsen the patient's near vision, making it even more difficult to read without correction. - It is typically associated with a decrease in the refractive index of the lens, sometimes seen in **cortical cataracts** or in highly unstable blood sugar levels (uncontrolled diabetes). *Regression of presbyopia* - **Presbyopia** is an irreversible, age-related process caused by the progressive hardening of the lens and loss of accommodative power. - A genuine biological **regression** of presbyopia does not occur; the apparent improvement in near vision is always attributable to an index shift toward **myopia**. *None of the above* - This option is incorrect because the sudden improvement in near vision in an elderly patient previously requiring reading glasses is a highly specific clinical sign of **index myopia** due to evolving **nuclear cataract**.

Q: Which instrument is shown below?

Slit lamp biomicroscope. ***Slit lamp biomicroscope*** - The image clearly depicts a **slit lamp biomicroscope**, characterized by its high-magnification binocular microscope and a slit illuminator - This instrument is used for detailed examination of the **anterior segment structures** of the eye, such as the cornea, iris, and lens - The characteristic features include a **chin rest**, **forehead rest**, and **joystick control** for precise positioning *Retinoscope* - A **retinoscope** is a handheld instrument used to objectively determine the **refractive error** of an eye through observation of the reflective properties of light from the retina - It does not resemble the large, mounted device with a chin rest shown in the image *Direct ophthalmoscope* - A **direct ophthalmoscope** is a handheld device used to view the **posterior segment** of the eye, particularly the retina and optic disc, directly through the pupil - It is much smaller and does not have the complex mechanical stage and chin rest seen in the image *Indirect ophthalmoscope* - An **indirect ophthalmoscope** is typically worn on the examiner's head and used in conjunction with a **condensing lens** to provide a wider, stereoscopic view of the retina - Its appearance is distinctly different from the instrument in the image, which is a stationary examination unit

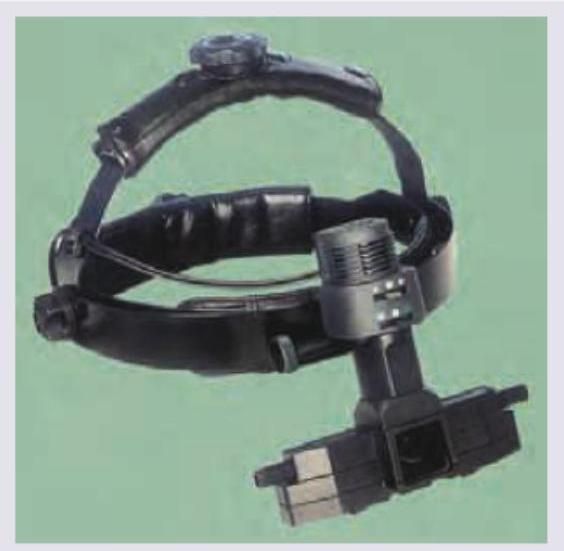

Q: The instrument shown below is:

Indirect ophthalmoscope. ***Indirect ophthalmoscope*** - The image displays a **head-mounted device** with converging lenses and a light source, which is characteristic of an **indirect ophthalmoscope**. - This instrument is used for a **stereoscopic, wide-angle view** of the retina, often requiring a handheld condensing lens. *Direct ophthalmoscope* - A **direct ophthalmoscope** is a handheld device, much smaller and simpler, which is held close to the patient's eye. - It provides a **monocular, upright, non-magnified view** of a small area of the retina. *Retinoscope* - A **retinoscope** is used to objectively measure the **refractive error** of the eye by observing the movement of light reflected from the retina. - It does not have the head-mounted structure or binocular viewing system seen in the image. *Slit lamp biomicroscope* - A **slit lamp** is a large, table-mounted instrument used for **high-magnification examination** of the anterior and posterior segments of the eye. - It consists of a biomicroscope and an adjustable light source that projects a thin "slit" of light.

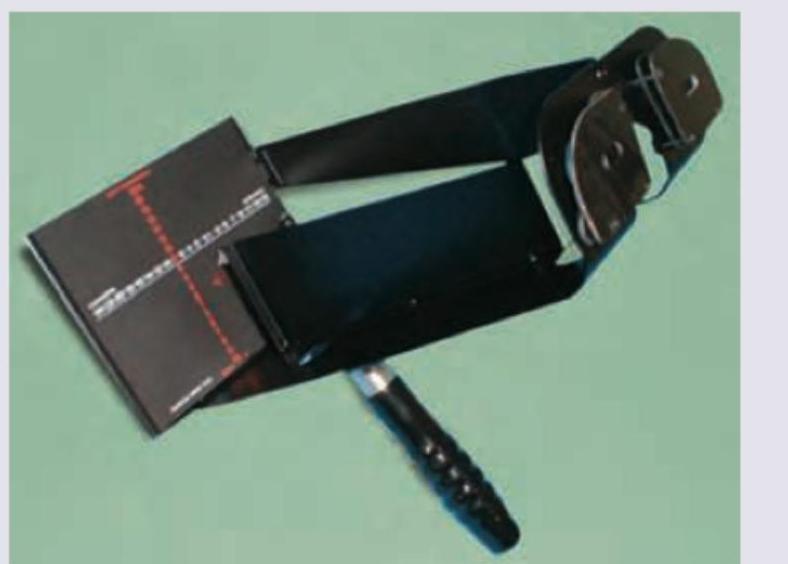

Q: Which instrument is shown here?

Maddox wing. ***Maddox wing*** - This image displays a **Maddox wing**, an instrument used to measure **phoria** (latent deviation) and **tropia** (manifest deviation) for near vision. - It works by dissociating the eyes and having the patient fixate on a target while looking through a specific optical setup. *Maddox rod* - A Maddox rod is a test that consists of one or more **red (or sometimes clear) plano cylinders** that convert a white spot of light into a red line. - It is used to detect and measure **heterophoria** and **heterotropia**, especially at distance. *Blue field entoptoscopy* - **Blue field entoptoscopy** is a technique used to visualize the flow of **leukocytes** in the retinal capillaries. - It is used to assess macular function and is not represented by the instrument shown. *Illuminated Amsler grid test* - The **Amsler grid** is a diagnostic tool used to detect **macular degeneration** and other visual field defects. - It consists of a grid of horizontal and vertical lines, often with a central fixation dot, and is typically used for self-monitoring by patients rather than being an elaborate instrument like the one depicted.

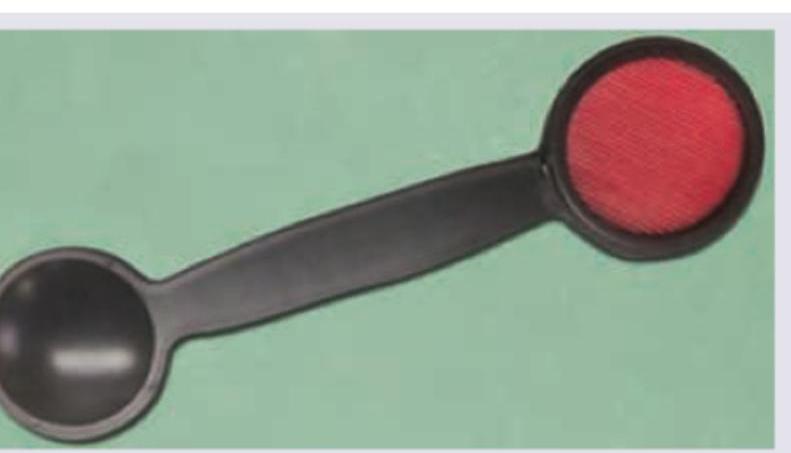

Q: All are true about the instrument shown except:

Series of high power plus cylinders. ***Series of high power plus cylinders*** - This statement is **INCORRECT**, making it the correct answer to this "EXCEPT" question. - The Maddox rod consists of a series of **high-power cylindrical lenses** (typically red-colored), not specifically "plus cylinders." - These cylindrical lenses convert a point source of light into a red streak perpendicular to the axis of the cylinders. - This is the exception among the options. *Used to quantify amount of heterophoria for near vision* - This statement is TRUE, so it is NOT the exception. - The Maddox rod is used to quantify heterophoria for both **distance (6 meters) and near (33 cm) vision**. - It helps dissociate the eyes and reveals latent deviations. *Test performed at distance of 6 meters and 33 cm* - This statement is TRUE, so it is NOT the exception. - The standard testing distances are **6 meters for distance** and **33 cm for near** vision. - This allows comprehensive assessment of heterophoria across different visual demands. *Red line of light becomes separated from point source of light in heterophoria* - This statement is TRUE, so it is NOT the exception. - When heterophoria is present, the red line produced by the Maddox rod appears **separated** (vertically or horizontally) from the white point source. - The degree and direction of separation indicate the type and magnitude of the phoria.

Question 1

A posterior staphyloma was observed on indirect ophthalmoscopy. What is the likely diagnosis?

Accepted Answer

High myopia

Answer

Retinitis pigmentosa

Answer

Primary open-angle glaucoma

Answer

Hypermetropia

Question 2

A 45-year-old patient with eye examination findings of a deep anterior chamber and jet-black pupil is prescribed +12D glasses. Likely diagnosis?

Accepted Answer

Aphakia

Answer

Pseudophakia

Answer

Hypermetropia

Answer

Myopia

Question 3

A patient presents with complaints of eye strain. The given image shows the focus of light rays in different meridians in the eye. Which refractive error is present in this patient?

Accepted Answer

Astigmatism

Answer

Presbyopia

Answer

Amblyopia

Answer

Hypermetropia

Question 4

Which of the following statements is correct regarding indirect ophthalmoscopy?

Accepted Answer

It provides 3-5x magnification.

Answer

The image is erect and real.

Answer

The condenser lens needs to be kept close to the eye.

Answer

It provides 15x magnification.

Question 5

A 6-year-old child presents with a refractive error of -2D in the right eye and +1D in the left eye. Visual acuity is normal in both eyes with correction, and fundus examination reveals normal retinal findings. What is the most likely diagnosis?

Accepted Answer

Anisometropia

Answer

Myopia

Answer

Amblyopia

Answer

Hyperopia

Question 6

A 70-year-old patient who has been using presbyopia glasses for the past few years can now read the newspaper comfortably without the glasses. What is the most likely diagnosis?

Accepted Answer

Index myopia

Answer

Index hypermetropia

Answer

Regression of presbyopia

Answer

None of the above

Question 7

Which instrument is shown below?

Accepted Answer

Slit lamp biomicroscope

Answer

Retinoscope

Answer

Direct ophthalmoscope

Answer

Indirect ophthalmoscope

Question 8

The instrument shown below is:

Accepted Answer

Indirect ophthalmoscope

Answer

Direct ophthalmoscope

Answer

Retinoscope

Answer

Slit lamp biomicroscope

Question 9

Which instrument is shown here?

Accepted Answer

Maddox wing

Answer

Maddox rod

Answer

Blue field entoptoscopy

Answer

Illuminated Amsler grid test

Question 10

All are true about the instrument shown except:

Accepted Answer

Series of high power plus cylinders

Answer

Used to quantify amount of heterophoria for near vision

Answer

Test performed at distance of 6 meters and 33 cm

Answer

Red line of light becomes separated from point source of light in heterophoria
