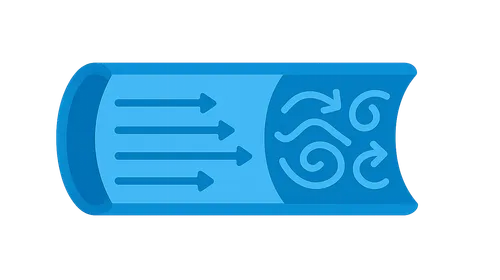

Laminar vs. turbulent flow

Laminar Flow - The Smooth Operator

• Normal, silent, and highly efficient pattern of blood flow.
• Fluid moves in parallel layers (laminae) with no mixing.
• Velocity profile is parabolic: fastest in the center, zero at the vessel wall.

• Governed by Poiseuille's Law:
  • Flow is directly proportional to the pressure gradient ($\.Delta P$) and radius to the fourth power ($r^4$).
  • Flow is inversely proportional to fluid viscosity ($\.eta$) and vessel length (L).

⭐ Halving the radius of a vessel decreases flow by a factor of 16 ($2^4$), while doubling it increases flow 16-fold. This is the most significant factor affecting blood flow.

Reynold's Number - The Turbulence Predictor

Predicts whether blood flow will be laminar (smooth) or turbulent (chaotic). It is a dimensionless quantity.

• Formula: $Re = (ρVD) / η$

  • $ρ$: Density of blood
  • $V$: Velocity of blood flow
  • $D$: Diameter of the vessel
  • $η$: Viscosity of blood

• Flow Thresholds:

  • $Re < extbf{2000}$: Laminar flow is likely. Silent, efficient flow.
  • $Re > extbf{3000}$: Turbulent flow is likely. Creates audible vibrations (bruits, murmurs).
  • $Re$ between 2000-3000: Unpredictable, transitional flow.

⭐ High-Yield: Conditions that increase Reynold's number promote turbulence. For example, anemia (↓ viscosity) or atherosclerotic stenosis (↑ velocity in the narrowed segment) can cause a previously laminar flow to become turbulent, resulting in a new bruit.

Clinical Correlations - When Flow Goes Rogue

Turbulent flow is not just a physics concept; it's a diagnostic clue. When blood flow loses its smooth, laminar state, it creates audible vibrations and pathological changes.

• Pathological Triggers for Turbulence:

  • Vessel Stenosis: Atherosclerosis or thrombosis narrows the lumen (↓D), causing a sharp ↑ in velocity (v) past the blockage.
  • High-Flow States: Anemia (↓viscosity, η) or sepsis can increase Reynolds number ($R_e$) system-wide.
  • Valvular Lesions: Both stenotic (narrowed) and regurgitant (leaky) valves create high-velocity jets.
  • Aneurysmal Dilation: Abrupt changes in vessel diameter (↑D) disrupt smooth flow streamlines.

• Clinical Manifestations:

  • Auscultation: Audible vibrations from turbulence.
    • Bruits: Heard over arteries (e.g., carotid bruit in stenosis).
    • Murmurs: Heard over the heart (e.g., valvular disease).

⭐ Post-stenotic dilation is a key finding where a vessel widens distal to a stenosis. This occurs because the vessel wall is weakened by the constant, high-frequency vibrations of turbulent flow.

High‑Yield Points - ⚡ Biggest Takeaways

• Laminar flow is silent and efficient, characterized by a parabolic velocity profile (fastest at the vessel center).
• Turbulent flow is disordered and noisy, causing audible bruits (arteries) and murmurs (heart).
• The Reynolds number (Re) predicts turbulence; Re > 2000 indicates a high likelihood of turbulent flow.
• Key factors promoting turbulence are ↑ velocity (e.g., stenosis), ↓ viscosity (e.g., anemia), and ↑ vessel diameter.
