A previously healthy 10-year-old boy is brought to the emergency department for the evaluation of one episode of vomiting and severe headache since this morning. His mother says he also had difficulty getting dressed on his own. He has not had any trauma. The patient appears nervous. His temperature is 37°C (98.6°F), pulse is 100/min, and blood pressure is 185/125 mm Hg. He is confused and oriented only to person. Ophthalmic examination shows bilateral optic disc swelling. There is an abdominal bruit that is best heard at the right costovertebral angle. A complete blood count is within normal limits. Which of the following is most likely to confirm the diagnosis?

High-dose dexamethasone suppression test

A 3-year-old boy is brought to the emergency department after losing consciousness. His parents report that he collapsed and then had repetitive, twitching movements of the right side of his body that lasted approximately one minute. He recently started to walk with support. He speaks in bisyllables and has a vocabulary of almost 50 words. Examination shows a large purple-colored patch over the left cheek. One week later, he dies. Which of the following is the most likely finding on autopsy of the brain?

Leptomeningeal vascular malformation

Subependymal giant cell astrocytoma

A 38-year-old woman with moyamoya disease undergoes cerebral angiography showing bilateral progressive stenosis of distal internal carotid arteries with extensive collateral formation. She has had multiple TIAs despite medical management. CT perfusion shows reduced flow in bilateral MCA territories. The neurosurgery team debates between direct bypass (STA-MCA) versus indirect revascularization (EDAS). Evaluate the optimal approach considering Circle of Willis pathophysiology.

Combined direct and indirect approaches optimize collateral development regardless of Circle anatomy

Indirect revascularization allows gradual angiogenesis; better for incomplete Circle variants

Circle of Willis anatomy is irrelevant; external to internal carotid bypass is contraindicated in moyamoya

Observation only; intact Circle of Willis through ACoA and PCoA provides adequate collaterals

Direct bypass provides immediate flow; superior for adults with completed Circle

A 70-year-old man undergoes elective clipping of an unruptured basilar tip aneurysm. Preoperative angiography shows bilateral fetal-type posterior cerebral arteries (PCAs arising from internal carotid arteries) with hypoplastic P1 segments. The aneurysm involves both posterior communicating artery origins. Synthesize an approach to surgical planning that optimally preserves cerebral perfusion.

Clip reconstruction technique preserving both PCoA origins with intraoperative flow assessment

Staged bilateral STA-PCA bypasses followed by aneurysm clipping with PCoA sacrifice

Standard clip placement sacrificing one PCoA; contralateral PCoA provides adequate flow

Bypass surgery from external carotid to PCA prior to aneurysm clipping

Endovascular coiling instead of clipping to preserve both PCoA vessels

A 42-year-old woman presents with progressive cognitive decline, early-onset dementia, and recurrent subcortical strokes. Genetic testing reveals CADASIL (Cerebral Autosomal Dominant Arteriopathy with Subcortical Infarcts and Leukoencephalopathy). MR angiography shows no large vessel abnormalities but extensive white matter changes. Her sister, also affected, is considering pregnancy. Evaluate the counseling regarding Circle of Willis anatomy and implications for disease manifestations.

CADASIL primarily affects perforating arteries; Circle of Willis anatomy has minimal impact on phenotype

Pregnancy increases stroke risk regardless of Circle anatomy; recommend avoiding pregnancy

Complete Circle of Willis anatomy predicts milder phenotype due to better collateral flow

Incomplete Circle increases stroke risk; recommend prophylactic aspirin during pregnancy

Circle of Willis variants determine specific infarct patterns; genetic testing can predict locations

A 55-year-old man with diabetes and hypertension undergoes carotid endarterectomy for critical left internal carotid stenosis. Postoperatively, he develops right homonymous hemianopia without motor deficits. Intraoperative transcranial Doppler had shown reduced flow in the ipsilateral middle cerebral artery but preserved anterior cerebral artery flow. Analyze the most likely mechanism for this specific deficit pattern.

Hypoperfusion of posterior cerebral artery via inadequate posterior communicating artery

Embolic shower to left middle cerebral artery branches during manipulation

Inadequate collateral flow through anterior communicating artery during clamping

Watershed infarct between ACA and MCA territories

Occlusion of lenticulostriate arteries from perioperative hypotension

A 28-year-old woman presents with bilateral lower extremity weakness worse than upper extremity weakness, abulia, and urinary incontinence. MRI reveals bilateral anterior cerebral artery territory infarcts. Angiography shows an azygos anterior cerebral artery variant. Analyze the anatomical basis for this patient's bilateral deficits from a presumed single vascular occlusion.

Single midline A2 segment supplies both hemispheres without ACoA

Both A1 segments are hypoplastic with dominant left A2 segment

Bilateral A1 occlusions with isolated posterior circulation

ACoA aneurysm with mass effect on both A2 segments

Duplicate anterior communicating arteries with bilateral flow restriction

Variations in circle of Willis for USMLE Step 3: High-Yield Anatomy Lessons

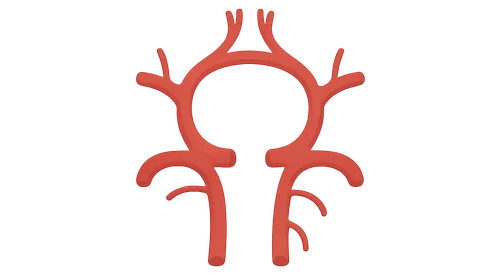

Circle of Willis - The Brain's Roundabout

An anastomotic ring of arteries at the base of the brain, supplying collateral circulation.
The "textbook" configuration is present in only ~20-25% of individuals. Variations are the norm.
Common Variations:
- Hypoplastic/absent Posterior Communicating Artery (PCoA) is most common.
- Fetal origin PCA: Posterior Cerebral Artery (PCA) arises from the Internal Carotid Artery (ICA) via a large PCoA.
- Hypoplastic/absent Anterior Communicating Artery (ACoA).
- Hypoplastic A1 segment of the Anterior Cerebral Artery (ACA).

Circle of Willis Variations with Frequencies

⭐ Incomplete circles are clinically significant. A hypoplastic PCoA can impair collateral flow during an ischemic event (e.g., carotid stenosis), increasing stroke risk.

Common Variations - Not-So-Perfect Circles

The textbook Circle of Willis is present in <50% of individuals. Anatomical variations are common and clinically significant, as they can compromise collateral blood flow, increasing the risk of ischemia during vessel occlusion.

Circle of Willis variations: hypoplastic vessels, APCA

Hypoplastic PCoA: The most frequent variation. The Posterior Communicating Artery is narrow or absent, weakening the link between carotid and vertebrobasilar systems.
Fetal PCA Origin: The Posterior Cerebral Artery (PCA) arises directly from the ICA via a large PCoA, while the P1 segment (from the basilar artery) is hypoplastic. This is the second most common variant.
Hypoplastic/Absent ACoA: Impairs collateral flow between the left and right anterior cerebral arteries.
Basilar Artery Fenestration: A developmental anomaly creating a "window" in the basilar artery wall.

⭐ An incomplete posterior circle due to a hypoplastic PCoA is the most common variant. This configuration is highly vulnerable to ischemia if there's a significant stenosis or occlusion in the ICA or vertebrobasilar system.

Clinical Significance - A Broken Safety Net

The Circle of Willis (CoW) is a critical anastomotic ring providing collateral blood flow. Variations, present in over 50% of the population, can render this safety mechanism ineffective.

Functional Impact: An incomplete circle fails to protect the brain during ischemia.
- If a major feeding artery (e.g., Internal Carotid) is occluded, collateral flow is insufficient.
- This leads to a significantly higher risk of Transient Ischemic Attack (TIA) and ischemic stroke.

⭐ A common variation is a "fetal" Posterior Cerebral Artery (PCA), where it originates from the Internal Carotid Artery (ICA) instead of the basilar artery. This makes the PCA territory vulnerable to ischemia from ICA pathology.

High‑Yield Points - ⚡ Biggest Takeaways

A complete Circle of Willis is present in less than 50% of individuals, making variations the norm.

The most common anomaly is a hypoplastic or absent posterior communicating (PCOM) artery.

A fetal origin of the posterior cerebral artery (PCA) from the internal carotid is another key variation.

An incomplete circle severely limits collateral flow, increasing the risk of cerebral ischemia during occlusion.

Variations are typically asymptomatic and found incidentally.
