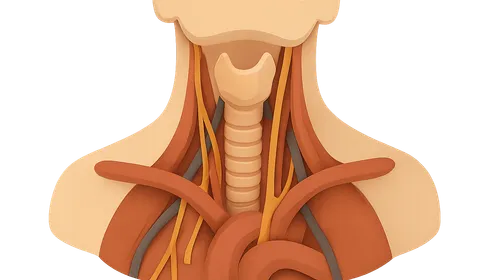

Deep structures of the neck

Neck Triangles - Anatomical GPS

The Sternocleidomastoid (SCM) muscle is the key landmark, dividing the neck into two major triangles:

• Anterior Triangle: Medial to SCM. Contains structures for swallowing, speaking.
• Posterior Triangle: Lateral to SCM. Contains major nerves and vessels passing to the upper limb.

⭐ Carotid Triangle: A critical landmark containing the carotid sheath. Its contents are the common carotid artery (bifurcating), internal jugular vein, and vagus nerve (CN X).

📌 Mnemonic (Carotid Sheath): "I See 10 CC's in the IV" - IJV, CN X, Common Carotid, Internal Carotid.

Fascial Layers - Infection Highways

• Superficial Cervical Fascia: Contains platysma, cutaneous nerves, vessels.
• Deep Cervical Fascia: Compartmentalizes neck structures.
  • Investing Layer: Surrounds sternocleidomastoid (SCM) and trapezius.
  • Pretracheal Layer: Encloses thyroid, trachea, esophagus.
  • Prevertebral Layer: Surrounds vertebral column and deep neck muscles.
  • Carotid Sheath: Contains common/internal carotid artery, internal jugular vein, and vagus nerve (CN X).
    • 📌 Mnemonic (Contents): "I See 10 CC's in the IV" (IJV, CN 10, Common Carotid, Internal Carotid).

• Retropharyngeal Space: Potential space between layers. Infection here can spread to the superior mediastinum.

⭐ Danger Space: Located just behind the retropharyngeal space. It is the most dangerous fascial space, as infections can travel from the base of the skull down to the diaphragm.

Neurovascular Bundles - The Lifelines

• Carotid Sheath: A dense fibrous investment enclosing critical structures, extending from the skull base to the thoracic inlet. A key landmark in neck surgery.

  • Contents (Lateral to Medial):
    • Internal Jugular Vein (IJV)
    • Vagus Nerve (CN X) - situated posteriorly between the vessels.
    • Common/Internal Carotid Artery (CCA/ICA)
    • Deep cervical lymph nodes.
  • 📌 Mnemonic: "I See 10 CC's in the IV" (IJV, CN 10, Common Carotid).

• Sympathetic Trunk: Lies posterior to the carotid sheath, outside the sheath itself, on the prevertebral fascia.

⭐ The ansa cervicalis, a nerve loop (C1-C3) that supplies the infrahyoid muscles, is characteristically found embedded in the anterior wall of the carotid sheath.

Root of the Neck - Thoracic Gateway

• Anterior Scalene Muscle: Key landmark dividing the root.
• Pre-Scalene Zone: Subclavian vein & phrenic nerve pass anterior to the muscle.
• Scalene Triangle: Space between anterior & middle scalenes.
  • Contains: Subclavian artery & brachial plexus roots/trunks.
• Subclavian Artery Branches: 📌 Vertebral, Internal thoracic, Thyrocervical trunk, Costocervical trunk.
• Thoracic Duct: Arches superiorly to enter the junction of the left subclavian and internal jugular veins.

⭐ Pancoast tumors in the lung apex can compress these structures, causing Thoracic Outlet Syndrome (TOS) symptoms.

High‑Yield Points - ⚡ Biggest Takeaways

• The carotid sheath contains the common carotid artery, internal jugular vein, and the vagus nerve (CN X).
• The phrenic nerve (C3-C5) runs anterior to the anterior scalene muscle, while the brachial plexus passes posterior to it.
• The recurrent laryngeal nerve is vulnerable during thyroid surgery, and injury can lead to hoarseness.
• The thoracic duct drains lymph from most of the body into the left venous angle.
• The ansa cervicalis provides motor innervation to the infrahyoid (strap) muscles.
