Biological Clock Mechanisms

SCN Anatomy & Role - Brain's Timekeeper

• Location: Suprachiasmatic Nucleus (SCN) in the anterior hypothalamus, directly superior to the optic chiasm. 📌 SCN - See C(Chiasm) Now!
• Master Pacemaker: The SCN is the brain's principal master circadian pacemaker, the central coordinator of daily biological timing.
• Hierarchy: It imposes hierarchical control, synchronizing numerous peripheral clocks located within organs and tissues throughout the body.
• Intrinsic Rhythmicity: Displays an endogenous, self-sustained rhythm of neuronal activity, with an approx. ~24-hour period, even without external time cues.
• Key Functions: Regulates sleep-wake cycles, hormone release (melatonin, cortisol), body temperature.

⭐ Lesions of the SCN abolish circadian rhythmicity.

​

Molecular Loop - Genetic Gears

The core mechanism is the Transcription-Translation Feedback Loop (TTFL).

• Positive Limb: CLOCK and BMAL1 proteins heterodimerize.
  • This complex enters nucleus, binds E-box elements on Per and Cry gene promoters.
  • This binding activates transcription of Per and Cry.
• Negative Limb: PER and CRY proteins are synthesized in cytoplasm and dimerize.
  • Phosphorylation (e.g., by CK1δ/ε) regulates their stability, nuclear entry, and overall timing.
  • The PER/CRY dimer translocates to the nucleus.
• Feedback Inhibition: In the nucleus, PER/CRY inhibits CLOCK-BMAL1 activity.
  • This represses Per and Cry transcription, closing the loop.
  • Degradation of phosphorylated PER/CRY proteins relieves inhibition, restarting cycle.

📌 Mnemonic: Can't Be Late, PERiodically CRY (CLOCK, BMAL1, PER, CRY).

⭐ CLOCK-BMAL1 heterodimer is the primary transcriptional activator in the TTFL.

Clock Synchronization - Sync & Set

• Zeitgebers: External cues synchronizing internal clocks.
  • Primary: Light.
  • Others: Food intake, temperature, social interactions.
• Photic Entrainment: Light-driven synchronization.
  • Retinohypothalamic Tract (RHT): Pathway from retina to SCN. 📌 RHT: Retina Hits The Hypothalamus.
    • Light activates intrinsically photosensitive retinal ganglion cells (ipRGCs) containing melanopsin.
    • ipRGCs project via RHT to the Suprachiasmatic Nucleus (SCN).
    • Release glutamate and PACAP in SCN, causing phase shifts (advances or delays).

  ⭐ Melanopsin-containing ipRGCs are crucial for non-image forming photoreception and entrainment to light.

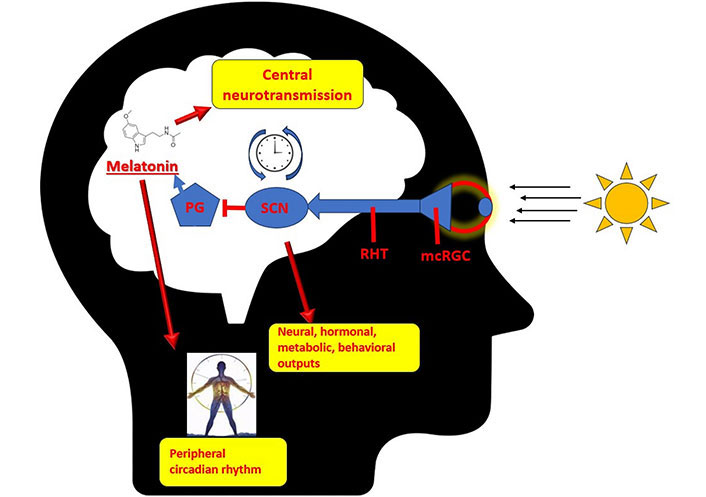

![RHT pathway, SCN, and melatonin feedback loop diagram](https://ylbwdadhbcjolwylidja.supabase.co/storage/v1/object/public/notes/L1/Physiology_Chronobiology_and_Circadian_Rhythms_Biological_Clock_Mechanisms/5b8d753f-aee8-4871-90d9-3f64e232b167.jpg)

• Melatonin: "Hormone of darkness".
  • Produced by pineal gland in response to darkness.
  • Suppressed by light.
  • Provides feedback to SCN via MT1/MT2 receptors, reinforcing circadian rhythms.

Physiological Rhythms & Issues - Rhythmic Regulation

• SCN Outputs & Peripheral Control:
  • Neural (e.g., autonomic) & humoral (e.g., melatonin) signals from Suprachiasmatic Nucleus (SCN).
  • SCN synchronizes peripheral clocks in organs (liver, heart, muscle).
• Examples of Rhythmic Regulation:
  • Sleep-wake cycle.
  • Cortisol: ↑ AM peak, ↓ PM nadir.
  • Body temperature: ↓ early AM nadir, ↑ late afternoon peak.
  • Hormone release: Growth Hormone (GH), prolactin (often nocturnal, pulsatile peaks).
• Common Circadian Rhythm Sleep-Wake Disorders (CRSWDs):
  • Jet lag.
  • Shift work disorder.
  • Advanced Sleep Phase Disorder (ASPD).
  • Delayed Sleep Phase Disorder (DSPD).
  • Non-24-hour sleep-wake disorder.

  ⭐ Familial Advanced Sleep Phase Disorder (FASPD), a type of ASPD, is often linked to mutations in PER2 or CSNK1D genes. These genes are crucial clock components.

High‑Yield Points - ⚡ Biggest Takeaways

• The Suprachiasmatic Nucleus (SCN) in the hypothalamus is the master circadian pacemaker.
• SCN is entrained by light via retinohypothalamic tract from ipRGCs (melanopsin).
• Clock genes (PER, CRY, CLOCK, BMAL1) form feedback loops driving molecular rhythmicity.
• SCN orchestrates rhythms of melatonin (pineal), cortisol, and core body temperature.
• Melatonin promotes sleep; its secretion is suppressed by light.
• Light is the primary zeitgeber synchronizing the internal clock to the 24-hour day.
