Laparoscopic Equipment and Instrumentation

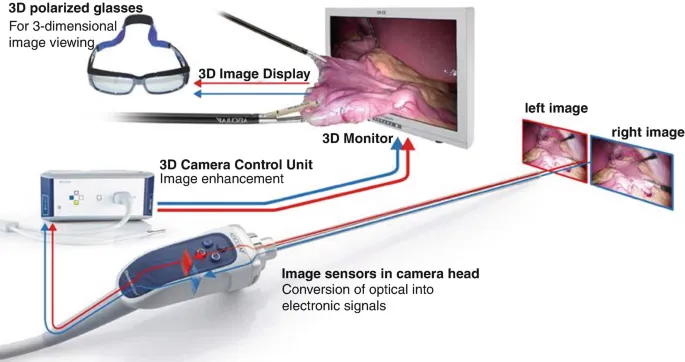

Laparoscopic Vision - See It To Believe It

• Light Source: Xenon (gold standard, bright white light) or LED (durable, cooler light).
• Light Cable: Fiberoptic; transmits light from source to scope. Handle with care.
• Laparoscope (Telescope):
  • Hopkins rod-lens system for superior image quality & brightness.
  • Common Diameters: 5 mm, 10 mm.
  • Viewing Angles: 0° (direct view, for initial entry), 30° (angled, most versatile), 45° (more angled, specialized views).
• Camera Head:
  • Contains CCD (Charge-Coupled Device) or CMOS sensor.
  • 3-chip cameras provide better color reproduction than 1-chip.
• Video Monitor: High Definition (HD) or 4K for clear visualization.
• Essential Pre-Checks:
  • White Balancing: Calibrates camera for true color representation against a white surface (e.g., gauze).
  • Defogging: Prevents lens condensation (e.g., scope warmer, anti-fog solution like Fred, warm saline).

⭐ The 30° laparoscope is the most commonly used due to its versatility, allowing surgeons to see around structures without changing port sites significantly, enhancing depth perception and maneuverability within the abdominal cavity.

Portals & Pressure - Getting In Safely

• Goal: Safe peritoneal access & creation of working space (pneumoperitoneum).
• Pneumoperitoneum:
  • Gas: CO2 (standard) - non-flammable, high blood solubility.
  • Pressure: Adults 12-15 mmHg; Children 6-10 mmHg.
  • ⚠️ Pressures >15-20 mmHg risk ↓venous return, ↓CO, ↑V/Q mismatch.
• Primary Port Entry:
  • Veress Needle (Closed):

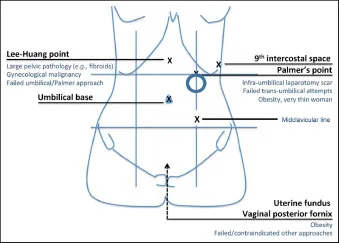

    • Blind insertion; Palmer's point (L subcostal; if midline scar) or umbilicus.
    • 📌 Safety checks (SALP): Saline drop, Aspiration, Low initial Pressure (<8 mmHg).
  • Open (Hasson) Technique:
    • Mini-laparotomy, direct trocar insertion; safer with adhesions.
  • Optical Trocar: Direct visualization during fascial/peritoneal entry.
• Safety:
  • Entry complications: Vascular (aorta, IVC, iliacs), bowel injury.
  • Secondary ports: Always under direct vision.

  ⭐ Most common site of vascular injury during primary trocar placement is the right common iliac artery.

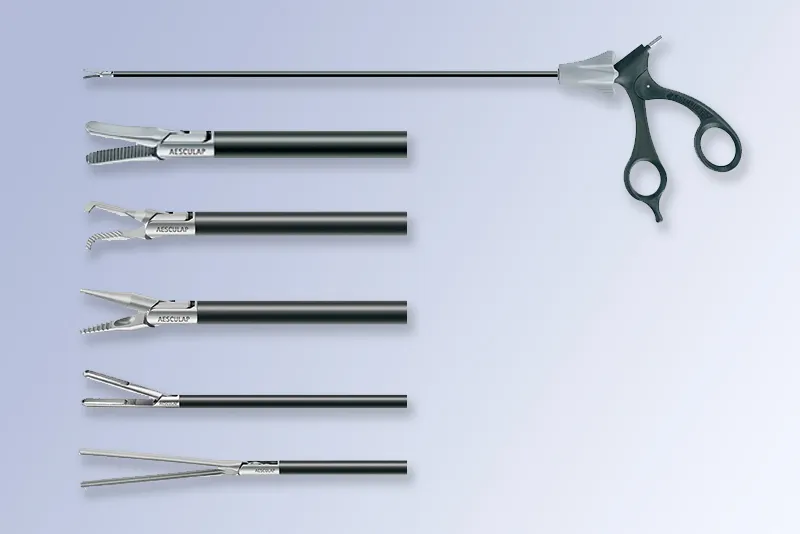

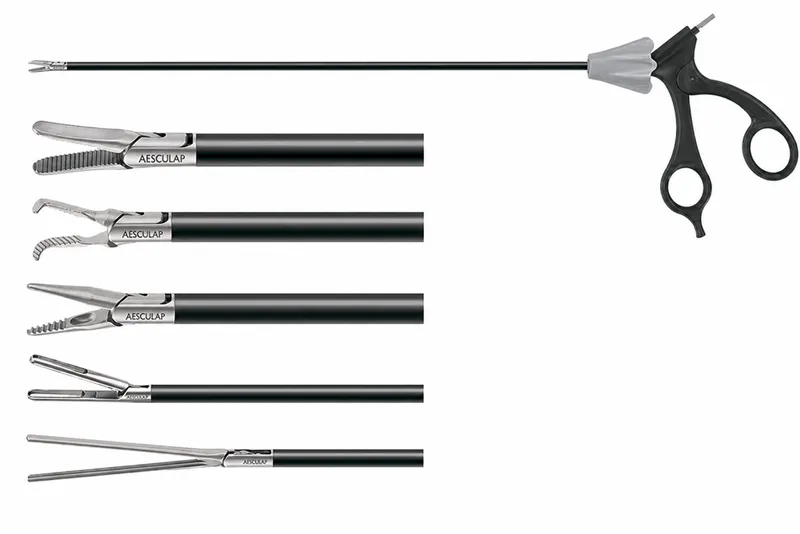

Hand Tools - The Surgeon's Extensions

• Graspers (Forceps): Essential for tissue manipulation, traction, and counter-traction.
  • Atraumatic: e.g., Babcock (delicate, hollow viscera), DeBakey (vascular).
  • Traumatic: e.g., Kocher (fascia), Allis (tough tissue for retraction).
  • Features: Jaw (fenestrated, serrated, toothed), Handle (ratcheted for locking, non-ratcheted).
• Dissectors: Used for creating tissue planes and exposing structures.
  • Maryland: Versatile, curved tip for blunt/sharp dissection.
  • Kelly: Larger, robust for blunt dissection.
  • Right Angle: For dissecting around vessels or ducts.
• Scissors: For precise cutting of tissues and sutures.
  • Metzenbaum (curved): For delicate dissection and cutting soft tissues.
  • Hook scissors: Ideal for cutting sutures, small tubular structures.
• Needle Holders: Securely grasp and guide needles for intracorporeal suturing.
  • Jaws: Often with tungsten carbide inserts for enhanced grip and durability. Ratcheted handles.

⭐ The Maryland dissector, with its curved tip, is often the surgeon's primary tool for both blunt and sharp dissection in many laparoscopic procedures.

Power Plays - Cut, Coagulate, Seal

• Energy Devices: For hemostasis & dissection.

  • Monopolar Electrosurgery:

    • Current: active electrode → patient → return pad.
    • Modes: Cut (continuous waveform), Coag (interrupted).
    • ⚠️ Risks: Stray current burns, coupling injuries.

  • Bipolar Electrosurgery:

    • Current between electrode tips. Safer.
    • Primarily for coagulation. No return pad.

  • Ultrasonic (e.g., Harmonic Scalpel):

    • Vibration (55,500 Hz) → heat → protein denaturation.
    • Cuts & coagulates. Minimal thermal spread, less smoke.

  • Advanced Bipolar (e.g., LigaSure, EnSeal):

    • RF energy + pressure for vessel sealing.
    • Feedback-controlled.

    ⭐ LigaSure reliably seals vessels up to 7 mm.

    • Minimal thermal spread.

High‑Yield Points - ⚡ Biggest Takeaways

• CO2 is standard insufflation gas; high solubility, rapid absorption, minimizes embolism risk.
• Maintain pneumoperitoneum at 12-15 mmHg intra-abdominal pressure for optimal surgical workspace.
• Initial access: Veress needle (blind) or Hasson technique (open) for safe entry.
• Key instruments: graspers (atraumatic/toothed), dissectors, scissors for precise tissue handling.
• Energy sources: monopolar/bipolar electrosurgery; ultrasonic devices for precise dissection and hemostasis.
• 0°/30° laparoscopes for visualization; trocars (5, 10, 12mm) provide instrument access.
