Surgical Instruments and Equipment

Surgical Instruments and Equipment

Surgical Instruments and Equipment

On this page

Cutting & Dissecting - Sharp Operators

  • Scalpels:
    • Handles: #3 (blades #10, #11, #12, #15), #4 (blades #20-#25), #7 (deep).
    • Blades: #10 (general), #11 (stab/arteriotomies), #12 (sickle), #15 (fine/precise).
  • Scissors:
    FeatureMetzenbaum ScissorsMayo Scissors
    UseDelicate tissue, blunt dissect.Tough tissue (fascia), sutures
    BuildFine, long shanks, short jawsHeavy, shorter shanks, stout jaws
    📌 Mayo scissors are 'May-O' so strong, for tough tissues they prolong!
    • Potts: Vascular (angled).
    • Iris: Ophthalmic/fine.
  • Other Sharp Instruments:
    • Osteotomes: Bone cutting.
    • Curettes: Scraping.
    • Rongeurs: Gouging bone.

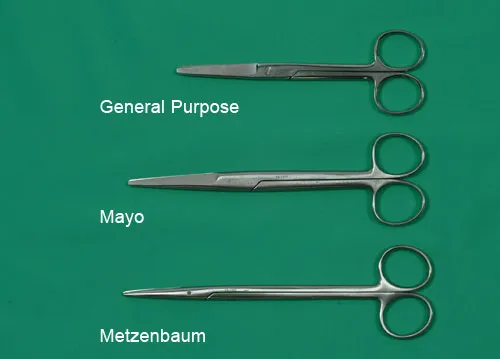

General Purpose, Mayo, and Metzenbaum Surgical Scissors

⭐ Metzenbaum scissors are designed for dissecting delicate tissues and blunt dissection, whereas Mayo scissors are heavier and used for cutting tougher tissues like fascia or sutures.

Grasping & Clamping - The Support Crew

For tissue handling, hemostasis, and clear surgical field.

  • Forceps (Grasping/Holding):

    • Tissue: Adson (skin), DeBakey (atraumatic, vascular).
    • Grasping:
      • Allis: Traumatic (fascia).
      • Babcock: Atraumatic (bowel). 📌 Babcock holds Babies (delicate tissues) gently.
      • Kocher: Traumatic, heavy (fascia, bone).
      • Lane's: Bone holding.
    • Dressing: Handle dressings.
  • Hemostats (Artery Forceps): Control bleeding.

    • Mosquito (Halsted): Small vessels.
    • Kelly/Crile: Larger vessels (Kelly: distal 1/2 serrated; Crile: fully serrated).
    • Spencer Wells: Transverse serrations. (Straight/Curved).
  • Towel Clips: Secure drapes (e.g., Backhaus - penetrating; Moynihan - non-penetrating).

Traumatic vs. Atraumatic Forceps:

FeatureTraumatic (Allis, Kocher)Atraumatic (Babcock, DeBakey)
Tissue UseTough, to be excisedDelicate (bowel, vessels)
GripCrushing, firmGentle, minimal damage

⭐ DeBakey forceps are atraumatic and ideal for manipulating delicate tissues, especially blood vessels, due to their fine, longitudinal serrations.

Retractors & Exposure - View Masters

Retractors are essential for separating tissue edges or organs, providing optimal visualization and access to the surgical field.

TypeExamples & Common Uses
Handheld- Army-Navy (US Army): Superficial tissue retraction.
- Senn: Delicate, skin/superficial layers.
- Langenbeck: General, shallow incisions.
- Deaver: Deep abdominal/thoracic cavities.
- Richardson: Abdominal wall layers.
- Malleable (Ribbon): Protects viscera, conforms to shape.
Self-retaining- Weitlaner (Travers): Superficial, small wounds (e.g., extremities, neck).
- Balfour: Major abdominal surgeries, provides wide exposure.
- Finochietto: Thoracic surgery, rib spreading for heart/lung access.
- Gosset: Abdominal procedures, similar to Balfour.
- Mastoid (e.g., Jansen): Mastoidectomies, ENT.

⭐ The Balfour retractor, often equipped with a bladder blade, is a self-retaining retractor crucial for providing wide exposure during major abdominal surgeries.

Energy Devices & Special Gear - Power Players

  • ESU (Electrosurgery Unit):

    • Monopolar: Current path: Generator → Active Electrode → Patient → PRE (Patient Return Electrode).
    • Bipolar: Current confined between instrument tips.
    • ⭐ > Proper placement of the patient return electrode (grounding pad) in monopolar electrosurgery is critical to prevent burns; it should be on a large, dry, well-vascularized muscle mass, avoiding bony prominences and scar tissue.
  • Monopolar vs. Bipolar ESU:

    FeatureMonopolar ESUBipolar ESU
    MechanismCurrent via patient to PRECurrent between instrument tips
    UsesBroad cut/coagulationPrecise coagulation (e.g., neuro)
    RisksPRE/alternate site burnsLower risk of distant burns
  • Special Gear:

    • Argon Beam Coagulator: Non-contact, superficial coagulation.
    • Ultrasonic Dissector (Harmonic): Vibrates, cuts & coagulates simultaneously.
    • Advanced Bipolar (LigaSure): Seals vessels up to 7mm.
  • Staplers: Types: Linear (TA), Linear Cutting (GIA), Circular (EEA).

  • Laparoscopy Basics: Veress needle, Trocars, Insufflator (pressure 12-15 mmHg), Scope (Camera/Light), Graspers, Dissectors, Scissors.

High‑Yield Points - ⚡ Biggest Takeaways

  • Scalpel blade No. 11 is primarily for stab incisions; No. 15 for fine, precise cuts.
  • DeBakey forceps are atraumatic, ideal for handling delicate tissues like blood vessels.
  • Mayo scissors are robust for cutting heavy tissues and sutures; Metzenbaum scissors are for delicate dissection.
  • Babcock forceps atraumatically grasp tubular structures; Allis forceps firmly hold tougher tissues for retraction or excision.
  • Monopolar diathermy requires a patient return plate for current dispersal; bipolar diathermy confines current between tips.
  • Laparoscopic surgery commonly uses CO2 insufflation to create pneumoperitoneum for visualization and space.
  • Catgut is a natural, absorbable suture; Prolene (polypropylene) is a synthetic, non-absorbable monofilament suture.
