Small Parts US Basics - Probing the Superficial

  • Utilizes high-frequency linear transducers (e.g., 7-15 MHz) for superior detail of superficial structures.
  • Achieves excellent axial resolution, vital for delineating small lesions and tissue layers.
  • Trade-off: Higher frequency = ↑ resolution, but ↓ penetration depth.
  • Common applications: Thyroid, testes, breast, musculoskeletal (MSK), skin & subcutaneous lesions.
  • Technique: Stand-off pads improve imaging of very superficial targets.

⭐ High-frequency linear transducers (e.g., 7-15 MHz) are crucial for optimal axial resolution in superficial structures.

Ultrasound transducers and stand-off pad

Thyroid & Parathyroid US - Neck Check

  • Thyroid Gland:
    • Assess: Size, shape, echotexture (homo/heterogeneous), isthmus (<5 mm).
    • Nodules: Describe echogenicity (hyper-, iso-, hypo-), margins, calcifications (micro-, macro-), vascularity (Doppler).
    • TIRADS (Thyroid Imaging Reporting and Data System) for risk stratification.
  • Parathyroid Glands:
    • Normally small, oval, hypoechoic, posterior to thyroid.
    • Adenomas: Enlarged, >5 mm, often hypervascular.

⭐ Microcalcifications are the most specific ultrasound feature for papillary thyroid cancer, the commonest thyroid malignancy.

Thyroid nodule ultrasound with microcalcifications

Scrotal US - Below the Belt Sonography

Ultrasound of scrotal pathologies

  • Indications: Acute/chronic pain, swelling, palpable mass, infertility, trauma.
  • Technique: High-frequency (7.5-12 MHz) linear transducer.
  • Key Pathologies & US Findings:
    • Testicular Torsion: Sudden severe pain. Absent/↓ blood flow on Doppler. Testicular edema.

      ⭐ The 'Whirlpool sign' on color Doppler, representing twisted spermatic cord, is a specific sign of testicular torsion.

    • Epididymo-orchitis: Gradual pain, fever. ↑ Blood flow (hyperemia). Enlarged, hypoechoic epididymis.
    • Varicocele: Dilated pampiniform plexus veins (>2-3 mm), augment with Valsalva.
    • Hydrocele: Simple anechoic fluid collection around testis.
    • Testicular Tumors: Seminoma (homogeneous, hypoechoic); Non-seminoma (heterogeneous, calcifications).

Breast US - Mammary Mapping

  • Purpose: Precise localization of breast lesions for diagnosis, follow-up, and intervention.
  • Methods:
    • Quadrants: Upper Outer (UOQ), Upper Inner (UIQ), Lower Outer (LOQ), Lower Inner (LIQ).
    • Clock-face: Lesion position described as a time on a clock (e.g., 3 o'clock).
    • Distance from Nipple: Measured in cm.
    • Depth: Superficial, mid, deep; or subcutaneous, mammary, retromammary.
  • Annotation: Standardized reporting includes:
    • Side (RT/LT)
    • Clock position/Quadrant
    • Distance from nipple (cm)
    • Transducer orientation (e.g., RAD for radial, ARAD for anti-radial)

⭐ In breast US, BI-RADS 4 (Suspicious) and 5 (Highly Suggestive of Malignancy) lesions require biopsy.

MSK US - Joint Ventures

  • Synovitis & Effusion: Detects synovial hypertrophy, increased vascularity (Doppler); anechoic/complex joint fluid.
  • Tendon/Ligament Injury: Assesses tears (partial/full thickness), tendinosis, enthesopathy, sprains.
    • Look for fiber discontinuity, hypoechogenicity, neovascularity.
  • Bursitis: Identifies inflamed bursae, fluid collections, wall thickening.
  • Cartilage Abnormalities: Visualizes erosions, thinning, interface irregularities, osteophytes.

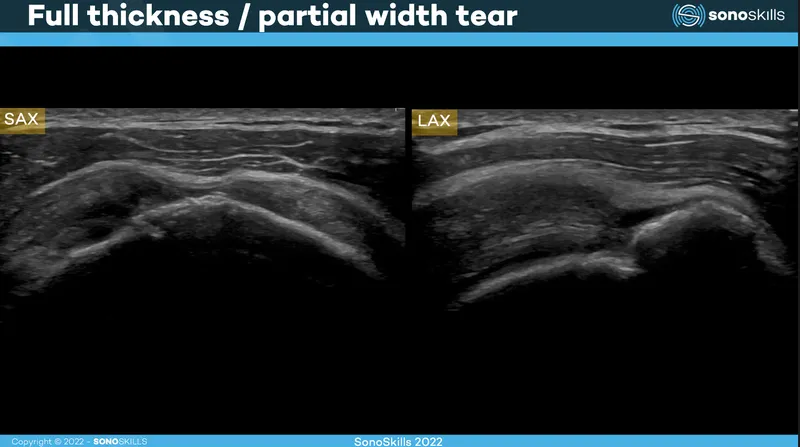

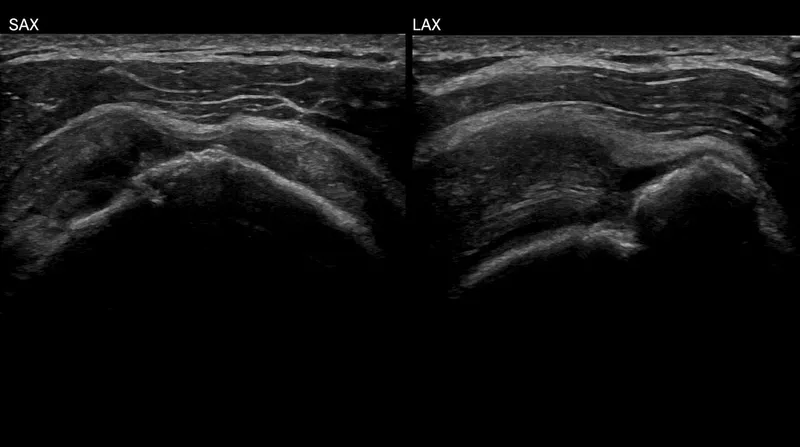

  • Crystal Deposition: Gout (double contour sign), pseudogout (CPPD crystals). Rotator cuff tear ultrasound (SAX and LAX)

⭐ Dynamic assessment is a key advantage of MSK ultrasound, allowing real-time visualization of tendon/ligament function and pathology like impingement.

High‑Yield Points - ⚡ Biggest Takeaways

  • Thyroid nodules: TIRADS for risk. Malignant signs: microcalcifications, taller-than-wide, irregular margins, marked hypoechogenicity.
  • Testicular torsion: Absent/reduced Doppler flow is key, versus hyperemia in epididymo-orchitis.
  • Malignant lymph nodes: Often round, hypoechoic, with lost fatty hilum and abnormal vascularity.
  • Breast USG: BI-RADS for lesions. Malignant: spiculated margins, posterior shadowing, taller-than-wide.
  • MSK USG: Excels for tendon tears, effusions, synovitis. Dynamic assessment is crucial.
  • Always use a high-frequency linear transducer for optimal small part resolution.
