Vascular Access Landmarks - Vessel Ventures

  • Femoral Artery & Vein:
    • Landmark: Mid-inguinal point (ASIS to pubic symphysis). Artery palpated 1-2 cm below inguinal ligament.
    • Access: Needle at 45° to skin, cephalad. Ideal: over femoral head.
    • 📌 NAVEL (Lateral to Medial): Nerve, Artery, Vein, Empty space, Lymphatics.

    ⭐ Femoral artery is lateral to femoral vein (NAVEL: Nerve, Artery, Vein, Empty space, Lymphatics from lateral to medial).

  • Internal Jugular Vein (IJV):
    • Landmark: Sedillot's triangle (SCM heads & clavicle).
    • Access: Apex of triangle, needle caudally to ipsilateral nipple (30-45°). Ultrasound guidance standard.
    • Relation: Carotid artery medial & deep.
  • Subclavian Vein:
    • Landmark: Junction of medial & middle thirds of clavicle.
    • Access: Needle 1 cm inferior/posterior to clavicle, aim for suprasternal notch.
    • ⚠️ High pneumothorax risk.
  • Radial Artery:
    • Landmark: 1-2 cm proximal to radial styloid, lateral to flexor carpi radialis tendon.
    • Pre-procedure: Allen's test for ulnar patency.

Subclavian and axillary vascular access landmarks

Body Cavity Landmarks - Drain Game

  • Core Aim: Safe fluid aspiration/drainage; USG guidance preferred.
  • Thoracentesis (Pleural Effusion)
    • Position: Sitting, leaning forward.
    • Landmarks:
      • Triangle of Safety: Latissimus dorsi (post.), Pectoralis major (ant.), 5th ICS (inf.), Axilla (apex).
      • Or: Mid-scapular/posterior axillary line.

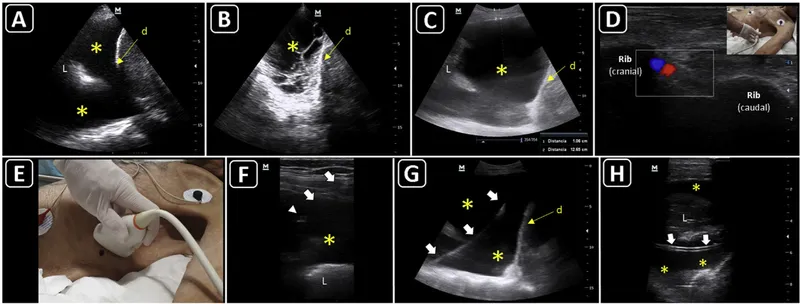

    • Ultrasound guided thoracentesis landmarks and needle path

    ⭐ For thoracentesis, needle insertion is 1-2 ICS below fluid level (mid/post-axillary line), above the rib to avoid neurovascular bundle.

  • Paracentesis (Ascites)
    • Position: Supine.
    • Landmarks:
      • LLQ: 2-4 cm medial & superior to ASIS. (📌 Left = Less caecum risk)
      • Midline: ~2 cm below umbilicus (linea alba); avoid if veins/scars.
    • Technique: Z-track insertion (prevents leak).
  • Key: Asepsis, local anesthesia.

Organ & Spine Landmarks - Point Perfect

  • Liver Access (e.g., Biopsy, Drainage):
    • Mid-axillary line: 8th-11th Intercostal Space (ICS).
    • Subcostal approach: Angle superiorly & posteriorly.
    • Guidance: Ultrasound (US) / Computed Tomography (CT).
  • Native Kidney Biopsy:
    • Position: Prone; Left lower pole preferred.
    • Landmark: 2-3 cm below 12th rib, 8-10 cm lateral to midline.
    • Guidance: US/CT.
  • Spleen Access:
    • Posterior axillary line: 9th-11th ICS.
    • High bleeding risk; consider transarterial route for embolization.
  • Lumbar Puncture (LP):
    • Position: Lateral decubitus or sitting, flexed spine.
    • Needle insertion: L3-L4 or L4-L5 interspace, angled slightly cephalad.

    ⭐ Tuffier's line (joining highest points of iliac crests) usually crosses L4 spinous process or L4-L5 interspace, a key landmark for lumbar puncture.

  • Vertebral Interventions (e.g., Vertebroplasty, Kyphoplasty):
    • Target: Pedicles for transpedicular approach.
    • Guidance: Fluoroscopy/CT.
  • Celiac Plexus Block:
    • Target level: T12-L1, anterior to aorta around celiac artery origin.
    • Approach: Paravertebral at L1 (CT-guided).

High‑Yield Points - ⚡ Biggest Takeaways

  • Celiac trunk typically arises at T12-L1, vital for hepatic interventions.
  • SMA originates ~1 cm below celiac trunk (L1), key for mesenteric procedures.
  • Renal arteries usually branch at L1-L2, important for renal interventions.
  • Aortic bifurcation is commonly at L4-L5, guiding lower limb access.
  • Femoral artery puncture: CFA over femoral head, below inguinal ligament.
  • Internal jugular vein access: Between SCM heads, lateral to carotid artery.
  • IVC filter placement: Ideally below renal veins to preserve renal outflow.
