X-ray Production Indian Medical PG Practice Questions and MCQs
Practice Indian Medical PG questions for X-ray Production. These multiple choice questions (MCQs) cover important concepts and help you prepare for your exams.

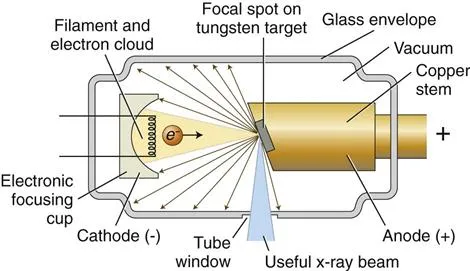

X-ray Production Indian Medical PG Question 1: What is the primary mechanism of heat loss in a modern X-ray tube?
- A. Radiation (Correct Answer)
- B. Evaporation
- C. Conduction
- D. Convection
X-ray Production Explanation: ***Radiation***
- The **primary mechanism** of heat loss in a modern X-ray tube is **radiation** (infrared emission).
- The anode surface reaches extremely high temperatures (>1000°C) during X-ray production, causing it to emit significant **infrared radiation**.
- Modern X-ray tubes use **high-emissivity materials** (tungsten-rhenium alloys) on the anode to maximize radiative heat transfer.
- Since the tube operates in a **vacuum**, radiation is the only effective mechanism for heat dissipation from the anode itself.
*Evaporation*
- **Evaporation** requires a liquid-to-gas phase change, which is not applicable in the solid-state environment of an X-ray tube anode.
- The **vacuum environment** inside the tube prevents any evaporative cooling.
- This mechanism is irrelevant for heat loss from the anode.
*Conduction*
- **Conduction** does transfer heat from the focal spot through the anode body to the rotor bearings.
- However, this is heat transfer *within* the tube components, not the primary mechanism for heat loss *from the tube*.
- Heat conducted through components must ultimately be dissipated by **radiation** (from anode) or **convection** (from housing via cooling oil).
*Convection*
- **Convection** requires fluid movement (liquid or gas), which cannot occur in the **vacuum** inside the X-ray tube envelope.
- While cooling oil outside the tube uses convection to remove heat from the housing, this is secondary heat removal, not the primary mechanism of heat loss from the anode.
- The anode loses heat primarily via **radiation** first, then that heat may be further managed by convection in the cooling system.
X-ray Production Indian Medical PG Question 2: Bragg peak effect is most noticeable in which of the following?
- A. Electron beam
- B. Proton (Correct Answer)
- C. X-ray radiation
- D. Neutron radiation
X-ray Production Explanation: ***Proton***
- The **Bragg peak effect** describes the phenomenon where charged particles, like protons, deposit most of their energy at the end of their range, resulting in a sharply defined dose distribution.
- This characteristic makes **proton therapy** highly advantageous in radiation oncology for targeting tumors precisely while sparing surrounding healthy tissues.
*Electron beam*
- **Electron beams** exhibit a more gradual dose fall-off with depth compared to protons and lack a distinct Bragg peak.
- They are primarily used for treating **superficial tumors** due to their limited penetration depth.
*X-ray radiation*
- **X-rays** are uncharged photons that deposit energy more diffusely along their path, resulting in an exponential attenuation of dose rather than a sharp peak.
- This makes them less precise in deeply seated tumors compared to therapies utilizing the Bragg peak.
*Neutron radiation*
- **Neutrons** are uncharged particles that deposit energy through nuclear reactions, leading to a complex dose distribution.
- Similar to X-rays, they do not exhibit a distinct Bragg peak effect but are used in specialized cancer treatments for their high linear energy transfer.
X-ray Production Indian Medical PG Question 3: Which of the following investigations work on the same principle?
- A. MRI and PET Scan
- B. CT and MRI
- C. CT and X-ray (Correct Answer)
- D. USG and HIDA Scan
X-ray Production Explanation: ***CT and X-ray***
- Both **Computed Tomography (CT)** and **X-ray** imaging utilize **ionizing radiation** to generate images of the body's internal structures.
- They work by passing X-ray beams through the patient, with different tissues absorbing the radiation to varying degrees, which is then detected to create an image.
*MRI and PET Scan*
- **Magnetic Resonance Imaging (MRI)** uses **strong magnetic fields and radio waves** to create detailed images of soft tissues, based on water content.
- **Positron Emission Tomography (PET) scans** use **radioactive tracers** to visualize metabolic activity and blood flow, detecting gamma rays emitted from the patient.
*CT and MRI*
- **CT scans** use **ionizing radiation** (X-rays) to produce cross-sectional images.
- **MRI scans** use **magnetic fields and radio waves** and do not involve ionizing radiation.
*USG and HIDA Scan*
- **Ultrasound (USG)** uses **high-frequency sound waves** to create real-time images of organs and structures.
- **Hepatobiliary Iminodiacetic Acid (HIDA) scans** are a type of nuclear medicine study that uses a **radioactive tracer** to evaluate liver and gallbladder function.
X-ray Production Indian Medical PG Question 4: In medical radiotherapy, a linear accelerator emits
- A. Electrons and positrons
- B. Electrons and photons (Correct Answer)
- C. Neutrons and positrons
- D. Neutrons only
X-ray Production Explanation: ***Electron and photons***
- Medical linear accelerators (linacs) are designed to produce high-energy **electrons** and **X-rays (photons)** for radiotherapy.
- Electrons are accelerated to high speeds and then either used directly for shallow treatments or directed at a heavy metal target to generate X-rays.
*Electron and positrons*
- While electrons are emitted, **positrons** are generally not produced by standard medical linacs used for radiation therapy, as they are anti-particles of electrons.
- Positrons are primarily used in **Positron Emission Tomography (PET)** imaging, not for therapeutic radiation.
*Neutrons and positrons*
- Standard medical linacs do not emit **neutrons**; neutrons are byproducts of very high-energy photon interactions (above 10-15 MeV) but are not intentionally emitted.
- As mentioned, **positrons** are not a primary emission for radiotherapy.
*Neutrons only*
- **Neutron therapy** utilizes specialized neutron generators or cyclotrons, not typical medical linacs, to produce neutrons for treating certain cancers.
- Medical linacs are not designed to solely emit neutrons as their primary therapeutic radiation.
X-ray Production Indian Medical PG Question 5: Soft X-rays are typically defined by their wavelength. Which of the following best describes soft X-rays?
- A. Grenz rays (low-energy X-rays for superficial conditions)
- B. Secondary radiation (from primary radiation interaction)
- C. Electromagnetic radiation with wavelengths between 10 Å and 100 Å (Correct Answer)
- D. Stray radiation (unintended exposure)
X-ray Production Explanation: ***Electromagnetic radiation with wavelengths between 10 Å and 100 Å***
- **Soft X-rays** are defined by their relatively longer wavelengths and lower photon energies within the X-ray spectrum.
- This wavelength range (10 Å to 100 Å) corresponds to energies typically used in fields like **spectroscopy** and **materials science**, distinguishing them from harder X-rays or UV light.
*Grenz rays (low-energy X-rays for superficial conditions)*
- **Grenz rays** are a specific category of very low-energy X-rays used for superficial dermatological treatments, falling within the broader soft X-ray spectrum but not defining it.
- While Grenz rays are indeed soft X-rays, this option only describes a specific application rather than the general physical definition based on wavelength.
*Secondary radiation (from primary radiation interaction)*
- **Secondary radiation** refers to radiation emitted when primary radiation interacts with matter, such as scatter radiation or characteristic X-rays.
- This term describes the *origin* of the radiation rather than its intrinsic physical properties like wavelength or energy.
*Stray radiation (unintended exposure)*
- **Stray radiation** is defined by its unintended path and potential for unwanted exposure, indicating a safety concern in radiological procedures.
- This term describes the *control* and *direction* of radiation, not its physical characteristics like wavelength or energy.
X-ray Production Indian Medical PG Question 6: What is the term for the energy required to change a substance from solid to liquid?
- A. Latent heat of fusion (Correct Answer)
- B. Sublimation
- C. The heat of diffusion
- D. The heat of vaporization
X-ray Production Explanation: ***Latent heat of fusion***
- This term specifically refers to the amount of **thermal energy** absorbed or released during a **phase change** from solid to liquid (melting) or liquid to solid (freezing) **without a change in temperature**.
- This energy is used to overcome the **intermolecular forces** holding the solid structure together, allowing the molecules to move more freely as a liquid.
*Sublimation*
- **Sublimation** is a phase transition where a substance changes directly from a **solid to a gas** without passing through the liquid phase.
- This process involves a different amount of energy and a different conversion pathway than melting.
*The heat of diffusion*
- The **heat of diffusion** is not a standard thermodynamic term for phase changes; diffusion refers to the net movement of particles from an area of higher concentration to an area of lower concentration.
- While diffusion can involve energy changes, it does not describe the **energy required for a solid-to-liquid phase transition**.
*The heat of vaporization*
- The **heat of vaporization** is the energy required to change a substance from a **liquid to a gas** (boiling or evaporation) without a change in temperature.
- This energy is distinct from the energy needed for a **solid-to-liquid transition**.
X-ray Production Indian Medical PG Question 7: In the context of medical imaging, which parameter of electromagnetic radiation remains constant?
- A. Intensity
- B. Wavelength
- C. Velocity
- D. Frequency (Correct Answer)
X-ray Production Explanation: ***Frequency***
- The **frequency** of electromagnetic radiation is an intrinsic property determined by the **source** and remains constant regardless of the medium it travels through.
- Energy of a photon is directly proportional to its frequency (E=hν), therefore, **energy** also remains constant.
*Intensity*
- **Intensity** is the power per unit area and is dependent on the **amplitude** of the wave, which can change as the radiation interacts with matter.
- As electromagnetic radiation passes through different media or encounters obstacles, its intensity often **decreases** due to absorption or scattering.
*Wavelength*
- The **wavelength** of electromagnetic radiation changes as it passes from one medium to another because the **velocity** of the wave changes.
- This change in wavelength is described by the refractive index of the medium, while the **frequency** remains constant.
*Velocity*
- The **velocity** of electromagnetic radiation is maximum in a **vacuum** (speed of light, c) and **decreases** as it passes through a medium.
- This change in velocity is due to interactions with the atoms and molecules of the medium, affecting how quickly the wave propagates.
X-ray Production Indian Medical PG Question 8: Which of the following typically results in the maximum radiation exposure?
- A. Chest X ray
- B. IV pyelography
- C. PET CT (Correct Answer)
- D. Barium Enema
- E. X-ray abdomen
X-ray Production Explanation: ***PET CT***
- **PET CT (Positron Emission Tomography-Computed Tomography)** combines the radiation from both a PET scan (using radiotracers like FDG) and a CT scan, resulting in the highest typical radiation exposure among the listed options.
- The integration of functional (PET) and anatomical (CT) imaging, while providing comprehensive diagnostic information, significantly increases the total absorbed dose (~20-30 mSv).
*Chest X-ray*
- A **chest X-ray** involves a very low dose of radiation (~0.1 mSv), making it one of the imaging modalities with the least radiation exposure.
- Due to its low dose and widespread use, the benefits of chest X-rays in diagnosing pulmonary and cardiac conditions far outweigh the minimal radiation risk.
*IV pyelography*
- **Intravenous pyelography (IVP)**, or intravenous urography, uses X-rays and contrast dye to visualize the urinary tract, delivering a moderate radiation dose (~3-5 mSv).
- While higher than a standard X-ray, its dose is significantly lower than that of complex combined imaging like PET-CT.
*Barium Enema*
- A **barium enema** involves multiple X-ray images of the large intestine after administering barium contrast, leading to a moderate to high radiation dose (~8-15 mSv).
- The series of exposures required to adequately visualize the entire colon contributes to a higher cumulative dose compared to single-shot X-rays.
X-ray Production Indian Medical PG Question 9: To obtain adequate diagnostic imaging in a morbidly obese patient, what modification to X-ray technique is most important?
- A. Increase MAS
- B. Decrease KVP
- C. Increase KVP (Correct Answer)
- D. Decrease MAS
X-ray Production Explanation: ***Increase KVP***
- Increasing the **kilovoltage peak (KVP)** is essential for imaging morbidly obese patients because it increases the **penetrating power** of the X-ray beam, allowing adequate transmission through thick body tissues.
- Higher KVP (typically 90-120 kVp range) ensures the X-ray beam can penetrate increased soft tissue thickness and reach the image receptor with sufficient intensity.
- While higher KVP produces **longer scale (lower) contrast**, it is necessary for adequate **penetration** in obese patients - without sufficient KVP, the image would be underexposed and non-diagnostic.
- In practice, both KVP and MAS are increased for obese patients, but **KVP increase is more critical** for penetration.
*Increase MAS*
- Increasing **milliampere-seconds (MAS)** increases the quantity of X-ray photons and image density (brightness), which is also helpful for obese patients.
- However, MAS alone without adequate KVP cannot solve the penetration problem - the photons would still be too low energy to penetrate thick tissues effectively.
- MAS increase without KVP increase would result in high patient dose with poor image quality.
*Decrease KVP*
- Decreasing KVP reduces **beam penetration**, which would be catastrophic for imaging an obese patient.
- The X-ray beam would be absorbed by superficial tissues, resulting in a severely **underexposed** and non-diagnostic image.
- While lower KVP produces higher contrast in theory, it is completely inappropriate for thick body parts.
*Decrease MAS*
- Decreasing MAS reduces the number of X-ray photons, resulting in an **underexposed, lighter** image.
- This would make it even more difficult to obtain adequate imaging through increased body mass, resulting in a non-diagnostic radiograph with excessive quantum mottle.
X-ray Production Indian Medical PG Question 10: A disease associated with prolonged exposure to silica dust during glass production, characterized by classic X-ray findings of calcified lymph nodes and pleural involvement, is most likely what disease?
- A. Byssinosis
- B. Berylliosis
- C. Silicosis (Correct Answer)
- D. Anthracosis
X-ray Production Explanation: ***Silicosis*** [1][2]
- Prolonged exposure to **silica dust** during glass production leads to characteristic **X-ray findings** of calcified lymph nodes and an "eggshell" pattern.
- Associated with **pleural involvement** resulting in fibrous plaques and a greater risk of developing **tuberculosis** [3].
*Anthracosis* [2]
- Caused by exposure to **coal dust**, not silica, and primarily affects the **upper lobes** of the lungs.
- X-ray findings do not show the classic "eggshell" pattern; they are primarily concerned with **black lung disease** changes.
*Berylliosis* [2]
- Results from exposure to **beryllium dust**, typically presenting with **granulomatous lung disease** rather than an eggshell pattern.
- Less common and does not show significant pleural changes as seen in silicosis.
*Byssinosis*
- Associated with the inhalation of **cotton dust**, leading to respiratory issues, but lacks the calcified nodules characteristic of silicosis.
- Symptoms often improve over a weekend, differentiating it from silicosis.
**References:**
[1] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Lung, p. 697.
[2] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Lung, p. 695.
[3] Kumar V, Abbas AK, et al.. Robbins and Cotran Pathologic Basis of Disease. 9th ed. The Lung, pp. 697-698.
