Radiobiology Fundamentals - Radiation's Tiny Targets

  • Primary Target: DNA.

  • Damage Mechanisms:

    • Direct: Radiation ionizes DNA. High-LET (alpha, neutrons).
    • Indirect: Radiation creates water free radicals (e.g., $OH^{\cdot}$) from $H_2O$ damaging DNA. Low-LET (X-rays, gamma).
  • DNA Lesions: Base damage, SSBs, DSBs. DSBs most lethal.

  • Oxygen Effect: $O_2$ enhances damage (OER ~2.5-3.5 for X-rays).

  • Cell Cycle: Sensitive: M, G2. Least: late S. (📌 G₂/M > G₁ > $S_e$ > $S_l$) Radiation DNA Damage: Direct vs Indirect

⭐ Indirect action via water radiolysis ($OH^{\cdot}$ radicals) is dominant for DNA damage by X-rays & gamma rays.

Radiobiology Fundamentals - Survive, Repair, or Perish

  • Cellular Response: DNA damage is primary lesion, dictating cell fate.
    • Repair: Sublethal Damage (SLD), Potentially Lethal Damage (PLD).
    • Death: Apoptosis (programmed), Mitotic Catastrophe (replication-linked).
  • Cell Survival: Linear-Quadratic Model $S = e^{-(\alpha D + \beta D^2)}$ quantifies reproductive survival.
    • $\alpha$ component: irreparable, single-hit lethal events.
    • $\beta$ component: repairable, multi-hit sublethal events.
  • Cell Cycle Sensitivity: 📌 "Go Sally Go, Make Children!" (G1→S→G2→M).

    ⭐ Cells in M (Mitosis) and G2 phases are generally the most radiosensitive, while cells in the late S (synthesis) phase are the most radioresistant.

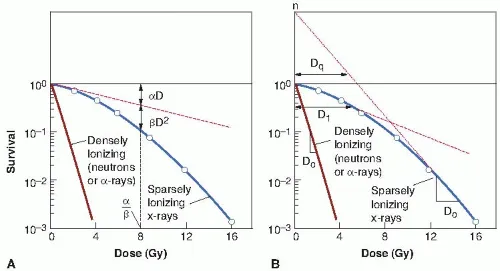

Cell survival curves: LQ and Multitarget models

Radiobiology Fundamentals - Dose Makes the Poison

  • Radiation damage: Direct (DNA target) & Indirect (free radicals from H₂O).
  • Cell cycle sensitivity: M & G2 phases most sensitive; S phase most resistant.
  • Deterministic Effects (Non-Stochastic):
    • Occur above a threshold dose.
    • Severity increases with dose ↑.
    • Examples: Skin erythema, sterility, organ failure.
    • LD50/60 (human, whole body): ~3-4 Gy.
  • Stochastic Effects:
    • No threshold (probabilistic).
    • Probability increases with dose ↑; severity is independent of dose.
    • Examples: Carcinogenesis, heritable genetic effects. Stochastic vs. Deterministic Radiation Effects Dose Curves

⭐ Cataract formation is a classic example of a deterministic (non-stochastic) effect, with a threshold dose of approximately 2 Gy for acute exposure or 5 Gy for prolonged/fractionated exposure to the lens of the eye.

Radiobiology Fundamentals - Dialing Radiation's Impact

  • Linear Energy Transfer (LET): Energy deposited per unit path length. Low LET (X-rays, γ-rays) → indirect damage (free radicals). High LET (α-particles, neutrons) → direct damage.
  • Relative Biological Effectiveness (RBE): Ratio of doses for same biological effect ($RBE = D_{250kVp} / D_{test}$). RBE ↑ with ↑ LET (to ~100 keV/µm).
  • Oxygen Effect: O2 sensitizes cells to radiation, especially low LET.

    ⭐ The Oxygen Enhancement Ratio (OER) for low-LET radiation (X-rays, gamma rays) is typically 2.5 to 3.5, indicating that hypoxic cells are significantly more radioresistant.

  • Cell Cycle Sensitivity: Most sensitive: M & G2 phases. Most resistant: Late S phase.
  • Law of Bergonié & Tribondeau: Radiosensitivity is proportional to mitotic activity & inversely to differentiation.

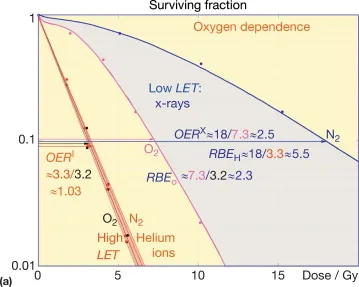

  • 4 R's of Radiobiology (Fractionation): Repair, Reassortment, Repopulation, Reoxygenation. 📌 RRRR. OER and RBE for Low and High LET Radiation

Radiobiology Fundamentals - Radiotherapy's Pillars

  • Therapeutic Ratio: Goal is ↑ Tumor Control Probability (TCP) & ↓ Normal Tissue Complication Probability (NTCP).
  • The 5 Rs of Radiobiology (📌 RRRRR):
    • Repair: Of sublethal damage in normal & tumor cells.
    • Repopulation: Cell division between fractions.
    • Redistribution: Cells progress to sensitive cycle phases (G2/M).
    • Reoxygenation: Hypoxic tumor cells become oxygenated, ↑sensitive.
    • Radiosensitivity: Intrinsic differences between cells. Cell cycle sensitivity to radiation

⭐ The 5 Rs of Radiobiology (Repair, Repopulation, Redistribution, Reoxygenation, and Radiosensitivity) explain the biological basis for the efficacy of fractionated radiotherapy.

High-Yield Points - ⚡ Biggest Takeaways

  • Indirect action (via water radiolysis) is dominant for X-rays/gamma rays; direct action is significant for high-LET.
  • Cellular radiosensitivity is highest in M/G2 phases; lowest (most resistant) in late S phase.
  • Oxygen effect (OER ~2.5-3.5 for low-LET) enhances damage; High-LET radiation has ↑RBE, ↓OER.
  • Deterministic effects have a threshold dose, severity is dose-dependent; Stochastic effects are probabilistic, no proven threshold.
  • The 4 R's of Radiobiology: Repair, Reoxygenation, Repopulation, Redistribution explain fractionated radiotherapy success.
