Radiation Measurement Units

Radiation Measurement Units - Measure Matters!

• Activity: Decay rate. SI: Becquerel (Bq); Traditional: Curie (Ci).
• Exposure: Ionization in air (X/γ rays). SI: Coulomb/kilogram (C/kg); Traditional: Roentgen (R).
• Absorbed Dose (D): Energy absorbed per unit mass. SI: Gray (Gy); Traditional: rad.
• Equivalent Dose (H): Biological effect, accounts for radiation type. $H = D \times W_R$ ($W_R$: radiation weighting factor). SI: Sievert (Sv); Traditional: rem.
• Effective Dose (E): Overall risk, accounts for tissue sensitivity. $E = \sum (H_T \times W_T)$ ($W_T$: tissue weighting factor). SI: Sievert (Sv); Traditional: rem.

Radioactivity Units - How Active?

• Radioactivity: Spontaneous decay of unstable atomic nuclei, emitting radiation.
• Units:
  • Becquerel (Bq): SI unit.
    • $1 \text{ Bq} = 1 \text{ disintegration per second (dps)}$.
  • Curie (Ci): Older unit.
    • $1 \text{ Ci} = $ $3.7 \times 10^{10}$ $\text{ dps}$ (activity of 1g Ra-226).
• Key Conversion:
  • $1 \text{ Ci} = $ $3.7 \times 10^{10}$ $\text{ Bq}$.
  • $1 \text{ mCi} = $ $37$ $\text{ MBq}$.

  ⭐ The conversion $1 \text{ Ci} = $ $3.7 \times 10^{10}$ $\text{ Bq}$ (or $1 \text{ mCi} = $ $37$ $\text{ MBq}$) is frequently tested.

• 📌 Mnemonic: 'Curie is Curious and Big, Becquerel is Basic and Small.'
• Specific Activity: Activity per unit mass (e.g., Bq/g, Ci/g).

oka

Exposure & Absorbed Dose - Zap Zone!

• Exposure (X): Measures the ability of X-rays and gamma rays to ionize air.

  • Defined as the total charge of ions of one sign produced in air when all electrons liberated by photons in a volume element of air are completely stopped in air, divided by the mass of air in that volume element.
  • Units: Roentgen (R) and Coulomb/kilogram (C/kg).
  • $1 \text{ R} = 2.58 \times 10^{-4} \text{ C/kg}$ of air.

• Absorbed Dose (D): Represents the energy absorbed per unit mass from any ionizing radiation in any material.

  • Units: Gray (Gy) and rad.
  • $1 \text{ Gy} = 1 \text{ Joule/kilogram (J/kg)}$.
  • $1 \text{ rad} = 0.01 \text{ Gy} = 0.01 \text{ J/kg}$.
  • Key conversion: $1 \text{ Gy} = 100 \text{ rad}$.

• Relationship (f-factor):

  • The f-factor (Roentgen-to-rad conversion factor) relates exposure (X) in air to absorbed dose (D) in a specific material.
  • $D_{material} = f \times X_{air}$.
  • The f-factor varies with photon energy and the atomic composition of the material.

⭐ For practical purposes in soft tissue, an exposure of 1 Roentgen (R) results in an absorbed dose of approximately 1 rad (or $0.01 \text{ Gy}$).

Equivalent & Effective Dose - Body Blows!

• Equivalent Dose (H): Adjusts absorbed dose (D) for biological harm of different radiation types.
  • Formula: $H = D \times W_R$.
  • Units: Sievert (Sv); $1 \text{ Sv} = 100 \text{ rem}$.
• Radiation Weighting Factors ($W_R$):
  • X-rays, γ-rays, β-particles: $W_R=1$.
  • α-particles: $W_R=\textbf{20}$ (high biological damage).
  • Neutrons: Variable (energy-dependent).

⭐ Alpha particles have a Radiation Weighting Factor (WR) of 20, making them 20x more damaging than X-rays for the same absorbed dose.

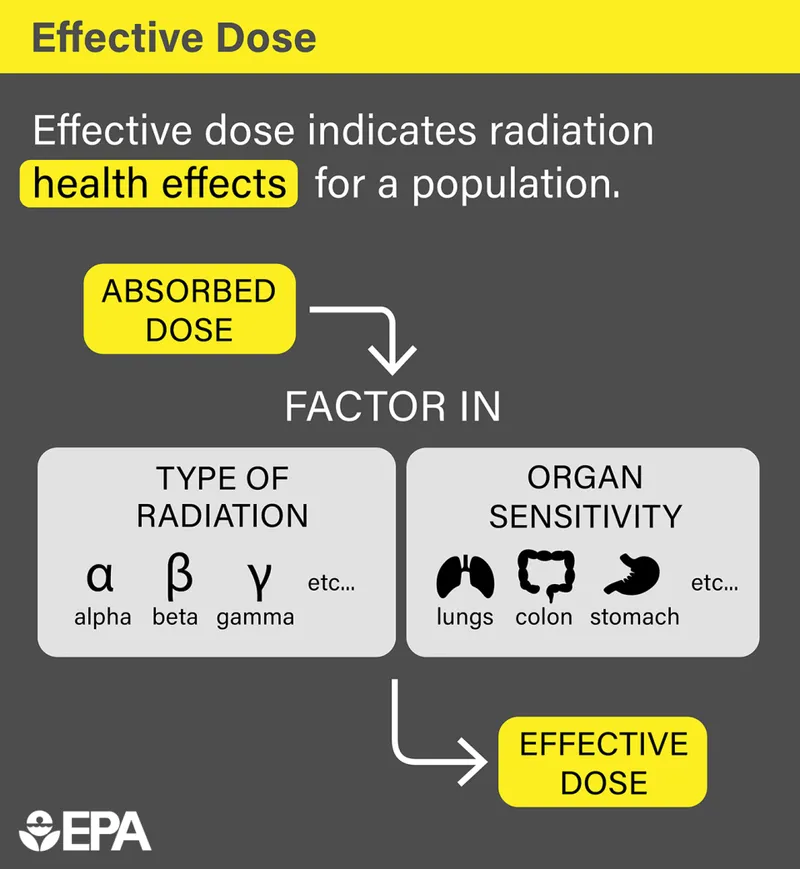

• Effective Dose (E): Sums equivalent doses in tissues ($H_T$), weighted by tissue sensitivity ($W_T$), for overall body risk.
  • Formula: $E = \sum(H_T \times W_T)$.
  • $W_T$: Tissue Weighting Factor (e.g., gonads high, bone surface low).
  • Unit: Sievert (Sv).

High‑Yield Points - ⚡ Biggest Takeaways

• Roentgen (R): Measures exposure in air (X-rays & gamma rays only).
• Gray (Gy): Unit of absorbed dose (energy/mass); 1 Gy = 100 rad.
• Sievert (Sv): Unit of equivalent & effective dose (biological effect); 1 Sv = 100 rem.
• Equivalent Dose: Absorbed dose × W_R (Radiation Weighting Factor); W_R for X/gamma/beta = 1, alpha = 20.
• Effective Dose: Sum of (Equivalent Dose × W_T) (Tissue Weighting Factor); reflects overall cancer risk.
• Becquerel (Bq): Unit of activity (decay rate); 1 Ci = 3.7 × 10¹⁰ Bq.
• KERMA: Kinetic Energy Released per MAss; measured in Gy.
