Radiation Dose Optimization

On this page

Core Principles - Dose Dodge Dance

  • Justification:
    • Benefit of procedure must outweigh radiation risk.
    • Ensure net positive benefit before any exposure.
  • Optimisation: 📌 ALARA (As Low As Reasonably Achievable)
    • Keep all exposures minimal, considering socio-economic factors.
    • Methods: ↓Time, ↑Distance, appropriate Shielding.
  • Dose Limitation:
    • Strict adherence to dose limits for occupational & public exposure.
    • These limits do not apply to patient's medical exposure.

⭐ Dose limits are for occupational/public protection, not for patients undergoing medical exposure; here, justification and optimisation (ALARA) are paramount.

Dose Metrics & Limits - Number Game

  • Absorbed Dose (D): Energy deposited per unit mass (Gray, Gy).
  • Equivalent Dose ($H_T$): Absorbed dose adjusted for radiation type. $H_T = \sum_R W_R \cdot D_{T,R}$ (Sievert, Sv). $W_R$ = Radiation Weighting Factor.
  • Effective Dose (E): Equivalent dose adjusted for tissue sensitivity. $E = \sum_T W_T \cdot H_T$ (Sv). $W_T$ = Tissue Weighting Factor.
  • Diagnostic Reference Levels (DRLs): Standardized dose levels for common procedures; investigate if consistently exceeded.

Annual Dose Limits (ICRP):

CategoryEffective Dose (Annual)Lens of Eye (Annual)Skin (1 cm²) (Annual)Hands/Feet (Annual)
Occupational20 mSv (avg over 5 yrs, max 50 mSv/yr)20 mSv500 mSv500 mSv
Public1 mSv15 mSv50 mSvN/A

Patient Dose Factors - Dialing It Down

  • Exposure Parameters:
    • kVp: Optimal selection; higher kVp can ↓dose with mAs reduction.
    • mAs (mA × time): Directly impacts dose. Use lowest diagnostic mAs; ↓time.
  • Distance (Source-to-Skin): Maximize. Dose $I \propto 1/d^2$.

    ⭐ Doubling distance from X-ray source reduces exposure to 1/4 (Inverse Square Law).

  • Filtration: Added filters (Al) harden beam, ↓skin dose.
  • Collimation: Restrict beam to interest area. ↓Irradiated volume, ↓scatter, ↓dose.
  • Shielding: Lead shields (gonadal, thyroid) for organs outside primary beam.
  • Patient Size: Adjust technique; larger patients need ↑exposure.
  • Grids: For parts >10-12 cm. ↓Scatter, ↑contrast, but ↑dose (2-5x).
  • Detector Efficiency (DQE): Higher DQE = ↓radiation needed.

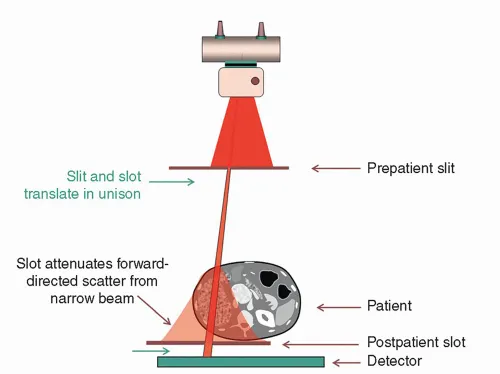

X-ray beam collimation and scatter reductionoka

Modality-Specific Optimisation - Smart Scan Tactics

Tailor strategies per imaging technique to minimize dose, ensuring diagnostic quality.

)

ModalityKey Optimisation Tactics
General Radiography↑kVp/↓mAs techniques, Automatic Exposure Control (AEC), appropriate Source-to-Image Distance (SID), collimation.
FluoroscopyPulsed fluoroscopy, Last Image Hold (LIH), virtual collimation, ↓frame rate, minimize magnification mode use.
CT ScanAutomated Exposure Control/Tube Current Modulation (AEC/TCM), iterative reconstruction algorithms, optimize scan range & pitch, pediatric-specific protocols. Bismuth shields (controversial).
MammographyAppropriate breast compression, optimal beam quality (target/filter combination, e.g., Mo/Mo, Mo/Rh, W/Rh).
Nuclear MedicineJustify administered activity (ALARA), pediatric dose reduction (e.g., EANM formula or $D_{ped} = D_{adult} \times \frac{Weight_{ped}}{70}$), select radiopharmaceutical with optimal $T_{eff}$.

High‑Yield Points - ⚡ Biggest Takeaways

  • ALARA (As Low As Reasonably Achievable) is the guiding principle.
  • Justification: Ensure medical benefit outweighs radiation risk.
  • Optimization: Lowest dose for diagnostic images, using Dose Reference Levels (DRLs).
  • Time, Distance, Shielding: Cardinal principles for staff and patient protection.
  • Collimation: Restrict beam to area of interest to ↓ dose and scatter.
  • High kVp, low mAs techniques generally ↓ patient dose.
  • Iterative reconstruction in CT significantly ↓ dose compared to filtered back projection_._

Practice Questions: Radiation Dose Optimization

Test your understanding with these related questions

Bragg peak effect is most noticeable in which of the following?

1 of 5

Flashcards: Radiation Dose Optimization

1/10

Alpha and beta rays are _____ type of ionizing radiation

TAP TO REVEAL ANSWER

Alpha and beta rays are _____ type of ionizing radiation

particulate
