Interaction of Radiation with Matter

Introduction & Basics - Matter's Response

• Radiation: Energy transmitted as waves or particles.
• Matter: Anything with mass and volume, made of atoms.
• Types of Radiation:
  • Electromagnetic (EM): X-rays, gamma rays (photons, no mass).
  • Particulate: Electrons, protons, neutrons, alpha particles (have mass).
• Fundamental Processes:
  • Excitation: Electron absorbs energy, moves to higher energy shell.
  • Ionization: Radiation ejects electron from atom, creating an ion pair.

⭐ Differential attenuation of X-rays by various tissues is the fundamental principle behind radiographic image formation.

Low-Energy Photon Interactions - Photon Dance

Key low-energy X-ray interactions for imaging.

• PE Formula: $PE \propto Z^3/E^3$

⭐ The Photoelectric Effect is the primary interaction responsible for subject contrast in diagnostic radiography, especially with contrast media and bone.

High-Energy Photon Interactions - Photon Clash

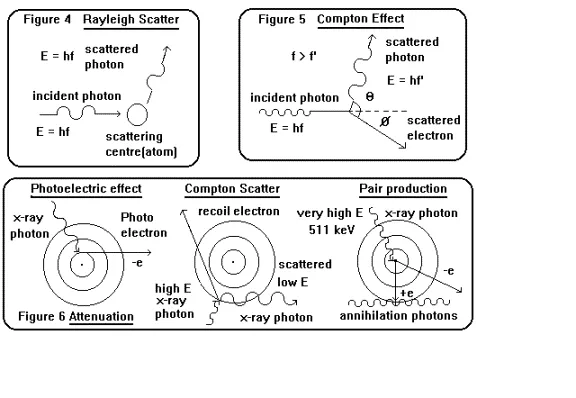

• Compton Scattering: Photon interacts with an outer shell electron, ejecting a recoil electron and scattering the photon with reduced energy.

  • 📌 "Compton Scatters, Independent of Zatter (matter's Z)" (largely independent of atomic number Z).
  • Dominant in soft tissue at diagnostic energies (approx. 25 keV - 25 MeV).
  • Products: Scattered photon, recoil electron.

• Pair Production: High-energy photon (E > 1.022 MeV) interacts with the nucleus's field, converting into an electron-positron pair.

  • Energy threshold: $E_{threshold} = 1.022 \text{ MeV}$.
  • Positron annihilates with an electron, producing two $0.511 \text{ MeV}$ photons ($E_{annihilation} = 2 \times 0.511 \text{ MeV}$).
  • Increases with photon energy and significantly with Z (approx. $Z^2$).
  • Products: Electron-positron pair, then two annihilation photons.

• Photodisintegration: Very high-energy photon (typically E > 7-10 MeV) is absorbed by the nucleus, ejecting a nuclear particle (e.g., neutron).

  • Relevant at very high energies (radiotherapy).

Comparison: Compton vs. Pair Production

Attenuation Principles - Beam Reduction

• Attenuation: ↓ radiation intensity in matter. $I = I_0 e^{-\mu x}$.
• Linear Att. Coeff. (µ): Intensity ↓ per unit thickness (cm⁻¹).
• Mass Att. Coeff. (µ/ρ): µ per density (cm²/g); density-independent.

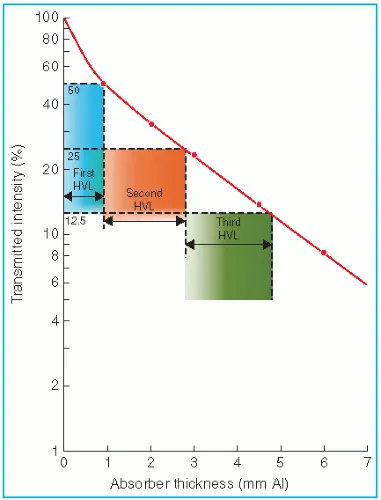

• Half Value Layer (HVL): Thickness for 50% intensity ↓. $HVL = \ln(2)/\mu \approx 0.693/\mu$.

  ⭐ The Half Value Layer (HVL) is a key indicator of X-ray beam quality or penetrability; a higher HVL means a more penetrating beam.

• Tenth Value Layer (TVL): Thickness for 90% intensity ↓. $TVL = \ln(10)/\mu \approx 2.303/\mu$.
• Factors for µ: ↑Energy → ↓µ (mostly); ↑Density (ρ) → ↑µ; ↑Atomic No. (Z) → ↑µ.
• Beam Hardening: Low-energy photon loss; ↑ avg. beam energy & penetrability.

oka

Particulate Interactions - Charged Paths

• Charged particles ($\alpha$, $\beta^-$, $\beta^+$) cause ionization & excitation.
• $\beta^-$ & $\beta^+$ also produce Bremsstrahlung (X-rays) in high-Z materials.
• Range: Particle's path length. LET: Energy deposited/unit distance.
• Alpha ($\alpha$): High mass, charge +2; Short range, $\uparrow$LET.
• Beta ($\beta^-$/$\beta^+$): Low mass, charge $\pm\mathbf{1}$; Longer range, $\downarrow$LET.

⭐ Bremsstrahlung production is significant for high-energy electrons interacting with high-Z materials, forming the basis of X-ray tube operation.

High-Yield Points - ⚡ Biggest Takeaways

• Photoelectric effect: Dominant at low energies & high-Z materials; key for image contrast.
• Compton scatter: Predominant at diagnostic energies in soft tissue; main source of scatter & staff dose.
• Pair production: Requires photon energy >1.02 MeV; basis for PET imaging.
• LET: High for alpha particles, low for X-rays/gamma rays; measures local energy deposition.
• Attenuation: Beam intensity reduction by absorption & scatter.
• HVL: Material thickness reducing intensity by 50%; measures beam penetrability.
