Treatment Planning Process

On this page

Initial Steps - Patient Prep & Imaging Powwow

  • Patient Assessment & Consent:
    • Comprehensive clinical evaluation: history, physical exam, performance status (e.g., ECOG, Karnofsky).
    • Informed consent obtained: discussion of procedure, benefits, risks, alternatives.
  • Immobilization & Positioning:
    • Goal: Ensure reproducible patient setup for daily treatment accuracy.
    • Devices: Thermoplastic masks, vacuum cushions (Vac-Lok™), alpha cradles, bite blocks.
    • Fiducial markers or tattoos may be used for alignment.
  • Simulation (Sim) Imaging:
    • CT simulation is the primary imaging modality.
      • Provides electron density data for dose calculation.
      • Scan parameters: appropriate slice thickness (e.g., 2-3 mm), scan range covers target volume + margins.
      • IV contrast may be used to delineate structures.
      • 4DCT for targets with respiratory motion (e.g., lung, liver).
    • Other imaging: MRI (superior soft tissue contrast), PET-CT (metabolic activity) often fused with CT sim data.

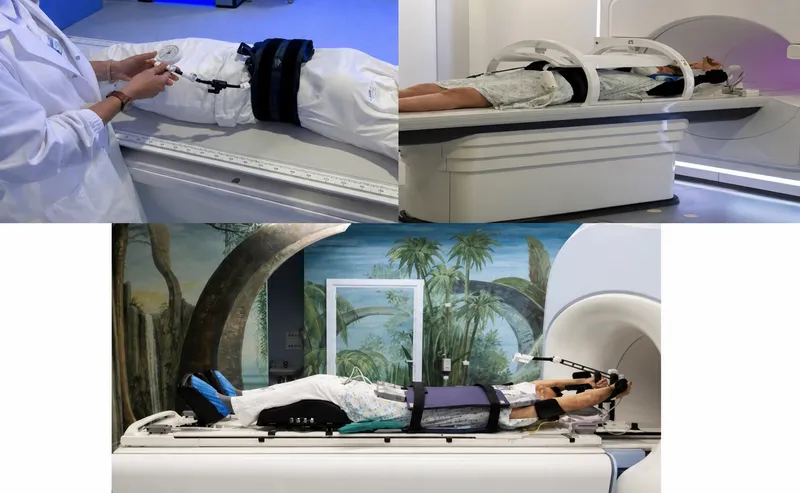

Patient setup for radiation therapy simulation

⭐ CT simulation is the gold standard for initial treatment planning as it provides crucial electron density information required for accurate dose calculation by the treatment planning system (TPS).

Volume Delineation - Target Lock & Organ Guard

  • GTV (Gross Tumor Volume): Macroscopic tumor; visible, palpable, or imageable.
  • CTV (Clinical Target Volume): GTV + margin for subclinical microscopic disease.
    • Anatomical-clinical concept.
  • ITV (Internal Target Volume): CTV + internal margin (IM) for internal geometric variations (e.g., respiration).
  • PTV (Planning Target Volume): CTV or ITV + setup margin (SM).
    • Accounts for patient positioning/alignment uncertainties.
    • Used for plan optimization & dose prescription.
  • OAR (Organs at Risk): Normal tissues whose radiation sensitivity limits prescribed dose.
  • PRV (Planning OAR Volume): OAR + margin for OAR position/delineation uncertainties.

Radiotherapy Target Volumes and Organs at Risk

⭐ The PTV is the volume for which the radiation plan is designed to deliver the prescribed dose, encompassing all uncertainties.

Plan Design - Beam Tactics & Dose Artistry

  • Beams & Modifiers:
    • Energy/Type: kV (superficial), MV (deep photons), MeV (electrons, superficial), Protons (Bragg peak, distal spare).
    • Modifiers: Wedges (tilt isodose), Bolus (↑surface dose, e.g., chest wall), Compensators (custom).
  • Techniques & Arrangement:
    • 3D-CRT: Conformal shaping.
    • IMRT: Inverse planning, ↑conformity, OAR sparing.
    • VMAT: Rotational IMRT.
    • SBRT/SRS: Hypofractionated (e.g., 1-5 fx), ablative doses.
    • Angles: Coplanar/Non-coplanar.
  • Dose Calculation:
    • Algorithms: Pencil Beam (fast, less accurate), Convolution/Superposition (balanced), Monte Carlo (gold standard).
  • Plan Evaluation:
    • DVH: PTV/OAR dose-volume.
    • Indices: CI (Conformity Index), HI (Homogeneity Index; $HI = (D_{2%} - D_{98%}) / D_p$).
    • OAR tolerance (QUANTEC).

DVH comparison of RA-2 ARCs and 3DCRT plans

⭐ IMRT enables "dose painting": delivering varying doses to different target subvolumes simultaneously.

Final Checks & Go-Live - QA & Treatment Launch

  • Pre-Treatment Quality Assurance (QA): Critical for safety and accuracy.
    • Independent Calculation/Plan Check: By a second qualified physicist. Verifies MUs, dose, constraints.
    • Patient-Specific QA (PSQA): For complex plans (IMRT, VMAT, SRS/SBRT).
      • Phantom measurements validate dose distribution.
      • Common tolerance: ±3% dose difference, 3 mm Distance-to-Agreement (DTA).
    • Machine QA: Ensures linac performance. Includes daily (output, lasers, door interlock, ODI), monthly, and annual checks.
  • Treatment Launch (First Fraction):
    • Dry Run: Optional; simulates setup and delivery without beam.
    • Patient Identification & Setup: Verify patient ID, site, immobilization, alignment to lasers/tattoos.
    • "Time Out": Final verification by entire treatment team before beam-on (Correct Patient, Site, Plan, Dose).
    • Image-Guided Radiotherapy (IGRT): Pre-treatment imaging (e.g., CBCT, kV/MV EPID) for position verification and correction.
    • Record & Verify (R&V) system confirmation.

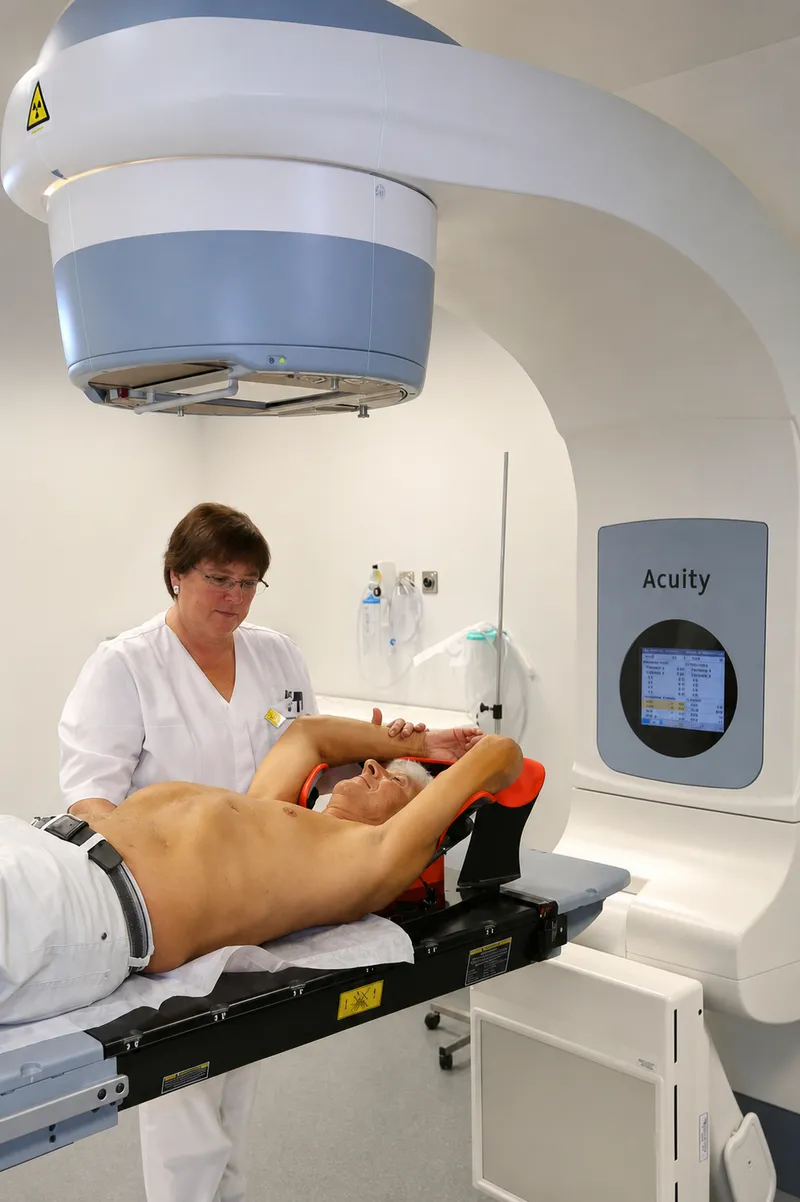

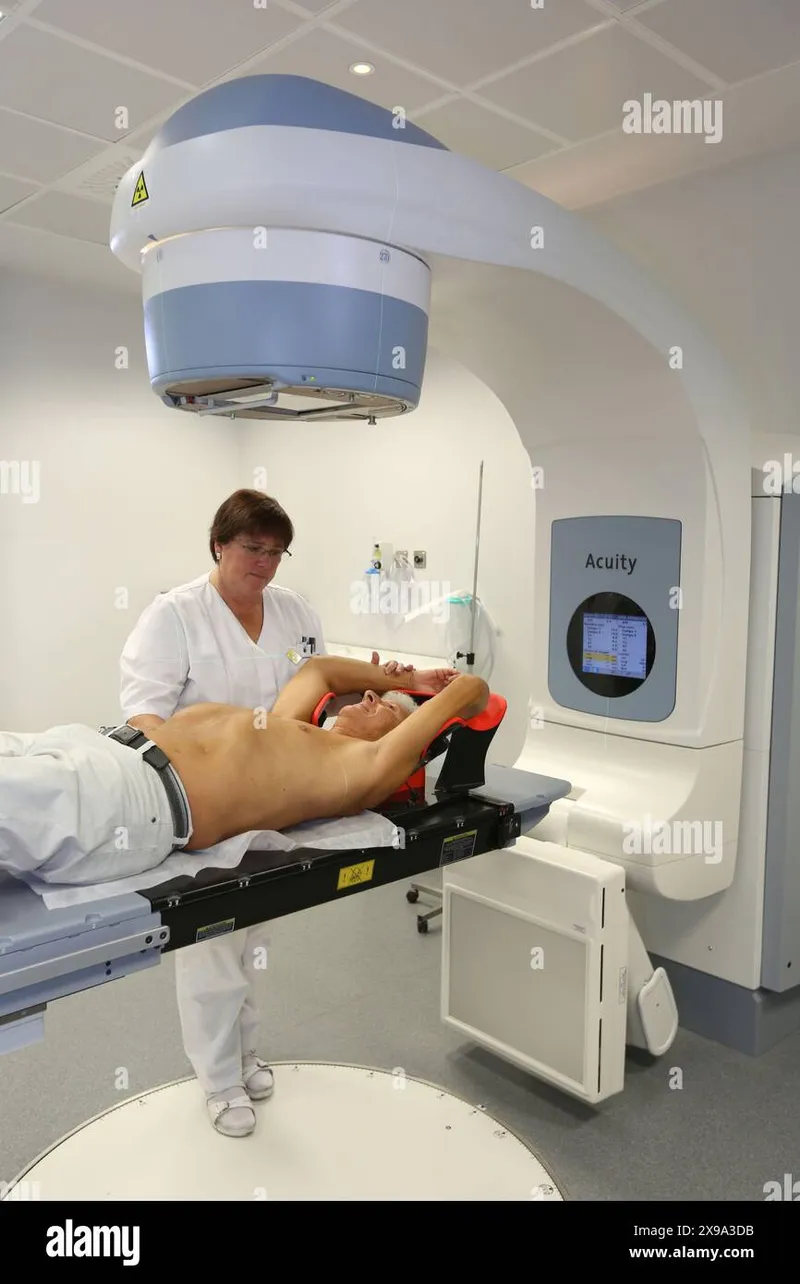

Patient positioning for radiotherapy treatment

⭐ For IMRT/VMAT, patient-specific QA passing criteria are often 95% of measured points within 3% dose difference and 3mm distance-to-agreement (gamma index).

High‑Yield Points - ⚡ Biggest Takeaways

  • Immobilization is paramount for treatment reproducibility and setup accuracy.
  • CT simulation defines target volumes (GTV, CTV, PTV) and Organs at Risk (OARs).
  • Image registration/fusion (CT, MRI, PET) enhances precise target delineation.
  • Beam arrangement, energy selection, and modifiers optimize dose distribution.
  • Dose calculation algorithms (e.g., Pencil Beam, Monte Carlo) determine dose delivery.
  • Plan evaluation via Dose Volume Histograms (DVHs) assesses target coverage and OAR sparing.
  • Pre-treatment QA and IGRT (Image-Guided Radiotherapy) ensure accurate treatment delivery.

Practice Questions: Treatment Planning Process

Test your understanding with these related questions

Which of the following stages of Breast Cancer corresponds to the following features: a breast mass of 6 x 3 cm, ipsilateral supraclavicular lymph node involvement, and distant metastasis that cannot be assessed?

1 of 5

Flashcards: Treatment Planning Process

1/9

_____ are the most common form of radiation used in radiotherapy

TAP TO REVEAL ANSWER

_____ are the most common form of radiation used in radiotherapy

X-rays
