External Beam Radiation Therapy

On this page

EBRT Intro - Healing Rays

  • EBRT: Uses external radiation (X-rays, gamma rays, electrons) from machines like Linacs or Cobalt-60 units to treat tumors.
  • Mechanism: Delivers precise radiation doses to the tumor while sparing surrounding healthy tissues.
  • Fractionation: Total radiation dose is divided into multiple smaller daily treatments (fractions).
    • Allows normal cells to repair.
    • Exploits differences in radiobiology between tumor and normal cells.

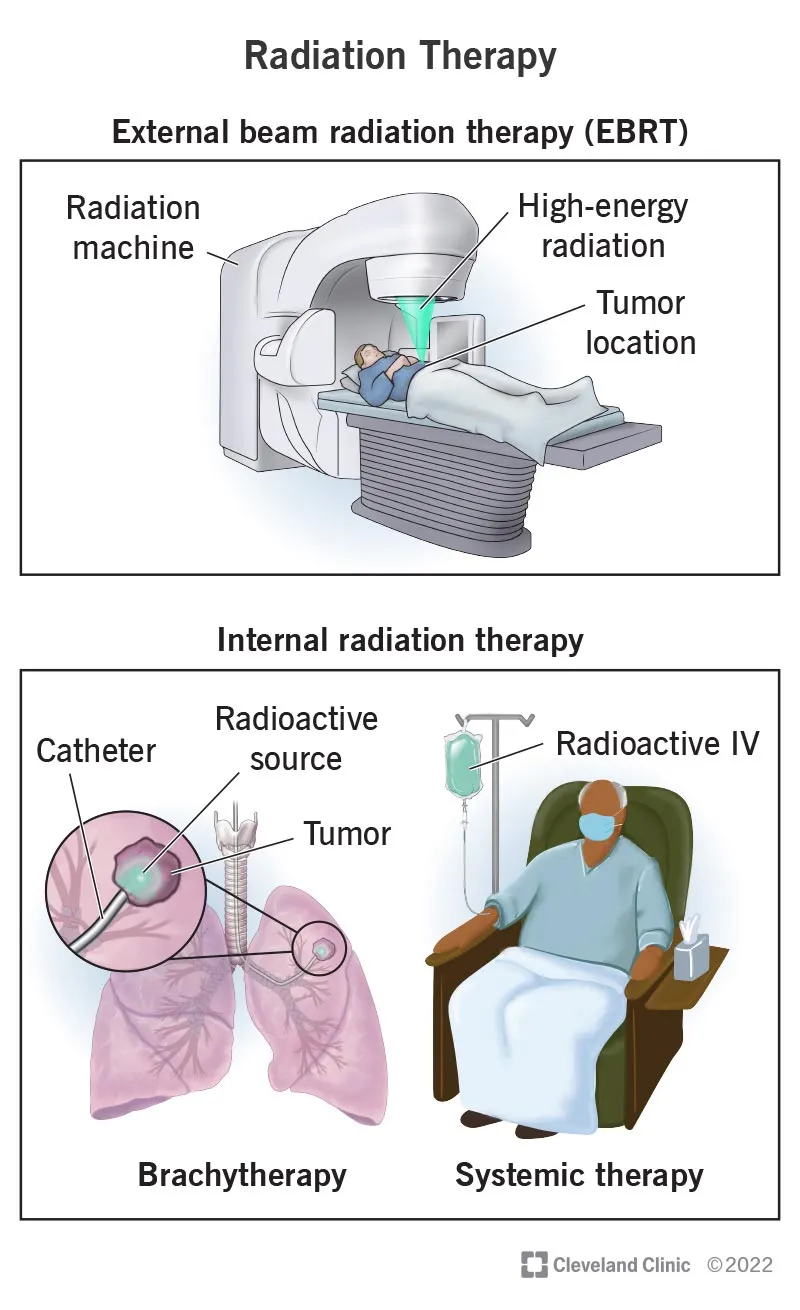

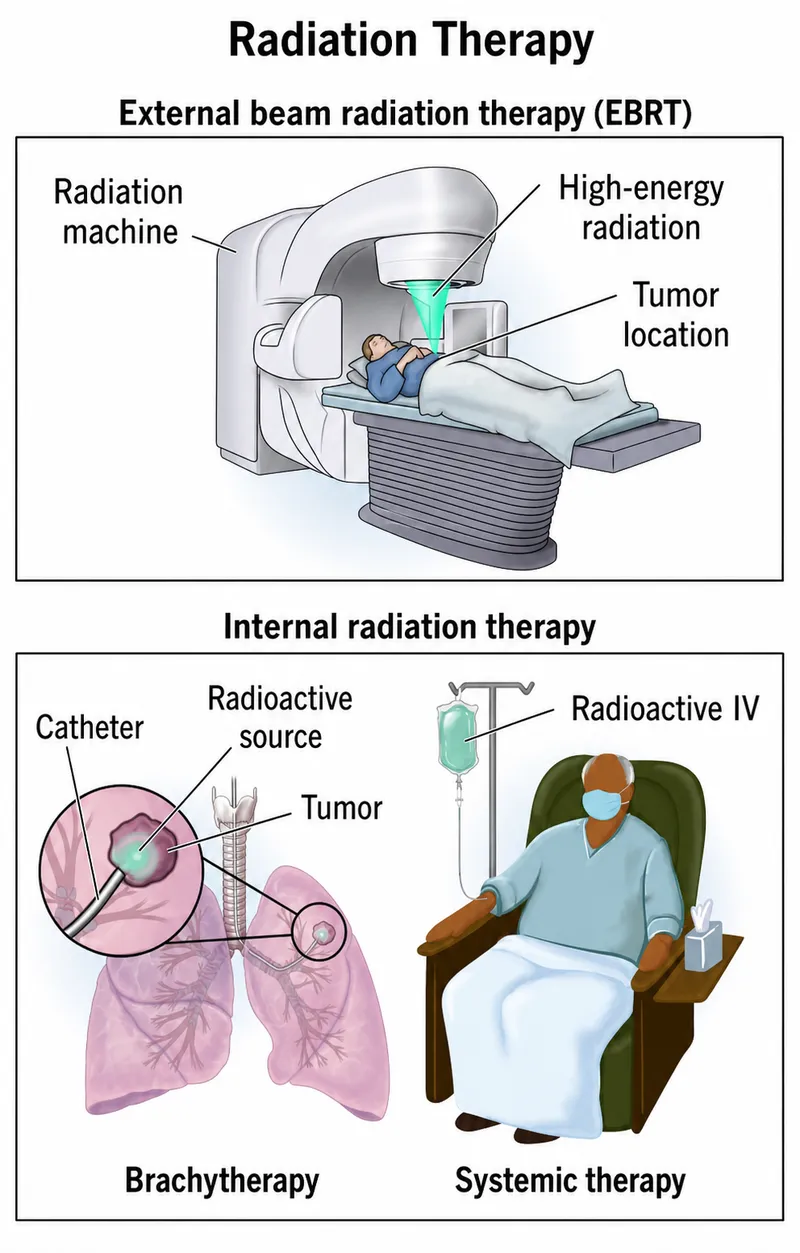

  • Therapeutic Ratio (TR): $TR = \frac{TCP}{NTCP}$ (Tumor Control Probability / Normal Tissue Complication Probability). External Beam Radiation Therapy (EBRT) Diagram

⭐ Higher Therapeutic Ratio (TR) = better treatment outcome.

Linac & Co. - The Beam Machines

  • Linear Accelerator (Linac): Most common EBRT machine.
    • Produces X-rays (photons) for deep tumors & electrons for superficial targets (e.g., skin, nodes <5 cm).
    • Key parts: Electron gun, waveguide, bending magnet, target, filter, collimators (MLCs).
  • Cobalt-60 Units:
    • Radioactive $^{60}Co$ source emitting gamma rays (avg. 1.25 MeV).
    • Simpler design, larger penumbra due to source size. Source needs periodic replacement.

⭐ Modern Linacs can deliver highly conformal treatments like IMRT and VMAT due to precise Multi-Leaf Collimators (MLCs).

Plan & Target - Precision Plotting

  • Simulation (Sim): Patient positioning, immobilization.
    • CT sim: Standard; electron density for dose calc.
    • Optional: MRI (soft tissue), PET-CT (metabolic).
  • Target Volume Definition (ICRU 50, 62): 📌 Go Catch The Internal Plan (GTV→CTV→ITV→PTV)
    • GTV (Gross Tumor Volume): Macroscopic disease.
    • CTV (Clinical Target Volume): GTV + microscopic spread.
    • ITV (Internal Target Volume): CTV + internal margin (IM) for motion.
    • PTV (Planning Target Volume): CTV/ITV + setup margin (SM).
      • $PTV = ITV + SM$; $ITV = CTV + IM$.
    • OAR (Organs at Risk): Normal tissues. PRV.
  • Treatment Planning:
    • Dose, energy, angles, modifiers (MLCs, wedges).
    • Dose calc: Algorithms (Pencil Beam, Monte Carlo).
    • Plan Eval: Dose Volume Histograms (DVH).

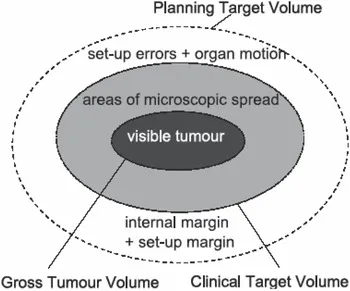

Tumor Volumes in Radiation Therapy Planning

⭐ PTV accounts for organ motion (IM) & setup variations (SM), ensuring CTV dose coverage despite uncertainties.

Delivery Tech - Smart Strikes

  • 3D-CRT: Beams match tumor shape via Multi-Leaf Collimators (MLCs).
  • IMRT: Modulates beam intensity; ↑ conformity, ↓ Organ at Risk (OAR) dose. Uses inverse planning.
  • VMAT/RapidArc: Arc-based IMRT; faster delivery.
  • IGRT: Daily imaging (e.g., Cone Beam CT - CBCT) ensures treatment accuracy. Essential for precision.
  • SBRT/SABR: High dose/fraction (e.g., 1-5 fx); for small extracranial tumors.

    ⭐ SBRT: ablative doses, high precision; boosts local control (e.g., early lung cancer, oligometastases).

  • SRS: Single high-dose fraction for intracranial lesions.

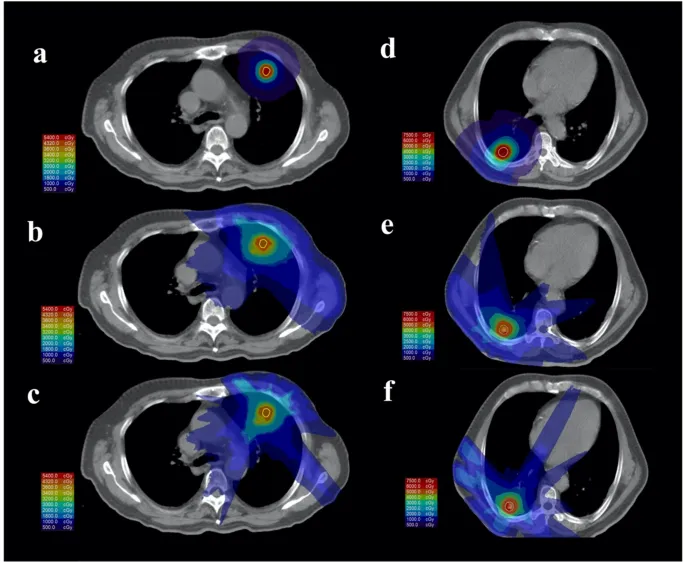

  • Proton Therapy: Bragg peak spares distal tissues; minimal exit dose. Dose distributions: 3D-CRT, IMRT, Proton Therapy

Radiobiology & Reactions - Cell Battle & Aftermath

  • Radiation damages DNA: Indirect action (water radiolysis, $OH^{\cdot}$ free radicals) is dominant over direct action. Double-Strand Breaks (DSBs) are most lethal.
  • Cell cycle sensitivity: M & G2 phases are most sensitive; late S phase is most resistant.
  • The 4 R's of Radiobiology: Repair (of sublethal damage), Repopulation (of cells), Redistribution (of cells in cycle), Reoxygenation (of hypoxic tumor cells).
  • Acute reactions: Occur during or shortly after RT (e.g., mucositis, dermatitis). Typically reversible.
  • Late reactions: Occur months to years post-RT (e.g., fibrosis, necrosis). Often permanent & dose-limiting.

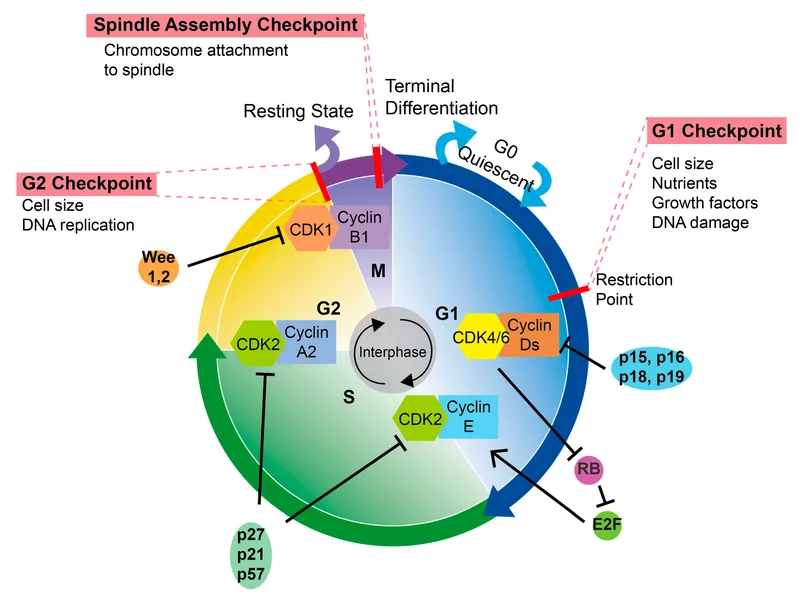

⭐ Tissues with high radiosensitivity include lymphoid, hematopoietic, and gonadal tissues. Muscle and CNS are relatively radioresistant. Cell Cycle Phases and Checkpoints

High‑Yield Points - ⚡ Biggest Takeaways

  • LINACs (Linear Accelerators) are the primary EBRT machines, delivering photon (most common) or electron beams (for superficial tumors).
  • Teletherapy is treatment from a distance, contrasting with brachytherapy.
  • Fractionation (dividing the total dose into multiple smaller daily doses) is key to spare normal tissue and improve tumor kill over weeks.
  • Modern techniques like IMRT (Intensity-Modulated Radiation Therapy) and VMAT (Volumetric Modulated Arc Therapy) allow high dose conformity to the tumor, sparing OARs (Organs at Risk).
  • IGRT (Image-Guided Radiation Therapy) ensures daily treatment accuracy by verifying patient and tumor position.
  • Acute side effects (e.g., dermatitis, mucositis, fatigue) are common, site-dependent, and generally manageable.
  • Late effects can include fibrosis, organ dysfunction, and a small risk of radiation-induced secondary cancers years later.
