Pediatric Oncology Imaging - Tiny Tumors, Big Scans

  • Key principles: ALARA (As Low As Reasonably Achievable), frequent need for sedation/anesthesia, distinct tumor types & imaging protocols vs. adults.

⭐ The ALARA principle is paramount in pediatric radiology due to increased radiosensitivity and longer life expectancy.

  • Common Cancers & Initial Imaging:
TumorPreferred Initial Imaging
NeuroblastomaUS (abdomen), MIBG if suspected
Wilms' TumorUS (abdomen), CT (chest for mets)
Leukemia/LymphomaCXR, US (nodes/organs)
RetinoblastomaUS (ocular), MRI (orbit/brain)
Bone Tumors (Osteo/Ewing's)X-ray, then MRI

Neuroblastoma Imaging - Belly Bad Guys

  • Origin: Neural crest cells; adrenal medulla (>50%), sympathetic chain.
  • Key Imaging:
    • US: Heterogeneous, ± calcifications.
    • CT: Calcifications (~85%), vascular encasement, defines Image-Defined Risk Factors (IDRFs).
    • MRI: Spinal canal/marrow involvement, IDRF assessment.
  • MIBG Scintigraphy: High specificity; staging & follow-up. 📌 MIBG = Most Important Bad Guy scan!
  • Staging: INRGSS based on IDRFs.
  • DDx: Ganglioneuroma, adrenal hemorrhage, Wilms' tumor.

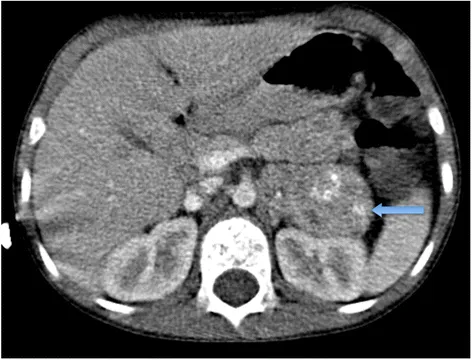

⭐ Calcification is seen in up to 85% of neuroblastomas on CT, often fine and punctate.

Loading diagram…

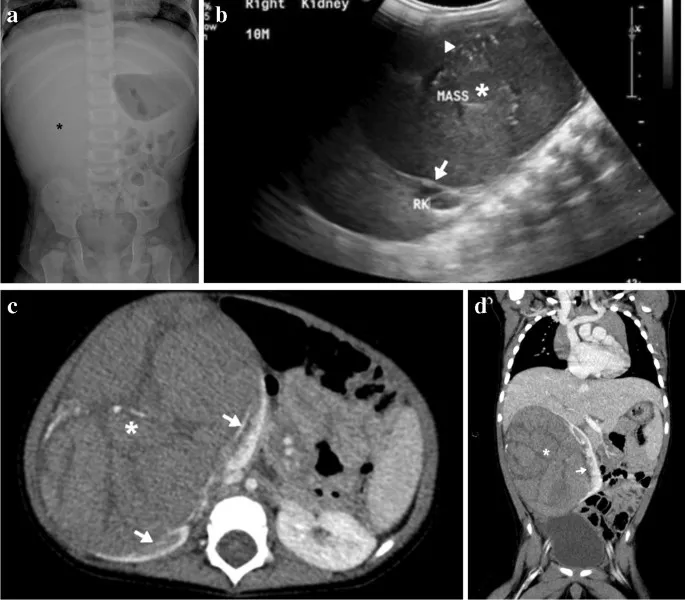

Wilms' Tumor Imaging - Kidney Capers

  • Origin: Metanephric blastema; Peak age: 3-4 years.
  • Imaging:
    • US: Initial, shows intrarenal mass.

      ⭐ The 'claw sign' on US/CT, where renal parenchyma is splayed around an intrarenal mass, is characteristic of Wilms' tumor.

    • CT: Staging (chest, abdomen, pelvis), contralateral kidney, vascular invasion (renal vein/IVC).
    • MRI: Problem-solving (e.g., IVC thrombus extent).
  • Features: Well-defined, pseudocapsule; necrosis, hemorrhage common. Typically NO calcification (vs. Neuroblastoma).
  • Assess: Contralateral kidney (synchronous tumor/nephroblastomatosis).
  • Associations: WAGR, Denys-Drash, Beckwith-Wiedemann.

Bone & Soft Tissue Sarcomas - Skeletal Spooks

  • Osteosarcoma:
    • Location: Metaphysis (esp. knee - distal femur/proximal tibia).

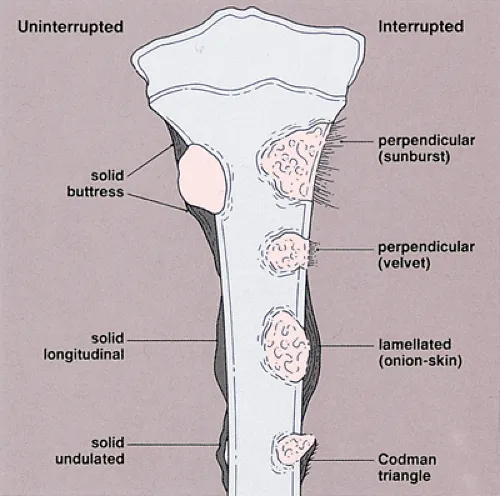

    • X-ray: Sunburst periostitis, Codman's triangle, cumulus cloud/osteoid matrix.
  • Ewing's Sarcoma:
    • Location: Diaphysis/metadiaphysis, flat bones. 📌 Ewing's = Ends (diaphysis) & Everywhere (soft tissue).
    • X-ray: Onion-peel periostitis, permeative/moth-eaten destruction, saucerization.
  • Rhabdomyosarcoma: Most common pediatric soft tissue sarcoma (head/neck, GU, extremities).

⭐ MRI is crucial for local staging of bone sarcomas, assessing intramedullary extent, soft tissue involvement, neurovascular proximity, and detecting skip lesions.

Lymphoma, Leukemia & Response - Cellular Chaos Control

  • Leukemia:
    • Bone: Metaphyseal bands, lytic lesions, periosteal reaction.
    • CNS: Leptomeningeal enhancement, chloromas (myeloid sarcoma).
  • Lymphoma (Hodgkin & NHL):
    • Nodal: Mediastinal (CXR, CT), abdominal, peripheral (US, CT).
    • Extranodal: Bone, GI, CNS (MRI).
  • Imaging Modalities: CXR, US, CT (staging), MRI (CNS, MSK), PET-CT.
    • PET-CT: Staging (Lugano adapted), response (Deauville adapted: score 1-3 good).

    ⭐ FDG-PET/CT is the standard imaging modality for staging and response assessment in most pediatric lymphomas (e.g., Hodgkin lymphoma, DLBCL).

  • Emergencies: Imaging for typhlitis, SVC obstruction.

High‑Yield Points - ⚡ Biggest Takeaways

  • Neuroblastoma: Most common extracranial solid tumor; look for calcification & MIBG avidity.
  • Wilms' tumor: Commonest renal tumor; shows claw sign, respects midline.
  • Hepatoblastoma: Top pediatric liver cancer; ↑ AFP, use PRETEXT staging.
  • Ewing's sarcoma: Bone tumor; onion-skin periostitis, t(11;22) translocation.
  • Osteosarcoma: Bone tumor; sunburst pattern, metaphyseal location.
  • Rhabdomyosarcoma: Most frequent soft tissue sarcoma; botryoid type in hollow organs.
  • Leukemia/Lymphoma: Most common childhood malignancies; imaging shows mediastinal mass or bone marrow signs.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Pediatric Oncology Imaging

  1. 1. Investigation of choice for screening of proximal internal carotid artery stenosis is :

    • A. Computed tomography angiography
    • B. Doppler ultrasonography
    • C. Magnetic resonance angiography
    • D. Digital subtraction angiography
    Show answer

    Answer: B. Doppler ultrasonography

    Doppler ultrasonography - Doppler ultrasound is the investigation of choice for screening because it is non-invasive, widely available, cost-effective, and provides anatomical and hemodynamic information. - Measured blood-flow velocities, flow characteristics, and plaque visualization allow estimation of stenosis severity, while its safety supports serial monitoring. Magnetic resonance angiography - Magnetic resonance angiography can demonstrate carotid stenosis without ionizing radiation, but it is not the routine first-line screening investigation because Doppler ultrasonography is more accessible and economical. Digital subtraction angiography - DSA provides highly detailed images and is considered the diagnostic gold standard for carotid stenosis, but it is not preferred for initial screening. - Its invasiveness carries risks including stroke, arterial dissection, contrast nephropathy, and radiation exposure; it is reserved for discordant findings or intervention planning. Computed tomography angiography - CT angiography provides detailed anatomical assessment of the carotid arteries and can characterize plaque, but it is unnecessary as the routine screening test. - Use of ionizing radiation and iodinated contrast, with concerns in renal impairment or contrast allergy, generally reserves CTA for inconclusive ultrasound or surgical planning.

  2. 2. The X-ray of a knee in an adolescent boy is shown. What is the probable diagnosis?

    • A. Osteitis fibrosa cystica
    • B. Bone cyst with fracture
    • C. Conventional osteosarcoma
    • D. Chondromyxoid fibroma
    Show answer

    Answer: D. Chondromyxoid fibroma

    Chondromyxoid fibroma - Chondromyxoid fibroma classically presents in adolescents as an eccentric metaphyseal lytic lesion in the distal femur or other long bones around the knee. - A well-defined sclerotic margin without calcification or aggressive periosteal reaction supports this rare benign tumor and distinguishes it from osteosarcoma. Bone cyst with fracture - Bone cyst with fracture is less likely because no fracture line or displaced fragment is visible. A unicameral bone cyst is usually centrally located, whereas the supplied lesion has a lobulated, eccentric metaphyseal appearance. Osteitis fibrosa cystica - Osteitis fibrosa cystica reflects brown tumors from hyperparathyroidism and commonly involves multiple bones rather than producing one isolated metaphyseal lesion. - The expected systemic findings include raised calcium and parathyroid hormone levels with generalized demineralization, not a solitary well-defined lesion around the knee. Conventional osteosarcoma - Osteosarcoma is an aggressive lesion, typically showing cortical destruction, soft-tissue extension, and an aggressive periosteal reaction such as Codman’s triangle or a sunburst pattern. - It commonly produces osteoid matrix calcification, whereas the described lesion is well demarcated, sclerotic-marginated, and lacks calcification.

  3. 3. All of the following are features of Wilms tumour EXCEPT:

    • A. Predominance before 5 years
    • B. High survival with appropriate therapy
    • C. Renal mass at presentation
    • D. Rare, late pulmonary metastases
    Show answer

    Answer: D. Rare, late pulmonary metastases

    Rare, late pulmonary metastases is the exception because the lungs are the commonest distant metastatic site and may be involved at diagnosis. Renal mass at presentation is a characteristic manifestation of Wilms tumour. High survival with appropriate therapy is typical, with treatment based on surgery and chemotherapy and selective radiotherapy. Predominance before 5 years reflects the usual age distribution of Wilms tumour.

  4. 4. All of the following are recognized manifestations of neuroblastoma EXCEPT:

    • A. Café-au-lait spots
    • B. Opsoclonus
    • C. Pain in affected bones
    • D. Secretory diarrhea
    Show answer

    Answer: A. Café-au-lait spots

    Café-au-lait spots - Café au lait spots are not a typical manifestation of neuroblastoma, a tumor derived from neural crest cells that more often causes compression or metastatic symptoms. - Multiple café au lait spots are classically associated with neurofibromatosis type 1, caused by NF1 neurofibromin mutations, rather than neuroblastoma. Opsoclonus - Opsoclonus-myoclonus syndrome is an autoimmune paraneoplastic syndrome recognized in children with neuroblastoma, particularly at younger ages. - The syndrome produces rapid, irregular opsoclonus and sudden jerky myoclonus, making this a valid association with neuroblastoma. Secretory diarrhea - Neuroblastoma may secrete vasoactive intestinal peptide (VIP), causing severe, persistent watery diarrhea as a paraneoplastic manifestation. - This VIP-related diarrhea can occur particularly with abdominal neuroblastoma, so diarrhea is a recognized association rather than the exception. Pain in affected bones - Neuroblastoma commonly spreads to bone and bone marrow, especially in advanced disease, producing significant bone pain. - Bone pain may be a presenting feature of metastatic neuroblastoma, reflecting skeletal involvement and widespread disease rather than an unrelated symptom.

  5. 5. A 37-year-old man presented with a history of 2 episodes of generalized tonic-clonic seizures (GTCS), headache, right-sided weakness, and behavioral and personality changes. NCCT findings are provided. What is the most probable diagnosis?

    • A. Glioblastoma
    • B. Meningioma
    • C. Craniopharyngioma
    • D. Oligodendroglioma
    Show answer

    Answer: D. Oligodendroglioma

    Oligodendroglioma is favored by the left frontal cortical-subcortical lesion with coarse calcification in an adult presenting with seizures. Glioblastoma more typically has a heterogeneous necrotic appearance with substantial edema and is less characteristically calcified before treatment. Meningioma is usually an extra-axial dural-based mass rather than the intra-axial lesion shown. Craniopharyngioma arises in the sellar or suprasellar region, not the frontal location demonstrated here.

  6. 6. Which radiopharmaceutical was used for the illustrated early and delayed neck scintigraphy?

    • A. I-123 MIBG scan
    • B. Tc-99m sestamibi scan
    • C. Tc-99m sulphur colloid scan
    • D. Tc-99m pertechnetate scan
    Show answer

    Answer: B. Tc-99m sestamibi scan

    Tc-99m sestamibi scan - Tc-99m sestamibi localizes hyperfunctioning parathyroid tissue. - Persistent focal uptake on dual-phase or subtraction scintigraphy supports a parathyroid adenoma and helps guide preoperative localization. Tc-99m pertechnetate scan Tc-99m pertechnetate scan demonstrates thyroid uptake but does not characteristically show the illustrated delayed retention in hyperfunctioning parathyroid tissue. Tc-99m sulphur colloid scan - A Tc-99m sulphur colloid scan images the reticuloendothelial system, especially the liver and spleen, rather than endocrine glands. - It has no useful role in localizing parathyroid pathology or investigating hypercalcemia from primary hyperparathyroidism. I-123 MIBG scan - An I-123 MIBG scan detects catecholamine-handling tumors such as pheochromocytomas, paragangliomas, and neuroblastomas. - I-123 MIBG does not characteristically show the illustrated delayed retention in hyperfunctioning parathyroid tissue, so it would not be the appropriate investigation.

  7. 7. Ewing sarcoma was traditionally thought to arise from which precursor population?

    • A. Osteoclast precursor cells
    • B. B-lymphoid precursor cells
    • C. Myeloid precursor cells
    • D. Neuroectodermal precursors
    Show answer

    Answer: D. Neuroectodermal precursors

    Neuroectodermal precursors were traditionally proposed as the cell of origin of Ewing sarcoma. Mesenchymal progenitor cells are now the favoured precursor population, although its precise cell of origin remains unsettled. Osteoclast precursor cells belong to the monocyte–macrophage lineage rather than the historically proposed neuroectodermal lineage. B-lymphoid precursor cells give rise to B-lymphoblastic neoplasms, which can also have small round-cell morphology. Myeloid precursor cells give rise to myeloid neoplasms rather than Ewing sarcoma.

  8. 8. A 9-year-old female child presents with a history of headache and visual disturbances. What is the most likely diagnosis?

    • A. Craniopharyngioma
    • B. Pituitary macroadenoma
    • C. Optic nerve glioma
    • D. Hypothalamic hamartoma
    Show answer

    Answer: A. Craniopharyngioma

    Craniopharyngioma - Craniopharyngioma is a common suprasellar tumor in children and can cause headache from raised intracranial pressure alongside visual disturbances from optic pathway or chiasmal compression. - Childhood lesions typically form a cystic and solid suprasellar mass with characteristic calcifications, helping distinguish craniopharyngioma from other sellar-region tumors. Pituitary macroadenoma - Pituitary macroadenoma is extremely rare in children and more typically occurs in adults, making it less likely in a 9-year-old. - These tumors often produce hormonal hypersecretion syndromes, such as prolactin or growth hormone excess, rather than this presentation alone. Optic nerve glioma - Optic nerve glioma more commonly causes unilateral visual loss and proptosis, rather than the visual disturbances associated with a suprasellar mass. - It is associated with neurofibromatosis type 1 and typically appears as fusiform optic nerve enlargement, without the calcifications characteristic of childhood craniopharyngioma. Hypothalamic hamartoma - Hypothalamic hamartoma classically presents with gelastic seizures, characterized by inappropriate laughing spells, and may cause precocious puberty rather than headache and visual disturbances. - It is a non-enhancing isodense mass attached to the hypothalamus, without the cystic components or calcifications expected in craniopharyngioma.

  9. 9. The following physical appearance is seen in which of the following conditions?

    • A. Neuroblastoma
    • B. Nephroblastoma
    • C. Retinoblastoma
    • D. Osteoblastoma
    Show answer

    Answer: A. Neuroblastoma

    Neuroblastoma - Bilateral periorbital ecchymosis, or raccoon eyes, is a classic manifestation of orbital bone metastases from neuroblastoma. - This physical appearance results from hemorrhage and tumor infiltration into the orbital tissues, commonly seen in advanced neuroblastoma. Nephroblastoma - Also known as Wilms tumor, it primarily affects the kidneys and presents with abdominal mass. - Does not typically cause orbital involvement or periorbital ecchymosis as seen in the image. Retinoblastoma - An intraocular malignancy that presents with leukocoria (white pupillary reflex) rather than periorbital bruising. - May cause proptosis but does not typically result in the raccoon eyes appearance. Osteoblastoma - A benign bone tumor that commonly affects the spine and long bones. - Does not have a predilection for orbital bones and would not cause this characteristic periorbital appearance.

  10. 10. Investigation of choice for the diagnosis of congenital hypertrophic pyloric stenosis is:

    • A. USG
    • B. Barium meal
    • C. Barium meal follow through
    • D. CT scan with contrast
    Show answer

    Answer: A. USG

    USG - Ultrasound is the preferred initial investigation because it is non-invasive, avoids ionizing radiation, and directly visualizes the hypertrophied pyloric muscle in suspected congenital hypertrophic pyloric stenosis. - Characteristic findings include pyloric muscle thickness ≥4 mm and pyloric channel length ≥14 mm, supporting the diagnosis with high accuracy. CT scan with contrast - Contrast-enhanced CT is not routinely used because it exposes an infant to substantial ionizing radiation for a condition readily assessed by ultrasound. - CT is also less suitable for demonstrating the specific pyloric muscle thickening than the preferred ultrasound examination. Barium meal - A barium meal may demonstrate signs such as the string sign or shoulder sign, but it is generally a second-line investigation because it involves radiation exposure. - Although diagnostically useful, barium examination is less convenient and less safe than ultrasound for evaluating infantile hypertrophic pyloric stenosis. Barium meal follow through - Barium meal follow-through evaluates transit through the entire gastrointestinal tract, making it excessive for this localized gastric outlet obstruction. - It also requires radiation exposure and a prolonged examination, whereas ultrasound can assess the pylorus directly and efficiently.

Flashcards: Pediatric Oncology Imaging

  1. 1. _____ sign which is seen in the _____

    Show answer

    Drooping lily · duplex kidney

  2. 2. Wilm's tumor shows calcification in contrast-enhanced CT

    Show answer

    peripheral WAGR and Denys Drash

  3. 3. X-rays of the skull reveal enlarged sella and intersutural (wormian) bones in children with Congenital

    Show answer

    hypothyroidism

  4. 4. is the investigation of choice for retinoblastoma

    Show answer

    MRI of the orbit + brain

  5. 5. _____, _____, and _____ are the metaphyseal radiological features seen in _____.

    Show answer

    Cupping · fraying · splaying · rickets

  6. 6. Localized bilateral _____ destruction of the medial proximal _____ is called as _____ sign and is seen in early _____

    Show answer

    metaphyseal · tibia · Wimberger's · congenital syphilis.

  7. 7. What is a pathognomonic skeletal feature of child abuse on X-ray?

    Show answer

    Sub-epiphyseal micro-fracture (Classic Metaphyseal Lesion)

  8. 8. What is the imaging modality of choice for diagnosing ventricular dilatation in neonates?

    Show answer

    Neurosonogram

  9. 9. Target sign on USG Abdomen is suggestive of _____.

    Show answer

    intussusception

  10. 10. Contrast enema shows an empty microcolon in case of _____

    Show answer

    Meconium ileus
