Pulmonary Radiopharmaceuticals - Glowing Guides

  • Perfusion Agents:
    • Tc-99m MAA (Macroaggregated Albumin)

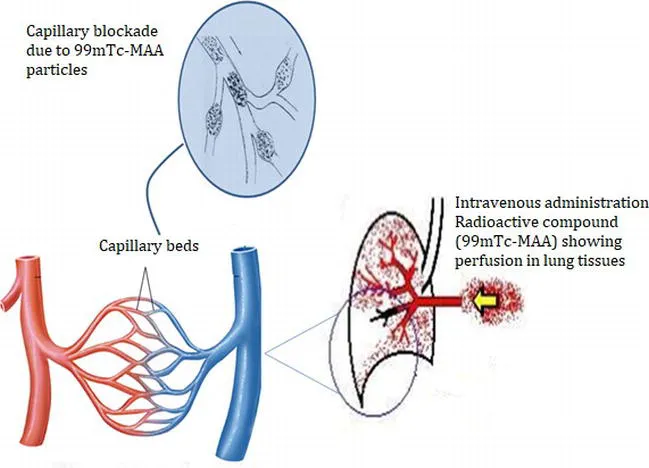

      • Mechanism: Capillary blockade (microembolization) in pulmonary arterioles. image
      • Particle size: 10-90 μm (ideal 20-50 μm for even distribution).
      • No. of particles: 200k-700k (adults). ↓ for PHT, R-L shunt (to 100k-200k), peds, pregnancy.
      • Contraindications (relative): Severe PHT, R-L shunt.
      • T½_bio: 2-8 hrs (enzymatic breakdown, RES clearance).

⭐ Tc-99m MAA: Particle size (10-90 μm) and number (200,000-700,000 for adults) are critical for safety and efficacy, preventing large emboli and ensuring proper distribution.

  • Ventilation Agents:
    • Gases:
      • $^{ ext{133}}$Xe: 81 keV (low E, poor images), T½ 5.2d. 3 phases (breath, equil, washout). Fat trapping (liver), requires negative pressure room.
      • $^{ ext{81m}}$Kr: 190 keV (good E), T½ 13s (ultra-short). From $^{ ext{81}}$Rb/$^{ ext{81m}}$Kr generator. Continuous flow, matches perfusion timing.
    • Aerosols:
      • Tc-99m DTPA: Nebulized (0.5-2 μm for alveolar deposition). Airway deposition. Risk of central clumping, patient cooperation needed. Inhaled particle deposition in airways and alveoli
      • Tc-99m Technegas: Ultrafine carbon particles (<0.2 μm). Gas-like, superior alveolar penetration. Specialized generator.

V/Q Scintigraphy - Breath vs Blood

Compares alveolar air entry (Ventilation) with blood flow (Perfusion) to detect pulmonary embolism (PE).

  • Ventilation (V) Scan:
    • Radiopharmaceutical: $^{99m}$Tc-Technegas or $^{99m}$Tc-DTPA aerosol.
    • Method: Inhalation.
    • Assesses: Alveolar air entry.
  • Perfusion (Q) Scan:
    • Radiopharmaceutical: $^{99m}$Tc-MAA (Macroaggregated Albumin).
    • Method: IV injection; particles lodge in capillaries.
    • Assesses: Pulmonary arterial perfusion.

Key Interpretation Patterns:

  • Normal: Homogeneous ventilation & perfusion.

    ⭐ A normal perfusion scan effectively rules out acute PE (NPV >99%).

  • Mismatch (V normal, Q ↓): Suggests PE. Classic: wedge-shaped, pleural-based.
  • Match (V ↓, Q ↓): Non-embolic (COPD, pneumonia, atelectasis).
  • Stripe Sign: Perfusion defect with preserved peripheral perfusion. Low PE probability.

PIOPED Criteria (Simplified PE Probability):

  • 📌 Mnemonic: "Two large mismatches point to High PE chance."
  • High Probability:2 large (≥75% of a segment) V/Q mismatches.
  • Low Probability: Matched defects, stripe sign, < 1 moderate V/Q mismatch.
  • Intermediate: Not high or low.

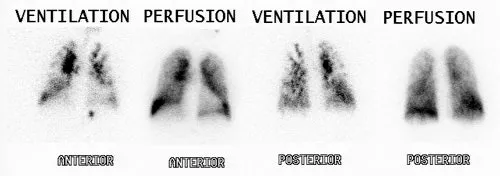

V/Q Scan: Classic PE Mismatch

Pulmonary PET & Other Scans - Hotspot Hunters

  • $^{18}$F-FDG PET/CT (Fluorodeoxyglucose):

    • Mechanism: Glucose analog; accumulates in cells with high glucose metabolism (malignancy, inflammation, infection).
    • Key Pulmonary Uses:
      • Oncology: NSCLC staging (nodal/distant mets), SPN characterization (SUVmax >2.5 suggests malignancy), therapy response, recurrence detection.
      • Inflammation/Infection: Identifies active processes; less specific for infection/inflammation.
  • $^{67}$Ga-Citrate (Gallium) Scan:

    • Mechanism: Iron analog; binds transferrin. Accumulates in inflammation, infection, some tumors (e.g., lymphoma).
    • Key Pulmonary Uses:
      • Sarcoidosis: Assessing disease activity. 📌 Panda sign (lacrimal, parotid, salivary glands) & Lambda sign (bilateral hilar, R paratracheal LNs).
      • Interstitial Lung Diseases (ILDs): Monitoring activity.
      • Pneumocystis jirovecii pneumonia (PJP) in HIV: Diffuse bilateral uptake.

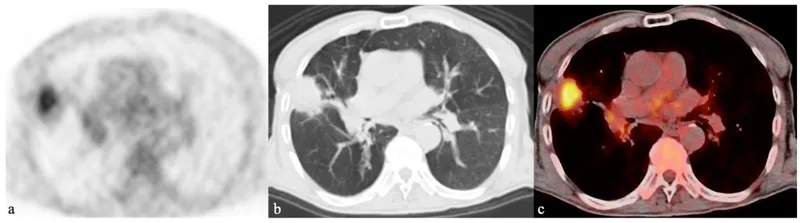

FDG PET/CT of lung cancer

⭐ FDG PET/CT is superior for NSCLC staging and crucial for characterizing indeterminate SPNs.

High‑Yield Points - ⚡ Biggest Takeaways

  • V/Q scan: Primary for PE with contrast allergy, pregnancy, or renal failure.
  • High probability PE (V/Q): ≥2 large mismatched segmental perfusion defects.
  • Perfusion: 99mTc-MAA. Ventilation: 99mTc-DTPA aerosol, 133Xe, 81mKr gas.
  • Stripe sign: Preserved peripheral perfusion around defect, indicates low PE probability.
  • Gallium-67 (67Ga) scan: Panda sign & Lambda sign characteristic for sarcoidosis.
  • 18F-FDG PET-CT: Essential for lung cancer staging & SPN (Solitary Pulmonary Nodule) assessment.
