PET/CT Basics - Pixel Power Duo

  • PET (Positron Emission Tomography):
    • Uses radiotracers (e.g., $^{18}$F-FDG) that emit positrons.
    • Positron-electron annihilation produces paired 511 keV gamma rays.
    • Reveals tissue metabolic function.
  • CT (Computed Tomography):
    • Utilizes X-rays for detailed anatomical cross-sections.
    • Essential for PET attenuation correction, improving image quality.
  • PET/CT Synergy:
    • Hardware fusion of PET's functional data with CT's anatomical map.
    • Enhances diagnostic accuracy and precise localization of disease.

⭐ PET provides functional/metabolic information, while CT provides anatomical localization and attenuation correction.

Radioactive Stars - Tracers & Targets

  • Radiotracers: Biologically active molecules with a positron-emitting radionuclide tag.
    • Designed for specific molecular targets or physiological pathways.
  • Ideal Properties:
    • Short effective half-life (e.g., $^{18}$F: 110 min).
    • High target-to-background ratio.
    • Minimal toxicity.
  • Common PET Radiotracers:
    • $^{18}$F-FDG (Fluorodeoxyglucose): Most widely used.

      $^{18}$F-FDG is a glucose analog; its uptake reflects glucose metabolism and is increased in most malignant cells, inflammatory processes, and infections.

    • $^{68}$Ga-DOTATATE: Somatostatin receptor imaging (NETs).
    • $^{18}$F-PSMA: Prostate-Specific Membrane Antigen imaging (Prostate Ca).
    • $^{13}$N-Ammonia: Myocardial perfusion. PET imaging process diagram

Scanner Secrets - How PET/CT Sees

  • PET (Positron Emission Tomography):
    • Radiotracer emits positrons ($β^+$).
    • $β^+$ annihilates with an electron ($e^-$).
    • Produces two 511 keV gamma photons, nearly 180° apart.
    • Detected by scintillation crystals (e.g., LSO, BGO).
  • CT (Computed Tomography):
    • Provides anatomical map via X-ray attenuation.
  • Hybrid Imaging:
    • PET (function) + CT (anatomy) = Precise localization.

⭐ PET relies on coincidence detection of two 511 keV gamma photons produced by positron-electron annihilation.

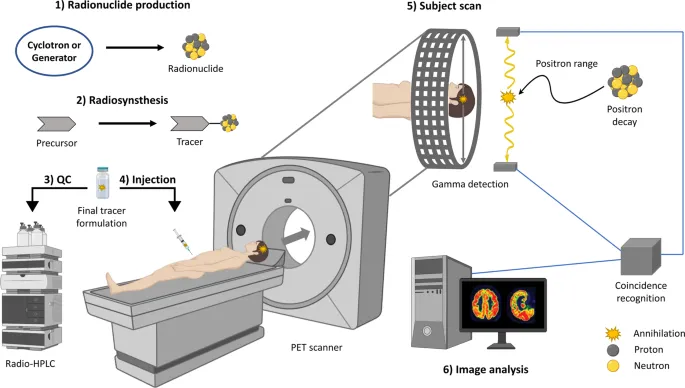

PET/CT process diagram

Clinical Cases - Disease Detectives

PET/CT showing multiple metastatic lesions

  • Oncology Powerhouse:
    • Diagnosis: Differentiating benign vs. malignant lesions (e.g., solitary pulmonary nodule).
    • Staging & Restaging: Essential for TNM staging and detecting recurrence.
    • Treatment Response: Assessing therapy effectiveness (e.g., PERCIST criteria).
    • Radiotherapy Planning: Precisely targeting tumors.
  • Neurological Insights:
    • Dementia: Early Alzheimer's detection (↓FDG uptake).
    • Epilepsy: Identifying epileptogenic foci for surgery.
  • Cardiac Viability: Assessing heart muscle health post-MI.
  • Inflammation/Infection:
    • Locating source in Fever of Unknown Origin (FUO).
    • Monitoring large vessel vasculitis.

⭐ PET/CT is the standard of care for staging, restaging, and response assessment in lymphoma (e.g., Hodgkin's and DLBCL).

Pitfalls & Protection - Spotting Gremlins Safely

  • Pitfalls:
    • Physiological uptake: Muscle activity, inflammation, infection.
    • Artifacts: Motion, metal attenuation, CT misregistration.
    • Drug-induced uptake: e.g., G-CSF, metformin.
  • Radiation Safety (📌 ALARA):
    • Time: Minimize exposure duration.
    • Distance: Maximize distance from source.
    • Shielding: Use lead aprons, barriers.
    • Patient prep: Hydration, frequent bladder voiding.

Brown Adipose Tissue (BAT) is a common physiological variant causing intense FDG uptake, often seen in supraclavicular, neck, and paraspinal regions, especially in cold or anxious patients. oka

  • PET uses radiotracers like ¹⁸F-FDG for functional/metabolic imaging.
  • CT provides precise anatomical localization and essential attenuation correction.
  • ¹⁸F-FDG, a glucose analog, indicates high glycolytic activity, vital in oncology.
  • Main applications: cancer staging/restaging, treatment response, dementia, cardiac viability assessment.
  • SUV (Standardized Uptake Value) is a key quantitative measure of tracer uptake.
  • Differentiate true lesions from physiological FDG uptake (e.g., brain, brown fat) and inflammation.

Practice Questions: PET/CT Principles and Applications

Test your understanding with these related questions

Which radiopharmaceutical is commonly used in positron emission tomography (PET) imaging?

1 of 5

Flashcards: PET/CT Principles and Applications

1/9

_____ scan is a nuclear medicine test designed to evaluate the function of right and left ventricles of the heart

TAP TO REVEAL ANSWER

_____ scan is a nuclear medicine test designed to evaluate the function of right and left ventricles of the heart

MUGA (multi gated acquisition)
