Neurointervention Toolkit - Gadgets & Gizmos

  • Access Sheaths & Needles: For initial vascular entry (e.g., Seldinger technique).
  • Catheters:
    • Guiding Catheters (5-9F): Provide support, pathway for other devices.
    • Microcatheters (1.5-3F): Navigate distal, tortuous vessels; deliver coils, liquids. Diameters often 0.010-0.027 inches.
  • Guidewires & Microwires:
    • Guidewires (0.035-0.038 inch): Steer catheters.
    • Microwires (0.008-0.014 inch): Navigate microcatheters.
  • Embolic Devices & Stents:
    • Detachable Coils: Platinum, for aneurysm occlusion.
    • Liquid Embolics: Onyx, n-BCA (glue) for AVMs, dAVFs.
    • Stent-Retrievers: For mechanical thrombectomy (e.g., Solitaire, Trevo).
    • Flow Diverters: For large/giant wide-necked aneurysms (e.g., Pipeline).

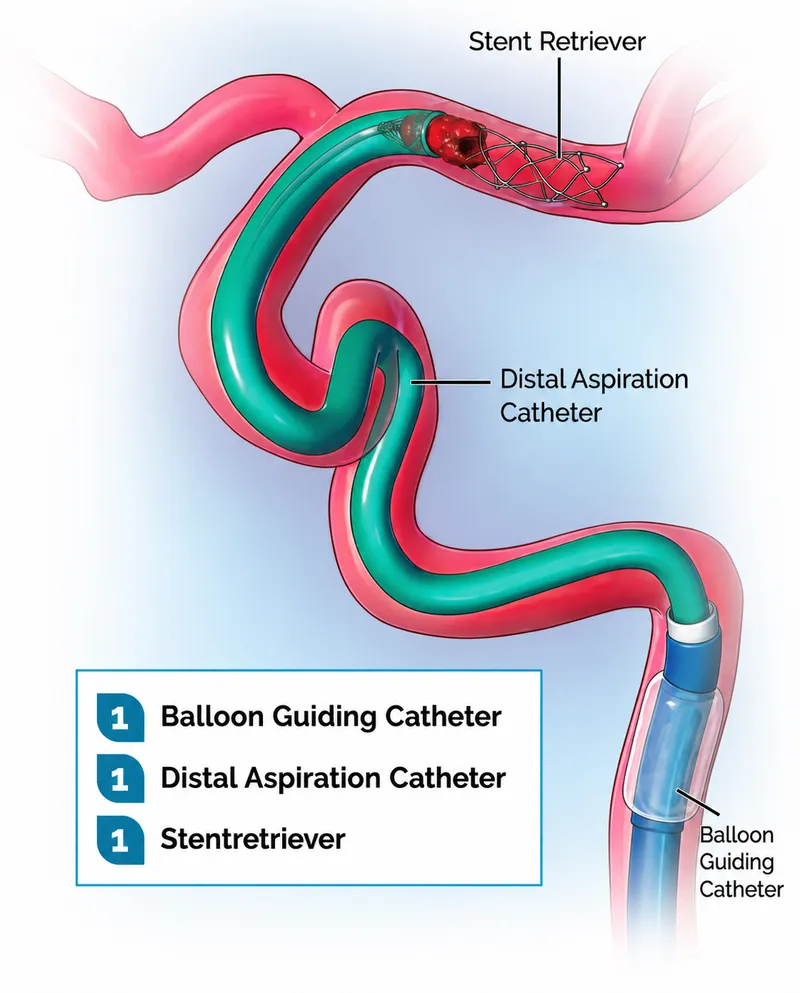

  • Balloons: Angioplasty, temporary vessel occlusion, compliant/non-compliant types. Neurointerventional stroke thrombectomy devices

⭐ The Penumbra system is an example of an aspiration catheter used for mechanical thrombectomy in acute ischemic stroke, often in conjunction with stent retrievers.

Brain Angio Basics - Mapping the Pipes

  • Digital Subtraction Angiography (DSA): Gold standard for cerebrovascular imaging. Principle: digital subtraction of bone/soft tissue.
  • Access: Common femoral artery (Seldinger technique) standard; radial artery alternative.
  • Catheters: Guiding catheters for support, microcatheters for superselective navigation.
  • Contrast: Non-ionic, low-osmolar or iso-osmolar iodinated agents.
  • Phases: Arterial, capillary, venous phases visualized.
  • Key Anatomy:
    • ICA Segments (C1-C7): Cervical, Petrous, Lacerum, Cavernous, Clinoidal, Ophthalmic, Communicating.
    • Circle of Willis (CoW): Junction of ACA, ACoA, ICA, PCoA, PCA.
      • Anterior Circulation: ICA, ACA, MCA.
      • Posterior Circulation: Vertebral, Basilar, PCA.

Cerebral angiogram with PCOM aneurysm

⭐ The Circle of Willis is complete in only 20-25% of individuals; a hypoplastic posterior communicating artery (PCoA) is the most common variant.

Clot Busters & Fixers - Stroke & Aneurysms

  • Ischemic Stroke (Clot Busters): 📌 TIME IS BRAIN
    • Mechanical Thrombectomy (MT):
      • Indication: Large Vessel Occlusion (LVO) - ICA, M1/M2, Basilar.
      • Window: Within 6 hours; up to 24 hours for select patients (DAWN/DEFUSE-3 criteria).
      • Devices: Stent retrievers (e.g., Solitaire), Aspiration catheters (e.g., Penumbra).
      • Goal: TICI score 2b/3 (reperfusion).
    • Intra-arterial (IA) Thrombolysis:
      • Agent: Alteplase (rtPA).
      • Window: Extended up to 6 hours if IV tPA failed/contraindicated. Less common with MT.
  • Cerebral Aneurysms (Fixers):
    • Endovascular Coiling:
      • For ruptured/unruptured saccular aneurysms.
      • Platinum coils induce thrombosis.
      • Adjuncts: Stent-assisted, balloon-assisted for wide necks.
    • Flow Diverters (e.g., Pipeline):
      • For large/giant, wide-necked, or fusiform aneurysms.
      • Promotes aneurysm thrombosis by altering flow.

Mechanical thrombectomy for stroke

⭐ Mechanical thrombectomy for LVO stroke can be performed up to 24 hours from onset in eligible patients (DAWN/DEFUSE-3 trials), dramatically improving outcomes.

Vessel Repair Shop - AVMs, DAVFs & Stenosis

  • Arteriovenous Malformations (AVMs):
    • Congenital; direct artery-to-vein shunt, no capillary bed.
    • Presentation: Hemorrhage, seizures, focal deficits.
    • Treatment: Embolization (glue, coils), surgery, radiosurgery.
    • Grading: Spetzler-Martin (size, eloquence, venous drainage). DSA of cerebral AVM nidus and early draining vein
  • Dural Arteriovenous Fistulas (DAVFs):
    • Acquired; dural artery to venous sinus/cortical vein.
    • Symptoms: Pulsatile tinnitus, headache; hemorrhage if cortical venous reflux.
    • Classification: Cognard, Borden (venous drainage dictates risk).

    ⭐ Cortical venous reflux (e.g., Cognard type IIb and above) in DAVFs dramatically ↑ hemorrhage risk, mandating prompt intervention.

  • Arterial Stenosis (Intracranial & Extracranial):
    • Mainly atherosclerotic.
    • Goal: Stroke prevention.
    • Treatment:
      • Medical therapy (antiplatelets, statins).
      • Percutaneous Transluminal Angioplasty & Stenting (PTAS).
        • Symptomatic intracranial: Consider for >70% stenosis if medical therapy fails.
        • Symptomatic carotid: >50-70% stenosis (NASCET criteria).

High‑Yield Points - ⚡ Biggest Takeaways

  • Endovascular coiling is primary for most intracranial aneurysms, especially posterior circulation.
  • Mechanical thrombectomy is crucial for large vessel occlusion in acute ischemic stroke (AIS).
  • Embolization (glue/particles) treats AVMs, dural AVFs, and hypervascular tumors pre-operatively.
  • Carotid artery stenting is an alternative for select symptomatic carotid stenosis.
  • DSA remains gold standard for evaluating cerebrovascular pathology and guiding interventions.
  • Vertebroplasty/kyphoplasty manage pain in osteoporotic vertebral compression fractures.
