Cerebral Hemispheres & Lobes - Brainy Bits & Bobs

  • Two hemispheres (L/R), linked by Corpus Callosum.
  • Key Sulci: Central Sulcus (Rolandic), Lateral Fissure (Sylvian).
  • Lobes (F-POTI): 📌 Frontal, Parietal, Occipital, Temporal, Insula.
    • Frontal: Motor control, executive function, Broca's area (expressive speech).
    • Parietal: Somatosensory input, spatial awareness, part of Wernicke's area.
    • Temporal: Auditory processing, memory, olfaction, Wernicke's area (receptive speech).
    • Occipital: Vision.
    • Insula: Deep lobe; autonomic control, emotion, interoception. Lateral view brain anatomy with lobes and key sulci

⭐ The Central Sulcus separates the Frontal Lobe (containing precentral gyrus/motor cortex) from the Parietal Lobe (containing postcentral gyrus/somatosensory cortex).

Ventricular System & CSF Pathways - Fluid Highways

CSF flow pathway diagram

  • Network of four CSF-filled cavities: Two Lateral Ventricles, Third Ventricle, Fourth Ventricle.

  • CSF Production: Primarily by choroid plexus in lateral & third ventricles. Rate: ~20 mL/hr (total 400-500 mL/day). Normal volume: 125-150 mL.

  • CSF Circulation Pathway:

  • CSF Absorption: Via arachnoid granulations into dural venous sinuses, mainly Superior Sagittal Sinus.

  • 📌 Foramina: Luschka = Lateral; Magendie = Median.

⭐ The Aqueduct of Sylvius, being the narrowest segment, is a critical chokepoint; its obstruction is a common cause of non-communicating hydrocephalus.

Brainstem & Cerebellum - Control Central Hub

  • Brainstem: Midbrain, Pons, Medulla. Relay station; CN nuclei (III-XII).
    • Midbrain: CN III, IV. Cerebral peduncles, tectum, substantia nigra.
    • Pons: CN V-VIII. Middle cerebellar peduncles (MCPs), basilar artery.
    • Medulla: CN IX-XII. Pyramids, olives. Vital centers (cardiac, respiratory).
  • Cerebellum: Vermis, hemispheres. Coordination, balance, motor learning.
    • Peduncles (SCP, MCP, ICP) connect to brainstem segments.
    • Common lesions: Infarcts, tumors (medulloblastoma, astrocytoma). Sagittal T2 MRI of brainstem and cerebellum

⭐ Posterior Inferior Cerebellar Artery (PICA) infarct causes Wallenberg (Lateral Medullary) Syndrome.

Cerebral Vasculature - Brain's Blood Lines

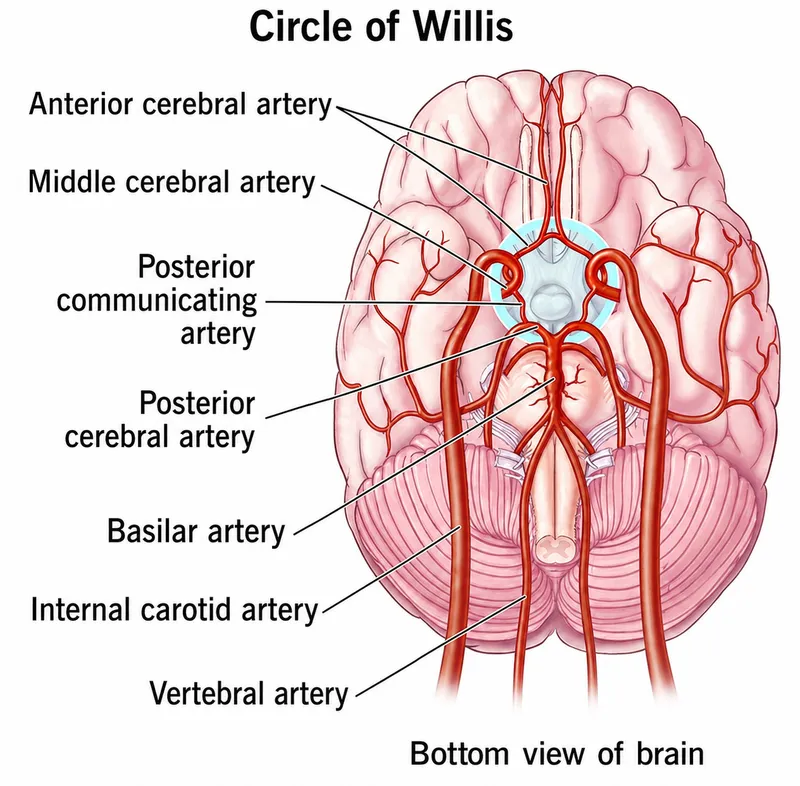

  • Circle of Willis: Key arterial anastomosis at brain's base ensuring collateral flow.
    • Formed by: Internal Carotid Arteries (ICAs) & Vertebral arteries (via Basilar artery).
    • Components: AComA, PComAs, ACAs (A1 segments), PCAs (P1 segments), ICA termini. Circle of Willis and major cerebral arteries labeled
  • Major Arterial Territories:
    • ACA (Anterior Cerebral Artery): Medial cerebral hemispheres (frontal, parietal lobes). Contralateral leg > arm motor/sensory loss.
    • MCA (Middle Cerebral Artery): Lateral hemispheres, insula, parts of temporal/parietal lobes. Contralateral arm/face > leg weakness, aphasia (dominant), neglect (non-dominant).

      ⭐ The MCA is the most frequently occluded artery in stroke.

    • PCA (Posterior Cerebral Artery): Occipital lobes, medial temporal lobes, thalamus. Contralateral homonymous hemianopia.
  • Dural Venous Sinuses: Collect venous blood, drain into Internal Jugular Veins (IJVs).
    • Major sinuses: Superior Sagittal, Transverse, Sigmoid Sinuses.

Key Sulci, Gyri & Tracts - Navigating Brain Folds

  • Landmark Sulci (Fissures):
    • Central Sulcus (Rolandic): Divides frontal (motor) & parietal (sensory) lobes.
    • Sylvian Fissure (Lateral): Separates temporal from frontal & parietal; houses MCA.
    • Parieto-occipital Sulcus: Medial; separates parietal & occipital lobes.
    • Calcarine Sulcus: Medial occipital; primary visual cortex.
  • Functionally Critical Gyri:
    • Precentral Gyrus: Primary motor cortex.
    • Postcentral Gyrus: Primary somatosensory cortex.
    • Superior Temporal Gyrus: Auditory cortex, Wernicke's area.
  • Major White Matter Tracts:
    • Corticospinal Tract: Descending motor pathway.
    • Corpus Callosum: Largest commissure; connects hemispheres.
    • Arcuate Fasciculus: Connects Broca's & Wernicke's areas. Axial MRI Brain Anatomy with Labels

⭐ The genu of the corpus callosum connects frontal lobes; the splenium connects occipital/temporal lobes. Lesions cause specific disconnection syndromes.

High‑Yield Points - ⚡ Biggest Takeaways

  • Circle of Willis: Note common variants; PCOM/ACOM are key aneurysm sites.
  • MCA territory infarcts: Most frequent; affect motor, sensory, language.
  • Basal ganglia: Caudate, putamen, globus pallidus; recognize calcification/signal changes.
  • CSF flow: Obstruction causes hydrocephalus; aqueductal stenosis is a key cause.
  • Cranial nerves: Know pathways & foramina; CN III palsy links to PCOM aneurysm.
  • Dural venous sinus thrombosis: Look for empty delta sign or dense clot.
  • Key sulci/gyri: Central sulcus, Sylvian fissure, pre/postcentral gyri are vital landmarks.
